TB6612 - two-channel 13.5V / 1.2A motor driver with connectors - Adafruit 2448
Dual-channel driver motors on the basis of the layout of the TB6612FNG. The voltage of the motors isd 4.5 V to 13.5 Vand logic voltage ranges from 2.7 V to 5 V. The module allows control of two DC motors (DC), stepper motor or to run two solenoids with the help of the module with a microcontroller, such as Arduino.
We could not load the price.
The promotional price does not combine with quantity discounts.
Description of product: Adafruit TB6612 dual - channel driver engines at 13.5 V/1.2 A with plugs
Dual-channel driver motors on the basis of the layout of theTB6612FNG, and is also necessary for the correct functioning of the passive components.Voltage motor power supplyisfrom 4.5 V to 13.5 Vandlogic voltagerangesfrom 2.7 V to 5 V.the Module allows control of twoDC motors (DC),stepper motoror to run twosolenoidswith the help of the module with a microcontroller, such asArduino.
Botland is an official distributor of Adafruit electronics. These dependable American solutions cover sensors, controllers, Arduino shields, educational systems, smart building and a wide range of accessories. The Botland range holds original Adafruit products only.
The product is compatible withArduino Auser manualwith the program for users ofArduino. |
Insights Adafruit TB6612 dual - channel driver engines at 13.5 V/1.2 A with plugs

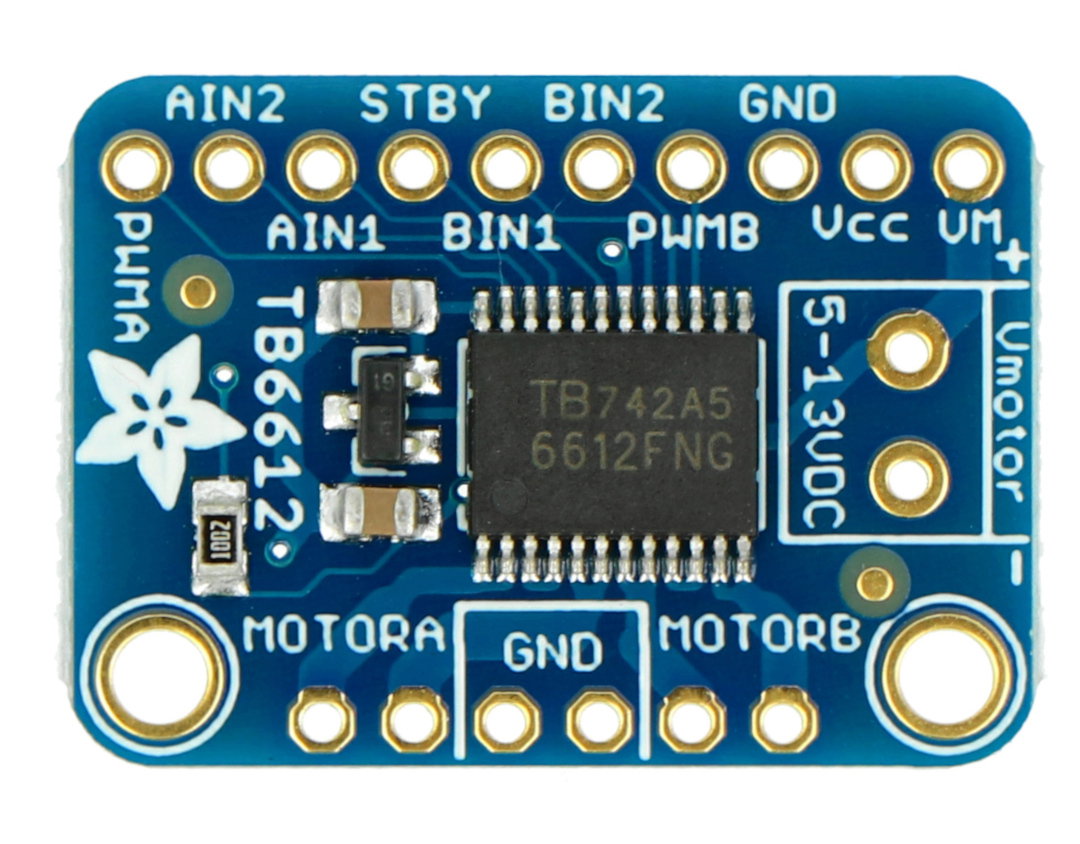

The Board has insights to which solder can goldpiny raster 2.54 mm. This simplifies the connection of the driver with the other elements.Voltage motors range from 4.5 V to 13.5 V and logic voltage ranges from 2.7 V to 5 V. the Module allows control of two DC motors (DC), stepper motor or to run two solenoids.
Power pins
| Pin | Description |
|---|---|
| Vmotor | Contacts used to power the engines, not the pieces of the puzzle. Supply voltage is from 4.5 V to 13.5 V. |
| VCC | Power logic, Voltage ranges from 2.7 V to 5.5 V. |
| GND | The mass of the system common to the pieces of the puzzle and power engines. |
Contacts signal
| Pin | Description |
|---|---|
| INA1,INA2 | The control inputs of the engine A. |
| PWMA | Input PWM engine. If you do not want, you can connect it to as higher logic. |
| INB1,INB2 | Inputs to the engine control B. |
| PWMB | Input PWM engine. If you do not want, you can connect it to as higher logic. |
| STBY | PIn to quickly turn off the motors connected to VCC through a resistor of 10 k?, To disable must be connected to GND. |
The outputs of the engines
| Pin | Description |
|---|---|
| According to the settings of your monitor | Two outputs for the motor And drivenINA1, INA2andPWMA |
| MotorB | Two outputs for the motor And drivenINB1, INB2andPWMB |
Specification Adafruit TB6612 dual - channel driver engines at 13.5 V/1.2 A with plugs
- Food:
- Part of the puzzle: from 2.7 V to 5.5 V
- Motors: from 4.5 V to 13.5 V
- Driver: TB6612
- Current per channel: 1.2 A
- Instantaneous current per channel: 3 A
- Supported engines:
- Two DC motors
- One stepper motor
- Dimensions: 27 x 19 x 3 mm
- Weight: 1.8 g
Useful links
| Name | Value |
|---|---|
| Voltage to | 4.5 V |
| Voltage from | 13.5 V |
| Current | 1.2 A |
| Channels | 2 |
| Width | 7.5 cm |
| Height | 14 cm |
| Depth | 0.5 cm |
| Weight | 0.004 kg |
