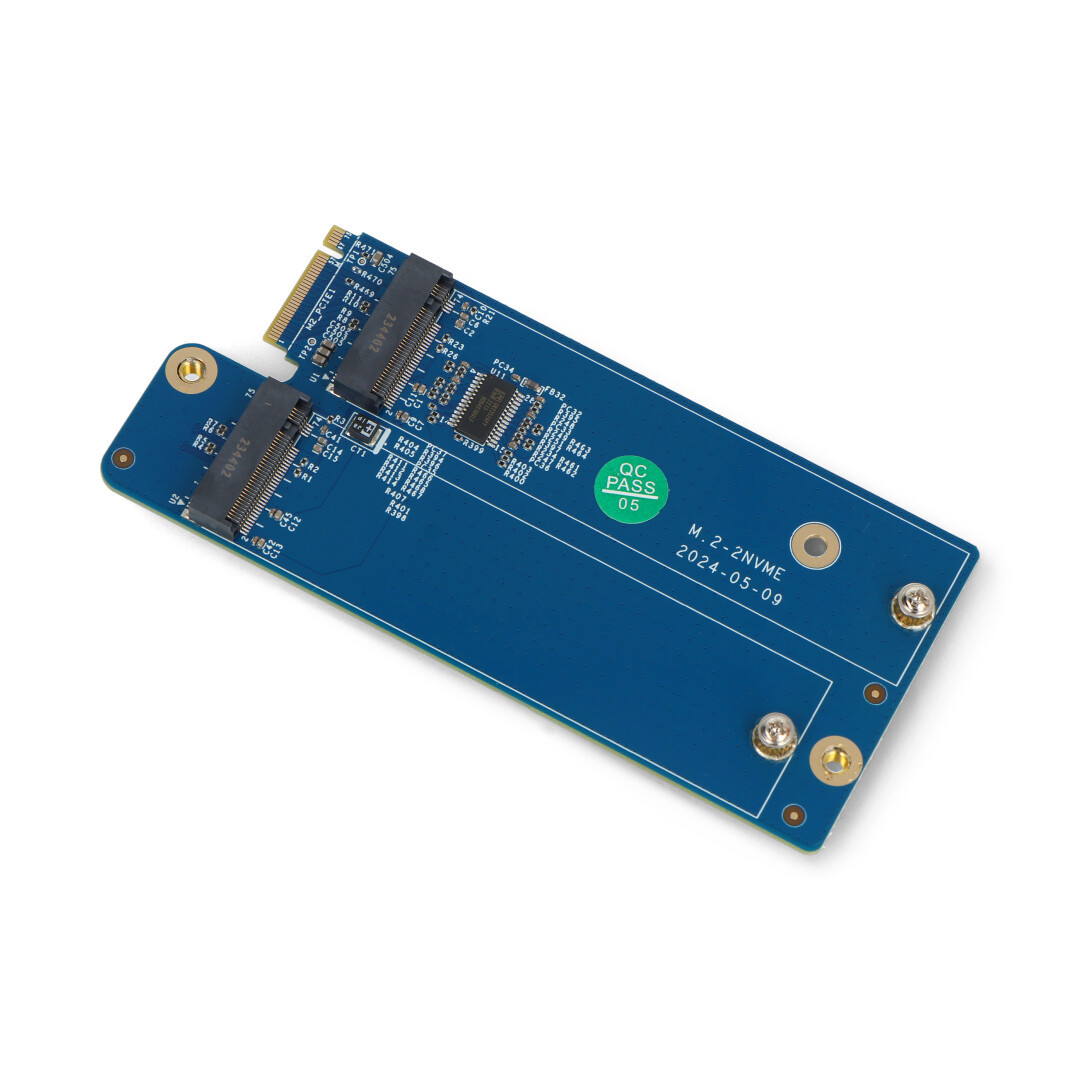

2x M.2 NVMe PCIe Gen 3 x2 expansion board - for Odroid H3/H4

Index: ODR-25418 EAN: 8809543643499
The M.2 2x2 expansion board for the Odroid H3 and H4 series lets you connect two M.2 devices, such as NVMe drives, network cards, WiFi, or 5G , using two PCIe Gen 3 x2 lanes. It supports RAID 0 (for increased performance) or RAID 1 (for data security). It uses PCIe bifurcation, dividing bandwidth across two x2 connectors, delivering performance ranging from 1600MB/s to 1800MB/s while fully utilizing the PCIe Gen 3 bandwidth.
2x M.2 NVMe PCIe Gen 3 x2 expansion board - for Odroid H3/H4
€16.50
€13.41 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: Odroid

Product description: Expansion board 2x M.2 NVMe PCIe Gen 3 x2 - for Odroid H3 / H4

The M.2 2x2 expansion board for Odroid H3 and H4 series lets you connect two M.2 devices, such as NVMe drives, network cards, WiFi, or 5G , using two PCIe Gen 3 x2 lanes. It supports RAID 0 (for increased performance) or RAID 1 (for data security). It uses PCIe bifurcation, dividing bandwidth across two x2 connectors, providing performance ranging from 1600MB/s to 1800MB/s while fully utilizing PCIe Gen 3 bandwidth. A BIOS that supports PCIe 2x2 bifurcation is required. A BIOS update is required for the board to function properly and provide adequate performance when connecting two M.2 devices . The solid construction and easy installation make it an ideal choice for both tech enthusiasts and professionals looking for high-performance storage solutions.

2x M.2 NVMe PCIe Gen 3 x2 Expansion Board - for Odroid H3 / H4 2x M.2 NVMe PCIe Gen 3 x2 expansion board - for Odroid H3 / H4.

,center> 2x M.2 NVMe PCIe Gen 3 x2 Expansion Board - for Odroid H3 / H4 The M.2 2x2 expansion board for the Odroid H3 and H4 series allows you to connect two M.2 devices, utilizing two PCIe Gen 3 x2 lanes.

Special features of the module

  • Dual NVMe SSD slots - supports two M.2 SSDs in 2280 format
  • RAID support - can work in RAID 0 (high performance) or RAID 1 (increased data security) configuration
  • Compatibility - dedicated to Odroid H3 and H4 devices, supports PCIe 3.0 x2 interface
  • Simple installation - intuitive assembly and operation
  • Durable construction - solid workmanship ensuring durability and reliability

Attention!

The product is not compatible with Odroid H2 series.

Technical specification of the expansion board

  • Supported media: NVMe M.2 SSD (format 2280)
  • Interface: PCIe 3.0 x2
  • Transfer speed: up to 1800 MB/s per device
  • Compatibility: Odroid H3, Odroid H4
  • RAID configurations: RAID 0, RAID 1
  • Required BIOS version: Support PCIe x2 bifurcation (BIOS version: ADLN-H4_B*.*-2x2.bin for H4, JSL-H3 1.15 for H3)
  • M.2 Device Type: NVMe SSD, Network Cards, WiFi, 5G, AI Accelerators
  • Mounting: under the motherboard
  • Dimensions: 80 x 22 mm
  • Weight: 50 g

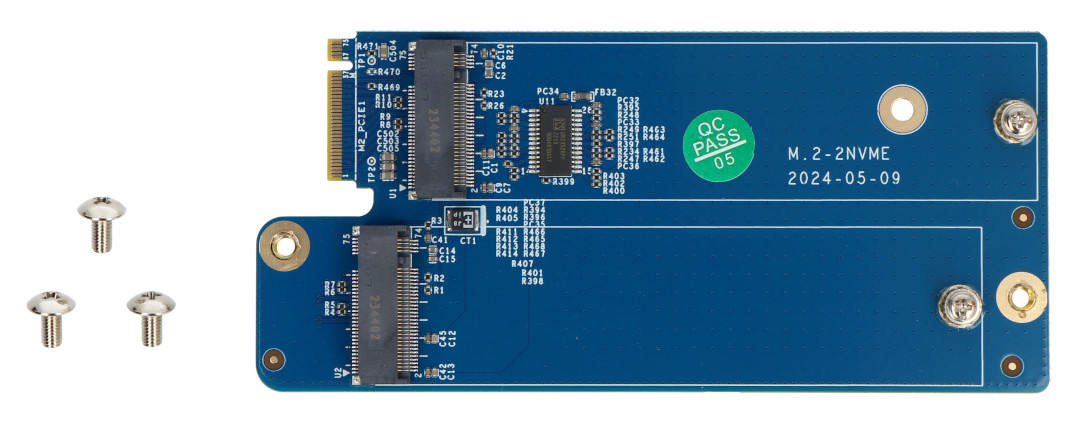

Kit Contents

  • M.2 expansion board
  • 2 mounting screws (installed)
2x M.2 NVMe PCIe Gen 3 x2 Expansion Board - for Odroid H3 / H4 It uses PCIe bifurcation, splitting bandwidth across two x2 connectors to deliver performance ranging from 1600MB/s to 1800MB/s when fully utilizing PCIe Gen 3 bandwidth.

Package width 9 cm
Package height 12 cm
Package depth 1.5 cm
Package weight 0.022 kg
