Product description: H4 Cube Case for Odroid H4 / H4+ / H4 Ultra

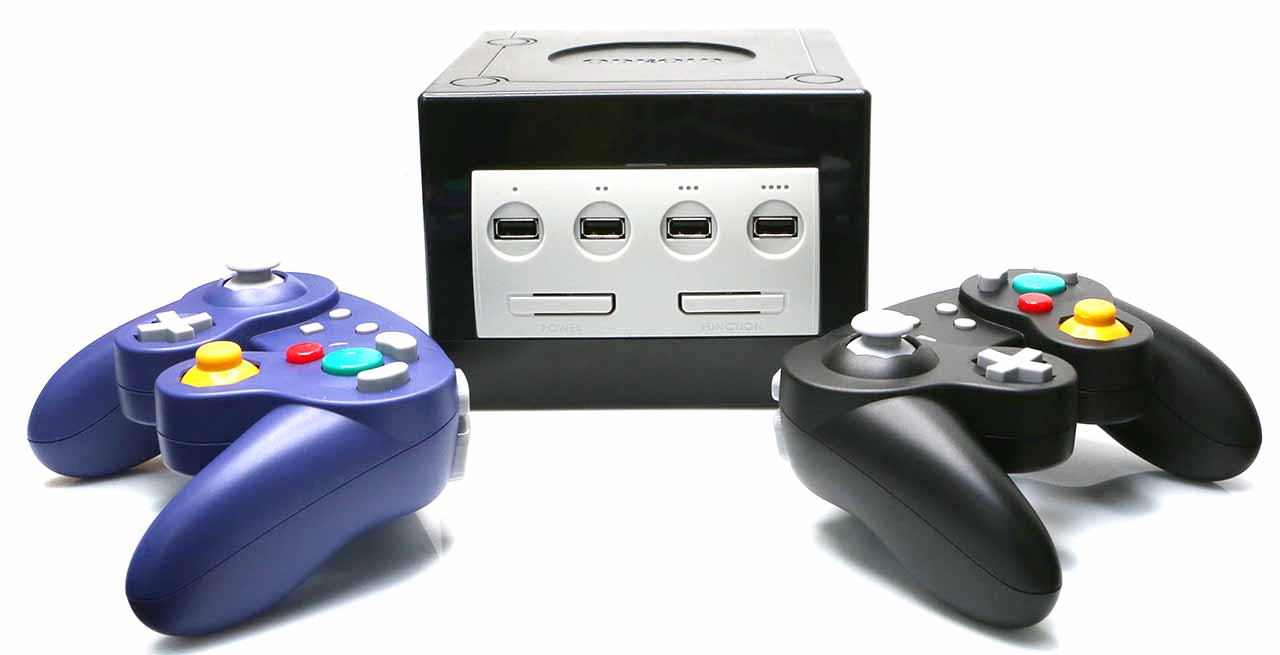

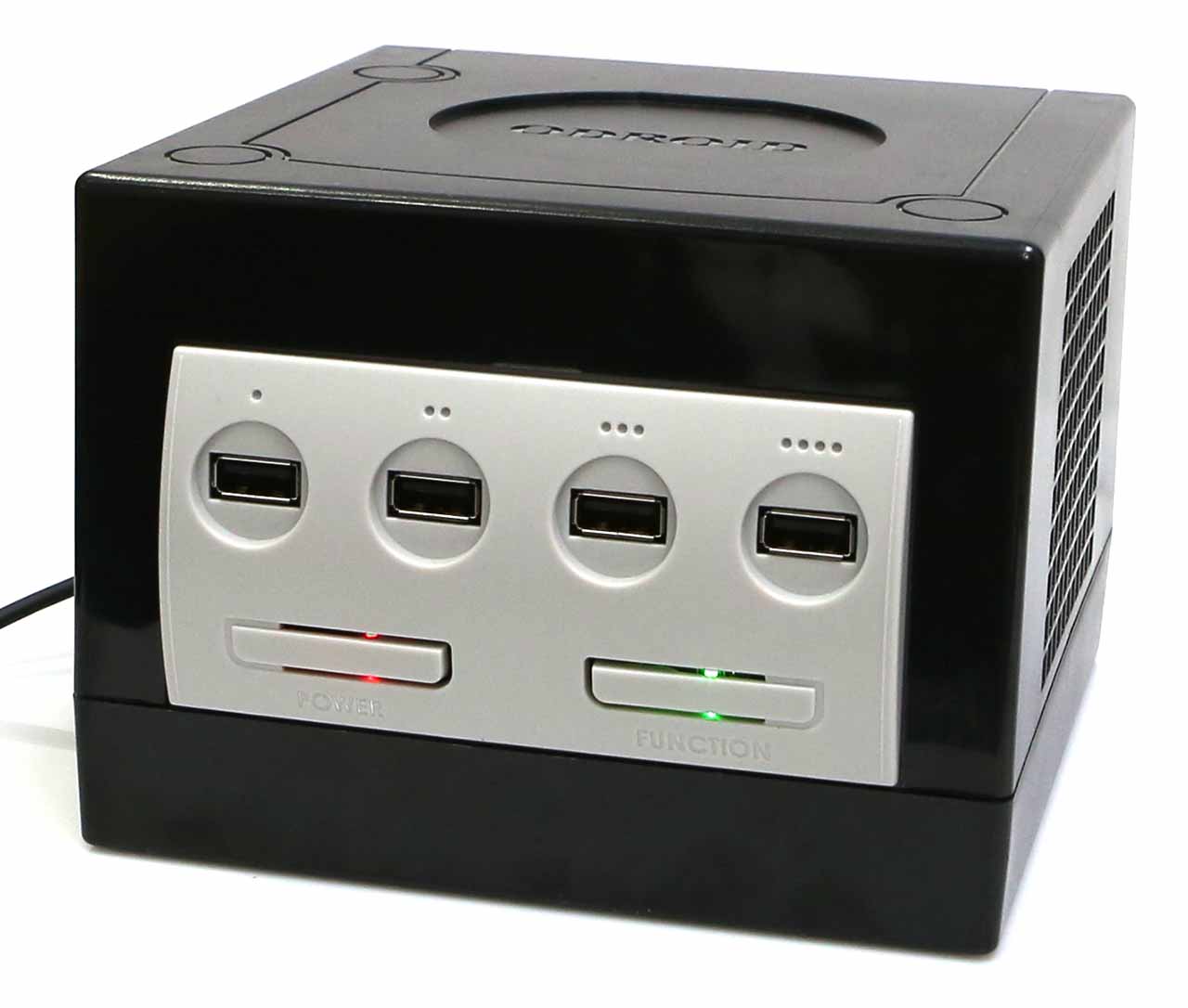

N2 Cube Case is a stylish and functional case designed specifically for Odroid H4 , H4+ and H4 Ultra . The front panel features four USB ports that allow for quick connection of controllers, keyboard, mouse or other peripherals. This makes the case perfect as a compact retro gaming console . It has a power button with a red LED that can be connected to the 14-pin GPIO connector on the Odroid board using the included cable. The configurable function button with a green LED can be operated using a simple Python script in Linux. The user can also use the reset pin to reset the system without having to disconnect the power supply.
H4 Cube Case for Odroid H4 / H4+ / H4 Ultra.
N2 Cube Case is a stylish and functional case designed specifically for Odroid H4, H4+ and H4 Ultra.Special Features
- Dedicated to the Odroid H4 series - perfectly matched to the dimensions and ports of the SBC
- Nostalgic design - inspired by the classic console from 2001
- Easy access to ports - four front USB ports make it easy to connect accessories
- Configurable buttons - Power button with red LED and function button with green LED driven by GPIO
- Built-in handle - allows you to conveniently carry the case
- Solid construction - effectively protects the device against damage and dust
Technical specification of the housing
- Compatibility: Odroid H4, H4+ and H4 Ultra
- USB Ports: 4 x USB on the front panel
- Buttons:
- Power button (red LED)
- Function button (green LED) - controlled via GPIO
- Dimensions: 150 x 157 x 110 mm
Kit Contents
- Upper part of the casing
- Lower part of the housing
- Front panel
- USB hub board
- Back panel
- Base plate
- M3 - 10 nickel plated screws x 4
- M3 - 6 nickel plated screws x 2
- Screws for plastic elements x 9
- PCB Brackets 15mm Plastic M3 x 2
- Rubber feet x 4
- Screwdriver x 1
- USB 2.0 Type-C Cable

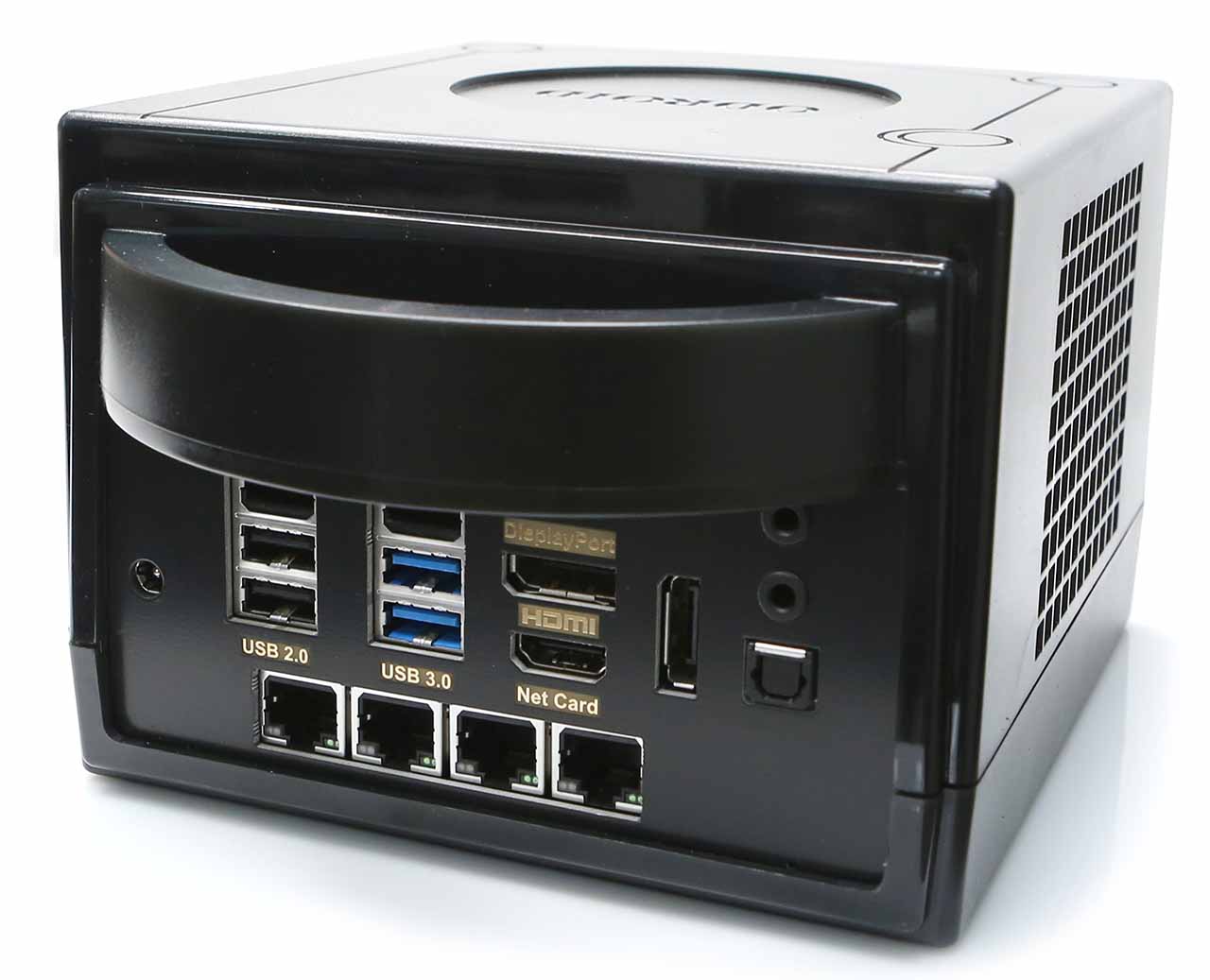

The case provides convenient access to all ports of the minicomputer. Useful links |
