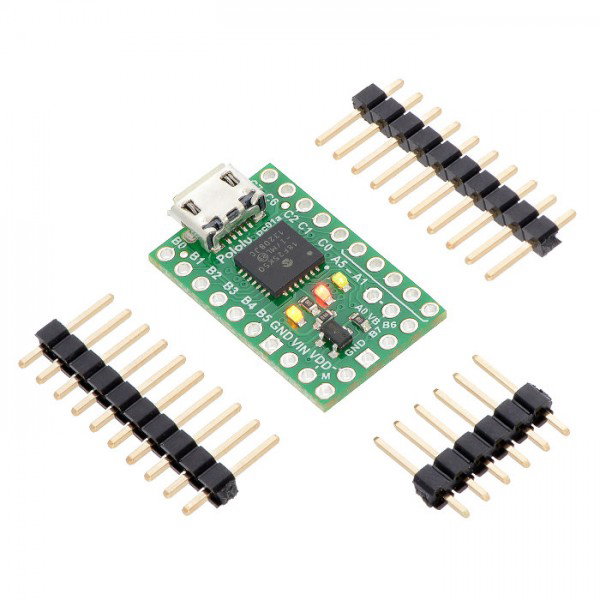

Product description: P-Star25K50 Micro PIC18F25K50
P-Star is a general purpose module equipped with the PIC PIC18F25K50 microcontroller. It has 32 kb flash memory, 2 kb RAM and a USB controller. Thanks to the built-in voltage regulator, the devices can be powered from 5.5 V to 15 V.
The module has no soldered connectors (goldpin bars are included). The user decides which outputs he will need, so the board can keep its small size.
|
Attention! Before connecting, please readinstallation manual. |
Outputs

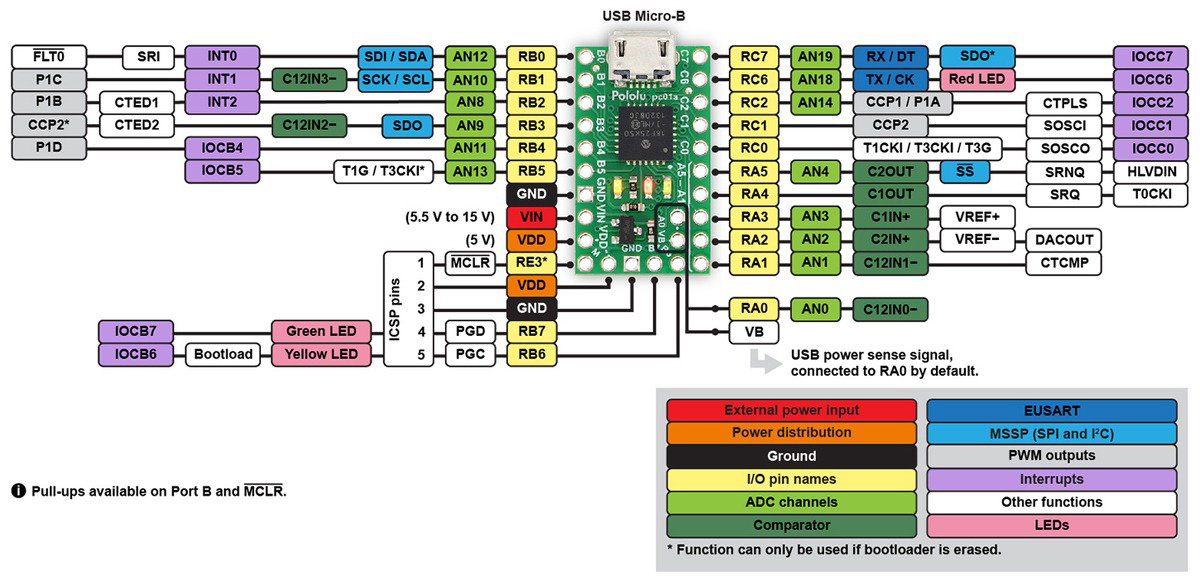

The above figure shows the layout of the P-Star Mini module outputs from Pololu. The diagram can be downloaded asa PDF file.
Specification P-Star 25K50 Micro
- Power supply voltage:
- From 5 V USB socket
- External VIN: 5.5 V to 15 V
- Microcontroller: PIC18F25K50
- Flash memory: 32 kb (of which 8 are for bootloader)
- SRAM: 2 kb
- EEPROM memory: 256 b
- Clock: 16 MHz
- The voltage of the leads: 5 V
- Pins I/O: 16
- PWM channels: 2
- Number of analog inputs: 13
- Built-in 5-bit DAC
- Serial interfaces: UART, SPI, I2C
- Built-in full-speed USB controller
- External interruptions
- Three LEDs at your disposal
- RESET button
- Outgoing ICSP connector for connectingan external AVR programmer
- Micro USB connector for programming(microUSB cablesold separately)
- P-star bootlader(drivers) installed, details inthe user guide
- Compatible with standard Microchip programming tools
- Soldering goldpin connectors included
- Dimensions: 25.4 x 15.3 x 4.6 mm
- Weight: 1.5 g (without connectors)
