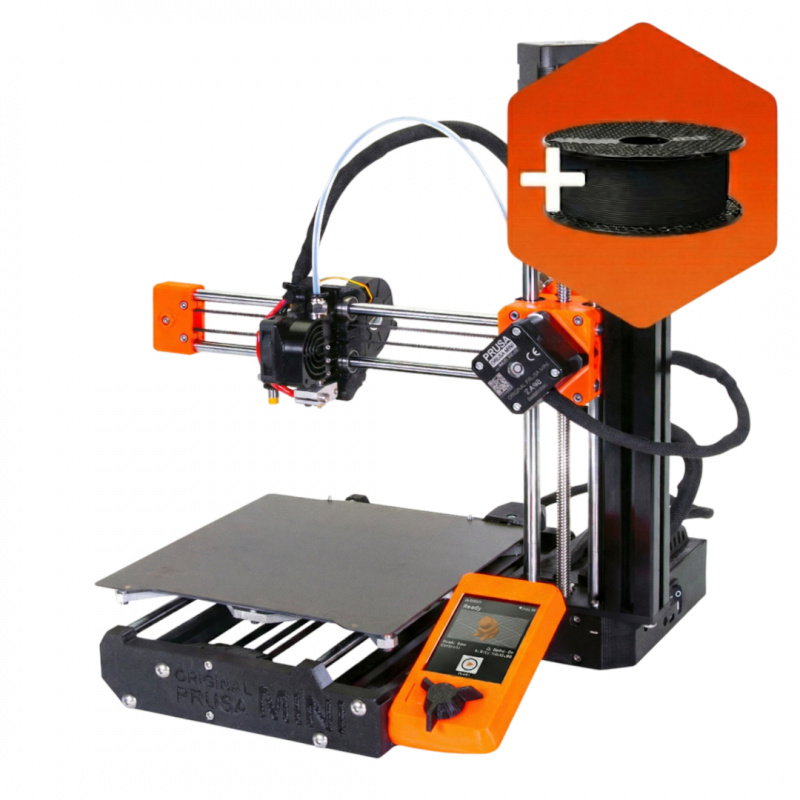

Product description: 3D printer - Original Prussia MINI+ - Do-it-yourself kit.
Original 3D printer by a renowned manufacturer,Prusa. The device usesFFF/FDMincremental technology. In Prusa MINI+ a modern32-bit motherboard with Trinamic 2209 controllerswas used. The working field of the device is 180 x 180 x 180 mm. The set consists of several elements, whoseassembly takes several dozen minutes.
Presentation of the Prusa MINI+ model.
Modernized extruder
In Prussia MINI+, an innovative solution of extruder construction was used. It will move the extruder's motor to the Z-axis column, allowing to reduce its own weight.Bowden-type drive with a 3:1 ratioallows for efficient movement ofthe pillarwith a diameter of 1.75 mm.
Location of the extruder motor on the Z axis column.
Prussia MINI+ working field
Despite its compact size, the printer allows youto create modelswith dimensions of up to180 x 180 x 180 mm. The use of TMC2209 controllers allowed for the elimination oflimit switches in the design of the device.The printing platform is automatically levelled, based on the grid line.
Prussia MINI+ working field.
Easy removal of prints
Thanks to theremovable spring steel plates, the print removal for Prussia MINI+ is extremely easy.The magnetic pad, when forming the model, adheres perfectly to the heated table. After work is finished, it can be removed and the printout can be safely torn off, without risk of damage.
Magnetic spring steel plate.
Easy control of advanced functions
Control of the Original Prusa MINI+ is carried out by means ofa panel with a 2.8-inch screenwith a resolution of 280 x 320 pixels. Clear and intuitive menu allows easy access to all printer options. The device allows you tostart printing the object with one click.Once the pendriva is installed with the model ready, a preview is shown on the display screen. All you have to do is accept the start of work.
Touch control panel Prusa MINI+.
Innovative Buddha's motherboard
Prusa company used an innovative motherboard called Buddy in MINI+ printer. This original solution of the manufacturer is based on a32-bitarchitecture. The usedTrinamic 2209 controllers, apart from ensuring quiet operation of the device, also guarantee its high efficiency.
Buddha's mainboard in Prussia MINI+.
Advanced protection of Prusa MINI+.
Original Prussian MINI+ has a number of security features that protect users from unpleasant surprises. The printer is equipped with ahigh quality power supply and three thermistorsto ensure stable operation. The device also has aPower Panicfunction, allowing you to return to work after a power loss.
Prussia MINI+.
SuperPINDA sensor, improved Y axis and modified firmware
The SuperPinda sensoris responsible for table levelling. It is temperature-resistant so that changes in temperature do not affect the sensor. This property is particularly important when printing the first print layer. The Prusa MINI+ model usesmetalY axisbearing housings.This solution is easier to install and provides better support for the structure. The printer's firmware, marked with version 4.0.5, has been enriched, among others, with thePrusa Connect Localfunction.
Additional improvements introduced in Prusa Mini+ version.
Dedicated PrusaSlicer 2.0 software
The manufacturer, for the preparation of printouts, provides the original programPrusaSlicer in the latest version 2.0. It has a number of advanced features, while being easy to use.
Presentation of selected functions of PrusaSlicer 2.0.
Printer comparison Original Prusa MINI+ and Original Prusa i3 MK3S printers
| Comparison of Prussia MINI+ and Prussia i3 MK3S | |||
|---|---|---|---|
| A model: | Original Prussian MINI+ | Original Prussian i3 MK3S | |
| Work area: | 180 x 180 x 180 mm | 250 x 210 x 210 | |
| Layer height: |
0.05 - 0.35 mm |
0,05 - 0,35 mm |
|
| Nozzle temperature: | 280°C | 300°C | |
| Table temperature: | 100°C | 120°C | |
| The motherboard: | 32 bit Buddha's plate | 8-bit Ultimachine Rambo | |
| Support for MMU2S: | No | Yes | |
| Extruder: |
Bowden system with translation 3:1 |
direct system |
|
| LCD display: |
2,8″ graphic display 65 000 colours |
monochrome |
|
| Print surface: |
heated magnetic table with plates behind spring steel |
heated magnetic table with
plates behind spring steel |
|
| Diameter of the filament: |
1.75 mm |
1.75 mm |
|
| Nozzle diameter: | Standard 0.4 mm | standard 0.4 mm | |
| Supported materials: | PLA, PETG, ACE, ABS, FLEX |
All available materials thermoplastics, including nylon and polycarbonate |
|
| The filament sensor: | not | Yes (IR) | |
| Ethernet connectivity: |
Yes |
using Raspberry Pi |
|
| Wi-Fi connectivity: | optional enhancement | using Raspberry Pi | |
| Advanced vigilance: |
|
|
|
| Calibration: | automatic on the basis of the grid | automatic on the basis of the grid | |
| Print file carrier: |
USB / LAN storage medium |
SD card |
|
| Firmware update: | USB / LAN storage medium | USB port | |
| The power supply: | 160 W, external |
240 W with Power Panic |
|
Prussia MINI+ andPrussia i3 MK3S.
Specification of Prussia MINI+ printer
| Technical Specification | |
|---|---|
| Total power: | 160 W |
| Display: | 2,8″ LCD |
| Print speed: | up to 200 mm/s |
| Layer height: | from 0.05 mm to 0.35 mm |
| Nozzle diameter: |
Standard: 0.4 mm, |
| The filament served: |
PLA, PETG, ASA, ABS, Flex |
| Diameter of the filament: | 1.75 mm |
| Mode of operation: | Online or from an SD card |
| File format: | STJ, gcode |
| Software: | PrusaSlicer |
| Work area: |
180 x 180 x 180 mm |
| Nozzle temperature: | max. 280 °C |
| Working table temperature: | max. 100 °C |
| Communications: | USB flash drive, Ethernet |
| Printer dimensions: | 380 x 380 x 330 mm |
Compact dimensions of Prussia MINI+.
|
Compact Prusa MINI+ is a very good basis for the construction of so-calledprinter farms. The manufacturer of the device announcessupport for this project in the future. |
Efficient printer in mini+ version
You don't have to present the Prussian brand to any lover of 3D printing. The Prusa MINI+ model with dimensions of only 380 x 380 x 330 mm is a Czech manufacturer's proposal for those who have little workshop space. Despite its small external dimensions, the workspace is large and is 180 x 180 x 180 mm.
The Prusa MINI+ 3D printer is based on a 32-bit motherboard with Trinamic 2209 controllers, ensuring efficient operation and low noise emissions. Another innovation is the assembly of the extruder on the Z axis column, which reduces the weight of the whole structure.
Easy printing and easy model removal
3D printer - Original Prussia MINI+ - the self-assembly kit will be suitable even for beginner adepts of incremental printing. Preparation and creation of models will be facilitated by an intuitive, dedicated PrusaSlicer 2.0 environment and a large, full-color graphic display to operate the device.
Removing finished models from the work table is safer and faster thanks to spring steel caps. Whereas the Power Panic function allows you to restart 3D printing after a sudden power outage, without the risk of damaging the printed form.
