Product description: Felt Sensor - for Prusa MINI+ 3D Printer
Felt sensor for Prusa MINI+ 3D printer. It can also be used in the older version of the device, marked MINI. The product guarantees compatibility with the indicated 3D printer models. The main task of the sensor is to detect malfunctions in the filament feeding.
In our store offer is available Prusa MINI+ 3D printer in version for self-assembly and MINI+ for simplified assembly.

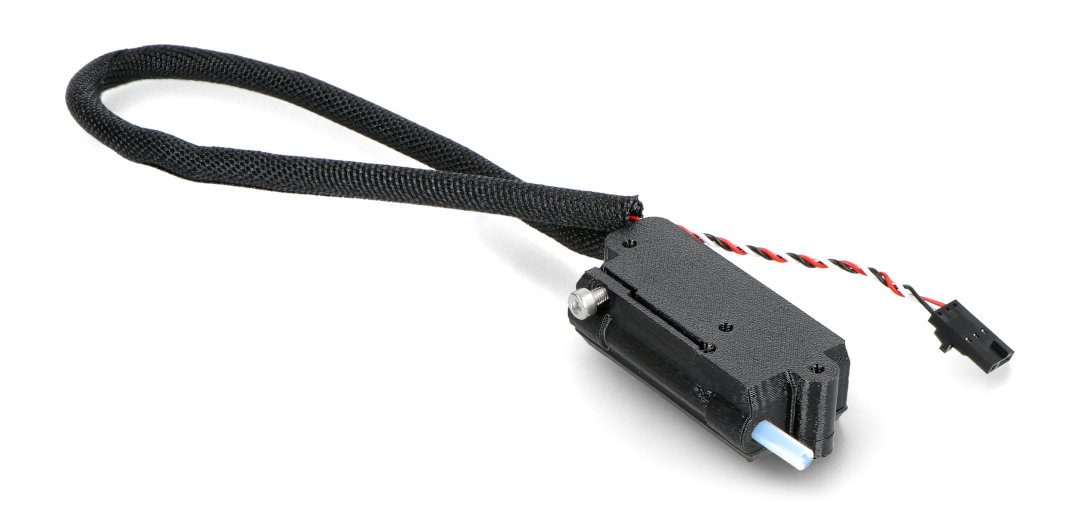

Feltsensor - for Prusa MINI+ 3D printer.

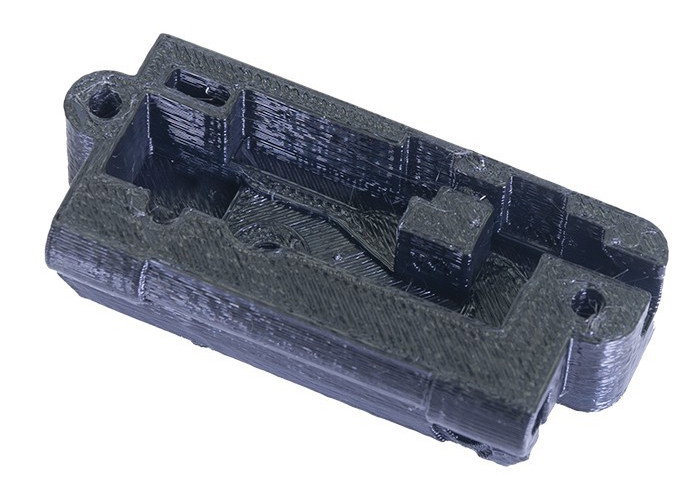

Housing of the filament sensor.
Components of the sensor
The object of sale is an assembled filament sensor, the construction of which includes the following components:
- IR filament sensor: 1 piece.
- Cable connecting the IR filament sensor to the Buddy board: 1 pcs.
- Textile wrap (self-closing braid): 1 piece.
- Length: 220 mm
- diameter: 5 mm
- PTFE tube: 1 pcs.
- MINI FSENSOR BOX (housing): 1 pc.
- MINI FSENSOR COVER (cover): 1 pc.
- MINI FSENSOR LEVER (lever): 1 pc.
- Steel ball: 1 pc.
- Magnet: 2 pcs.
- Screws:
- M3 x 12: 3 pcs.
- M2 x 8: 1 pc.
The manufacturer provides instructions for mounting the sensor in the 3D printer.
Specifications of the filament sensor for 3D printer Prusa MINI+
- Manufacturer: Prusa
- Type of component: Felt sensor
- Diameter of compatible filaments: 1.75 mm
- Compatible 3D printers: Prusa MINI, Prusa MINI+
- Sensor housing color: black
Sensor socket on the motherboard. The subject of sale is only the filament sensor.
