Product description: 3D printer - Original Prusa CORE One - assembled
Original Prusa CORE One is a modern 3D printer designed for precise and reliable printing. CoreXY kinematics, a full housing with temperature control , and a stable, steel structure allow for exceptional print quality at high speeds. The use of a modern extruder - Nextruder with a planetary gear and 360-degree cooling ensures excellent print quality, minimizing the need for supports. The built-in Input Shaper system optimizes the printer's movements, which increases its speed without compromising precision. The closed chamber allows for stable printing conditions even for demanding materials, and the active ventilation system allows for PLA printing with the door closed. Thanks to the user-friendly interface, Prusa Connect , and a 3.5'' touchscreen , operating the printer is extremely intuitive. Compatibility with MMU3 means that CORE One can print multi-color models without the need for multiple heads. The possibility of expanding with optional accessories , such as a camera, advanced HEPA filtration system or GPIO Hackerboard, makes it a future-proof printer, adapted to the dynamically developing world of 3D printing.

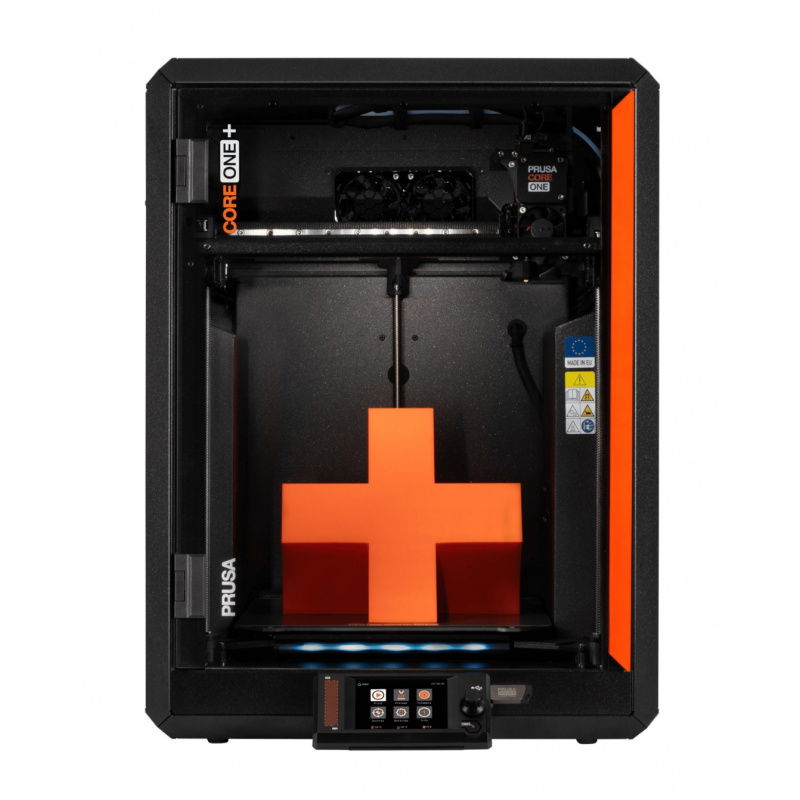

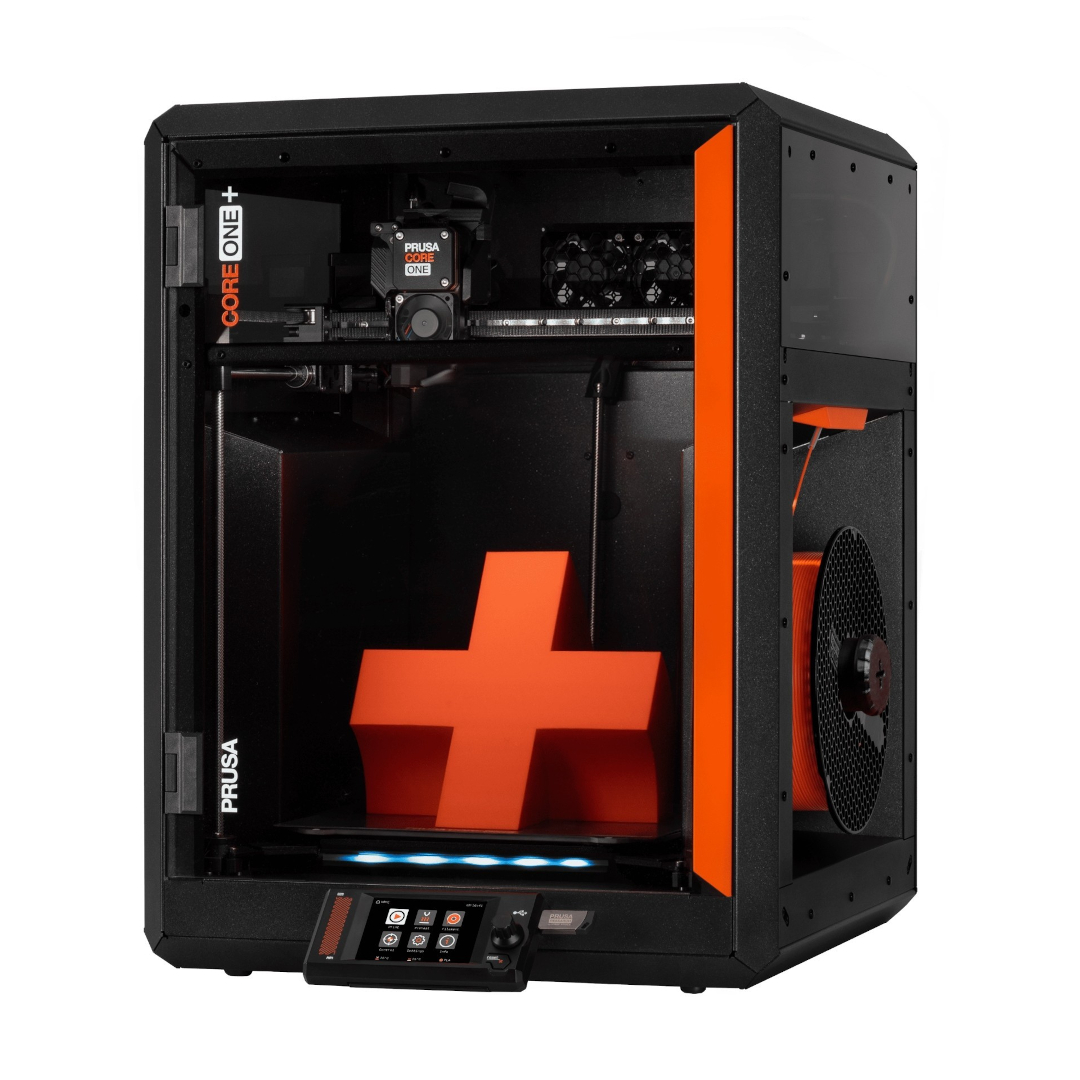

3D printer - Original Prusa CORE One - assembled.
The Prusa CORE One has an all-steel exoskeleton.
Closed chamber with temperature control
Prusa CORE One has a fully enclosed chamber, providing stable printing conditions for all materials. The active temperature control system allows you to reach up to 55°C , which prevents deformation of materials such as ABS , ASA , PC or Nylon . Thanks to the intelligent ventilation system, the printer also allows for precise PLA printing with a closed casing.
Durable steel construction
The printer is designed on the basis of a steel exoskeleton , which provides maximum stability and resistance to vibrations . The solid construction allows for long and trouble-free operation, and the well-thought-out design facilitates maintenance. and any modifications. This makes CORE One a long-term investment for both professionals and hobbyists.
Modern extruder - Nextruder
CORE One uses the modern Nextruder, which, thanks to a 10:1 planetary gear, guarantees precise filament feeding. 360-degree cooling improves print quality and reduces the need for supports. The all- metal filament path makes the printer compatible with a wide range of materials, including technically demanding plastics.
High speed printing with Input Shaper and High-Flow nozzle
Thanks to the Input Shaper, CORE One eliminates vibrations during rapid head movement , which allows for increased print speed without loss of quality. The standard Prusa Nozzle High-Flow CHT 0.4 mm nozzle enables fast filament extrusion, which reduces printing time by up to 30% . Pre-configured profiles for over 200 filaments guarantee perfect settings for different materials without the need for manual calibration.
The printer uses the upgraded Nextruder with 360-degree cooling.

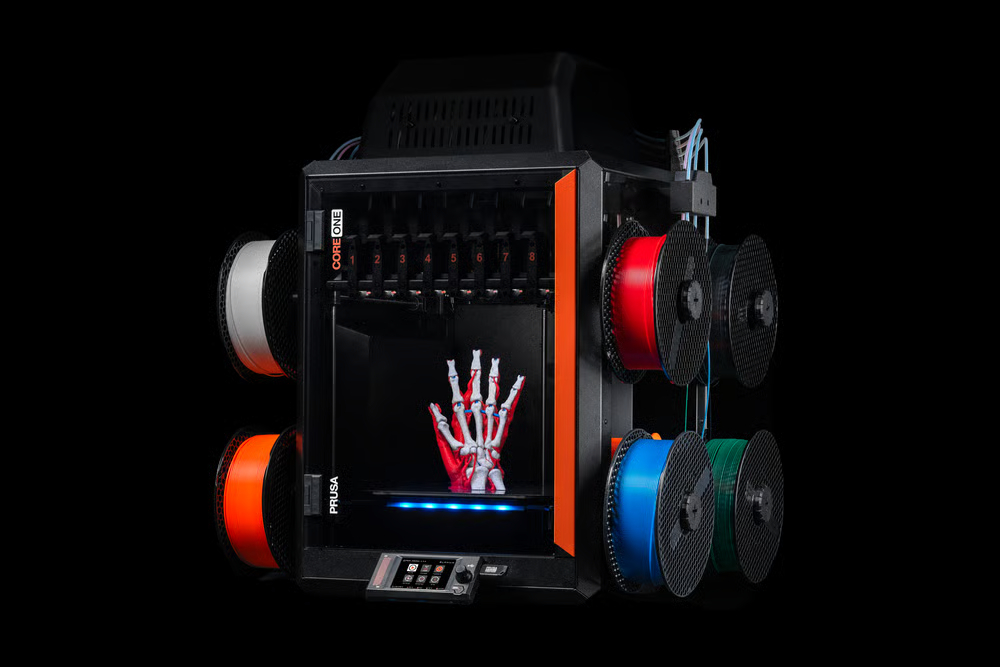

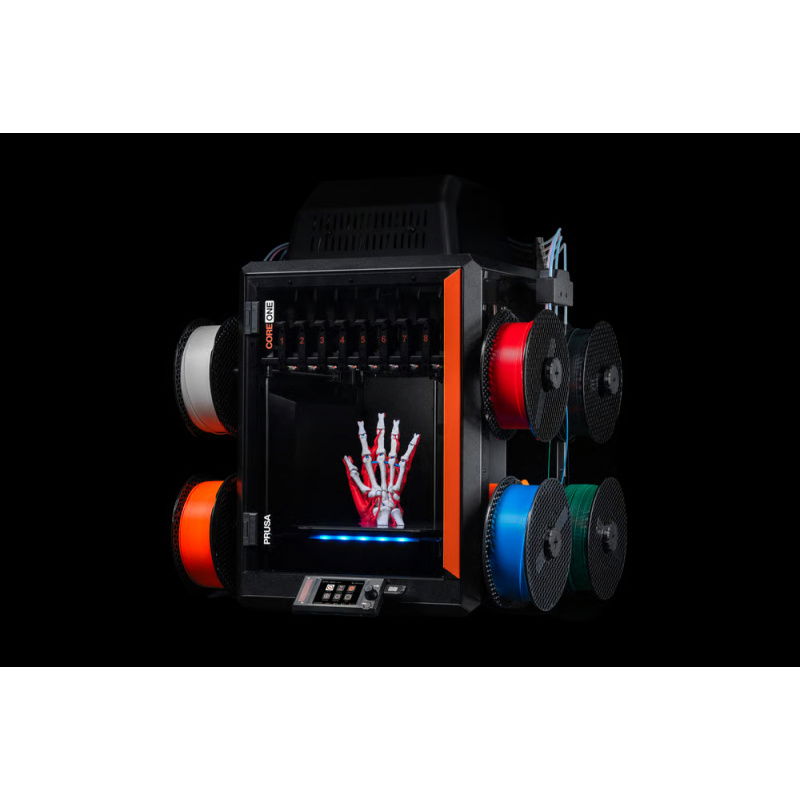

CORE One is compatible with MMU3, which enables multi-color printing.
Compact size and large workspace
CORE One takes up 50% less space than MK4S in the housing , while offering 30% more workspace of 250 x 220 x 270 mm . Thanks to its well-thought-out design, the printer is ideal for home workshops, offices and professional print farms. The intelligent housing design allows easy access to the interior and convenient filament feeding, which significantly improves work.
Integration with Prusa Connect and mobile app
The printer is fully integrated with Prusa Connect , which allows you to remotely monitor and control your prints. The Prusa App allows you to easily manage your prints directly from your phone, including quick G-code file transfers and real-time monitoring of the printer's progress. Additionally, thanks to the built-in LAN port and detachable WiFi module, you can customize the communication method to your needs, including working offline .
MMU3 support - multi-color prints without material loss
The printer is compatible with MMU3 , which allows printing in five colors or materials at the same time . Thanks to the precise filament retraction system, changing colors is effective and minimizes material loss. It is an ideal solution for people who want to create advanced and colorful 3D models.
Expandable with optional accessories
CORE One can be expanded with an optional camera to monitor prints, a HEPA filtration system to reduce particle emissions, and a GPIO Hackerboard to control external devices. This easy upgrade makes CORE One a printer ready for future innovations in 3D printing.
The printer has a clear LCD display.

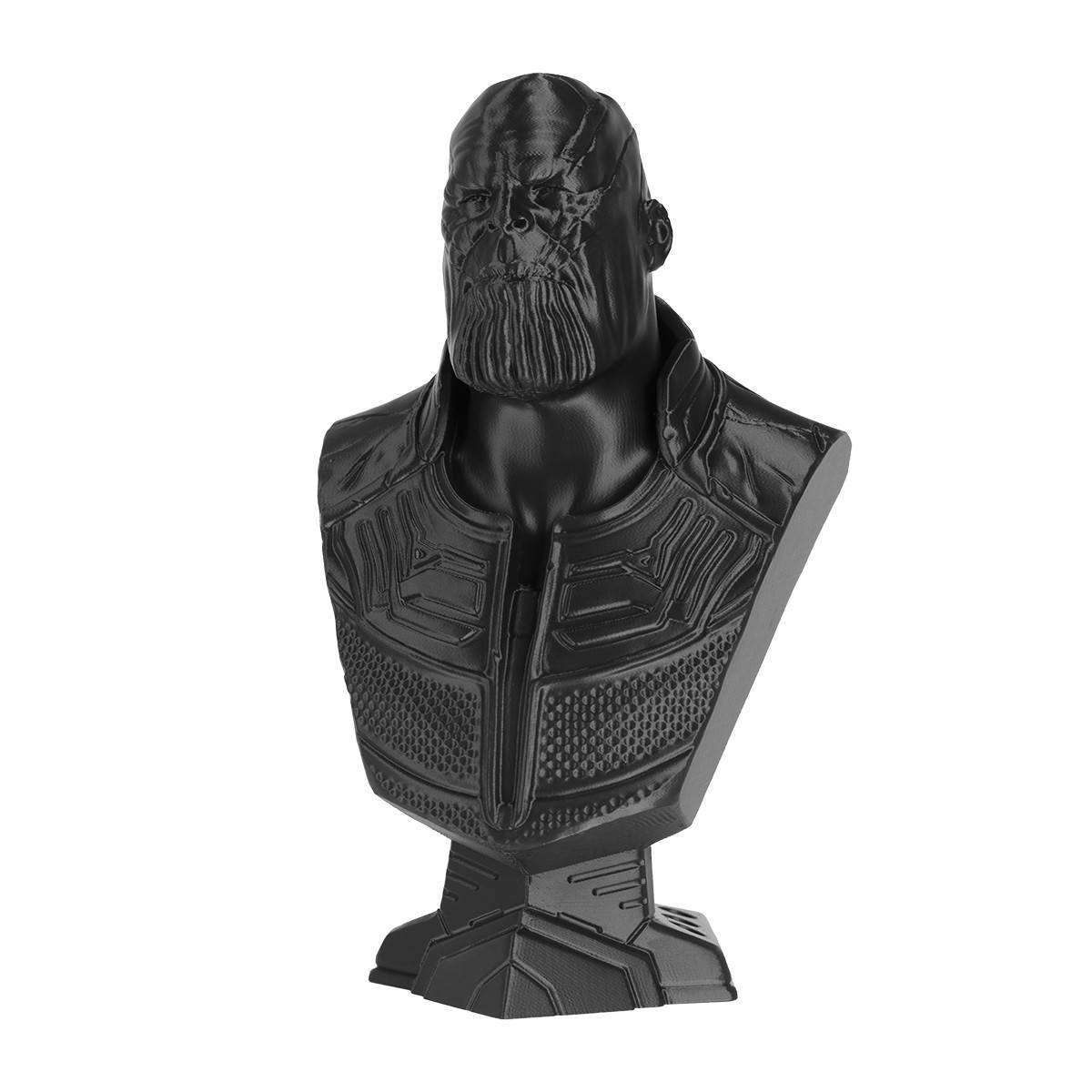

Example 3D model created using Prusa CORE One.
Kit Contents
- Prusa CORE One (assembled)
- PEI plate (spring steel)
- 3D Printing Manual
- USB drive with sample prints (G-code)
- Nozzle cleaning needle, alcohol wipes
- Prusament PLA Prusa Galaxy Black 1 kg
- Tool set (screwdriver, wrenches, pliers)
| Prusa CORE One 3D Printer Technical Specifications | |
|---|---|
| Workspace | 250x220x270mm |
| Filament diameter | 1.75mm |
| Layer height | From 0.05 to 0.3 mm |
| Motherboard | Proprietary 32-bit xBuddy electronics with STM32 |
| Stepper motors | Trinamic 2130, 0.9° X,Y precision motors |
| Type | Nextruder, Direct Drive, E3D V6 compatible (with adapter) |
| Filament path | Aluminum heatsink, full metal hotend |
| Filament Feed System | Nextruder planetary gear, ratio 10:1 |
| Print cooling | High-performance turbine, 360° cooling system |
| Nozzle | Prusa Nozzle High-Flow CHT Brass Nozzle - 0.4mm |
| Nozzle temperature | 290 °C |
| Table temperature | 120°C |
| Chamber temperature | 55 °C |
| LCD screen | 3.5'' graphic screen with 65,000 colors |
| Touch control | Yes |
| Firmware update interface | USB Flash Drive, Prusa Connect, Prusa Mobile App |
| Prusa Connect support | Yes |
| Prusa app support | Yes (iOS and Android) |
| Quick nozzle change system | Yes |
| Lighting | Yes |
| Internal camera | Optional |
| MMU3 support | Yes |
| HEPA filtration | Optional extra |
| Advanced filtration system | Optional extra |
| Compatibility with GPIO Hackerboard | Yes |
| Accelerometer Compatibility | Yes |
| Ethernet connectivity | Yes |
| Wi-Fi | NFC receiver, optional ESP WiFi module (supplied with printer) |
| Filament sensor | Yes (2 sensors) |
| Strain gauge sensor | Yes |
| Thermistors | 5 high precision thermistors (Semitec) |
| Fan speed monitoring | Yes |
| Door opening sensor | Yes |
| Print file carrier | USB Flash Drive / LAN / Internet via Prusa Connect |
| Printing surface | Magnetic Heating Table with Interchangeable PEI Sheets |
| Calibration of the first layer | Automatic (strain gauge) |
| Table calibration | Automatic, Mesh Bed Leveling |
| Input Shaper | Yes |
| Supported materials | PLA, PETG, Flex, PVA, PC, PP, CPE, PVB, ABS, ASA, HIPS, PA (with optional filtration) |
| Phase Stepping | Yes |
| Charger | 240 W |
| Power Panic | Hardware Power Panic Support |
| Energy consumption | PLA: 90W / ABS: 110W |
| Dimensions | 415 x 444 x 555 mm |
| Mass | 22.5 kg |
