Product description: reTerminal CM4108032 - HMI device with Raspberry Pi CM4 and 5'' touch screen - SeeedStudio 110070108
reTerminal CM4108032 is a versatile HMI device based on the Raspberry Pi CM4 module. It has 8 GB RAM , 32 GB eMMC and a multi-touch IPS screen . The product offers support for wireless WiFi and Bluetooth communication. A rich set of ports, including USB Type A, Gigabit Ethernet , microHDMI , and a microSD card slot, makes this device extremely versatile. Additionally, it has a built-in MIPI camera interface for Raspberry Pi , light sensor, accelerometer and buzzer. Its solid construction and well-thought-out design make it an excellent choice for industrial applications where reliability and functionality are required.
The manufacturer has prepared a detailed user guide. Check!

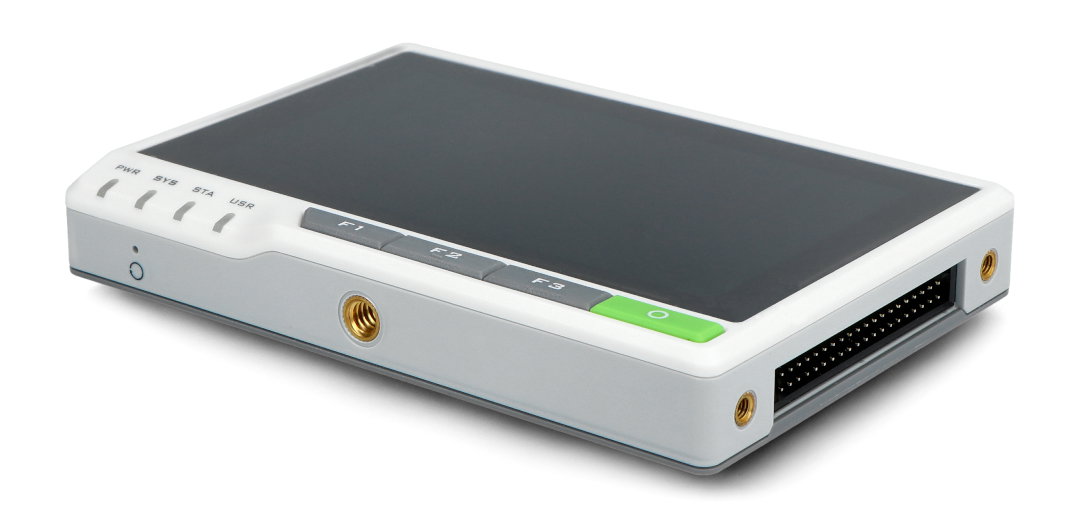

reTerminal CM4108032 - HMI device with Raspberry Pi CM4 and 5'' touch screen - SeeedStudio 110070108.
reTerminal allows you to monitor and control industrial processes.
Main features of the device
- It is suitable for applications of artificial intelligence AI, Internet of Things IoT and Industrial Internet of Things IIoT
- It has an interactive 5" IPS screen with multi-touch function
- Uses the built-in Raspberry Pi CM4 computing module with 8 GB RAM and 32 GB eMMC
- It offers support for 2.4 GHz / 5 GHz WiFi and Bluetooth 5.0 Low Energy
- It has a rich set of ports - USB Type A, Gigabit Ethernet, microHDMI, microSD
- Includes additional components such as a MIPI camera interface, light sensor, accelerometer, buzzer and programmable buttons
- Ensures compatibility with official Seeedstudio expansion boards
reTerminal device
reTerminal CM4108032 is a versatile human-machine interface device that works well in a variety of IoT and AI applications. Its modular design and advanced features, including support for various interfaces and connections, enable a wide range of applications, from the design of intelligent monitoring systems to the development of advanced artificial intelligence solutions.
Built-in IPS display
The device is equipped with a 5'' IPS display with a resolution of 720 x 1280 pixels, which provides vivid colors and wide viewing angles . The touch screen has a multi-touch function that allows for intuitive and convenient interaction with the system, which is crucial in applications requiring quick access to information and control.
Check out other Seeedstudio products in our offer!
The device has a built-in IPS display with multi-touch function.
The product has a built-in Raspberry CM4 module.
Built-in Raspberry CM4 computing module
The central element of the device is the Raspberry Pi Compute Module 4, which offers the performance of a quad-core Cortex-A72 processor clocked at 1.5 GHz, 8 GB of RAM and 32 GB eMMC . This powerful module provides the necessary computing power to handle complex tasks in the field of data processing, graphics and AI algorithms.
Additional device functions
In addition to the basic features, this product offers a number of additional features, such as support for microSD, MIPI camera interface, as well as USB and HDMI ports . This allows for flexible expansion of the system and easy integration with a variety of external devices.
The product has a built-in computing module from the Raspberry Pi CM series.
Technical specifications of the device
- Processor: Broadcom BCM2711, 4x 1.5GHz Cortex-A72 (ARM v8)
- RAM: 8 GB
- eMMC memory: 32 GB
- Screen type: LCD touchscreen 5'', 720 x 1280 pixels
- Wireless connection: WiFi and Bluetooth
- Wired connection: Ethernet, USB, microHDMI, MIPI CSI
- Ethernet connector: RJ45
- HDMI support: 1x microHDMI
- USB port: 1x USB A
- MIPI CSI Interface: 1x 2-channel MIPI CSI interface
- Image compression: H.265 (4Kp60 decoding), H.264 (1080p60 decoding, 1080p30 encoding)
- Image rendering: OpenGL ES 3.0
- Additional outputs/inputs: 1x PCIe Host Gen 2, 26x GPIO pins, POE
- GPIO pins: up to 5x UART, up to 5x I2C, up to 5x SPI, 1x SDIO, 1x DPI, 1x PCM, 1x PWM, up to 3x GPCLK outputs
- Additional built-in modules: accelerometer, RTC, light sensor, buzzer
- Power supply: 5V DC, 3A
- Operating temperature range: from 0°C to 70°C, for LCD screen from 0°C to 60°C
- Dimensions: 140 x 95 x 21 mm
- Weight: 285 g
Before connecting the camera via the 22-pin CSI cable to the board, carefully check that the FFC pins are facing up.
The device offers WiFi and Bluetooth wireless communication.
