Product description: reComputer R1113-10 - Raspberry Pi CM4 2 GB RAM + 8 GB eMMC - Seeedstudio 113991375
The R1113-10 model from the reComputer R1100 series is a compact AIoT edge device designed for applications requiring high reliability, low power consumption, and extensive industrial communication. It is based on the Raspberry Pi Compute Module 4 with a quad-core ARM Cortex-A72 processor clocked at 1.5 GHz , supported by 2 GB of RAM and 8 GB of eMMC memory . The reComputer R1113-10 offers a wide range of communication ports - including RS232, RS485, Ethernet , HDMI, USB, as well as digital inputs / outputs. Additionally, it has connectors for optional modules such as GPS, UPS, TPM 2.0, PoE, as well as an M.2 NVMe slot for an SSD drive . Thanks to these features, it will be perfect for industrial automation, intelligent building systems, remote monitoring and as a local AI edge device.

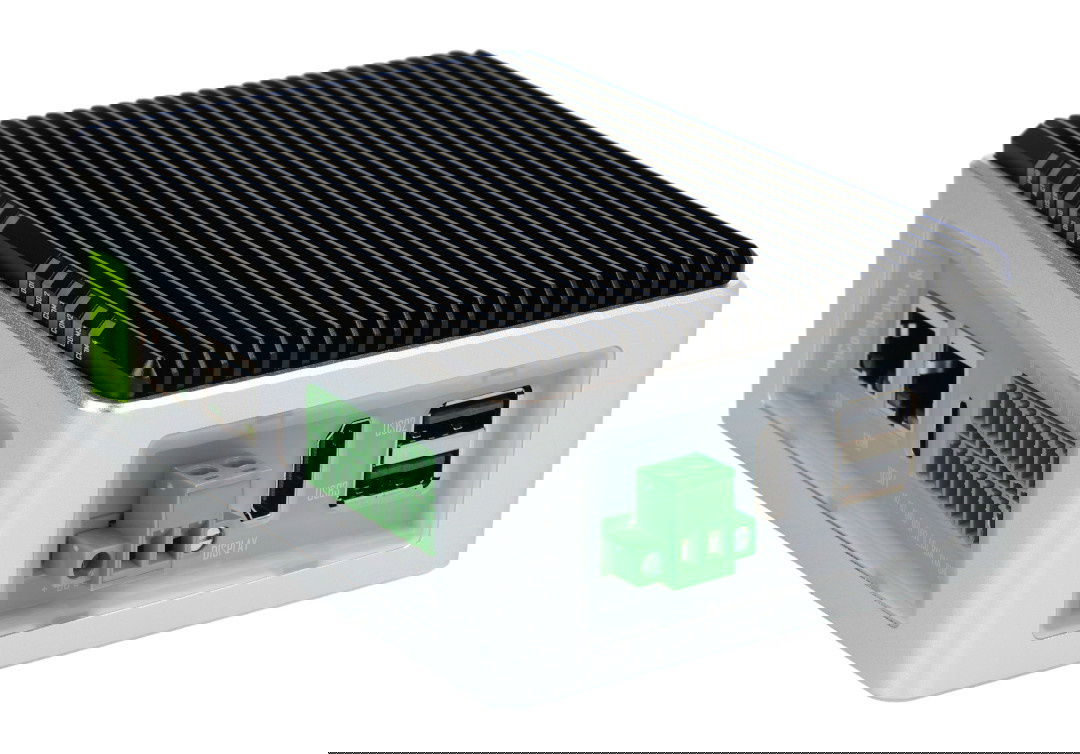

reComputer R1113-10 - Raspberry Pi CM4 2 GB RAM + 8 GB eMMC - Seeedstudio 113991375.
The R1113-10 from the reComputer R1100 series is a compact AIoT edge device designed for applications requiring high reliability.Special features of the reComputer R1113-10 module
- Raspberry Pi CM4 performance - the device is based on the Raspberry Pi Compute Module 4 with a quad-core Cortex-A72 processor clocked at 1.5 GHz, which provides high computing power necessary for processing data at the edge of the network (edge computing), supporting AI systems and real-time communication
- Rich set of interfaces - reComputer R1113-10 offers a full spectrum of industrial connectors, including 2x RS232, 2x RS485 (both isolated), 2x digital inputs and 2x digital outputs, as well as Gigabit Ethernet, HDMI 2.0, 2x USB Type-A for connecting external devices and USB Type-C for flashing the system
- Wireless connectivity - the module supports dual-band WiFi (2.4 GHz and 5 GHz), Bluetooth 5.0, and optionally 4G LTE, LoRa and ZigBee technologies - making it a versatile platform for IoT applications
- Expandable via M.2 NVMe - With the built-in M.2 NVMe slot, you can easily expand your storage by installing an SSD, allowing you to store large amounts of data locally without the need for the cloud
- Industrial power - 9V to 36V DC power supply via a 2-pin screw connector and support for IEEE 802.3af PoE enables versatile deployments in both traditionally powered and Ethernet-based systems
A comprehensive AIoT platform for developing intelligent systems
reComputer R1113-10 was designed for applications that which combine artificial intelligence with the Internet of Things (AIoT). Thanks to the support of AI accelerators, the device enables local data processing in real time - without the need to connect to the cloud. This functionality opens the way to building image recognition systems, sensor analysis and machine learning in the edge environment. It is ideally suited for creating advanced applications such as anomaly detection, video analysis, traffic management or process automation in industry.
It is based on the Raspberry Pi Compute Module 4 with a quad-core ARM Cortex-A72 processor clocked at 1.5 GHz.

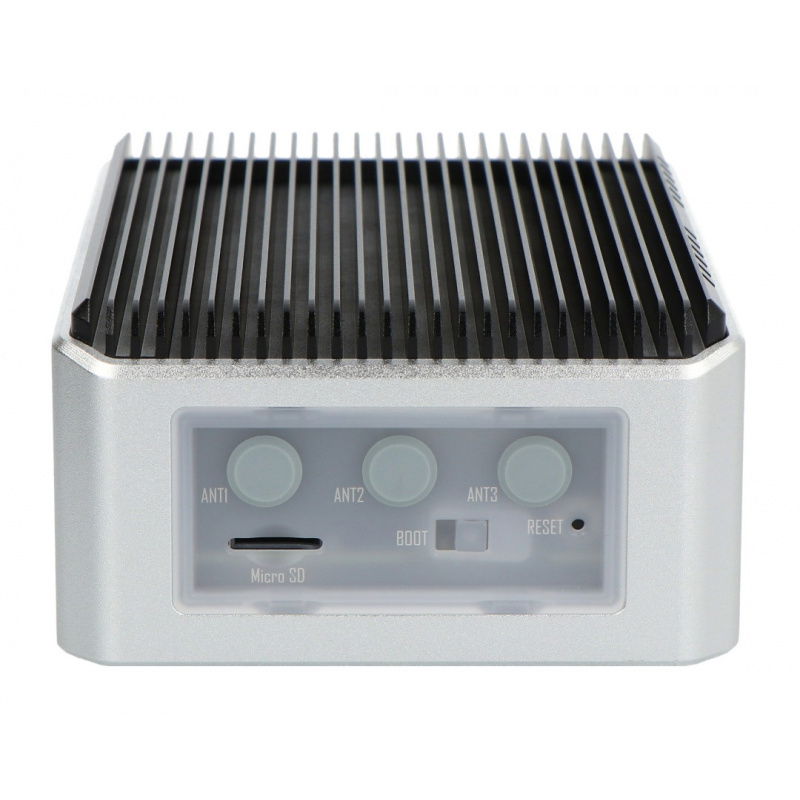

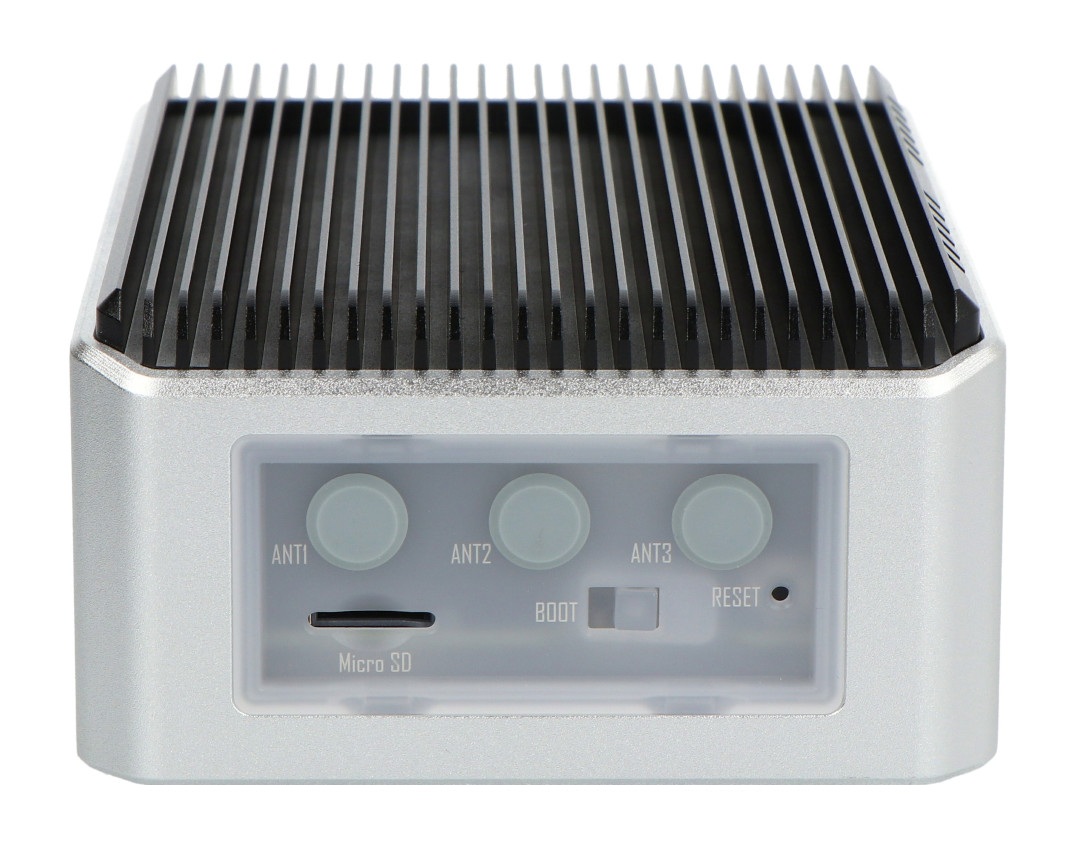

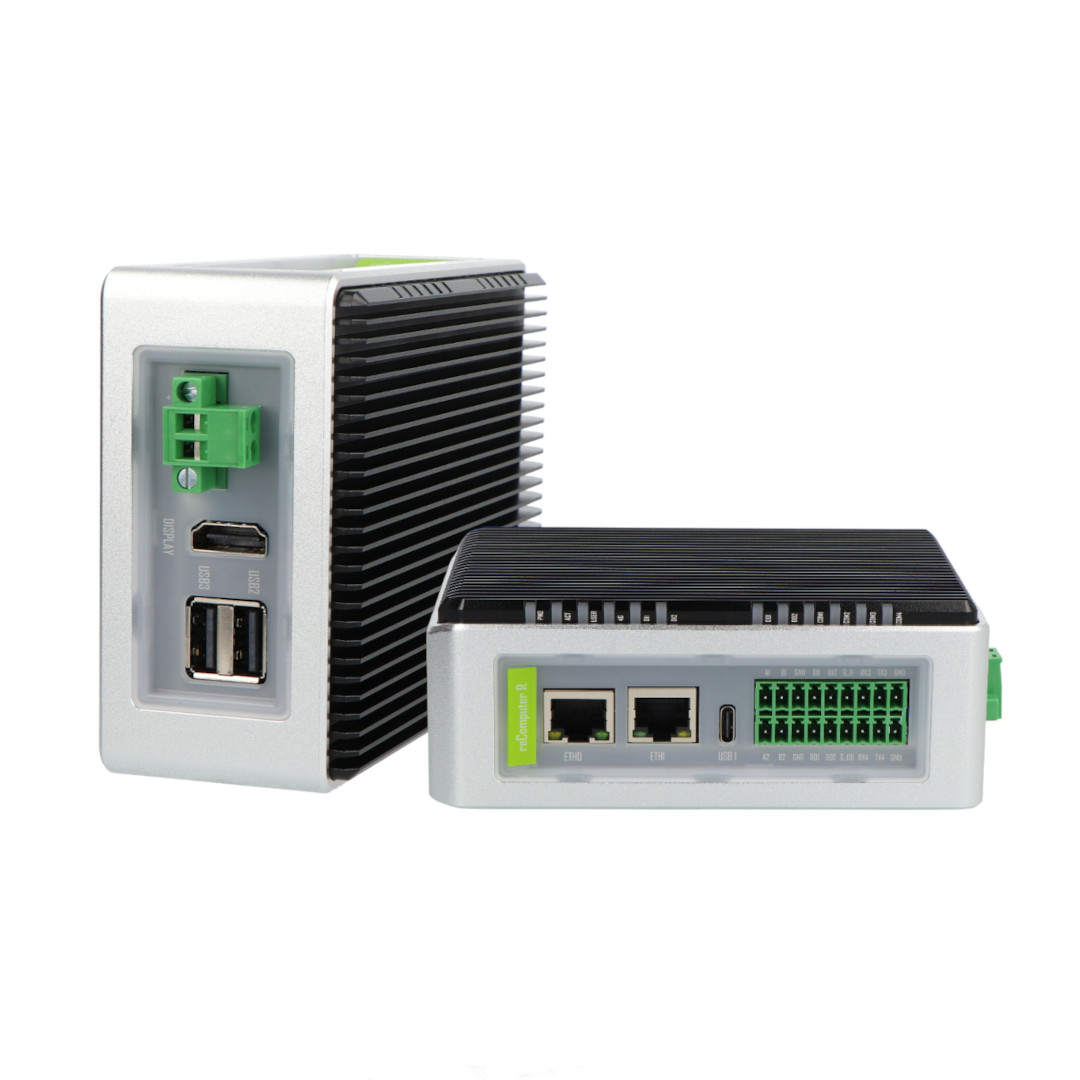

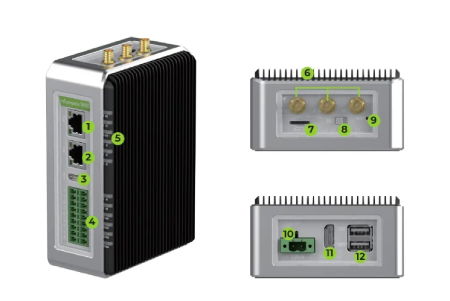

Arrangement of components on the reComputer R1113-10.
Arrangement of elements on the module
- 1x Gigabit Ethernet Port 1000M
- 1x 100M Ethernet Port
- 1x Serial Console Port
- 2x isolated RS485, 2x isolated RS232, 2x isolated digital inputs (DI), 2x isolated digital outputs (DO)
- 12x Device Status LED Indicators
- 3x antenna connectors
- 1x microSD card slot
- 1x Boot Button
- 1x Reset Hole
- 1x Power input via 2-pin connector
- 1x HDMI 2.0 Output
- 2x USB Type-A 2.0 ports for peripherals

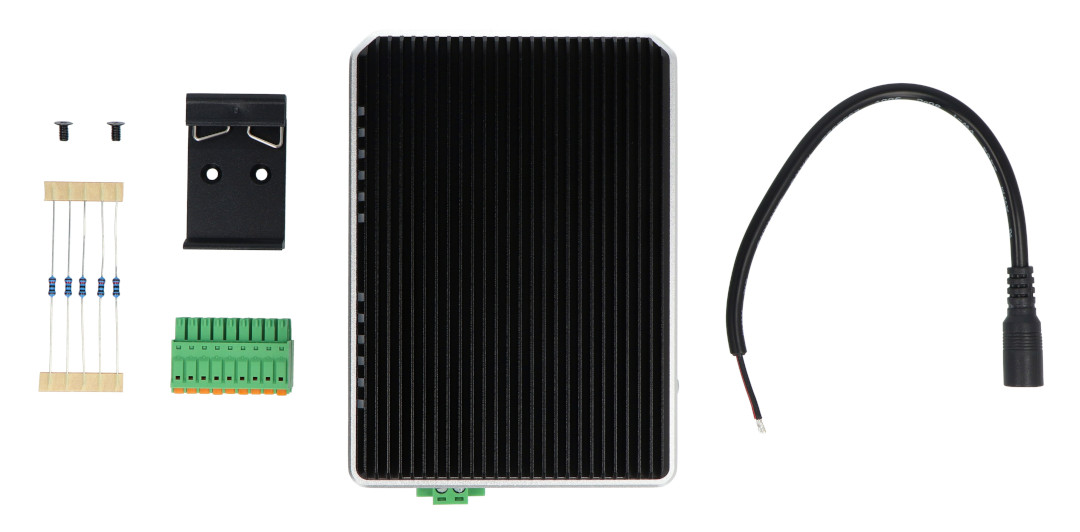

Kit Contents
- reComputer R1113-10 - 1 pc.
- DIN rail holder - 1 pc.
- Screw set - 1 pc.
- DC adapter - 1 pc.
- 9 x 2-pin male terminal block connector - 1 pc.
- Resistor 120 Ω - 5 pcs.
- User manual - 1 pc.
Thanks to the built-in M.2 NVMe slot, you can easily expand your memory by installing an SSD. | Technical specification of the reComputer R1113-10 module | |
|---|---|
| Processor | Raspberry Pi CM4, Quad-core Cortex-A72, 1.5 GHz |
| RAM memory | 2GB |
| eMMC memory | 8GB |
| Operating system | Raspbian, Debian, Yocto, Buildroot |
| Power input | 9V to 36V DC |
| PoE | IEEE 802.3af Standard 12.95 W (optional) |
| Power consumption | Idle: 2.88W; Full load: 5.52W |
| Power switch | Lack |
| Restart button | Yes |
| Interfaces | 1x 10/100/1000 Mbps, 2x USB Type-A 2.0 host, 1x USB Type-C 2.0, 2x RS485 (isolated), 2x RS232 (isolated), 2x Isolated DI Inputs (5V to 24V DC), 2x Isolated DO Outputs (<60V DC), 1x HDMI 2.0, 1x Nano SIM (internal), 1x microSD, 1x M.2 NVMe SSD (2280-M Key) |
| LEDs | 12x LED indicators |
| Reset button | Yes |
| Wireless communication | WiFi 2.4/5GHz, Bluetooth 5.0 (built-in) |
| Communication standards (optional) | LoRa, 4G LTE, Zigbee - available as extensions |
| Degree of protection | IP40 |
| Operating temperature | From -30°C to 70°C |
| Working humidity | From 10% RH to 95% RH |
| Dimensions | 130 x 93 x 49.6 mm |
| Mass | 560g |
