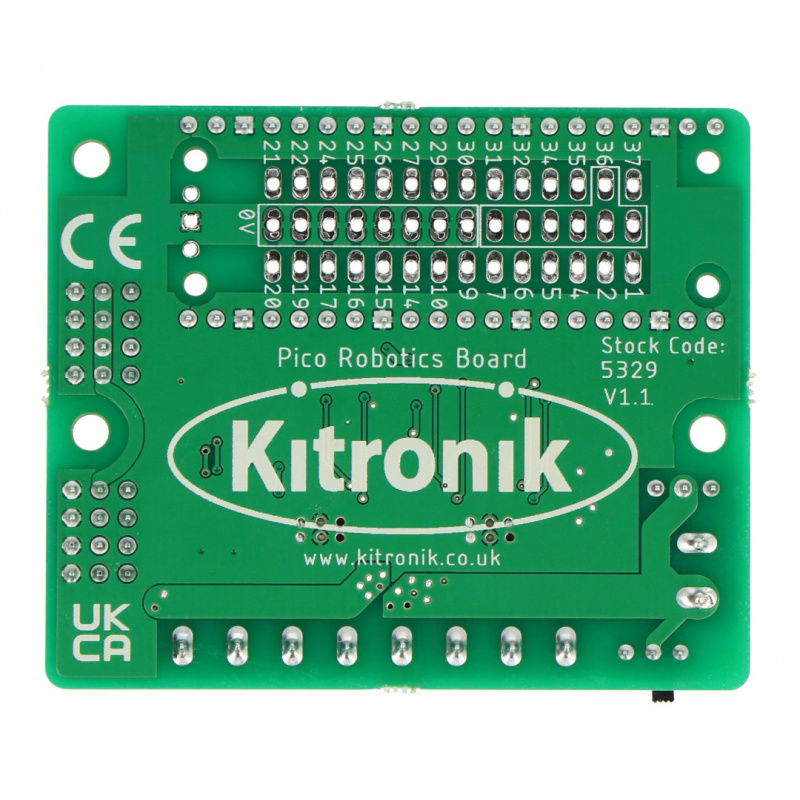

Kitronik Robotics Board - controller for 4 motors and 8 servos - 3-10.8V - for Raspberry Pi Pico - Kitronik 5329

Index: KTR-19595 EAN: 6609025153872
A module manufactured by Kitronik in the form of a motor and servo controller. The Kitronik Robotics Board allows you to control four DC motors (or two stepper motors) and eight servos. In addition, it also has 27 IO leads with which you can extend the functionality of the Raspberry Pi Pico. The maximum current consumption per motor is 1.5 A, and the maximum continuous current for all connected servos and motors should not exceed 12 A. The supply voltage of the components ranges from 3 V to 10.8 V.
Kitronik Robotics Board - controller for 4 motors and 8 servos - 3-10.8V - for Raspberry Pi Pico...
€22.50
€18.29 tax excl.
Delivery 2 pcs scheduled for 2024-04-04
Waiting for delivery
PayPal payment
Manufacturer: Kitronik
Compatibility: Raspberry Pi

Product description: Kitronik Robotics Board - driver for 4 motors and 8 servos - 3-10.8V - for Raspberry Pi Pico - Kitronik 5329

A module manufactured by Kitronik in the form of amotor and servo controller. The Kitronik Robotics Board allows you to controlfourDCmotors (ortwosteppermotors) andeightservos. In addition, it also has27 IO leadswith which you can extend the functionality of theRaspberry Pi Pico. The maximum current consumption per motor is1.5 A, and the maximum continuous current for all connected servos and motors should not exceed12 A. The supply voltage of the components rangesfrom 3 V to 10.8 V. Importantly, the controller allows simultaneous forward, reverse and stopping of the motors - all while maintaining total control. In turn, connected servos can be controlled via anI2Cinterface. The controller is designed to work withRasppberry Pi version Pico.

Product compatible with Raspberry Pi Pico!

Auser guideis available on the manufacturer's website as well as useful repositories to download on GitHub. Find out how to program a motor controller usingMicroPythonandCircuitPython.

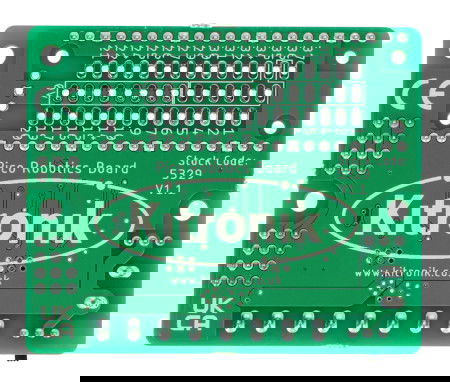

Moduł firmy Kitronik do sterownia silnikami krokowymi, silnikami prądu stałego oraz serwomechanizmami.

Kitronik's module for controlling stepper motors, DC motors and servos.

Motor and servo controller for Raspberry Pi Pico - overview of features

  • Compact size and a range of capabilities in one allows you to maximize the functionality of robots based onRaspberry Pi Pico
  • Allows control of four DC motors (or two stepper motors) and up to eight servos
  • Forward, reverse and stop control functions
  • Built-in physical on/off switch and status LED
  • Board equipped with convenient screw connectors
  • The motor controller from Kitronik also contains 27 additional GPIO connectors that can be used to connect peripheral devices

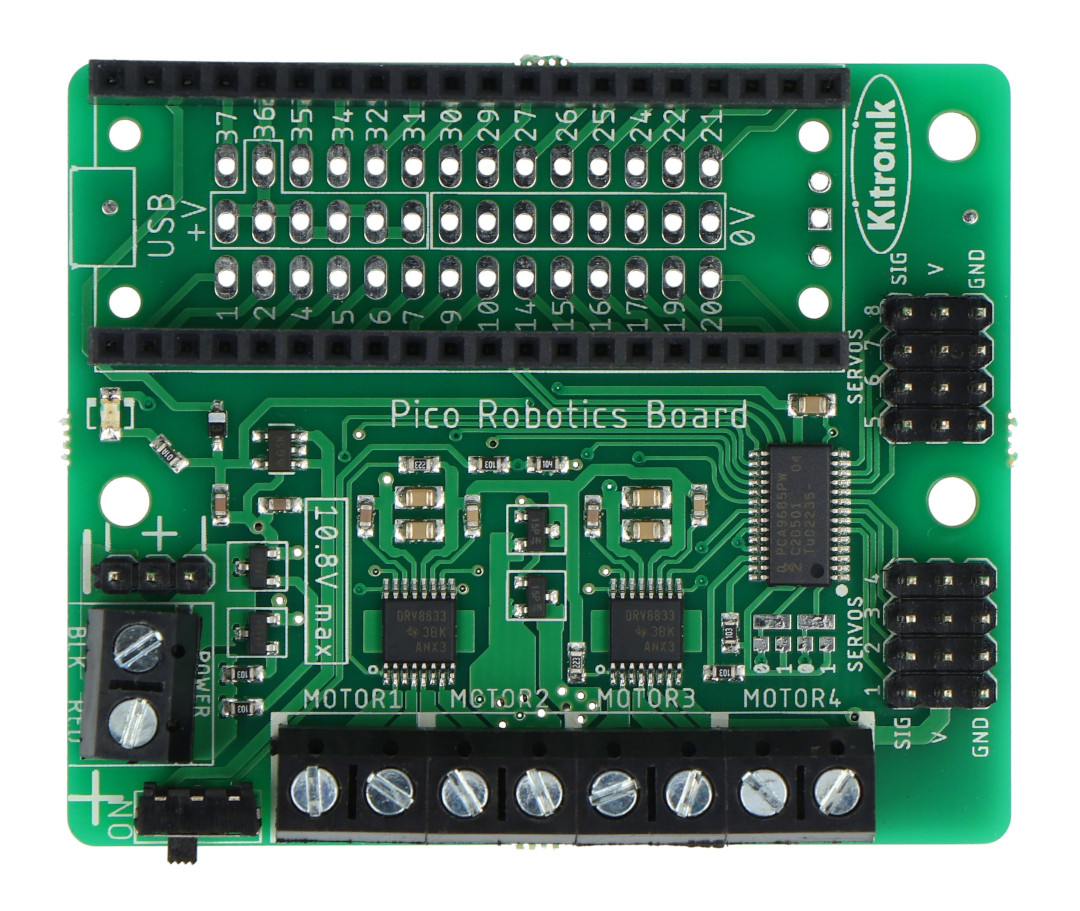

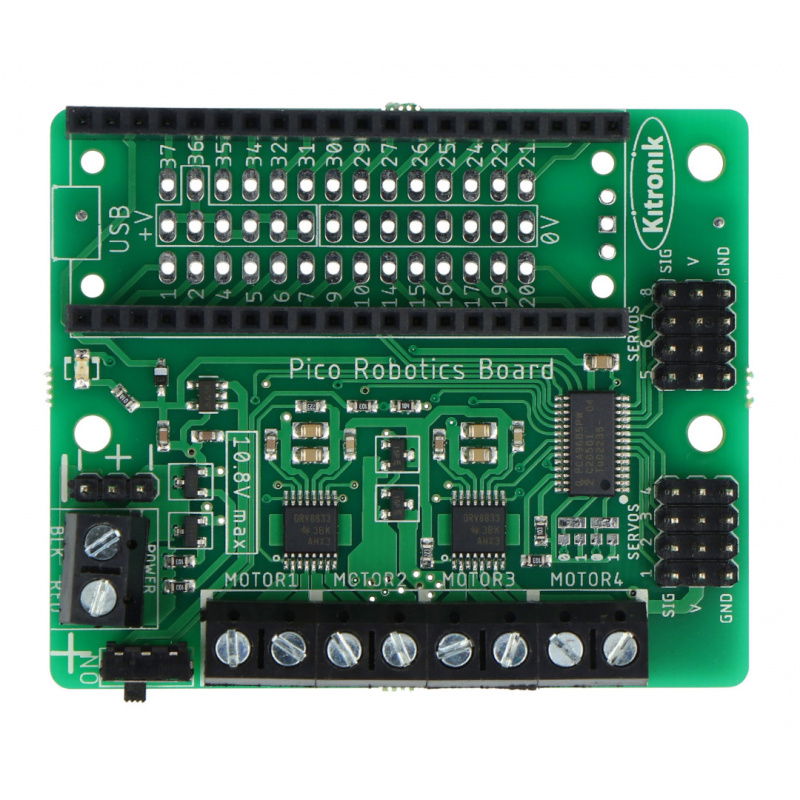

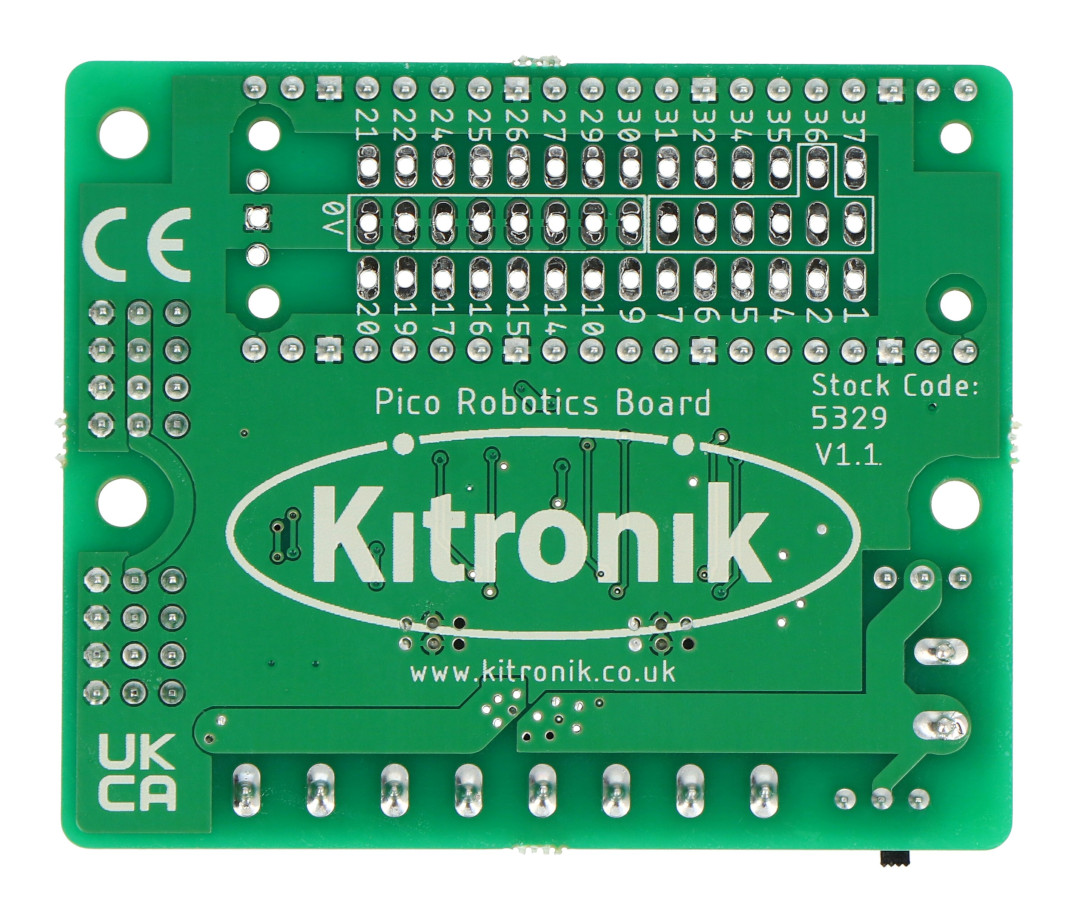

Description of the leads on the board

  • MOTOR1 - MOTOR4 - the first to fourth motor connectors
  • SERVOS1 - SERVOS8 - servo connectors first - eighth
  • GPOx - IO pinout

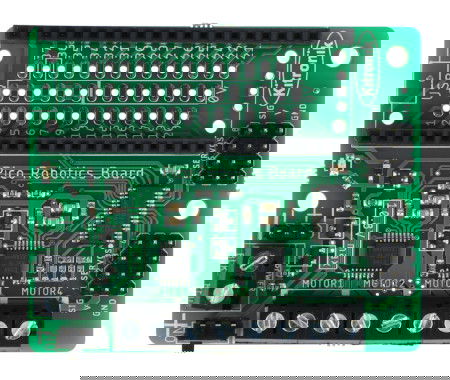

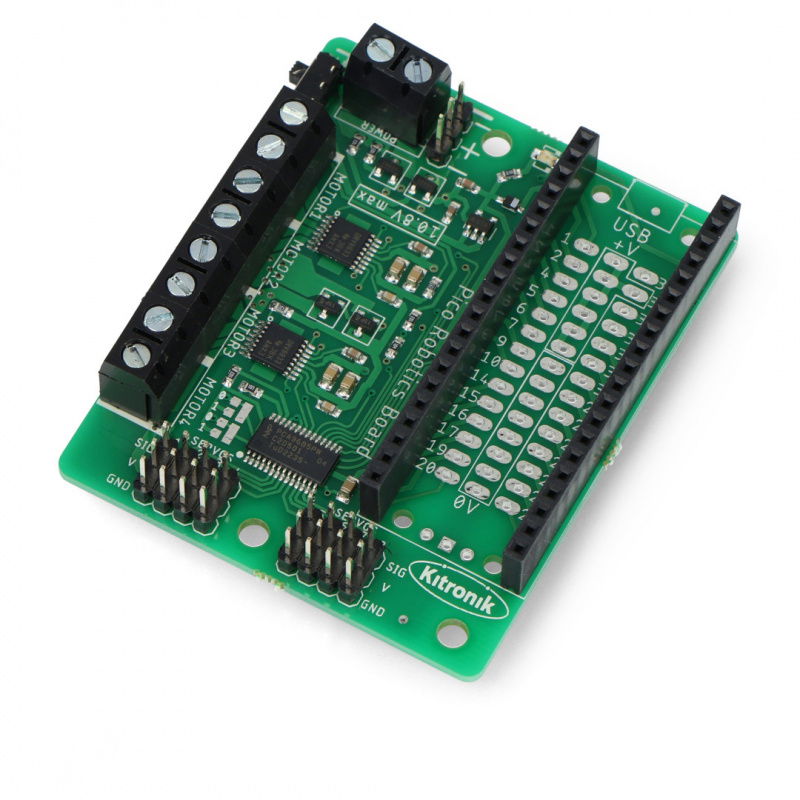

Sterownik posiada wyprowadzenia w postaci pinów GPIO oraz złącz śrubowych.

The controller has GPIO pins and screw connectors.

For proper operation of the motor controller it is necessary to useRaspberry Pi Pico, which is not part of the kit. It can be purchased separately in our shop.

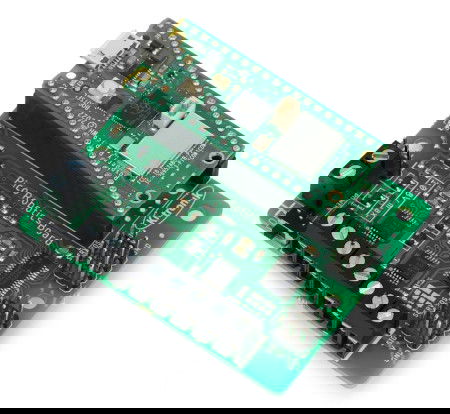

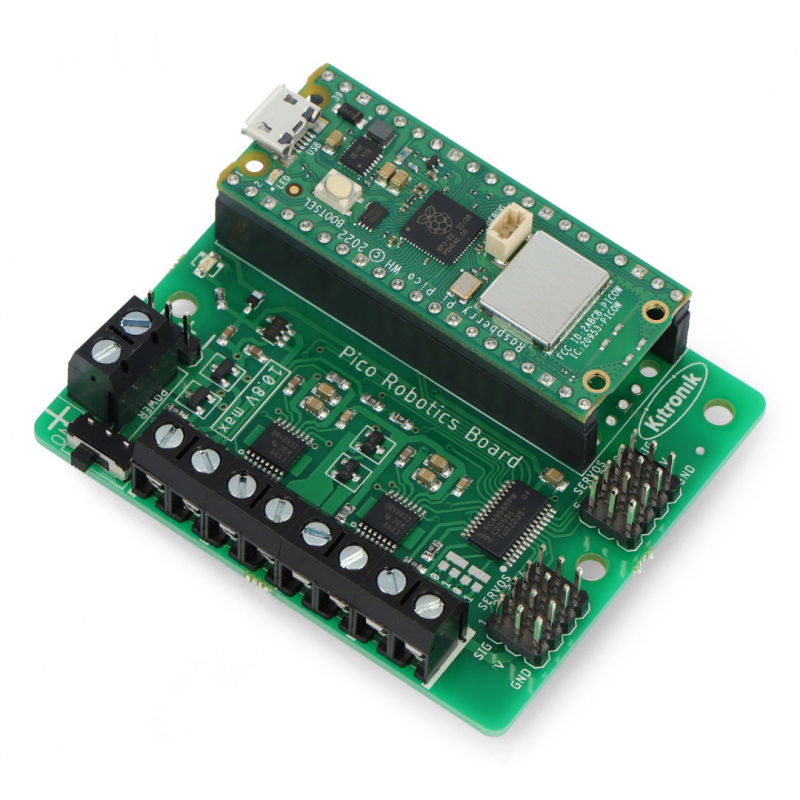

Połączenie sterownika silnika z Raspberry Pi Pico.

Connecting the motor controller to the Raspberry Pi Pico.

Technical specifications of the motor driver

  • Compatible with Raspberry Pi Pico version
  • Communication interface: I2C
  • I2C interface address:
    • 0x6C (default)
    • 0x6D (configured)
    • 0x6E (configured)
    • 0x6F (configured)
  • Supply voltage range: 3 V to 10.8 V
  • Number of supported channels:
    • DC motor: 4
    • stepper motor: 2
    • servo motor: 8
  • Motor voltage: 3 V to 10.8 V
  • Maximum current consumption for one motor: 1.5 A
  • Maximum continuous current for all servos and motors: 12 A
  • Dimensions:
    • board dimensions: 68 x 56 x 10 mm
    • PCB thickness: 1.6 mm
    • diameter of mounting holes: 3 mm
Voltage to 3.0 V
Voltage from 10.8 V
Sensor - type motor driver
Package width 9 cm
Package height 12.5 cm
Package depth 2 cm
Package weight 0.03 kg
