Description of product: Inventor 2040 W - Raspberry Pi Pico development kit - PiMoroni PIM633
Inventor 2040 W is a development board with a Raspberry Pi Pico W module with support for 2.4 GHz WiFi wireless communication. The use of the Inventor 2040 W in the project gives a wide range of possibilities thanks to the interfaces and leads placed on the board. They include JST-SH connectors for connecting motors , a driver with a double H-bridge ( DRV8833 ), STEMMA QT / Qwiic or PWM outputs for controlling servos. The board also has a connector with an audio output for connecting a loudspeaker and a GPIO output with analog inputs, 12 addressable RGB LEDs and functional buttons.
The manufacturer has also prepared examples for MicroPython and C / C ++ - check it out!
The Inventor 2040 W has a Raspberry Pi Pico W on board.

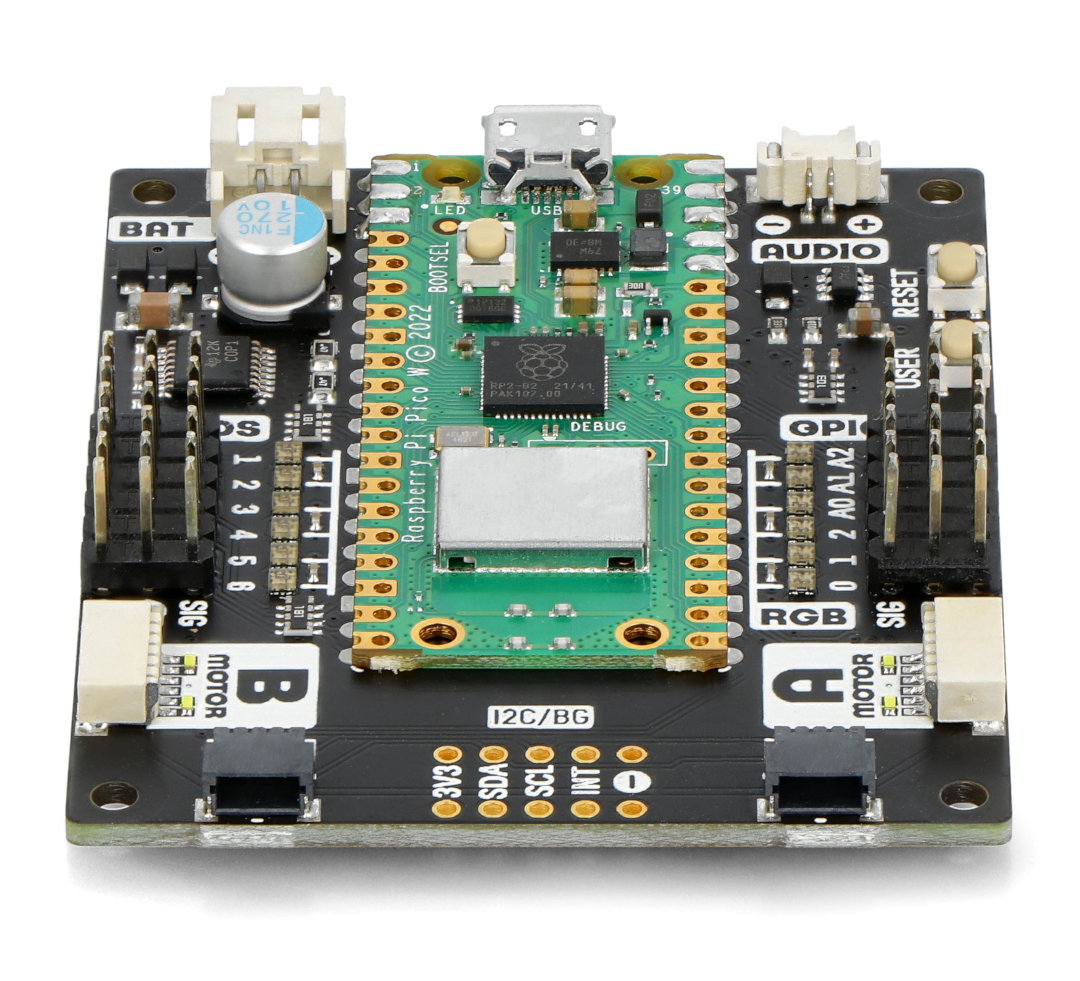

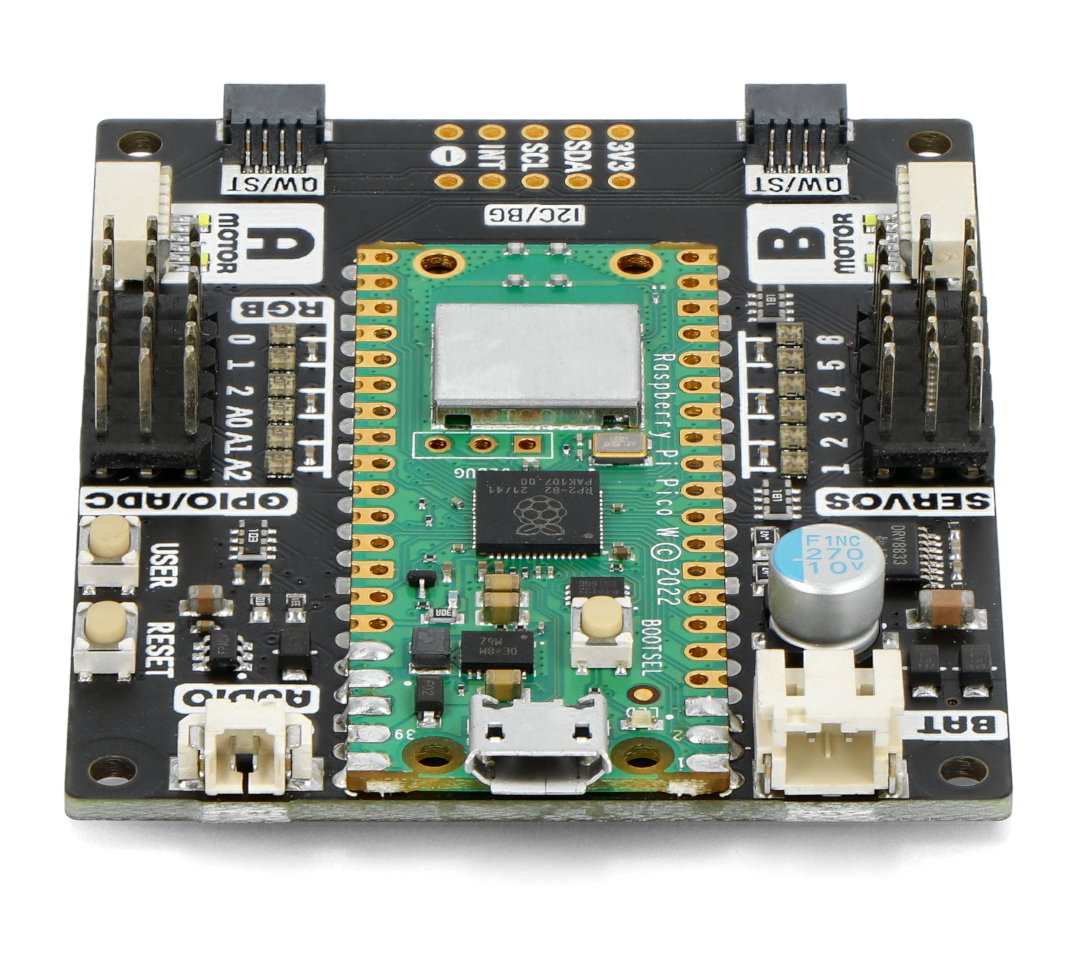

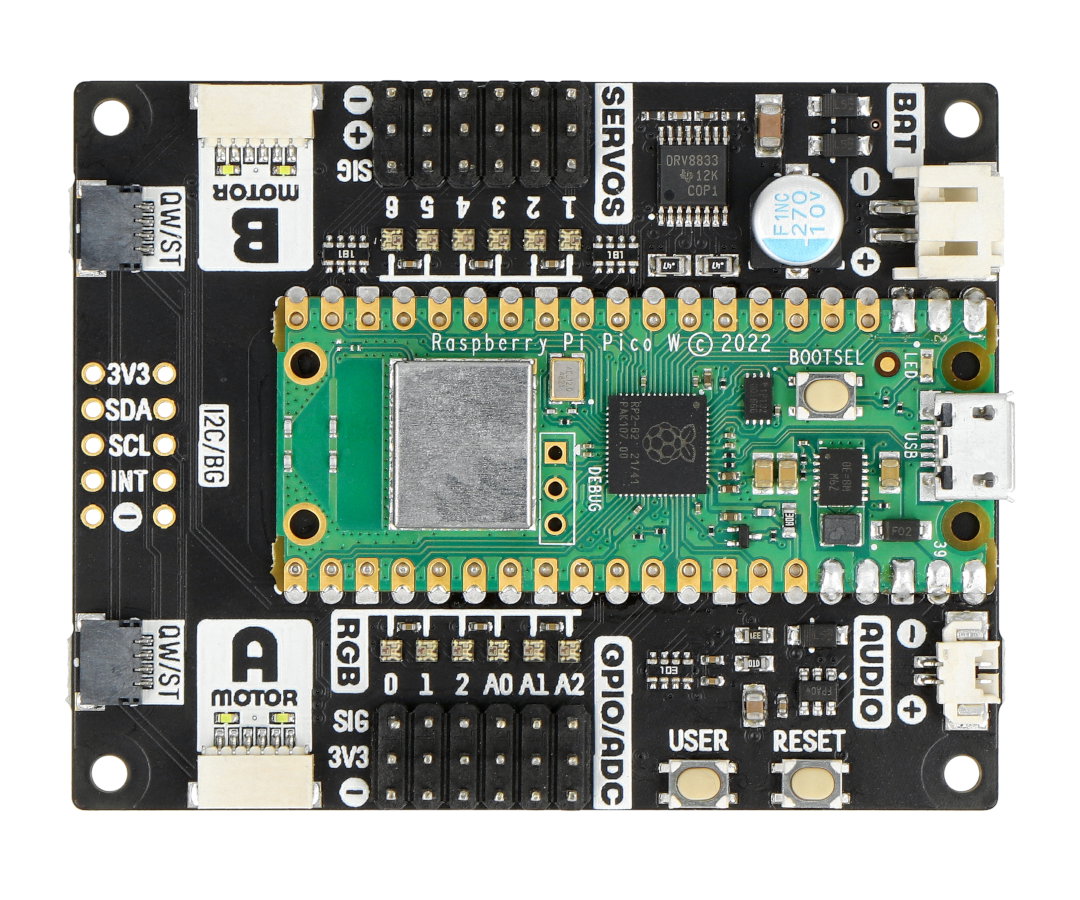

Inventor 2040 W - Raspberry Pi Pico development kit - PiMoroni PIM633.
Inventor 2040 W Technical Specifications
- Raspberry Pi Pico W
- Dual Arm Cortex M0 + clock frequency up to 133 MHz
- 264 kB of SRAM
- 2MB QSPI flash memory supporting XiP
- Powered and programmable via USB type B connector
- 2.4 GHz WiFi wireless communication
- 2x JST-SH connectors (6 pins) intended for connecting motors
- Double H-bridge motor controller (DRV8833)
- Motor current limit (425 mA)
- LEDs to indicate the direction of rotation of the motor
- 2-pin connector (Picoblade compatible) for speaker connection
- 2-pin JST-PH connector for battery connection (input voltage from 2.5 V to 5.5 V)
- 6x 3-pin pins for connecting servos
- 12x addressable RGB / Neopiksels LEDs
- User button
- Reset button
- 2x STEMMA QT / Qwiic connectors
- Tile sizes: 52 x 66 x 12 mm
Raspberry Pi Pico W - special features
Raspberry Pi Pico W is a module equipped with the proprietary Raspberry RP2040 microcontroller with the CYW43439 wireless communication system - WiFi IEEE 802.11 b / g / n. RP2040 is a dual-core ARM Cortex M0 + chip clocked at 133 MHz, with 264 KB of SRAM and 2 MB of Flash memory. The system has 26 GPIO pins that work with a voltage of 3.3 V, and a built-in temperature sensor. The Raspberry Pi Pico is programmed in C / C ++ and MicroPython via the microUSB connector.
Find out more about the Raspberry Pi Pico W here .
Inventor 2040 W can be used as a robot controller or an element of a smart home automation system.
