Product description: Metro RP2040 - development board with RP2040 microcontroller - Adafruit 5786
A development board from the Metro series from Adafruit, this time equipped with the Raspberry Pi - RP2040 foundation system. With a dual-core ARM Cortex-M0+ processor clocked at 133 MHz , 264 kB of SRAM and 2 MB of Flash memory, it ensures high performance and flexibility in implementing a wide range of projects. The board is fully compatible with the Arduino platform, which allows for easy programming and integration with existing projects. Thanks to the GPIO pins, USB Type C connector and Qwiic / STEMMA QT connectors, the user can connect additional sensors , modules and other accessories. Metro RP2040 is ideal for creating electronic projects and prototyping. Thanks to its compact size and rich possibilities, it is an excellent choice for both beginners and advanced users.
Also check out the user guide prepared by the manufacturer!
Metro RP2040 - development board with RP2040 microcontroller - Adafruit 5786.

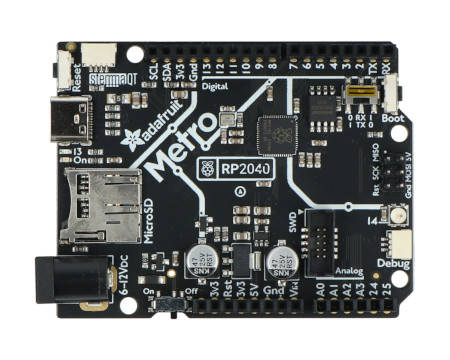

It is compatible with the Arduino and MicroPython platforms.
Special features of the Adafruit Metro RP2040 tile
- High performance : equipped with the RP2040 chip with a dual-core ARM Cortex-M0+ processor with a frequency of 133 MHz and a logic voltage of 3.3 V.
- Expanded memory : includes 16 MB QSPI Flash memory for program storage, 264 KB SRAM and 2 MB Flash memory.
- Easy programming : compatible with Arduino and MicroPython platforms.
- Numerous interfaces : 21 digital pins GPIO, SPI, I2C, UART.
- USB Type C port : ensures fast data transfer and allows convenient power supply.
- Qwiic / STEMMA QT connectors : make it easy to connect additional modules and sensors.
- Support for serial communication standards : ideal for IoT projects and embedded systems.
- Compact size : designed for projects requiring small dimensions.
Technical specifications of the RP2040 system
- Dual-core ARM Cortex M0+ clocked at 133 MHz
- 264 kB of on-board SRAM
- Support for up to 16 MB of external Flash memory via a dedicated QSPI bus
- DMA controller and connected AHB
- 2x built-in PLL
- Programmable LDOCommunication interfaces: 2x UART, 2x I2C, 2x SPI, 16x PWM channels
- Supported programming languages: C/C++ and MicroPython

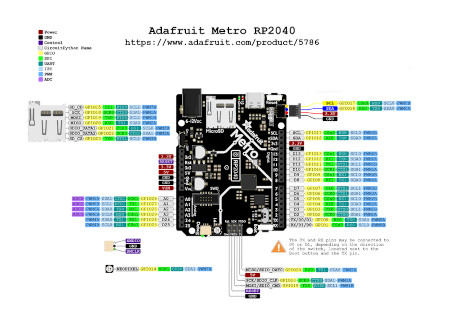

Description of the board pins.

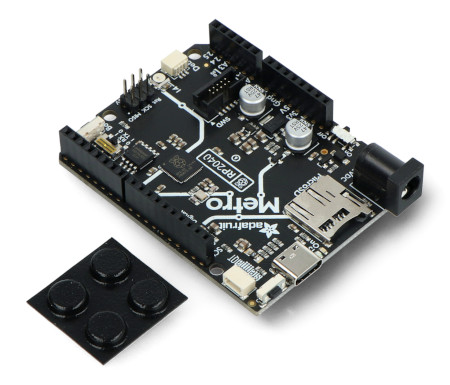

Elements included in the set.
Technical specifications of Metro RP2040 - Adafruit
- Chip: RP2040, 133MHz, 3.3V
- Flash memory: 2 MB
- QSPI Flash Memory: 16 MB
- SRAM memory: 254 kB
- MicroSD memory card slot
- Built-in NeoPixel diode
- Buttons: Reset and Boot
- Pins: STEMMA QT / Qwiic for connecting I2C devices
- USB connector: USB type C port - for programming and power supply
- DC socket with switch: 5.5 / 2.1 mm for power supply from 6 V to 12 V DC
- RX/TX switch to swap D0 and D1 locations
- Compatible with Arduino or CircuitPython
- Dimensions: 68.6 x 53.3 mm
Set contents
- Metro RP2040 - Adafruit
- Feet - 4 pieces
