Specification
- The microcontroller STM32F746NGH6:
- Core: Cortex M-7
- Flash memory: 1 MB
- RAM: 340 kB of SRAM
- Clock frequency: up to 216 MHz
- Housing: BGA216
- The debugger ST-Link/V2, located on the board
- Colorful LCD screen
- Diagonal: 4,3 "
- Screen resolution: 480 x 272 px
- Touch panel: capacitive
- 5 options of powering the module:
- ST-LINK/V2-1
- Connector USB Full Speed
- Connector USB High Speed
- The VIN of the Arduino connector
- The external connector 5 V
- On Board are also:
- Output and input of audio
- The camera connector
- Stereo speaker output
- Two microphones ST MEMS
- Two buttons
- MicroSD connector
- MicroUSB OTG HS connector
- MicroUSB OTG FS connector
- Connector Ethernet IEEE 802.3-2002
- Flash memory: 128 MB Quad SPI
- Memory SDRAM: 128 Mb
- The connectors of the Arduino Uno
A detailed description and sample programs are onthe website of the manufacturer.

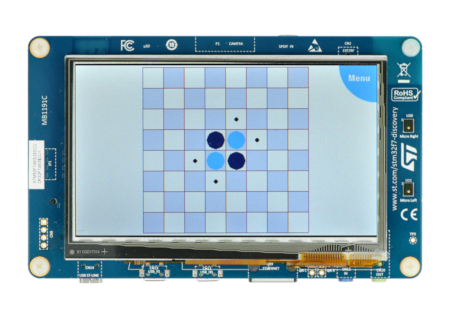

Colorful screen with capacitive touch panel provides high sensitivity.
Description
The module allows to implement projects based on the popular 32-bit microcontroller from the STM32 family. The board also contains additional items: LCD touchscreen 4,3", buttons and Ethernet connector. Creating a software is facilitated by libraries and many examples are available on the websiteof the company ST.

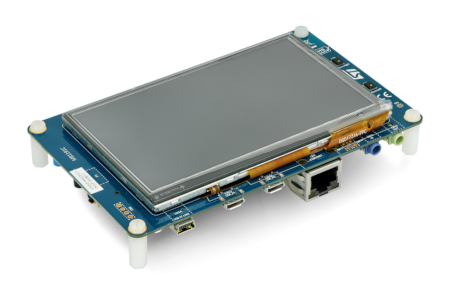

The device has built-in slots: Ethernet, 2 x microUSB OTG, miniUSB (for programming) and audio connectors.
