Product description: V3Link Camera Kit - set of four IMX219 8MPx cameras - FPD-Link - for TI development boards - ArduCam B0489
ArduCam V3Link Camera Kit is an innovative solution offering four IMX219 camera modules with 8 MPx resolution, compatible with TI SK-AM62A-LP / AM68A / AM69A platforms. Thanks to V3Link technology, the kit allows data and power transmission at a distance of up to 10 m using shielded coaxial cables, which ensures low latency and reliability. The four-channel management function allows switching between cameras or their independent control . The kit is ideal for applications such as ADAS, monitoring, industrial systems and medical imaging. Simple plug-and-play operation allows for immediate use without the need for additional settings, which translates into saving time and resources.
V3Link Camera Kit - set of four IMX219 8MPx cameras - FPD-Link - for TI development boards - ArduCam B0489.
Four camera kit with adapter. TI developer board must be purchased separately.
Key Features of the V3Link Camera Kit
- High Resolution IMX219 : 8-megapixel CMOS sensor provides Full HD image quality in 1080p at 30 fps
- Long-distance data transmission : V3Link technology enables transmission distances of up to 10 meters with minimal latency
- TI SK-AM62A-LP / AM68A / AM69A Compatibility : Kit optimized to work with Texas Instruments platforms
- Flexible channel management : ability to switch between four cameras or control them independently
- Plug-and-play : simple installation with no additional drivers or configuration required
- Versatile applications : the kit is ideal for ADAS, security systems, industrial and medical applications
Attention!
The kit does not include a TI development board. It must be purchased separately.
Practical applications
ArduCam V3Link Camera Kit is perfect for advanced monitoring and computer vision systems . In automotive (ADAS) it can be used to detect obstacles and monitor the environment. In security systems it allows the creation of reliable, multi-channel camera systems. In industry and medicine it allows for precise monitoring of production processes and medical imaging while maintaining high image quality over a long distance.

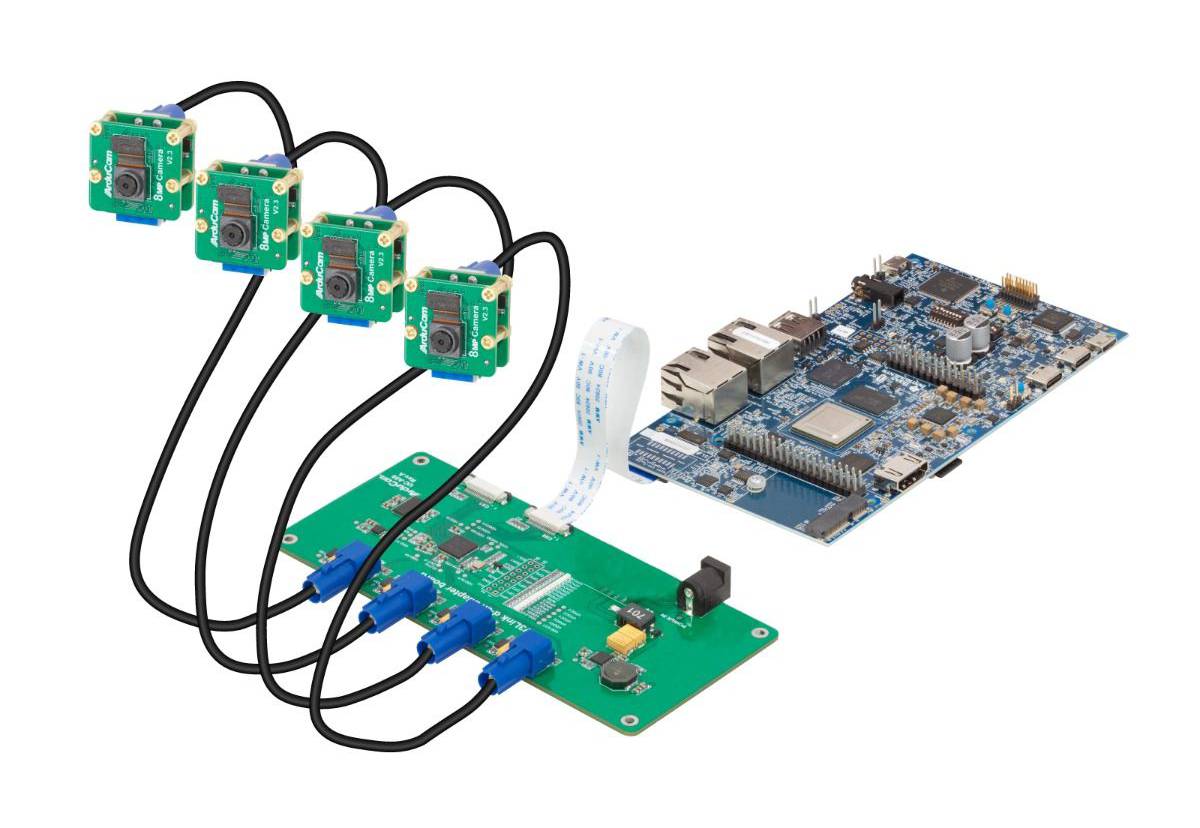

V3Link enables data and power transmission over distances up to 10 m.
Board configuration
The ArduCam V3Link Camera Kit is designed for users who value simplicity of setup. Thanks to plug-and-play technology, the kit does not require the installation of additional drivers or complicated software . Simply connect the cameras to the receiver board using the included coaxial cables, and then integrate them with the TI platform. Detailed instructions are available in the manufacturer's documentation, which makes it easy to get started quickly.

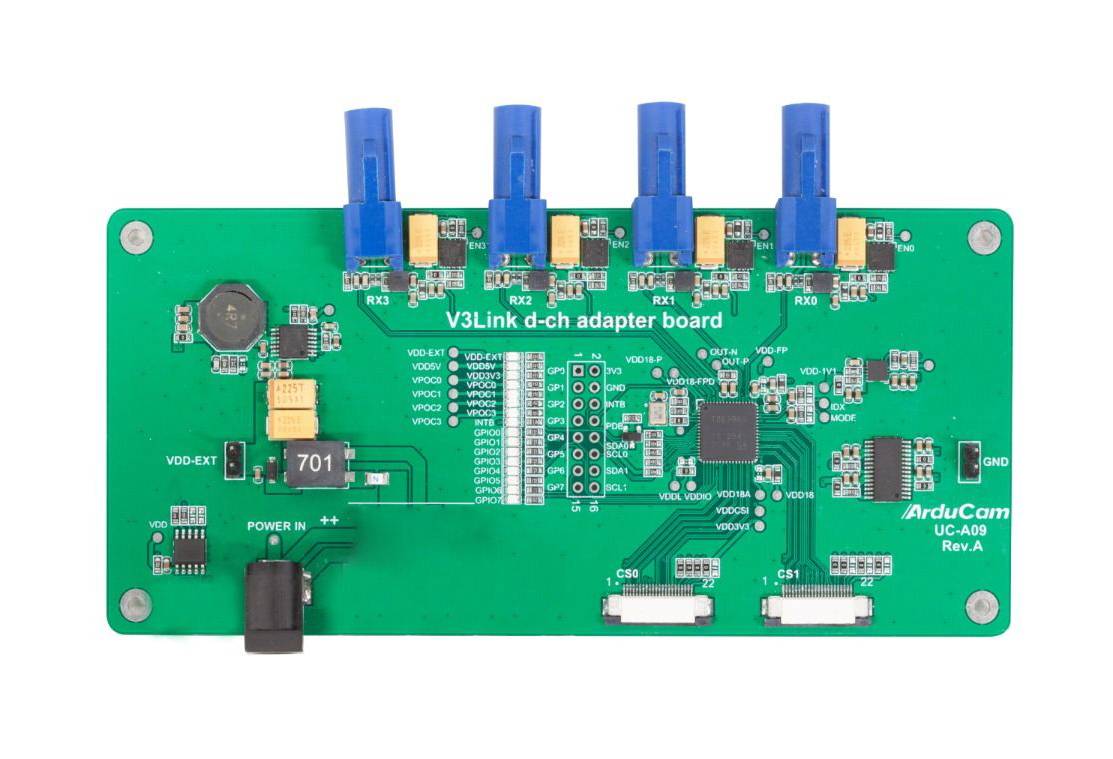

Technical Specifications of the Receiver Adapter Board
- Supported number of sensors: up to 4 sensors
- Data Transfer Protocol: MIPI CSI-2 v1.3
- MIPI port type: 2 x CSI-2 output MIPI ports
- I2C Speed: Two I2C ports, up to 1 Mbps
- Transmission Cable: FPD Link (Power over Coaxial Cable - PoC)

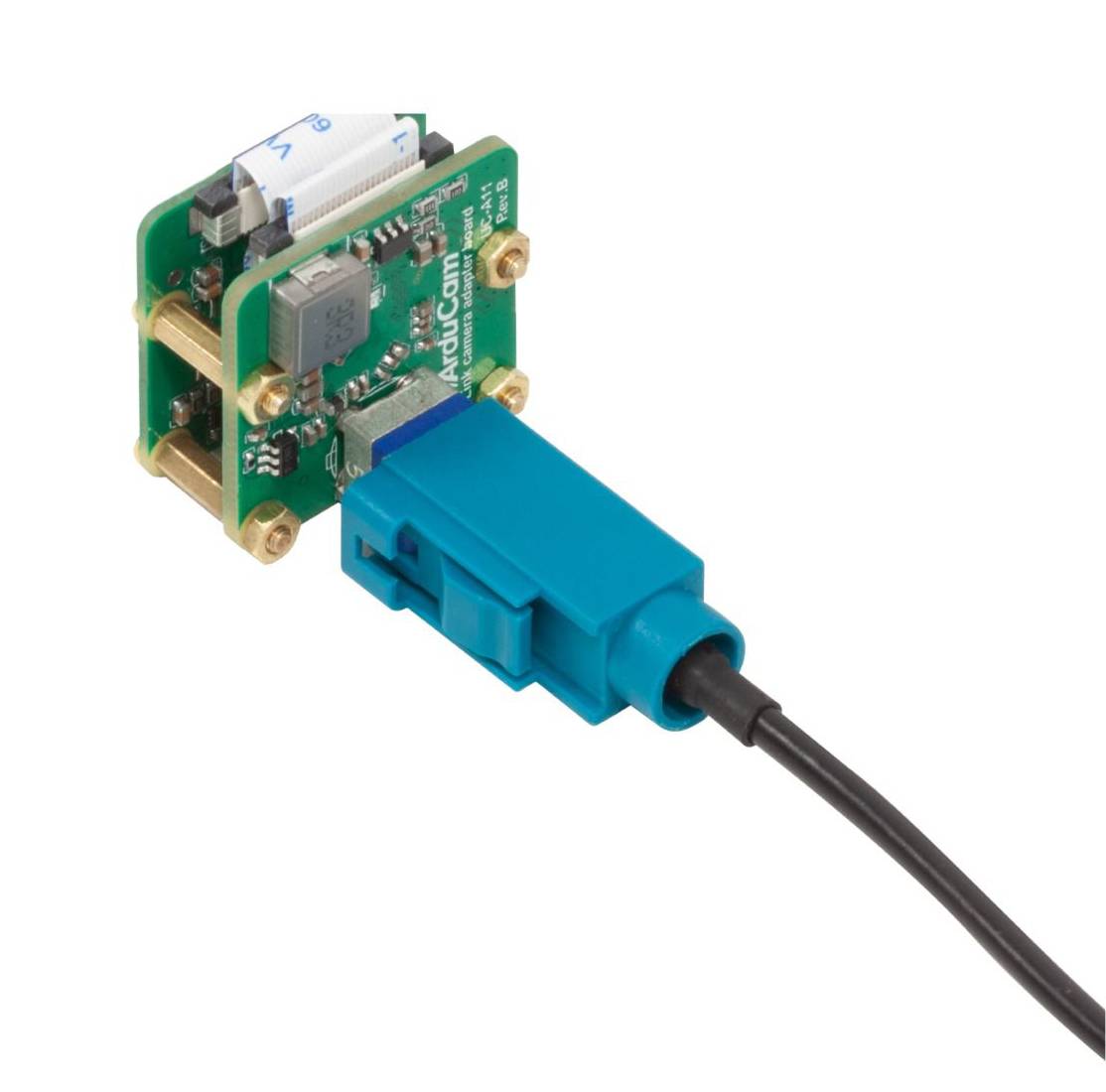

Camera Adapter Board Technical Specifications
- Power supply: single 1.8V
- Connector: MIPI CSI-2
- Number of MIPI Lanes: 2-lane MIPI interface
- Transmission cable: Power-over-Coax (PoC) compatible transceiver
- Power consumption: low, typically 0.28 W
- Operating temperature range: -20°C to 85°C

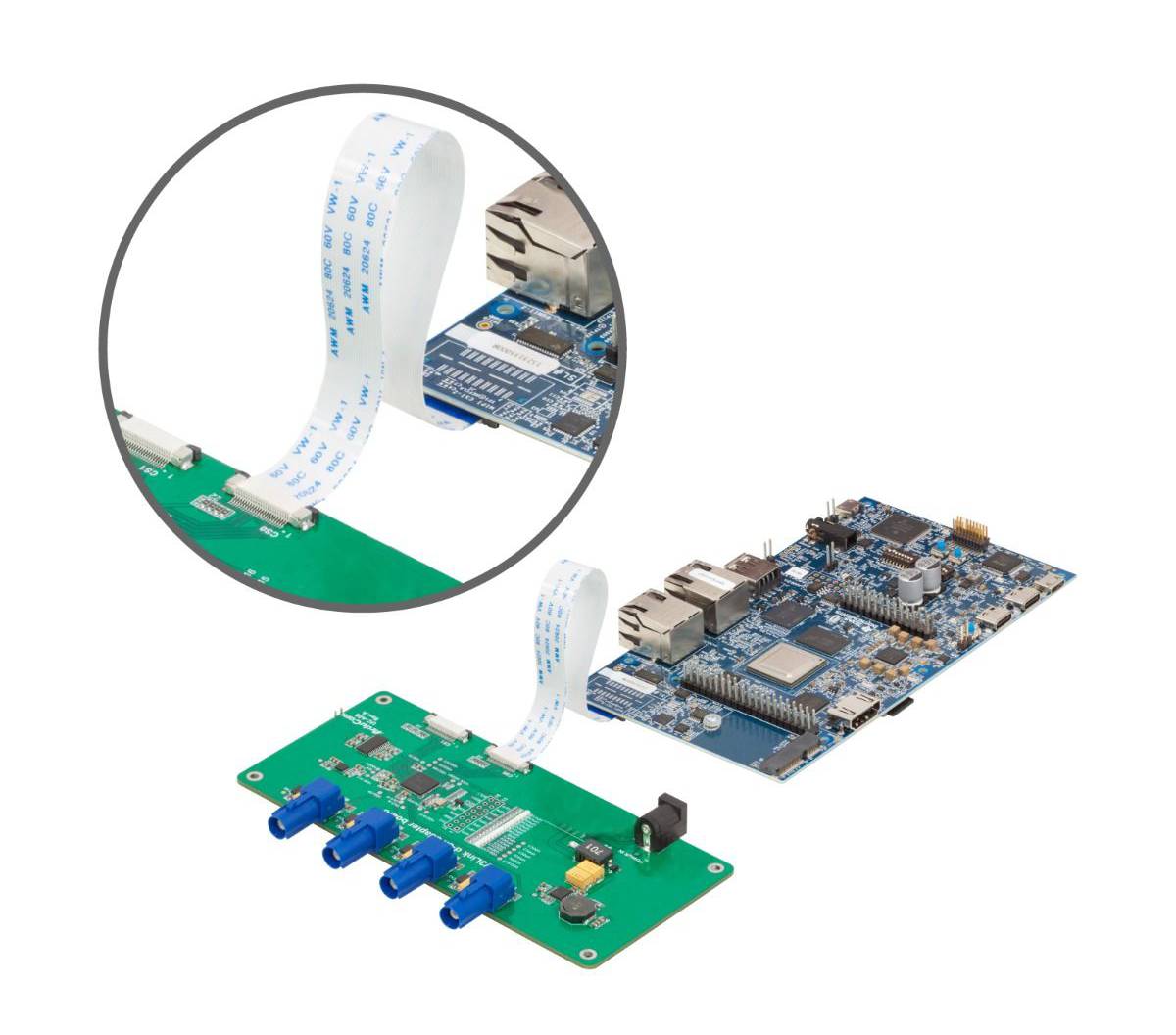

ArduCam V3Link d-ch board for connecting to a TI development board.

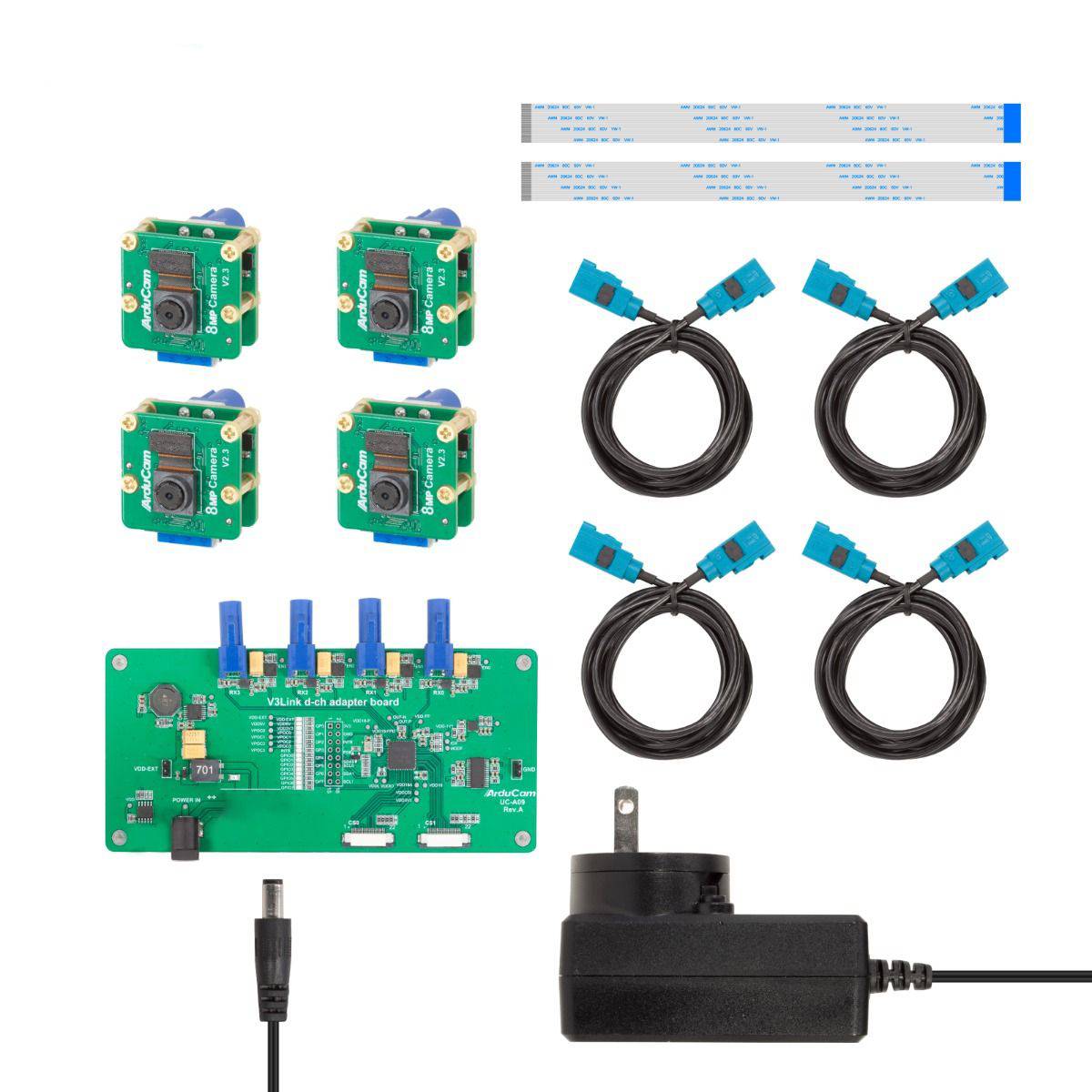

Items included in the set.

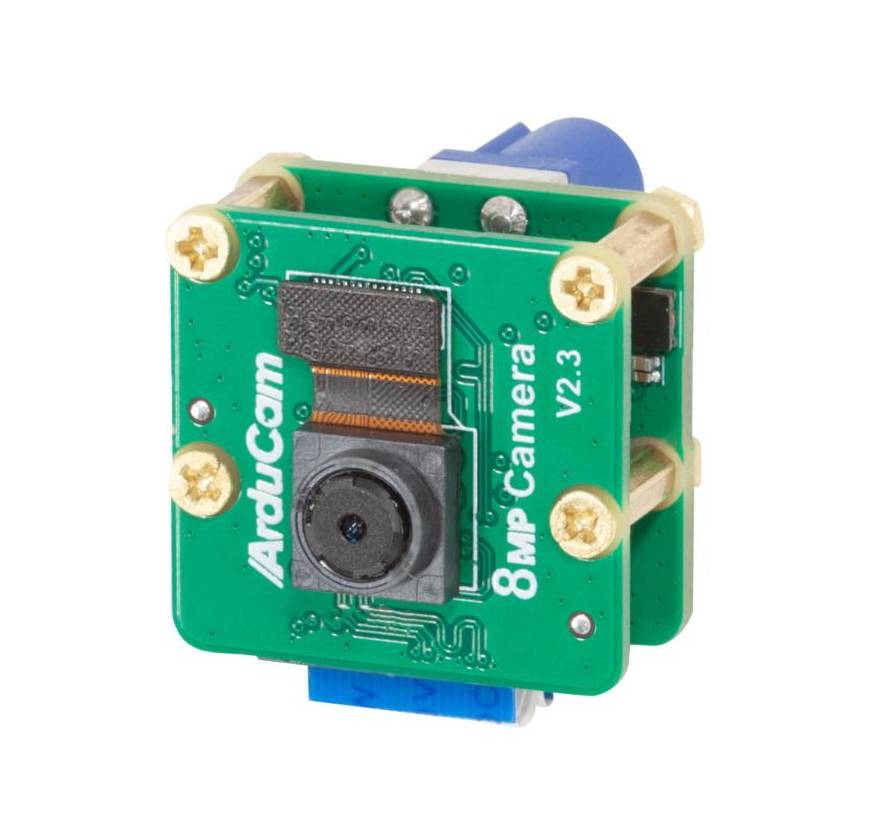

Camera Technical Specifications
- Image sensor: Sony IMX219
- Resolution: 8MPx
- Video modes: 1080p 30fps, 640 x 480 px 30fps
- Optical format: 1/4''
- Active pixels: 3280 (H) x 2464 (V)
- Pixel size: 1.12 x 1.12 µm
- Focal length: 3.04 mm
- Aperture: F2.0
- Viewing angle: 62.2°(H) x 48.8°(V)
- Interface: MIPI CSI-2
- CSI-2 Data Output: 2-line mode
- Color Filter: Quad Bayer RGB
- Output format: RAW Bayer 10-bit
Shutter type: Rolling Shutter
- Peak current: 300 mA
- Camera module size: 25 x 24 mm
Kit Contents
- 1x ArduCam V3Link d-ch Rx Receiver Adapter Board
- 4x ArduCam V3Link camera Tx adapter board
- 4x ArduCam IMX219 Camera Modules
- 4x Fakra Z female-female coaxial cable, 1 m long
- 4x FPC 22-pin ribbon, length 40cm
- 1x FFC 22-pin tape, length 15cm
- 1x Power supply
