Product description: Mini CAN Unit TJA1051T/3 - Unit expansion module for M5Stack development modules - M5Stack U179
Mini CAN Unit is a miniature CAN transceiver unit in the form of a Unit type extension for M5Stack family development modules. It uses the TJA1051T/3 chip, which provides excellent data transmission speed, supporting the CAN FD protocol, enabling flexible data management and increasing communication efficiency. The module is characterized by high resistance to electromagnetic interference (EMC) and electrostatic discharge (ESD), which translates into the stability and security of transmitted data. Thanks to the integrated DC-DC power supply system , it supports a wide range of input voltages from 5 V to 24 V, ensuring versatility and stability of operation in various conditions. Mini CAN Unit is an ideal choice for applications in automotive electronics, industrial automation and communication systems, offering reliability and flexibility in data transmission.

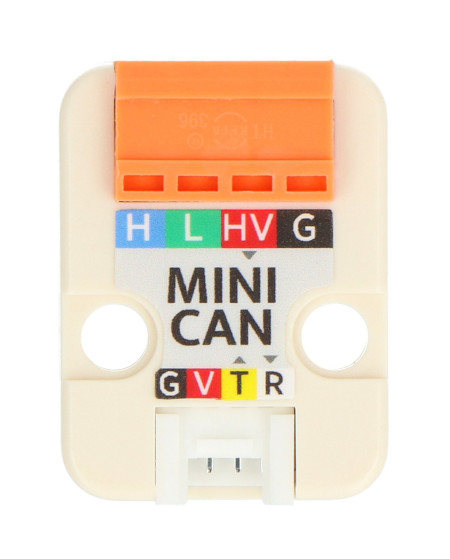

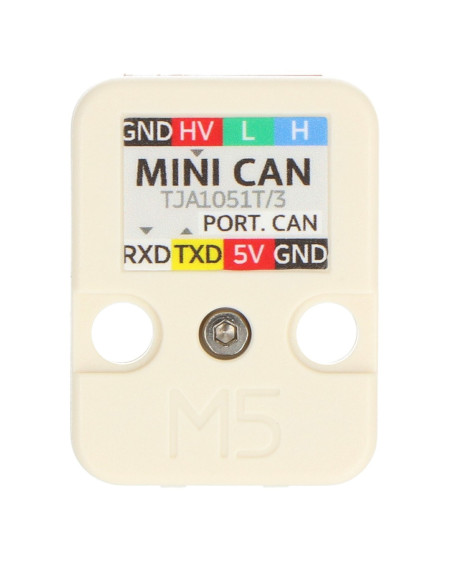

Mini CAN Unit TJA1051T/3 - Unit expansion module for M5Stack development modules - M5Stack U179.
Supports a wide range of input voltages from 5V to 24V.Special features of the Mini CAN Unit
- Chip TJA1051T/3 : guarantees high data transmission speed and support for CAN FD.
- EMC and ESD protection : increases the security and stability of data transmission.
- Wide input voltage range : from 5 V to 24 V thanks to the integrated DCDC circuit.
- Protocol Compatibility : ISO 11898-2:2016 and SAE J2284-1 to SAE J2284-5 compliant.
- Compact dimensions : 32 x 24 x 10.2 mm.
Our offer also includes other Unit extensions that will allow you to expand your projects according to your individual needs.
What is CAN bus?
CAN bus (Controller Area Network - Can Bus) is a serial communication network that allows bidirectional data exchange between microprocessors. It was developed to support systems such as ABS or engine control, providing high reliability and high immunity to interference. It is widely used in modern vehicles, construction and industrial automation, especially in more complex projects. CAN is an international ISO standard for serial communication.
The CAN unit is an isolated transceiver unit that enables the creation of complex communication networks. It supports differential transmission and reception and can support up to 110 nodes. The data transmission speed can reach up to 1 Mb/s.
Compatible with the M5Stack series of development modules.
Items included in the set.
Technical specification of the module
- Type: CAN Bus Transceiver Unit
- Built-in chip: TJA1051T/3 (CAN FD)
- Transmission speed: up to 1 Mbit/s
- Standard Protocol: ISO 11898-2:2016 and SAE J2284-1 to SAE J2284-5 compliant
- Input voltage range: 5V to 24V
- Operating temperature: 0°C to 40°C
- Compatible with M5Stack series of development modules
- Dimensions: 32 x 24 x 10.2 mm
- Weight: 7.8 g

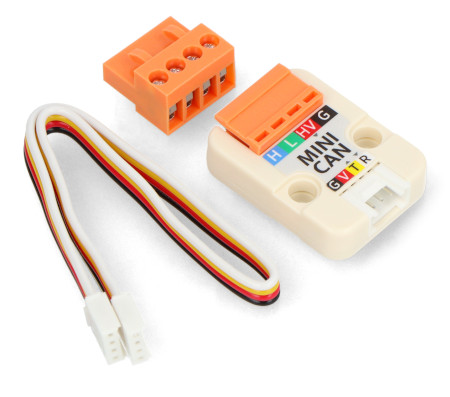

Contents of the set
- 1x Mini CAN Unit
- 1x Grove Cable (20cm)
- 1x 4-pin terminal connector - 3.96 mm pitch
