Product description: Gravity - 1-channel DAC 4-20mA I2C digital-to-analog converter - DFRobot DFR0972

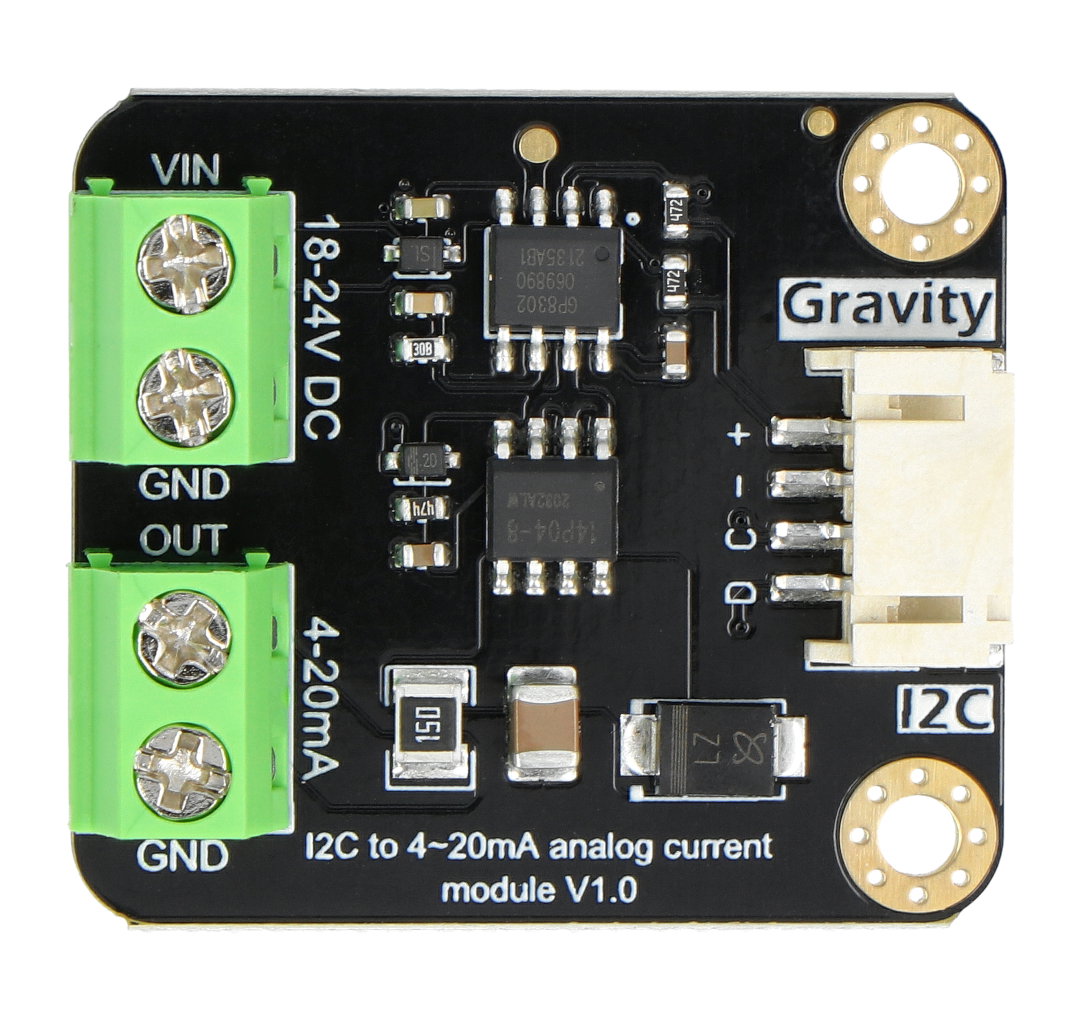

Digital-to-analog converter equipped with a Gravity series connector. It has two screw connectors - one with a current output in the range of 0 mA to 25 mA , and the other intended for connecting a power supply in the range of 18 V to 24 V DC . The DAC converter is compatible with Arduino , so it can be used with a wide range of peripheral devices such as light controllers, inverters, valves and pumps. The maximum resistance for 18 V power supply is 450 Ohm, and for 24 V up to 750 Ohm.
Product compatible with Arduino!
Connection instructions and detailed information can be found in the user guide .
Gravity - DAC 2-channel 4-20mA I2C digital-to-analog converter - DFRobot DFR0972.
Using the Arduino board, product can be used with most devices available on the market.
Examples of transducer application
- Function signal generator
- Debugging electromechanical devices
- Transformation of a small test device
- Automatic lighting control
Special features transducer
- Equipped with the GP8302 chip
- It has a stable output current with a small error of up to 0.2% after calibration
- Wide supply voltage range from 18 V to 24 V DC
- It has a Gravity connector and uses the I2C bus for communication
- Current consumption less than 5 mA
Technical specifications of the transducer
- Converter type: digital-to-analog DAC
- Supply voltage range: 18V to 24V DC (24V recommended)
- Communication interface: I2C bus
- I2C address: 0x58
- Built-in chip: GP8302
- Input signal: 12 bits from 0x000 to 0xFFF (0-25 mA)
- I2C input level: 2.7V to 5V
- Accuracy: 0.5% before calibration; 0.2% after calibration
- Current consumption: < 5 mA
- Start-up time: < 2 ms
- Operating temperature range: -40°C to 125°C
- Load resistance: maximum resistance 450 Ω for 18V power supply, maximum resistance 750 Ω for 24V
- Output current: 0 mA to 25 mA
- Connector standard: Gravity PH2.0-4P+
- Module dimensions: 35 x 32 x 13.9 mm
Set contents
- Gravity - 1-channel 4-20mA I2C DAC
- Cable with Gravity connector

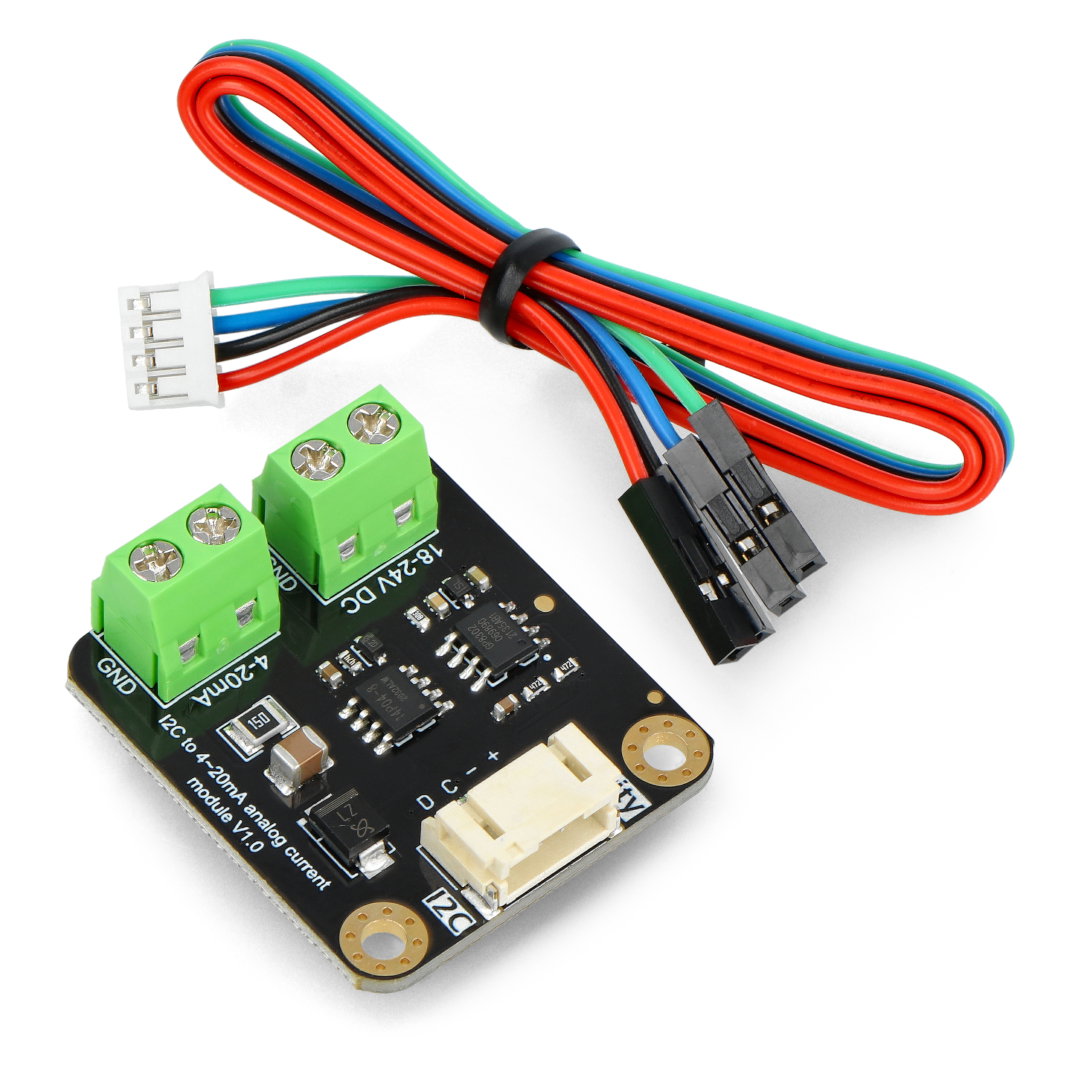

Set contents.
