reComputer J101 - carrier board for Nvidia Jetson Nano - Seeedstudio 102991694
reComputer J101 is a rich interfaces expansion board for Nvidia Jetson Nano . It is equipped with a slot for connecting the Nvidia Jetson Nano module, as well as interfaces such as HDMI 2.0, 2x USB 2.0, USB 3.0, microSD card slot, 2x CSI, M.2 key E for WiFi / Bluetooth, GPIO, I2C, I2S modules, fan connector and other numerous peripheral interfaces. It has a very similar design to the Nvidia Jetson Nano B01 Developer Kit module.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: reComputer J101 - expansion board for Nvidia Jetson Nano - Seeedstudio 102991694
reComputer J101 is a rich interfaces expansion board for Nvidia Jetson Nano . It is equipped with a slot for connecting the Nvidia Jetson Nano module, as well as interfaces such as HDMI 2.0, 2x USB 2.0, USB 3.0, microSD card slot, 2x CSI, M.2 key E for WiFi / Bluetooth, GPIO, I2C, I2S modules, fan connector and other numerous peripheral interfaces. It has a very similar design to the Nvidia Jetson Nano B01 Developer Kit module.
Our offer also includes the reComputer J102 module for Jetson Nano / Xavier NX / TX2 NX .

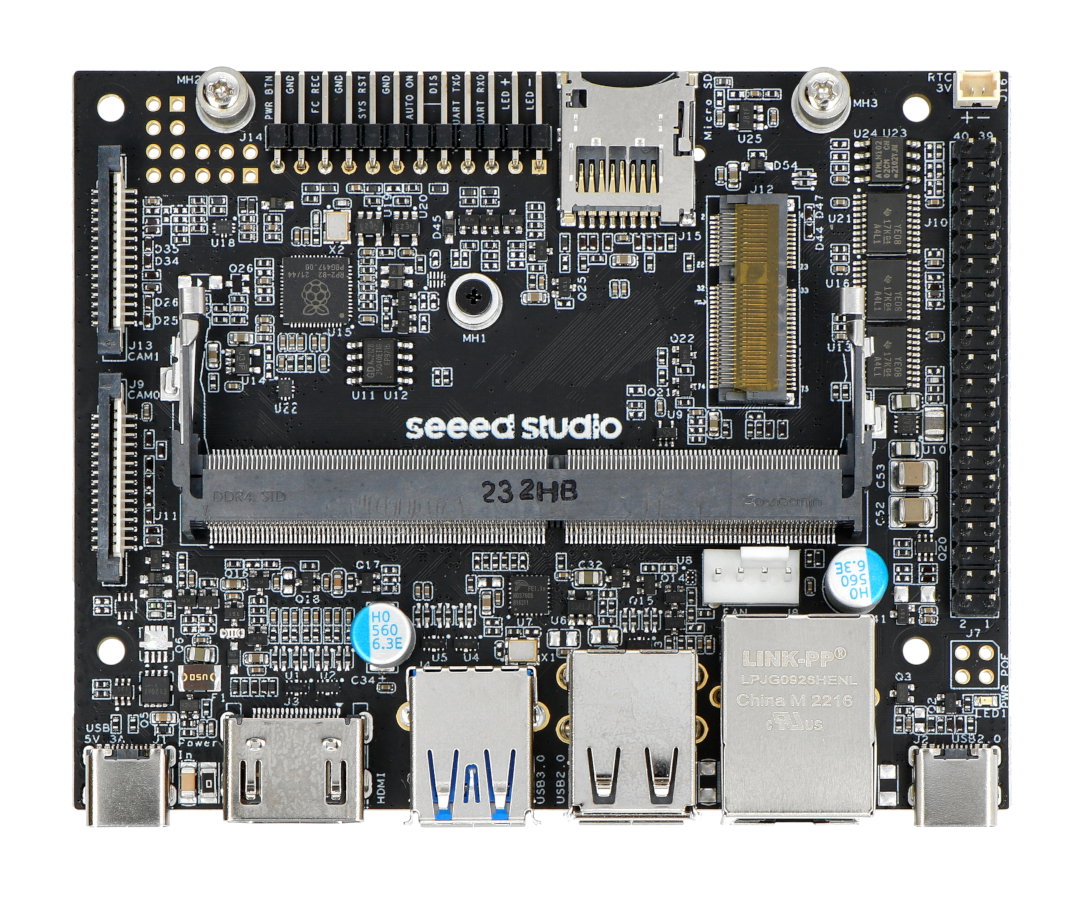

Board reComputer J101 for Nvidia Jetson Nano.
Botland is an official distributor of electronics and robotics solutions from Seeedstudio. Hundreds of ready to use devices, components and modules are available from stock or to order. Our team guarantees that all Seeedstudio products presented here are original.
Interfaces on the reComputer J101 expansion board.
Main features of reComputer J101 board
- Designed for the Naivida Jetson Nano module (260-pin SODIMM connector).
- An alternative to the Dev Kit module. It has the same size and almost the same functionality as the official Nvidia Jetson Nano B01.
- Memory expandable. The microSD memory card slot allows you to expand the built-in memory (16 GB eMMC).
- Rich in the periphery. It has USB 3.0, USB 2.0, M.2 key E for WiFi / Bluetooth, RTC, 40-pin Raspberry Pi and much more.
- Perfect for getting started with AI applications.
Functionality of reComputer J101
The reComputer J101 board works with the Nvidia Jetson Nano module, enabling the implementation of artificial intelligence in all kinds of applications created by both professionals and hobbyists. The device also supports Nvidia JetPack which includes the BSP support package, Linux operating system, Nvidia Cuda software libraries, cuDNN and TensorRT for deep learning, computer vision, GPU computing, multimedia processing and much more. The CSI camera connectors used enable the parallel running of multiple neural networks in applications such as image classification, object detection, segmentation and speech processing.
reComputer J101 - expansion board for Nvidia Jetson Nano - Seeedstudio 102991694.

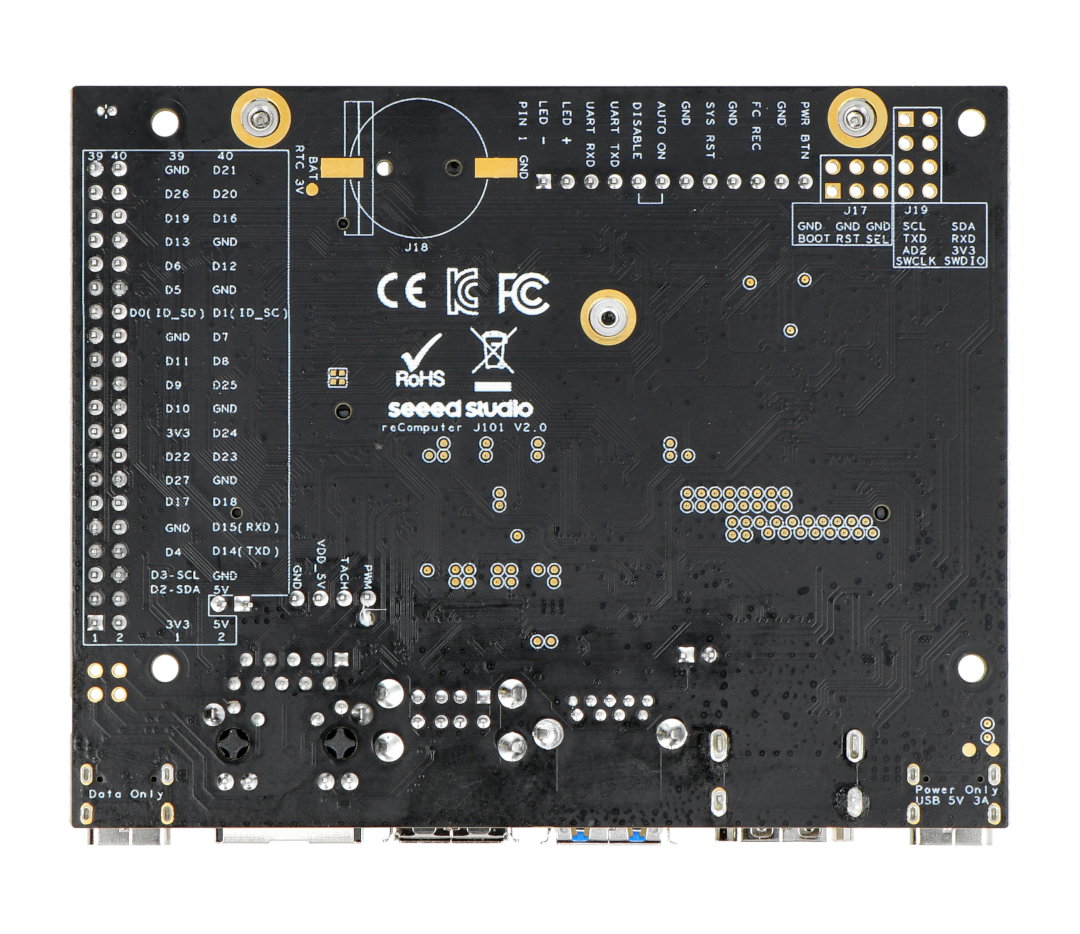

Back of the reComputer J101 board.
Edge AI applications
The reComputer J101 together with the Nvidia Jetson Nano enables artificial intelligence to be introduced into real-world applications such as image recognition, object detection, gesture recognition, video processing and more. Several sample projects have been prepared:
- Pedestrian detection by Edge Impulse
- Detection of protective helmets
- Position assessed with alwaysAI
- Detecting visual anomalies using Nvidia Deepstream IoT technology
- Detecting items in a retail store
- Fire detection
- Animal detection
The manufacturer has also prepared a user guide where you will find information on getting started with Jetson Nano, as well as building various projects.
The distribution of elements on the reComputer J101 board
- Button connectors
- MicroSD card slot (CLK frequency 48 MHz)
- M.2 key E connector
- 2-pin RTC connector
- CSI camera connectors - 2 pcs.
- 40-pin GPIO connector
- 260-pin SO-DIMM connector
- Fan connector
- USB Type-C power connector
- Type A HDMI connector
- USB 3.0 Type A port
- USB 2.0 type A port - 2 pcs.
- Gigabit Ethernet connector
- USB Type-C 2.0 connector
Kit contents
- reComputer J101 - expansion board for Nvidia Jetson Nano - Seeedstudio 102991694

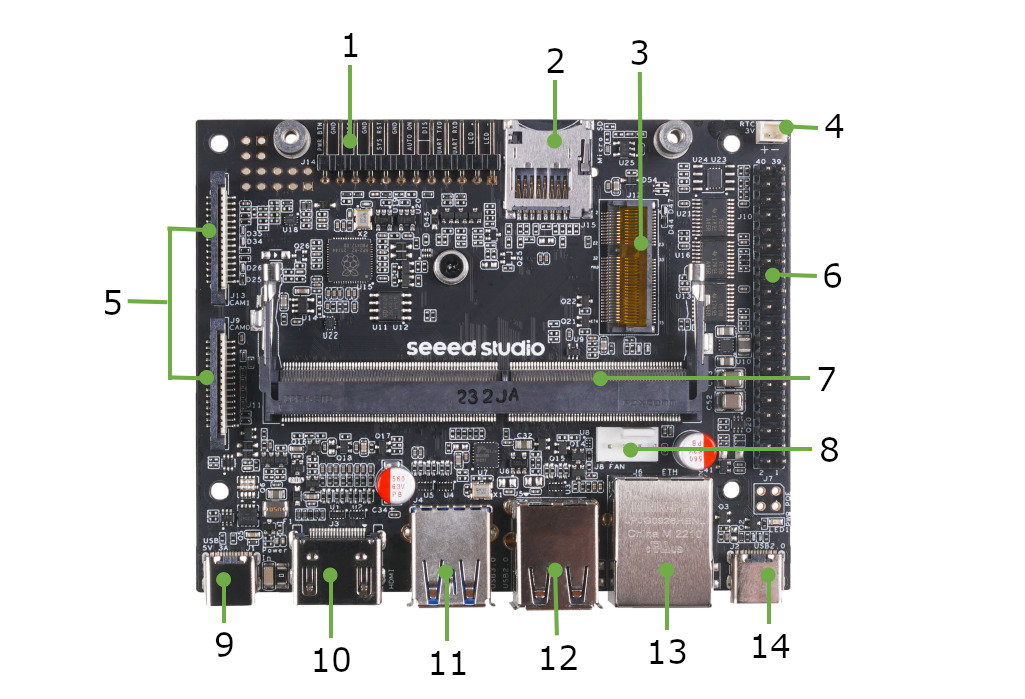

The distribution of elements on the reComputer J101 board.
Specification and comparison
| Module | Nvidia Jetson Nano B01 | reComputer J101 |
|---|---|---|
| Compatibility | Jetson Nano 4 GB (Non-Production) | Jetson Nano series |
| Video | 1x HDMI + 1x DP | 1x HDMI |
| Camera | 2x CSI | 2x CSI |
| Ethernet | 1x Gigabit Ethernet 10/100/1000 MB / s | 1x Gigabit Ethernet 10/100/1000 MB / s |
| USB | 4x USB 3.0 Type A (5 Gb / s) 1x microUSB (device mode) | 1x USB type C (power supply) 1x USB 3.0 Type A (5 Gb / s) 2x USB type A 1x USB Type-C (device mode) |
| Memory card | - | 1x microSD card slot |
| M.2 connector | 1x M.2 key E | 1x M.2 key E |
| Fan | 1x fan connector | 1x fan connector |
| GPIO | 1x 40-pin 1x 12-pin | 1x 40-pin 1x 12-pin |
| RTC | RTC socket (reserved) | RTC socket (reserved) |
| Power | 5 V / 4 A via DC 5.5 2.5 mm jack 5 V / 2 A via microUSB | 5 V / 3 A via USB type C |
| Dimensions | 100 x 80 mm | 100 x 80 mm |
Useful links
| Name | Value |
|---|---|
| Width | 15 cm |
| Height | 10.5 cm |
| Depth | 3.5 cm |
| Weight | 0.118 kg |
