Product description: Arduino Nesso N1 - ESP32-C6 - TPX00227
The Arduino Nesso N1 is a modern, fully integrated development platform for designing IoT solutions. Based on the powerful ESP32-C6 chip Based on the RISC‑V architecture and developed in collaboration with M5Stack , it integrates modern connectivity standards – WiFi 6, Bluetooth LE 5.3, Thread, ZigBee, and LoRa . With a 1.14" touchscreen, buttons, a buzzer, IMU and IR sensors, and USB Type-C charging, the Nesso N1 is a fully interactive tool for electronics and automation developers. Built-in Grove , Qwiic , and HAT connectors enable quick expansion of functionality with additional modules . The device is compatible with the Arduino IDE, MicroPython, and UIFlow , as well as the Arduino Cloud platform, providing full control and real-time data visualization.

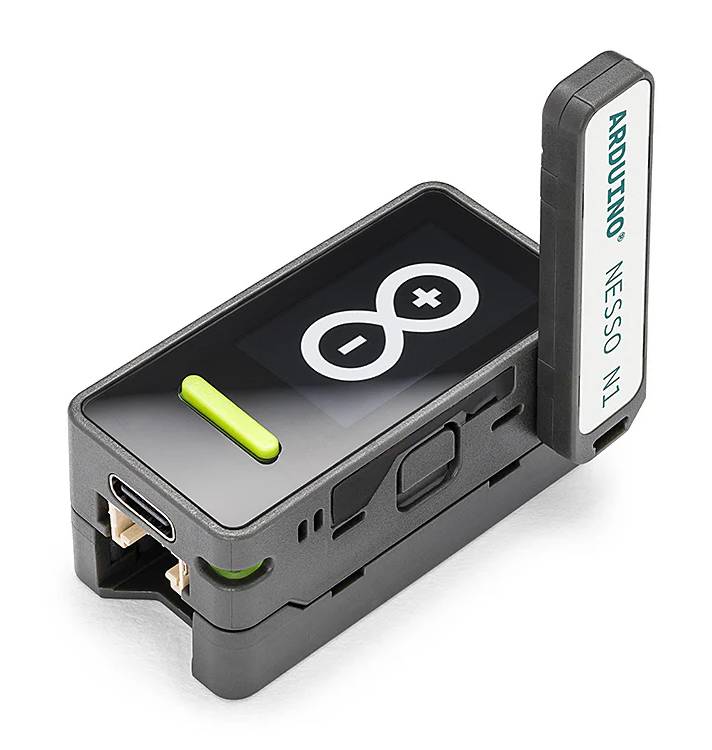

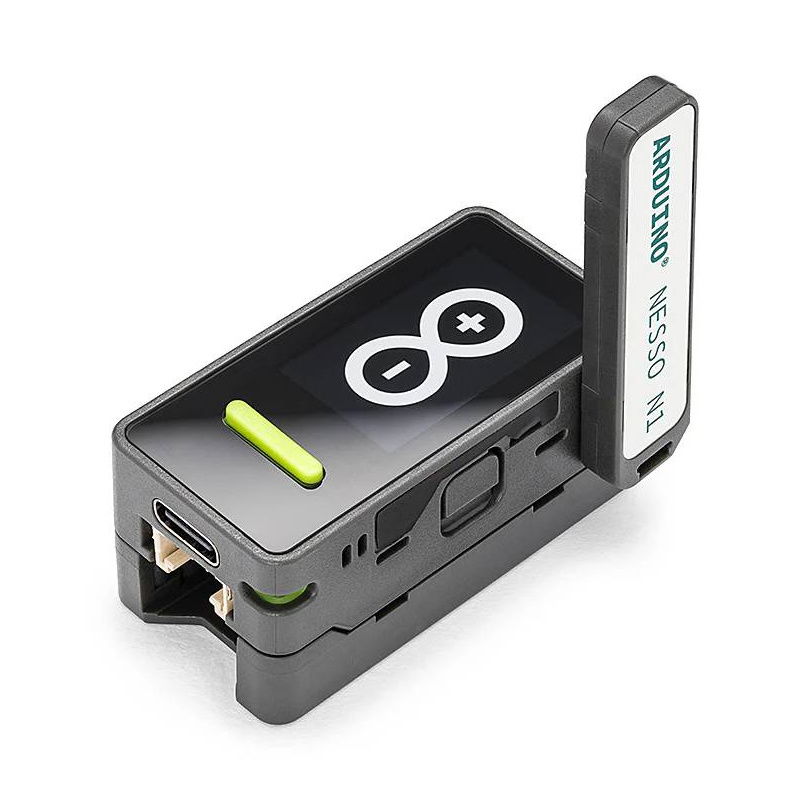

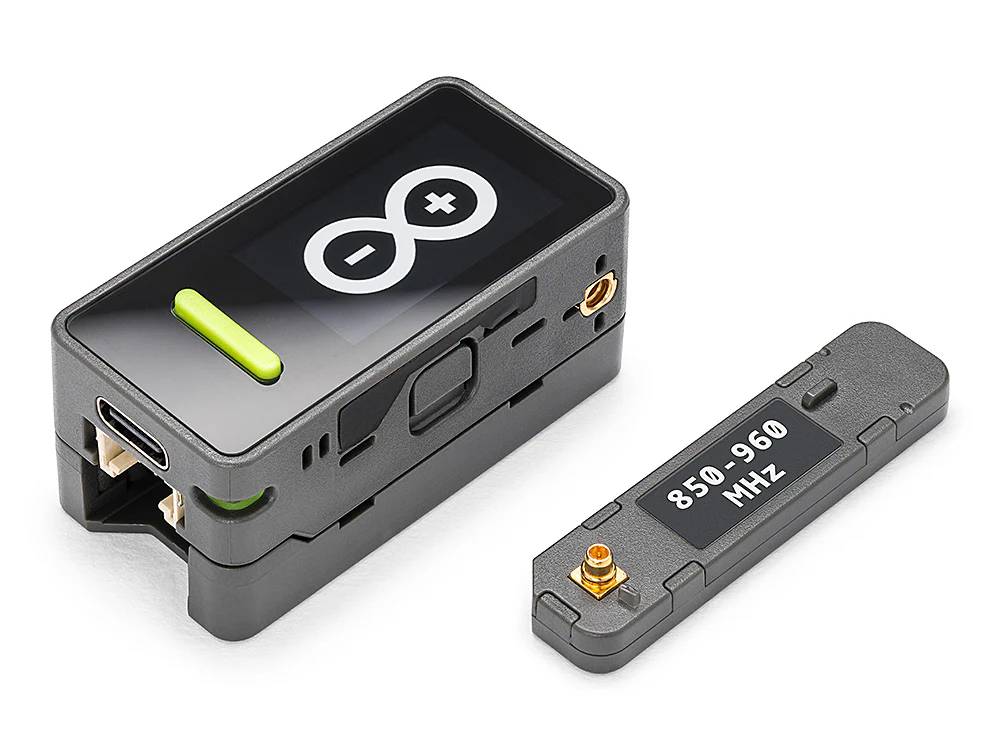

Arduino Nesso N1 - ESP32-C6 - TPX00227.

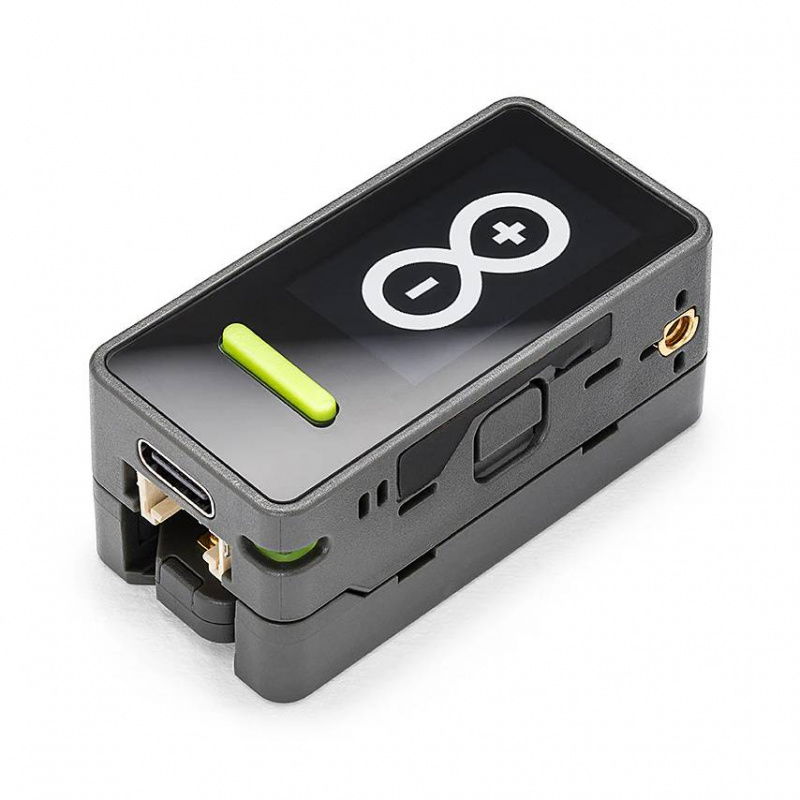

Arduino Nesso N1 is based on the ESP32-C6 chip.
Main features of the Arduino Nesso N1
- Multi-protocol connectivity : Supports WiFi 6, Bluetooth 5.3, Thread/ZigBee, and LoRa (SX1262) for reliable communication in various environments
- IPS touchscreen : 1.14-inch display with a color TFT panel and touch support for intuitive operation and data presentation
- Ready to use : device assembled in a housing with a 250 mAh Li-Pol battery - ready to use right out of the box
- Wide compatibility : Supports Arduino Modulino, Grove, Qwiic and M5Stack HAT accessories
- Programmable buttons and buzzer : enable interactive operation and response to events
- Extensive sensor capabilities : built-in 6-axis IMU BMI270 sensor and infrared transmitter
- Safe power supply : advanced power management system with overcharge protection and battery health monitoring
- Programming without limits : support for Arduino IDE, MicroPython, UIFlow and Arduino Cloud

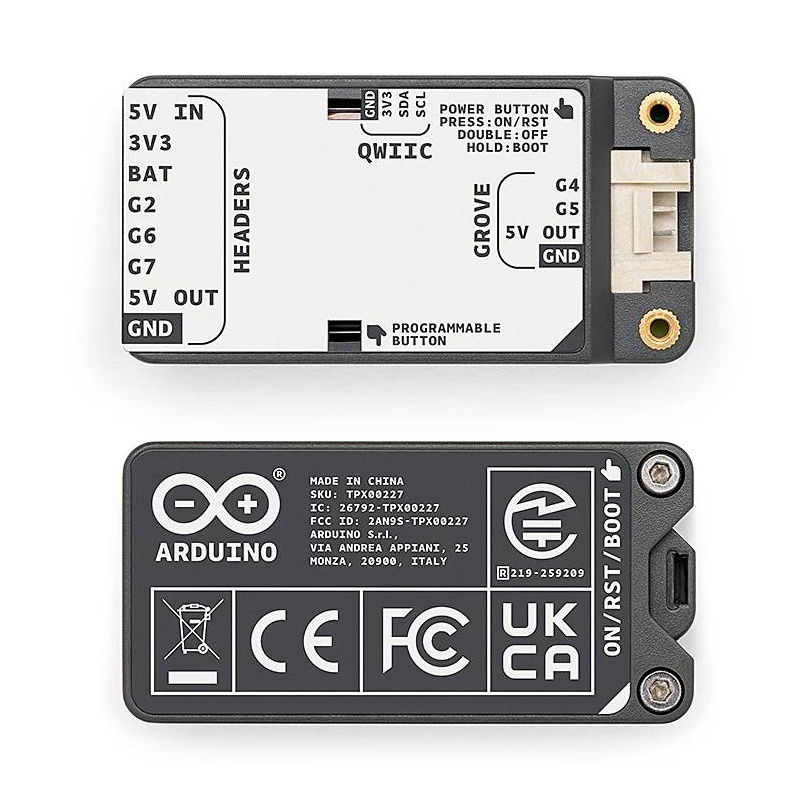

Pinouts and accessory compatibility

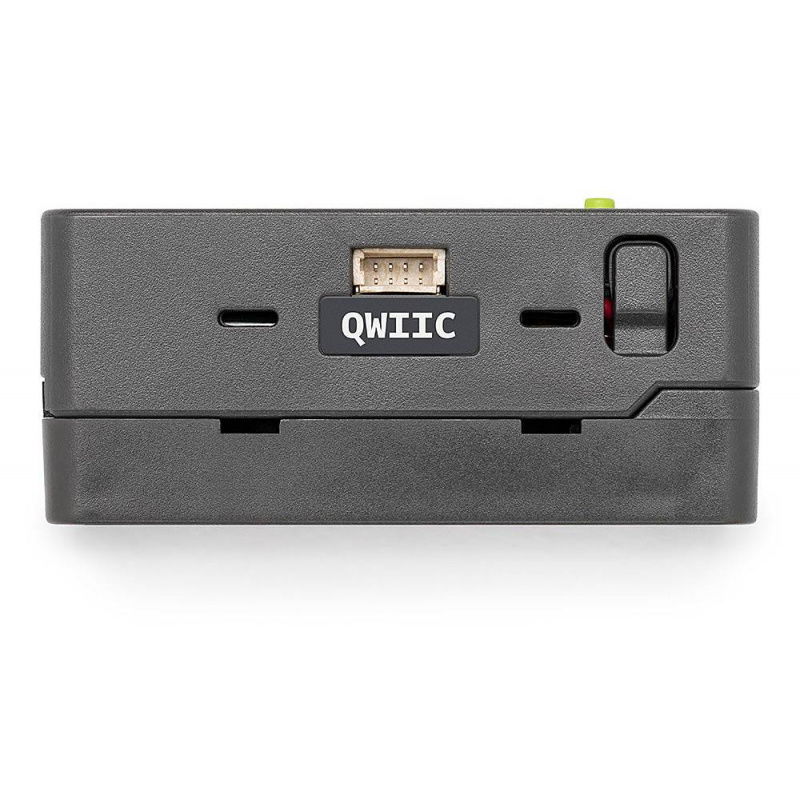

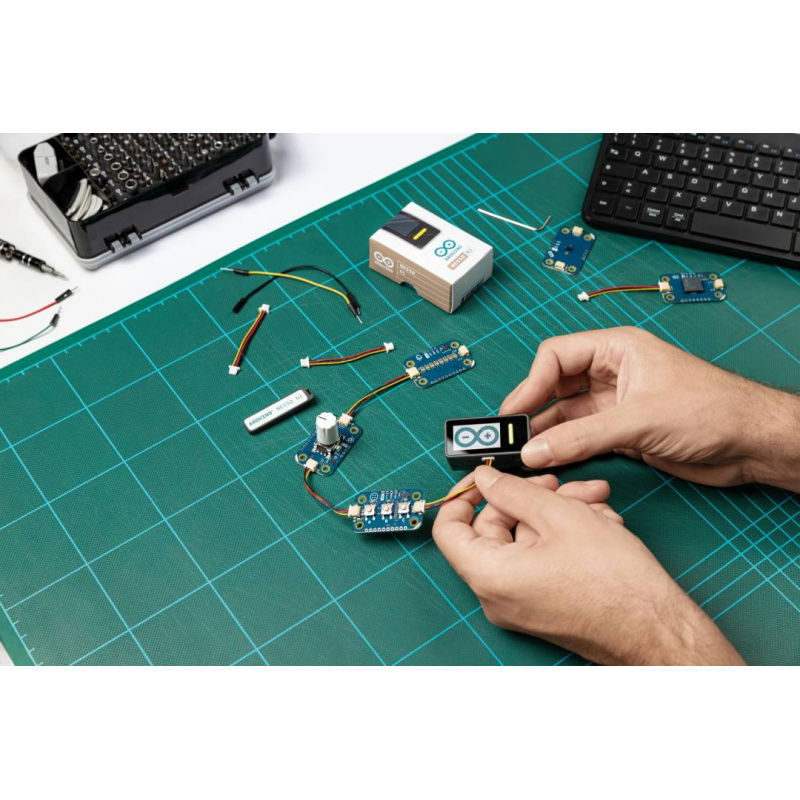

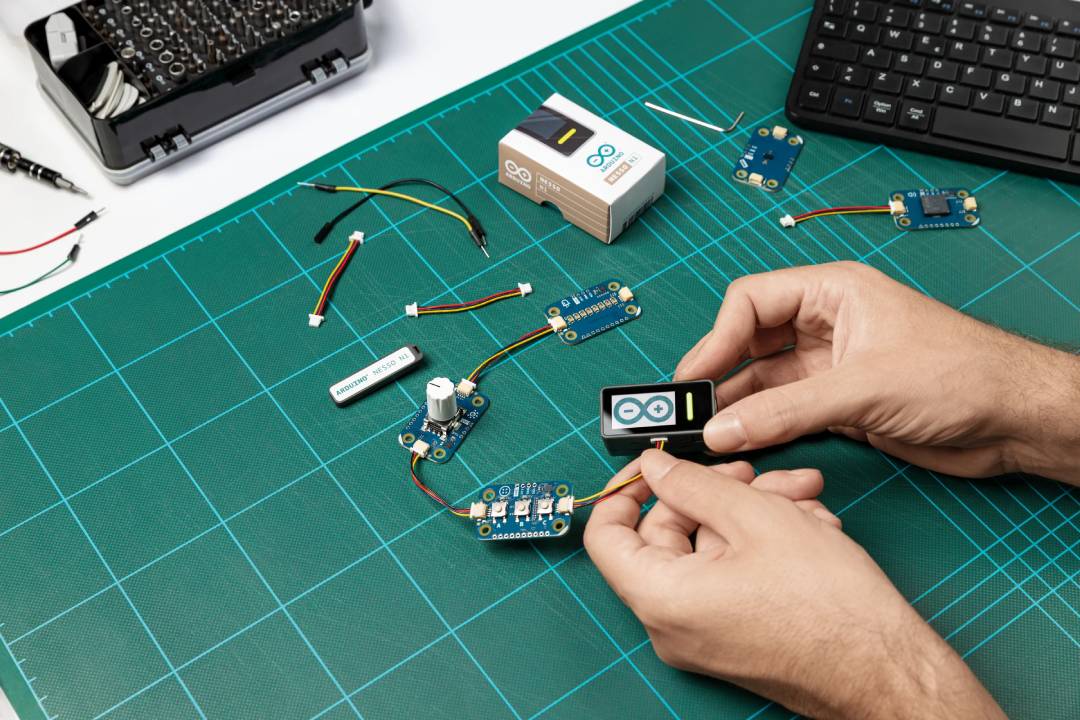

The Arduino Nesso N1 offers versatile expansion options with Grove, Qwiic, and an 8-pin expansion port compatible with the M5StickC HAT . These interfaces allow for quick connection of sensors and modules from the Arduino Modulino family , as well as third-party devices. Note: The Qwiic connector operates at 3.3V logic – connecting 5V modules may damage them. Fully labeled GPIO pins are available in the technical documentation, making it easy to integrate the device with other components.
Nesso N1 can be programmed in Arduino IDE, MicroPython and UIFlow environment.
Arduino Nesso N1 Programming
The Nesso N1 supports programming in both the Arduino IDE and MicroPython and UIFlow . You can quickly prototype applications using libraries like RadioLib, M5GFX, IRremote, and NimBLE-Arduino . Integration with the Arduino Cloud allows for the creation of data visualization dashboards, remote software updates, and real-time control. These capabilities make the Nesso N1 ideal for educational, engineering, and commercial applications.
Technical specifications
- Microcontroller: ESP32-C6 (RISC-V, 160 MHz)
- Flash memory: 16 MB
- SRAM memory: 512 kB
- Connectivity: WiFi 6 (2.4 GHz), Bluetooth LE 5.3, Thread/ZigBee 1.4, LoRa SX1262 (850 MHz to 960 MHz)
- Display: 1.14'' IPS LCD, 135 x 240 px, ST7789P3, FT6336U touchscreen
- Buttons: 2x programmable + 1x Power / Reset / Boot
- USB port: USB Type-C
- Sensors: 6-axis IMU BMI270, IR transmitter, buzzer
- LEDs: green LED (programmable), blue LED (status)
- Battery: Li-Pol 250 mAh with BQ27220 and AW32001 chip

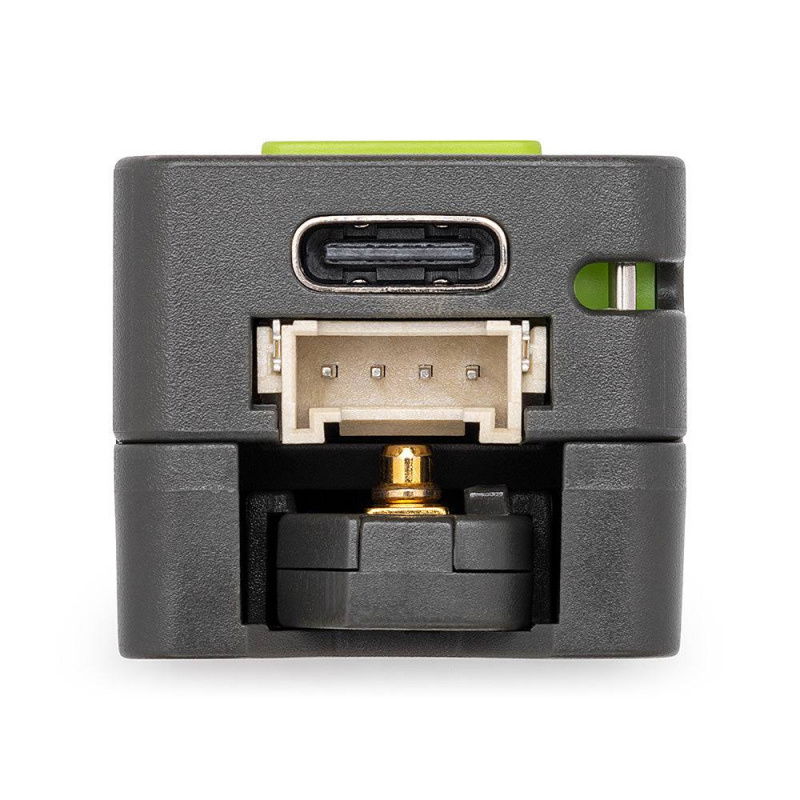

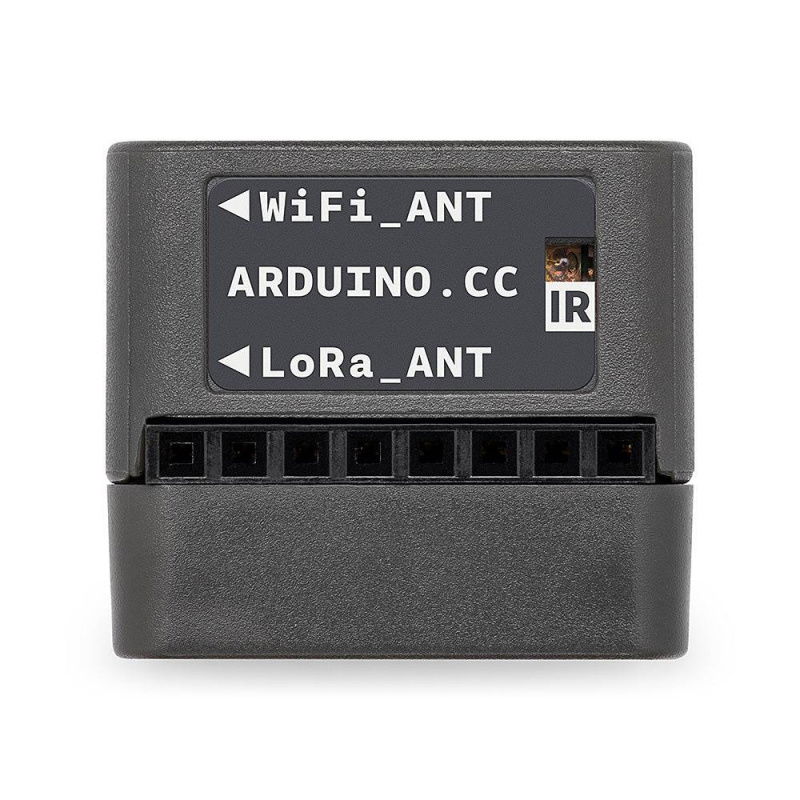

- Connectors: Grove, Qwiic (3.3V), 8-pin expansion port (M5StickC HAT)
- Temperature range: 0°C to 40°C
- Dimensions (without antenna): 24 x 48 x 14 mm
- Dimensions (with antenna): 24 x 48 x 21.1 mm

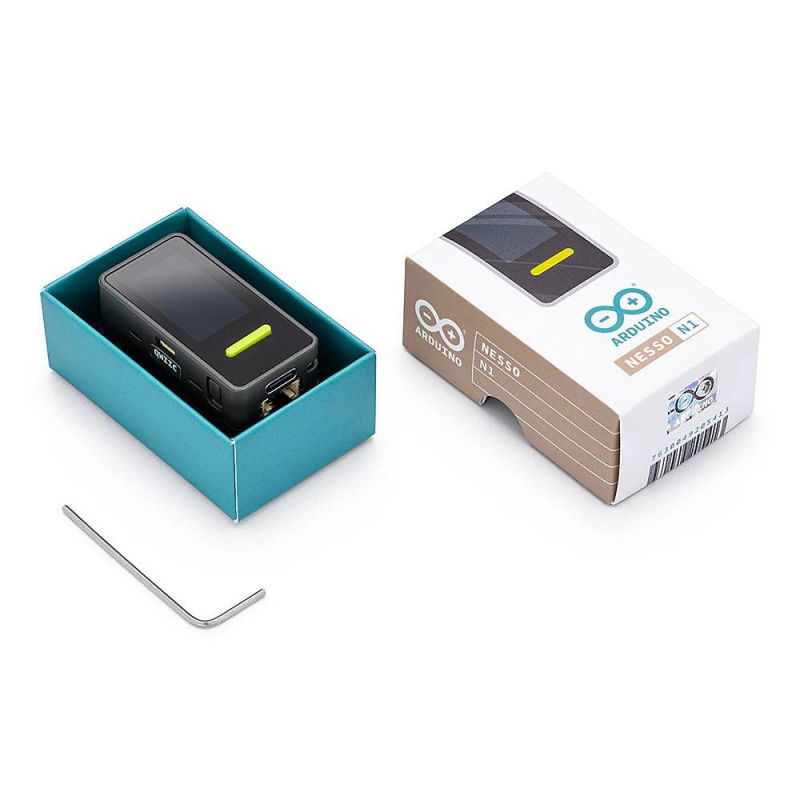

Contents of the set
- Arduino Nesso N1 module in the housing

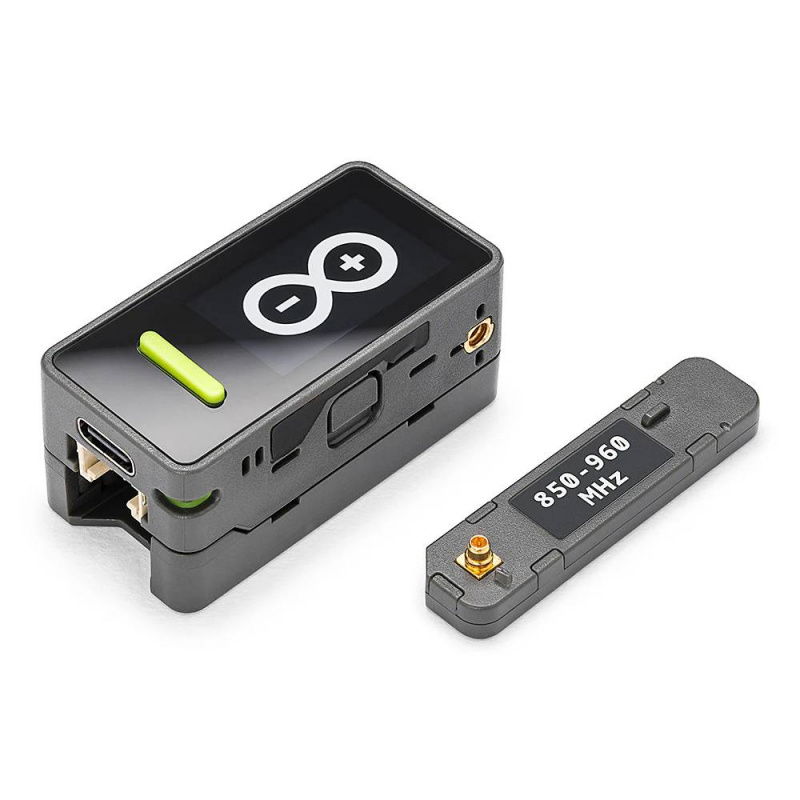

- LoRa antenna (detachable)

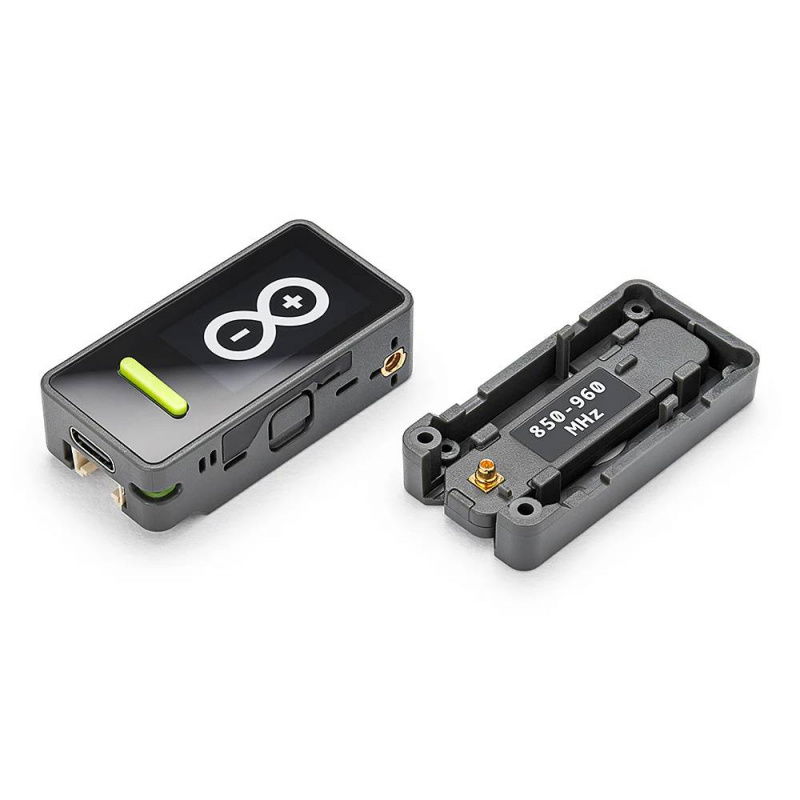

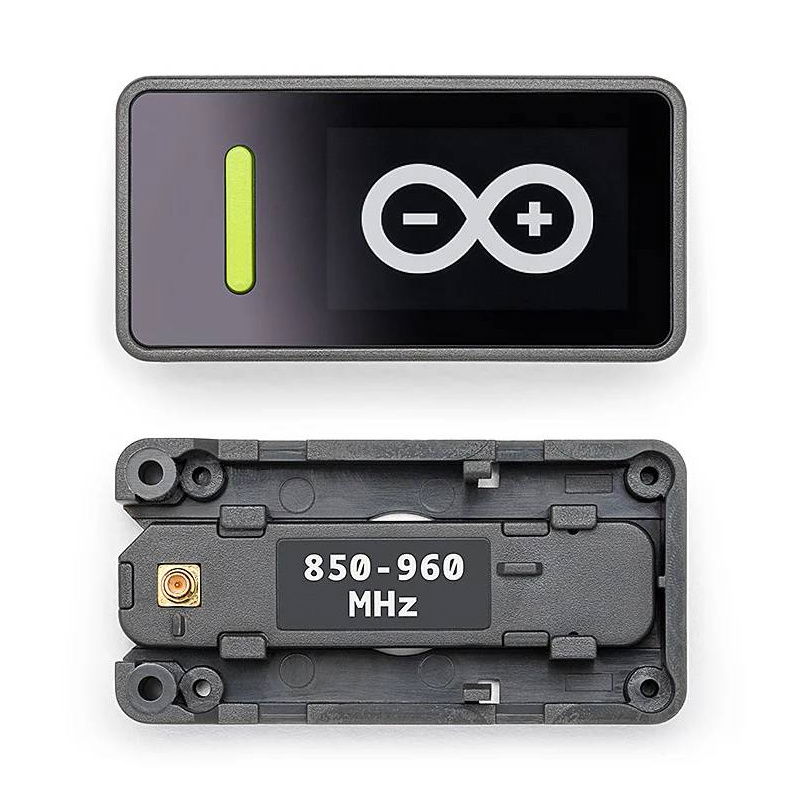

The detachable LoRa antenna can be safely stored in the device case when not in use.
