Product description: TOOCAA NOVA 10 W laser plotter - Creator Kit

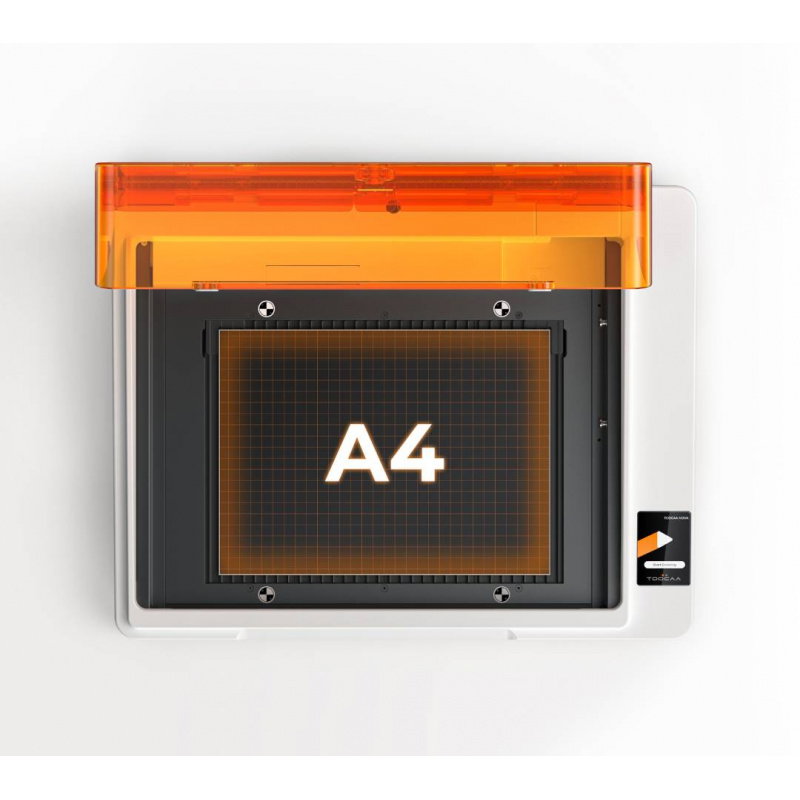

The TOOCAA NOVA is a modern laser engraver with an A4 work area (297 x 210 mm) , designed for comfortable and safe desktop operation. Its Class 1 enclosure and extensive security package make it ideal for use at home, in a workshop, at school, or in a small design studio. The NOVA model is equipped with intelligent automation systems that simplify the entire workflow. A built-in 5 MPx camera is responsible for project positioning, viewing the work area, and automatic calibration, while the AI system recognizes materials and selects the appropriate engraving and cutting parameters. Additionally, autofocus focuses in seconds, and Smart Air Assist automatically regulates airflow to help reduce burns and improve detail quality. The engraver offers a positioning accuracy of 0.01 mm , a maximum engraving speed of up to 36,000 mm/min , and a modular design that also allows for the use of separately available 20 W and 2 W IR laser modules. The TOOCAA NOVA is compatible with TOOCAA Studio and LightBurn software, and can be connected via USB Type-C, WiFi, and Bluetooth . It's a versatile solution for users who demand modern operation, high precision, and easy system expansion. The Creator Kit includes the Air Assist system, a rotation module, and an air purifier .

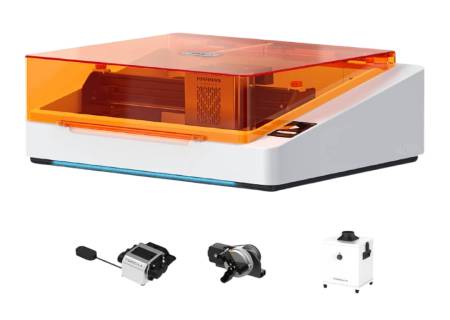

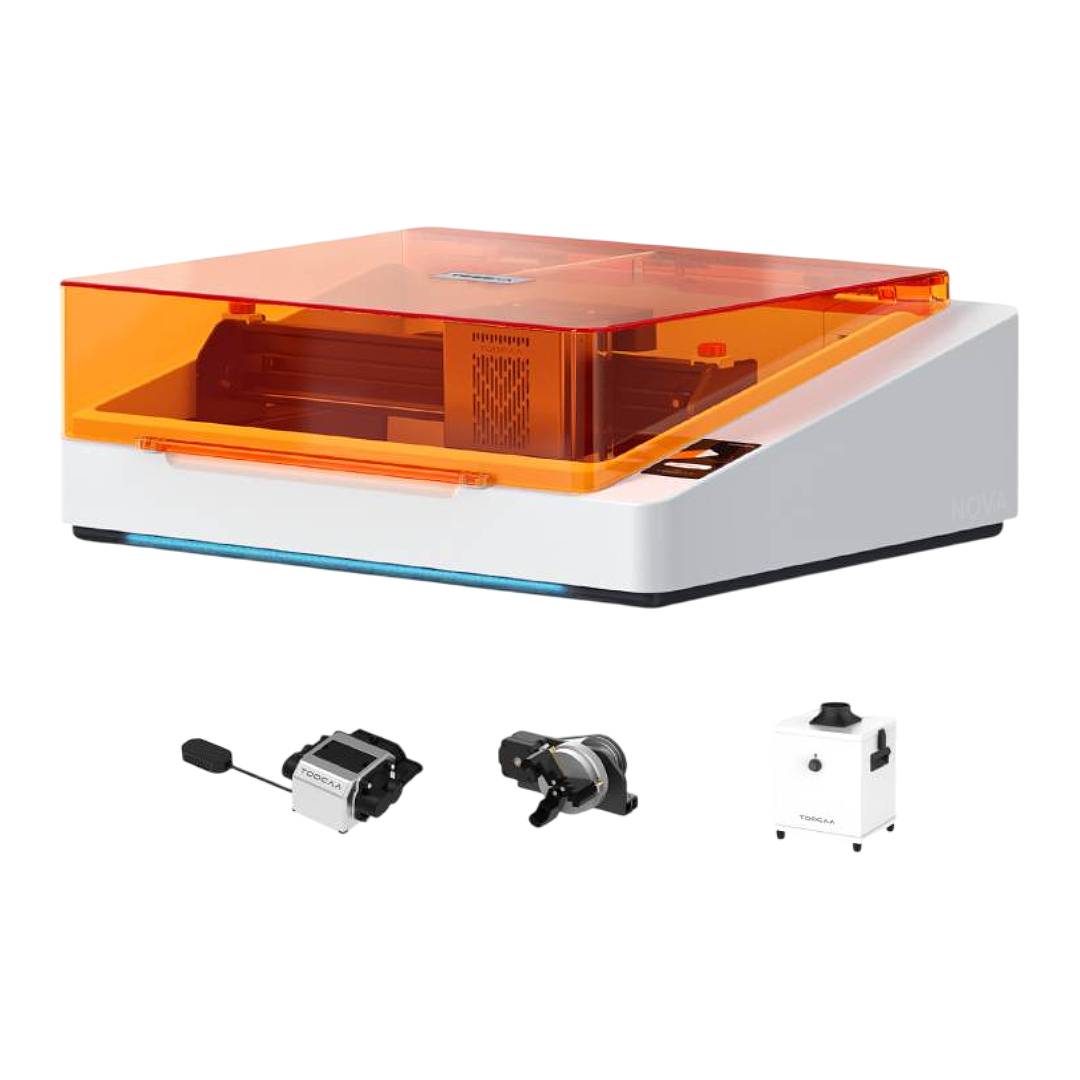

TOOCAA NOVA 10 W laser plotter - Creator Kit.

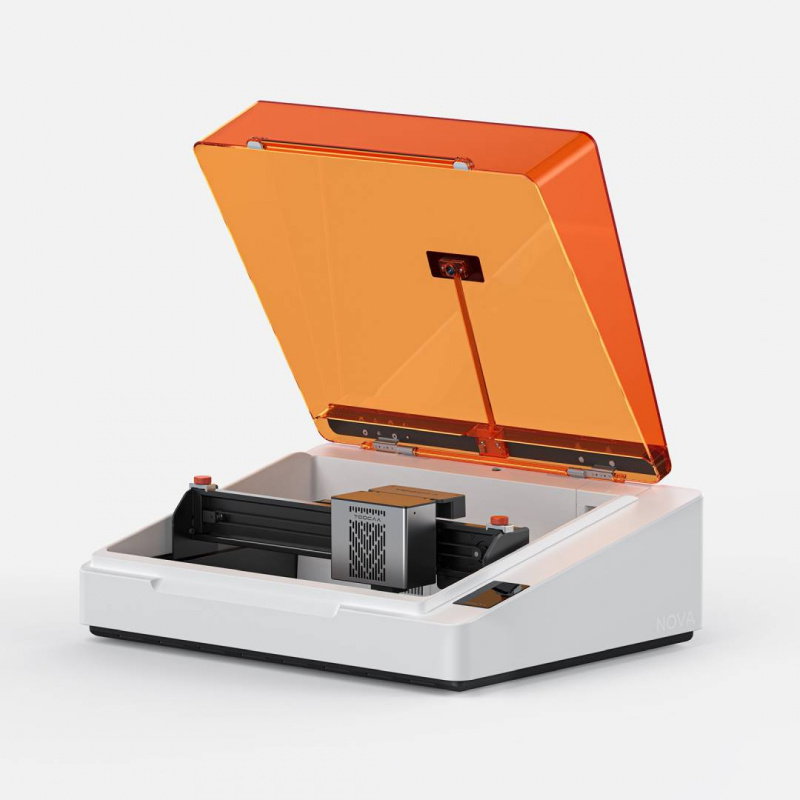

The built-in HD camera allows you to position the project on the material and view the work progress live.
Intelligent AI systems and work automation
The TOOCAA NOVA engraving machine utilizes intelligent automation systems that significantly simplify the work preparation process. A built-in 5 MPx camera enables precise project positioning, work area preview, and automatic calibration. The AI system recognizes materials via an ID card system and automatically selects engraving or cutting parameters based on the TOOCAA Studio library. Additionally, the autofocus function focuses in approximately 3 seconds , eliminating the need for manual adjustments. For more demanding projects , an Advanced Focus mode is available, allowing for manual height adjustment when working with soft or irregular objects. Smart Air Assist automatically adjusts airflow, improving detail quality and reducing burns. This high degree of automation makes operating the plotter almost as intuitive as using a traditional office printer.
Supports a wide range of materials and cutting options
The TOOCAA NOVA engraving machine supports a wide range of materials, including wood, plywood , MDF , bamboo, leather, fabrics , cardboard , as well as materials such as anodized aluminum and ceramics . The 10W laser module allows for cutting linden wood up to 6 mm in a single pass , increasing work efficiency. The plotter also handles decorative and utility materials, enabling the creation of finished products. Customized parameters and automation ensure consistent results . This is a solution for those who want to work on a variety of materials without complex setup. Additional support is provided by workspace visualization and a preview of the engraving path before starting work. This reduces errors and allows for better control of the final result. This is a significant advantage in professional and semi-professional applications.
Engraving at speeds up to 36,000 mm/min significantly reduces project implementation time and increases work efficiency.

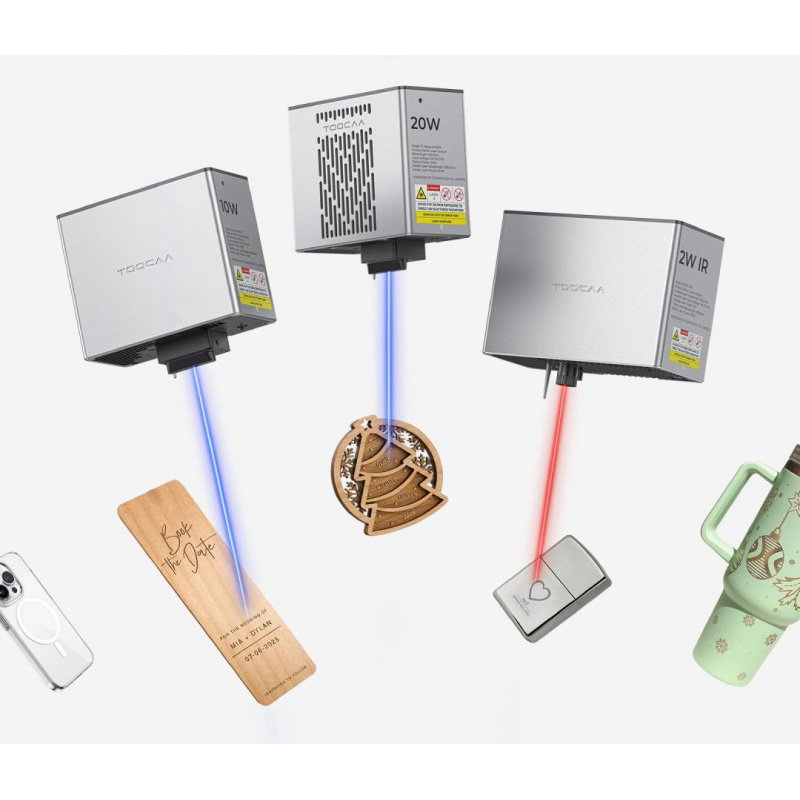

The interchangeable laser module supports 2W , 10W , and 20W IR options to accommodate a wide range of materials. Only the 10W module is included.

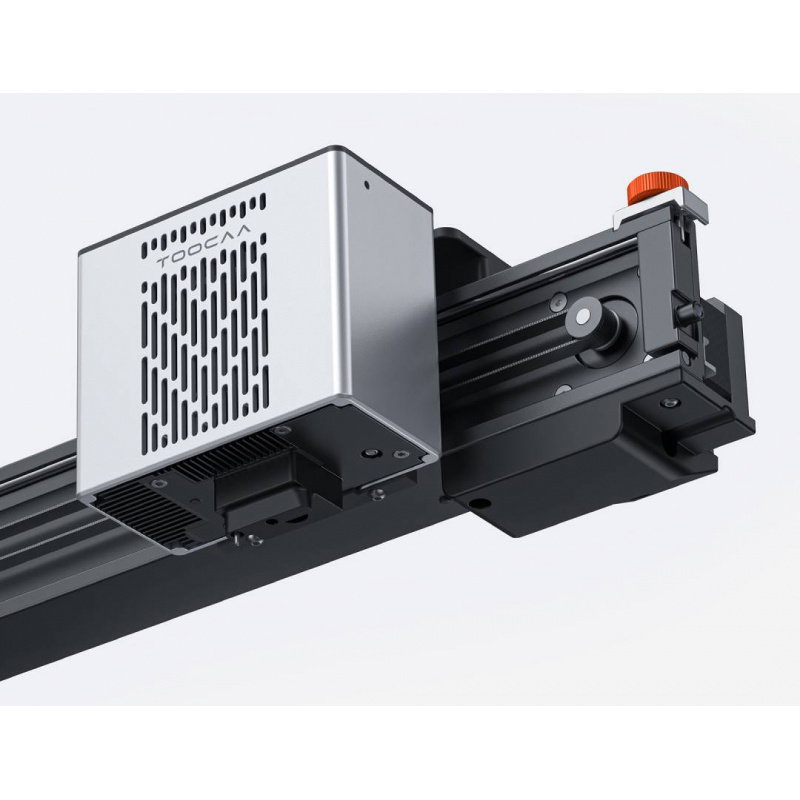

10W module precision and 360° rotational engraving

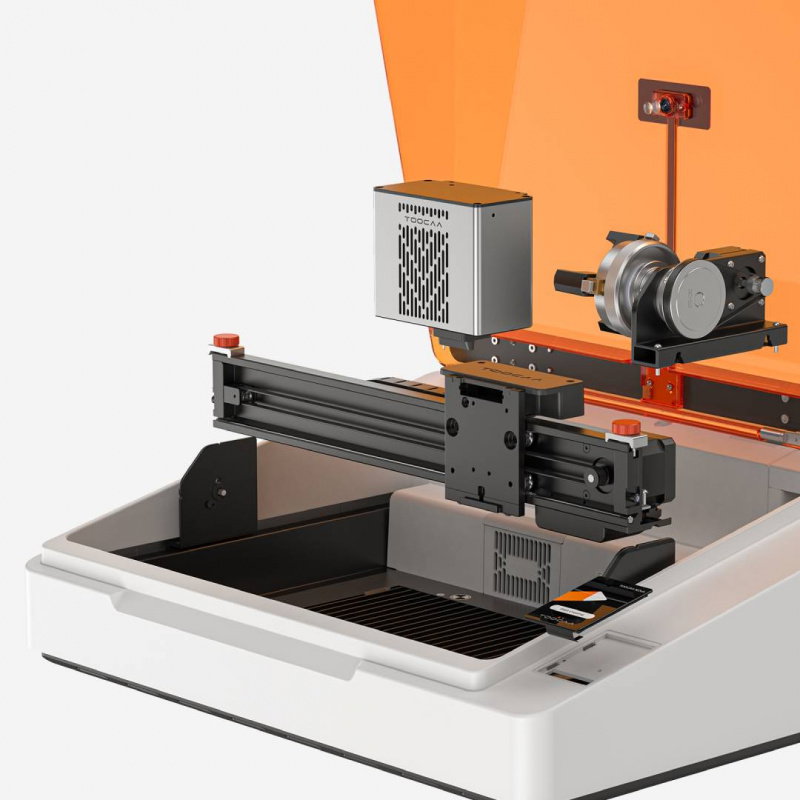

The 10W laser module delivers exceptionally high-quality detail thanks to a precise 0.08 x 0.13mm spot, allowing for precise reproduction of even the smallest graphic elements. The device supports 360° rotational engraving thanks to the included rotary module and an innovative design with a 90° X-axis, enabling work on cylindrical objects without the need for additional stands. The efficient drive system allows for speeds of up to 36,000 mm/min , significantly reducing project completion times. The modular design allows for easy expansion of the device with an optional 20W head or an IR module for precise metal marking. The Creator kit also includes a Smoke Purifier , which effectively filters smoke and odors generated during operation, improving user comfort and the quality of the work environment.
Security and connectivity
The TOOCAA NOVA is equipped with a closed enclosure meeting the Class 1 standard , meaning the device is completely safe for use at home, in the presence of children, or in educational institutions. The security system includes flame, tilt, cover opening, and laser module overheating detection, as well as a parental lock and emergency button. Quiet operation at approximately 50 dB allows for comfortable use in residential settings. Additional details, such as a magnetic tool zone and a backlight that communicates machine status, complete the user-friendly design. The plotter works with intuitive TOOCAA Studio software and also offers support for the LightBurn environment. WiFi connectivity allows for wireless project transfer and remote monitoring of work progress. An integrated filtration system and the intelligent Air Assist air pump ensure smoke extraction, keeping the lens and workstation clean.
The TOOCAA Studio library includes over 25 themes and over 1,000 engraving templates.

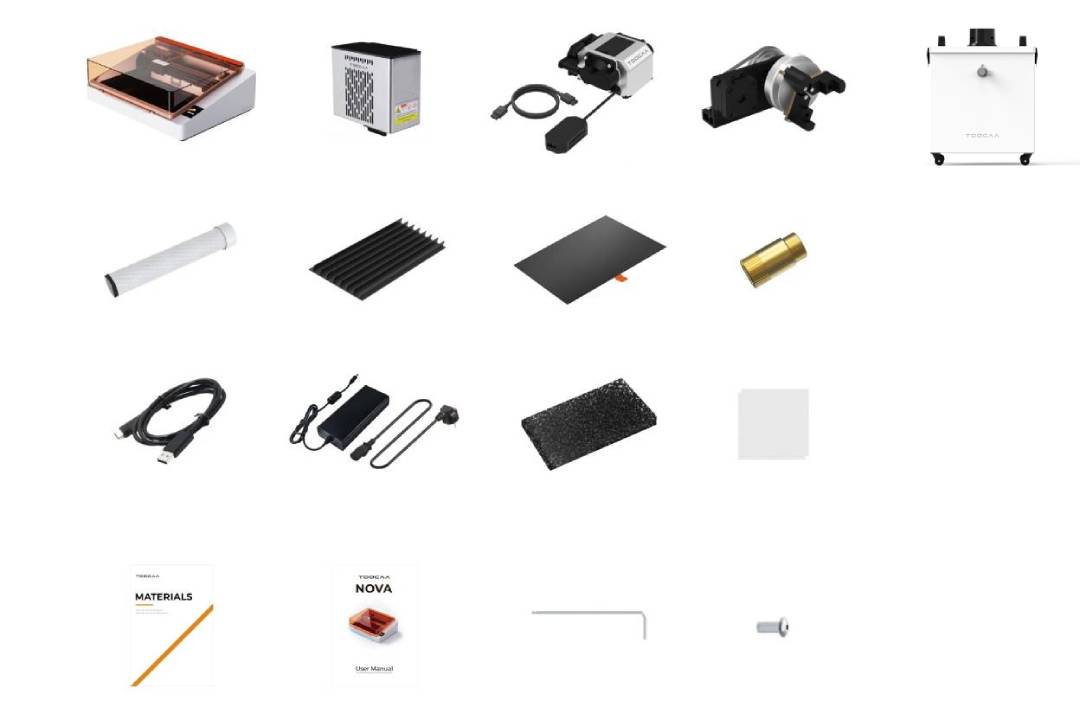

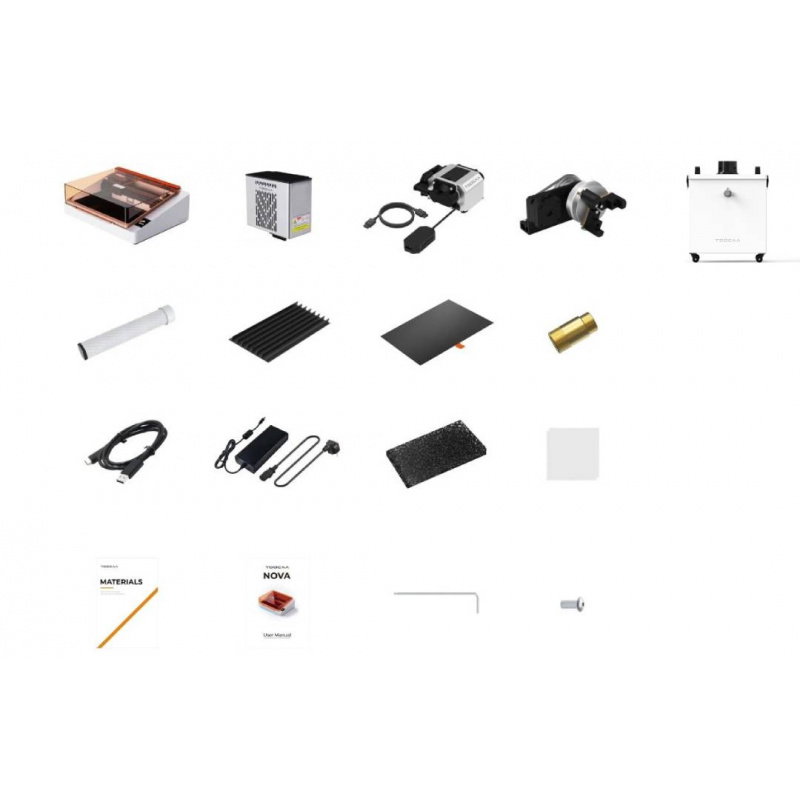

Elements included in the set.
Contents of the set
- TOOCAA NOVA laser engraving machine
- 10W laser module
- Rotation module
- Air purifier
- Air Assist Kit
- Work panels x4
- Aluminum protective plate
- Pipe
- USB cable
- Power supply and power cord
- Filters, cloths and mounting accessories
- A4 test material
- User manual
| Technical specifications of the TOOCAA NOVA laser plotter | |
|---|---|
| Laser type | diode |
| Laser wavelength | 455 ± 5 nm |
| Laser power | 10 W |
| Spot size | 0.08 x 0.13 mm |
| Working field | 297 x 210 mm (A4) |
| Maximum engraving speed | 36000 mm/min |
| Positioning accuracy | 0.01 mm |
| Repositioning accuracy | 0.01 mm |
| Cutting in one pass (plywood) | up to 6 mm |
| Supported materials | wood, plywood, MDF, bamboo, leather, fabrics, cardboard, acrylic (dark), lacquered metal, stainless steel, anodized aluminum, glass (dark), ceramics, stone, slate |
| Software | TOOCAA Studio, LightBurn |
| Supported systems | Windows, macOS |

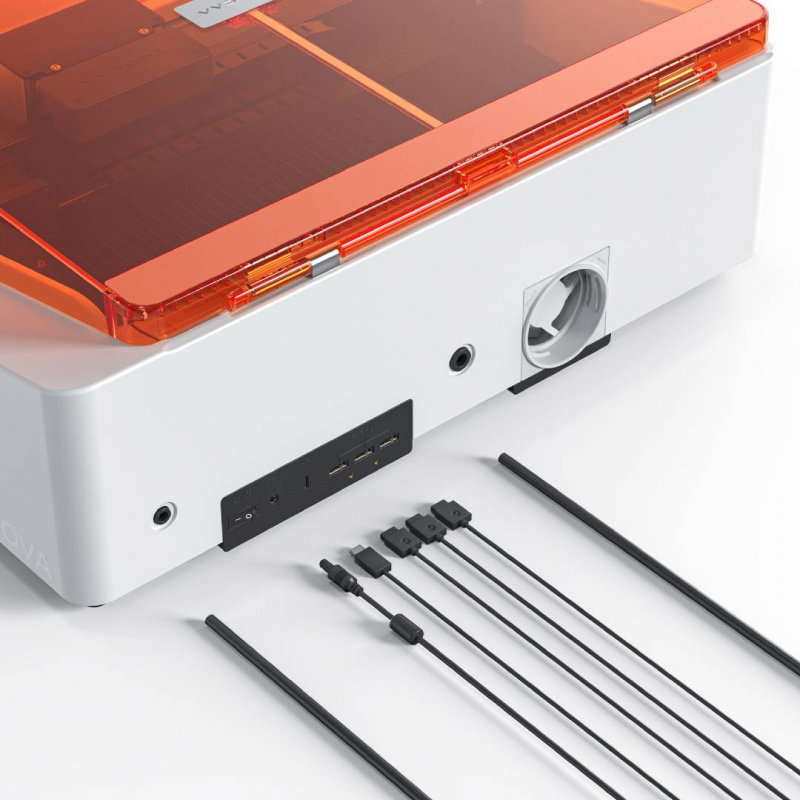

| Communication | USB Type-C, WiFi, Bluetooth |
| Interfaces | emergency button, expansion port, rotary module support |
| Security | flame detection, tilt detection, lid opening sensor, parental lock, laser module monitoring, air assist, overheating protection, emergency button |
| Input voltage | AC 100V to 240V, 50/60Hz, 2.5A |
| Operating voltage | 24V / 5A |
| Housing material | aluminum alloy, ABS, PC |
| Dimensions | 513 x 402 x 180 mm |
| Mass | 8.27 kg |
