- New
Product description: TOOCAA NOVA 10 W Laser Plotter - Basic

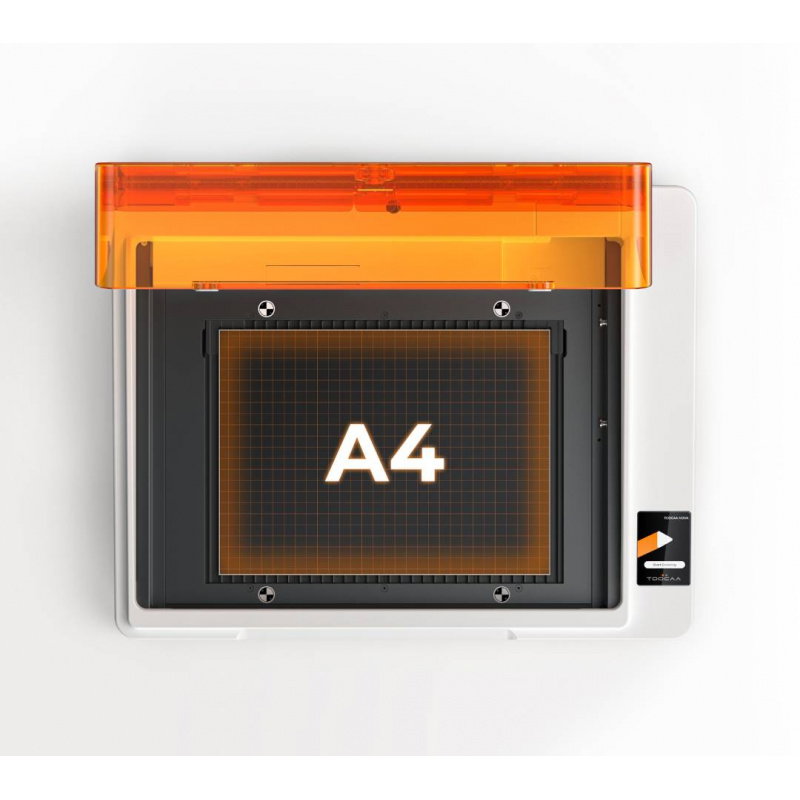

The TOOCAA NOVA is a modern AI-enabled laser engraver with a 10W module . It has an A4 work area of 297 x 210 mm , and its compact design fits easily on a desk at home, in a studio, or in the office. The fully enclosed Class 1 housing and extensive security system ensure safe operation. The use of intelligent AI systems significantly simplifies operation – the engraver automatically recognizes the material, focuses, and selects optimal operating parameters. A 5MPx camera allows for real-time preview and precise project positioning, and the autofocus function focuses in just seconds. The plotter offers a positioning accuracy of 0.01 mm and a maximum engraving speed of up to 36,000 mm/min . The TOOCAA NOVA can be operated both from the built-in touchscreen and through TOOCAA Studio and LightBurn software, offering extensive design and editing options. The plotter supports USB Type-C, Wi-Fi, and Bluetooth connectivity, ensuring flexible workstation configuration. The Basic set includes an Air Assist system that supports the engraving and cutting process by optimizing airflow.

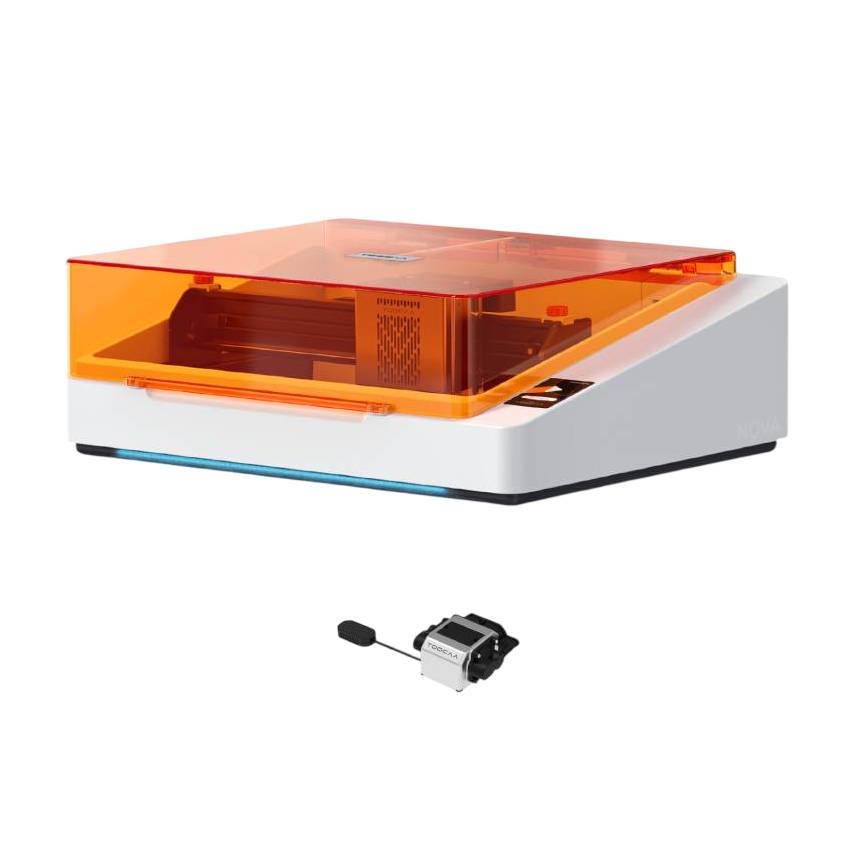

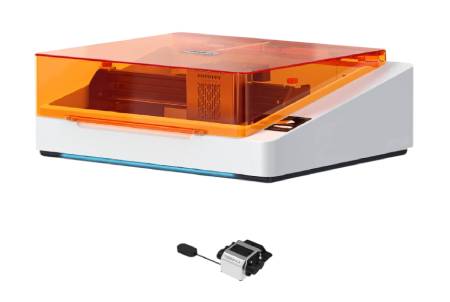

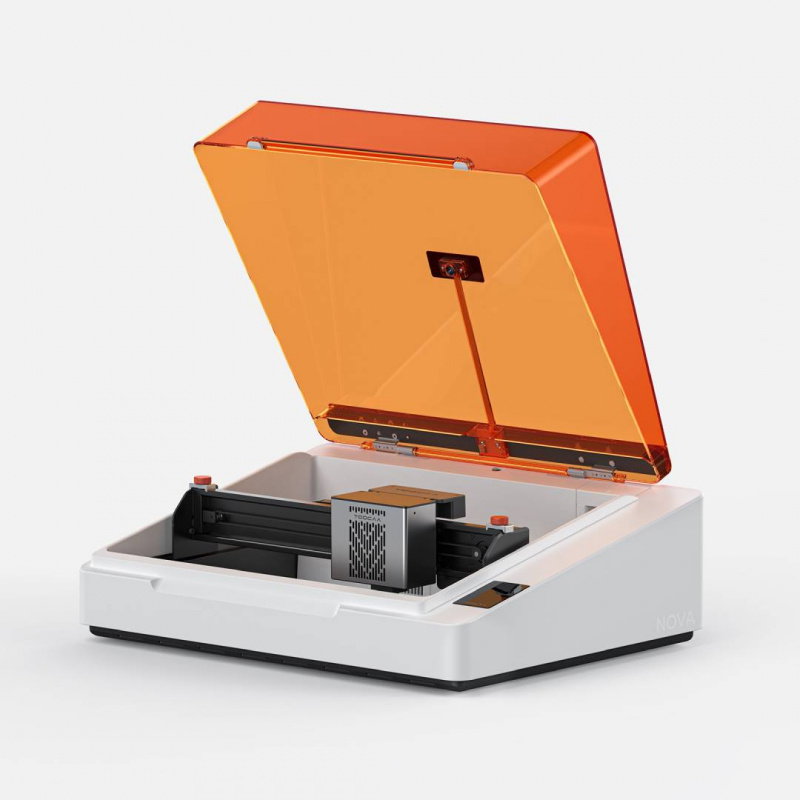

TOOCAA NOVA 10 W Laser Plotter - Basic.
The built-in HD camera allows you to position the project on the material and view the work progress live.
Intelligent AI systems and real-time visibility
TOOCAA NOVA utilizes advanced artificial intelligence support to automate project preparation for engraving. The system automatically recognizes the material using an ID card system and selects the appropriate operating parameters, eliminating the need for manual testing of settings. A built-in 5MP HD camera allows for real-time viewing of the work area , allowing for precise design layout according to the "What You See Is What You Get" principle. Additionally, AI algorithms support graphic processing, including background removal and engraving path optimization , reducing file preparation time. High positioning accuracy translates into consistent end results with the design, reducing the risk of errors and material waste.
Wide range of materials supported and autofocus
The TOOCAA NOVA engraving machine allows you to work with many materials, such as wood, plywood , MDF , bamboo, leather, fabrics , cardboard , as well as anodized aluminum or ceramics . The 10W laser module allows for cutting linden wood up to 6 mm in a single pass . The plotter is suitable for both decorative and functional applications, ensuring repeatable results thanks to automatic parameter selection. Additional support is provided by a preview of the working area and visualization of the engraving path before starting work , facilitating control over the final result. The autofocus function automatically adjusts the head height to the material surface, eliminating the need for manual adjustments. For more demanding projects , the Advanced Focus mode is available, allowing for manual adjustments when working with irregular or soft materials. This ensures simple and intuitive operation, even for beginners.
Engraving at speeds up to 36,000 mm/min significantly reduces project implementation time and increases work efficiency.

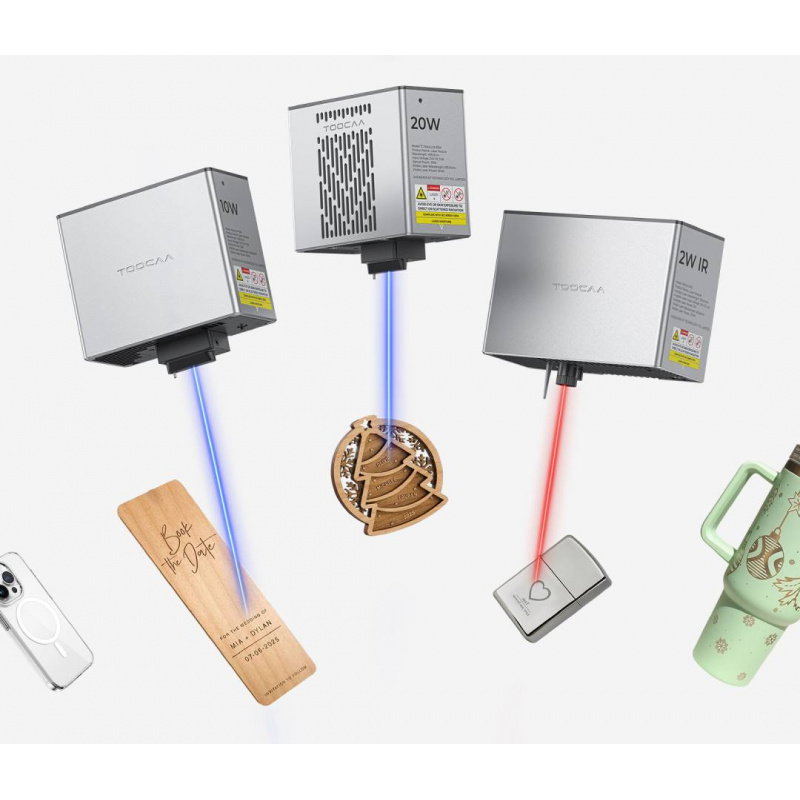

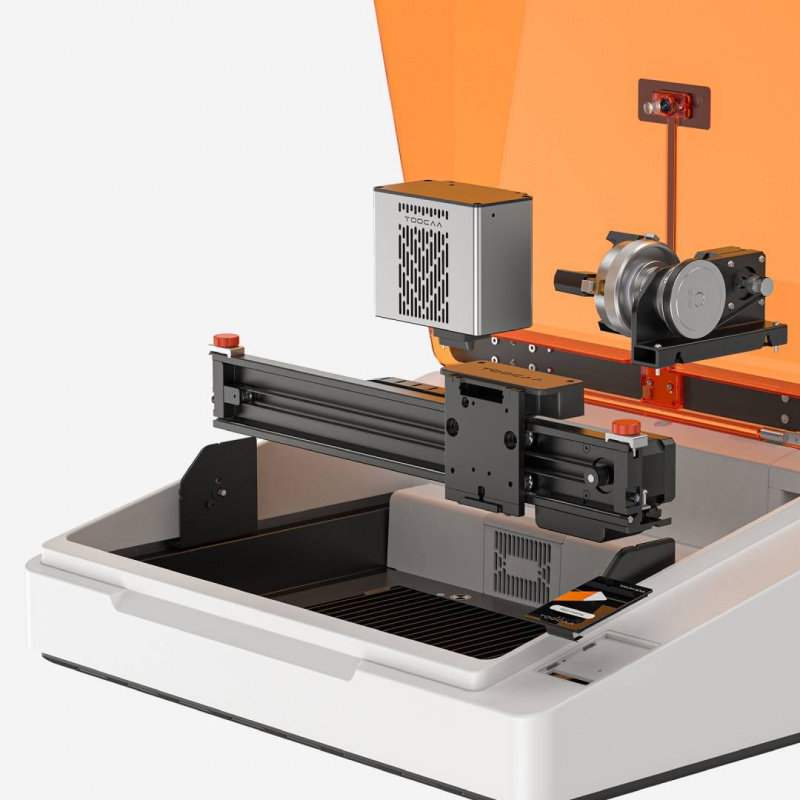

The interchangeable laser module supports 2W , 10W , and 20W IR options to accommodate a wide range of materials. Only the 10W module is included.

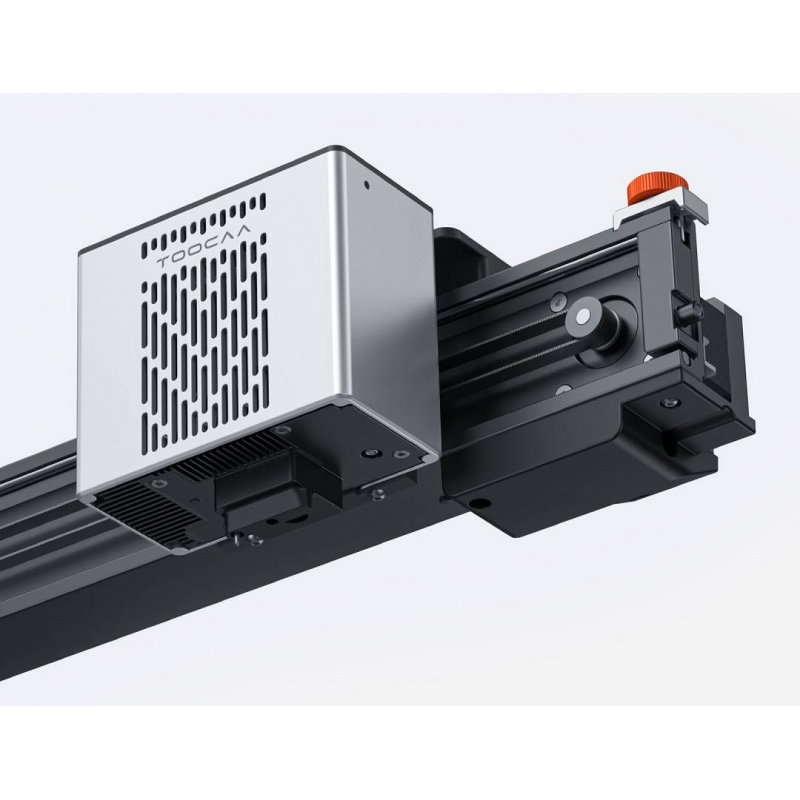

High precision 10W laser module
The 10W laser module delivers excellent detail reproduction quality thanks to a focused spot size of 0.08 x 0.13 mm , enabling precise engraving of even the smallest details. The drive system allows for a working speed of up to 36,000 mm/min , reducing project completion times. The device's modular design allows for future expansion. You can add a more powerful 20W head or an IR module for precise metal marking in the future .
Advanced security and connectivity
The TOOCAA NOVA is equipped with a sealed, Class 1 SafeShell enclosure , ensuring safe use at home, even in the presence of children, and in educational environments. The safety system includes flame detection, a tilt sensor, and automatic shutdown upon opening the lid or detecting overheating. The device works with intuitive TOOCAA Studio software and supports the advanced LightBurn environment. WiFi and USB Type-C connectivity enable convenient project transfer and monitoring. Additionally, a filtration system and intelligent Air Assist support effective smoke extraction, helping to keep the lens and workstation clean.
The TOOCAA Studio library includes over 25 themes and over 1,000 engraving templates.

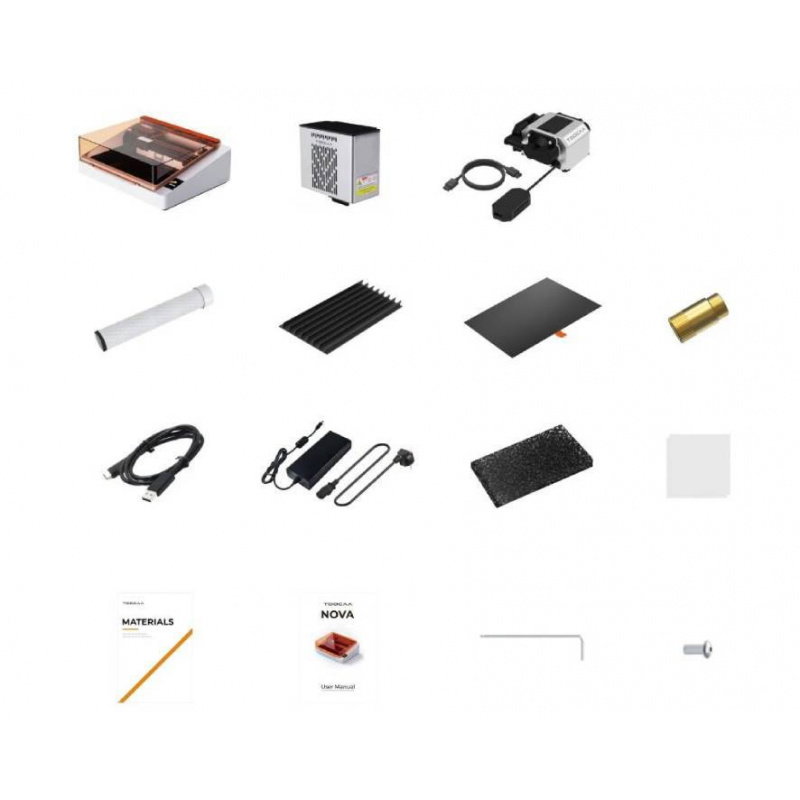

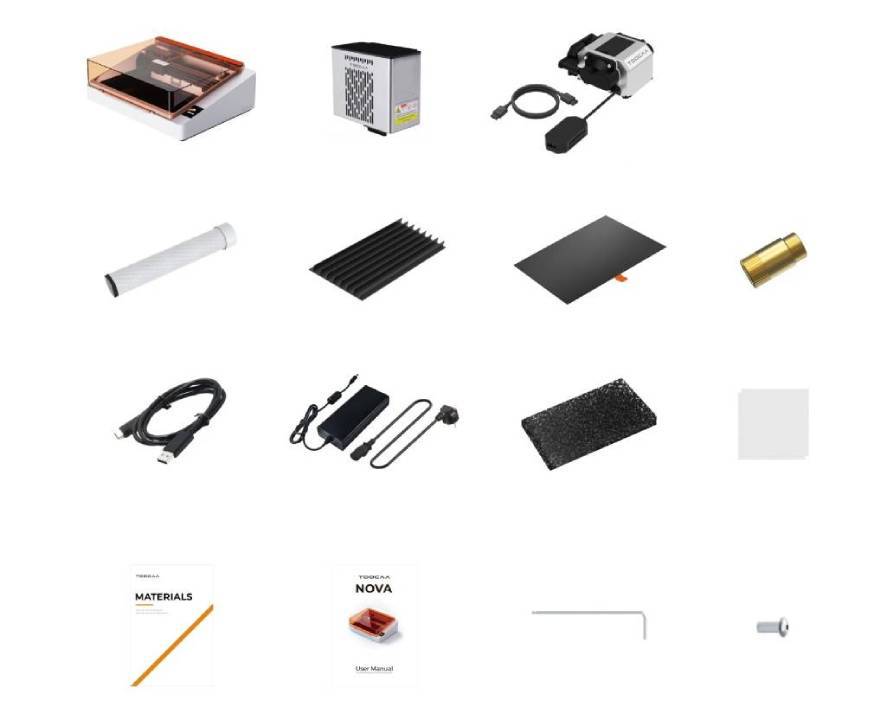

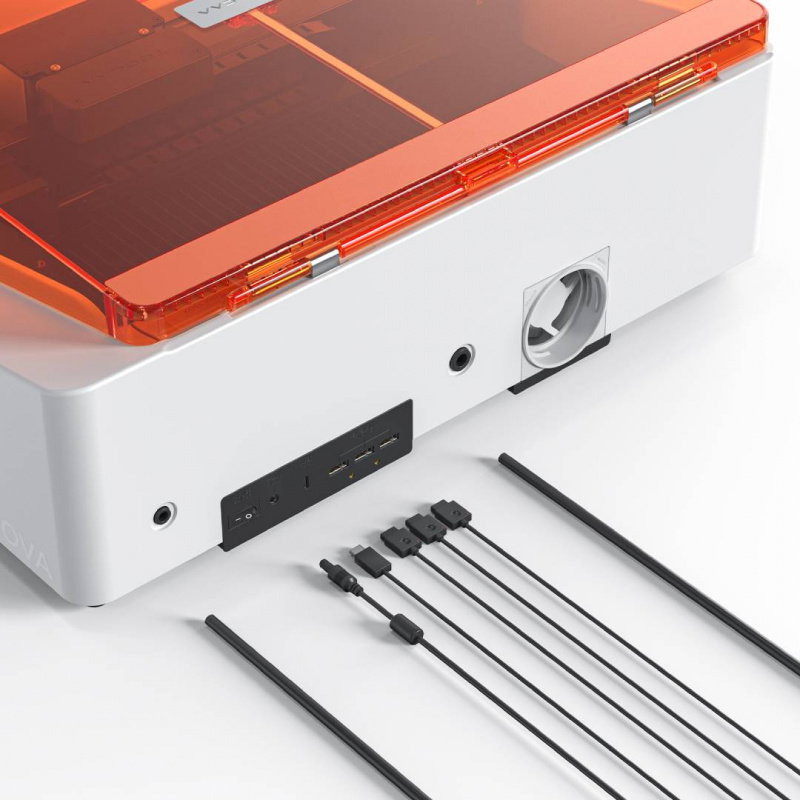

Elements included in the set.
Contents of the set
- TOOCAA NOVA laser engraving machine
- 10W laser module
- Air Assist Kit
- Work panels x4
- Aluminum protective plate
- Pipe
- USB cable
- Power supply and power cord
- Filters, cloths and mounting accessories
- A4 test material
- User manual
| Technical specifications of the TOOCAA NOVA laser plotter | |
|---|---|
| Laser type | diode |
| Laser wavelength | 455 ± 5 nm |
| Laser power | 10 W |
| Spot size | 0.08 x 0.13 mm |
| Working field | 297 x 210 mm (A4) |
| Maximum engraving speed | 36000 mm/min |
| Positioning accuracy | 0.01 mm |
| Repositioning accuracy | 0.01 mm |
| Cutting in one pass (plywood) | up to 6 mm |
| Supported materials | wood, plywood, MDF, bamboo, leather, fabrics, cardboard, acrylic (dark), lacquered metal, stainless steel, anodized aluminum, glass (dark), ceramics, stone, slate |
| Software | TOOCAA Studio, LightBurn |
| Supported systems | Windows, macOS |
| Communication | USB Type-C, WiFi, Bluetooth |
| Interfaces | emergency button, expansion port, rotary module support |
| Security | flame detection, tilt detection, lid opening sensor, parental lock, laser module monitoring, air assist, overheating protection, emergency button |
| Input voltage | AC 100V to 240V, 50/60Hz, 2.5A |
| Operating voltage | 24V / 5A |
| Housing material | aluminum alloy, ABS, PC |
| Dimensions | 513 x 402 x 180 mm |
| Mass | 8.27 kg |
