Product description: TOOCAA NOVA 10 W laser plotter + rotary module + air pump
The TOOCAA NOVA is a modern laser engraver with AI functions, equipped with a 10W module , designed for comfortable and safe desktop operation. It offers an A4 work area of 297 x 210 mm , and its compact design makes it ideal for home, office, and educational environments. A fully enclosed Class 1 enclosure and an extensive security system ensure a high level of safety in various conditions. Intelligent solutions automatically identify dedicated material, adjust focus, and select optimal operating parameters , eliminating the need for manual configuration. A built-in HD camera enables live preview and precise positioning of the project on the work surface. Operation is possible via an intuitive touchscreen or through TOOCAA Studio and LightBurn software, and communication is provided by USB Type-C and WiFi interfaces. The modular design allows for easy replacement of laser heads, allowing the plotter to be adapted to various applications – from precision engraving to more demanding cutting. The set is additionally equipped with the Air Assist system and a rotation module , which increase functionality and work comfort.

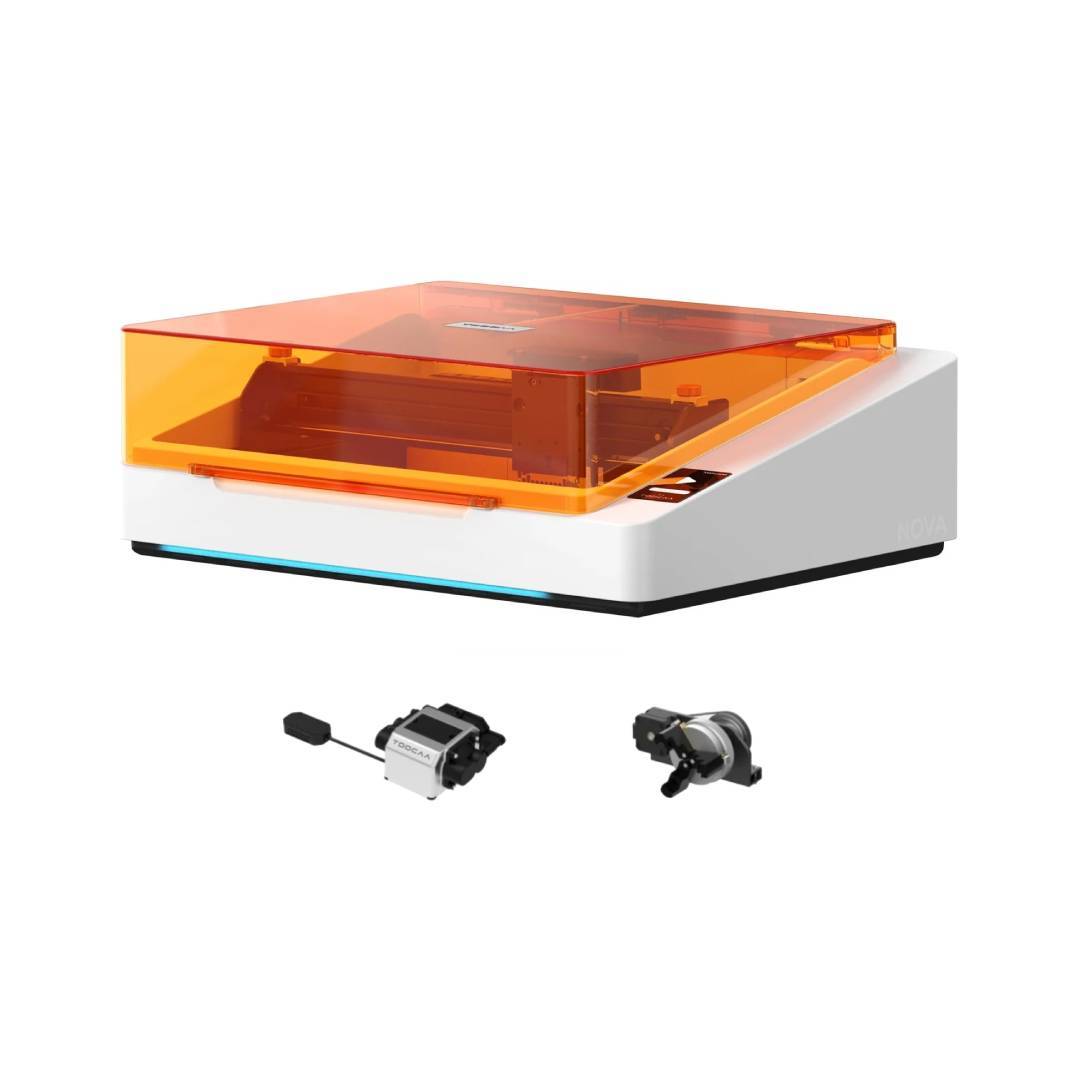

TOOCAA NOVA 10 W laser plotter + rotary module + air pump.

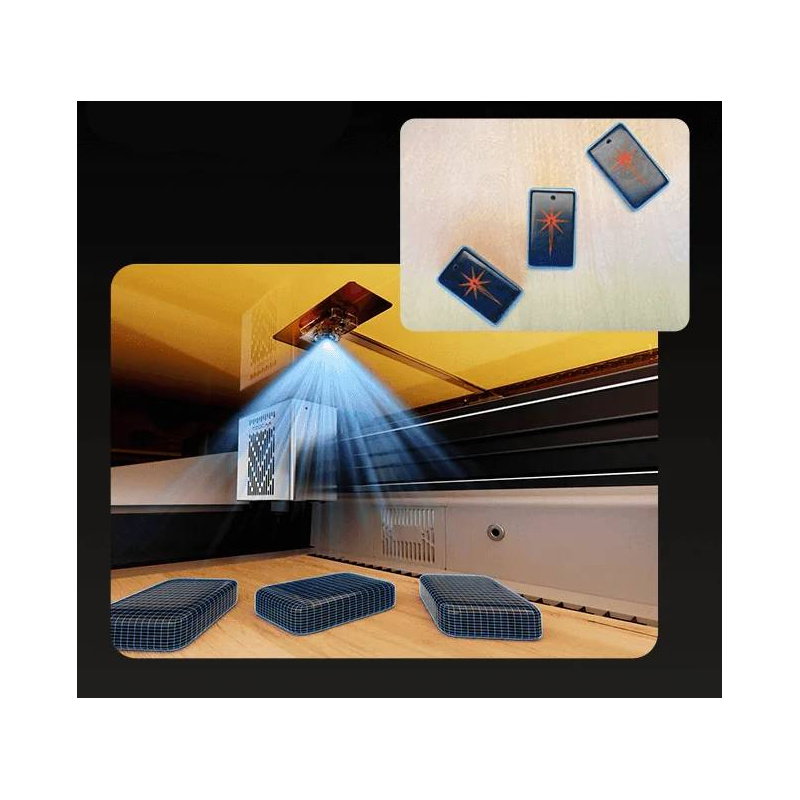

The built-in HD camera allows you to position the project on the material and view the work progress live.
AI and Live Preview for Precise Engraving
The TOOCAA NOVA 10 W utilizes advanced AI-based solutions that simplify the preparation of designs for engraving. The system automatically recognizes materials using ID cards and selects optimal operating parameters , eliminating the need for manual testing. The built-in 5MP HD camera provides real-time preview in "What You See Is What You Get" mode, allowing you to precisely position your design on the material's surface . Thanks to high-precision positioning, you can see the final result before you begin work. This approach shortens turnaround time and reduces the risk of errors.
Automatic material recognition and intelligent autofocus
The plotter automatically identifies selected materials based on ID cards or system settings, allowing for quick adjustments to parameters such as power, speed, and engraving depth. The autofocus function automatically adjusts the laser head's height relative to the material's surface , ensuring optimal beam focus. This solution works well with both thin elements and thicker materials such as wood. or acrylic . If necessary , you can use the advanced mode and manually specify the material thickness . Thanks to the high level of automation and a working area of 297 x 210 mm, operation of the device is quick and intuitive, reminiscent of working with a classic office printer.
Engraving at speeds up to 36,000 mm/min significantly reduces project implementation time and increases work efficiency.

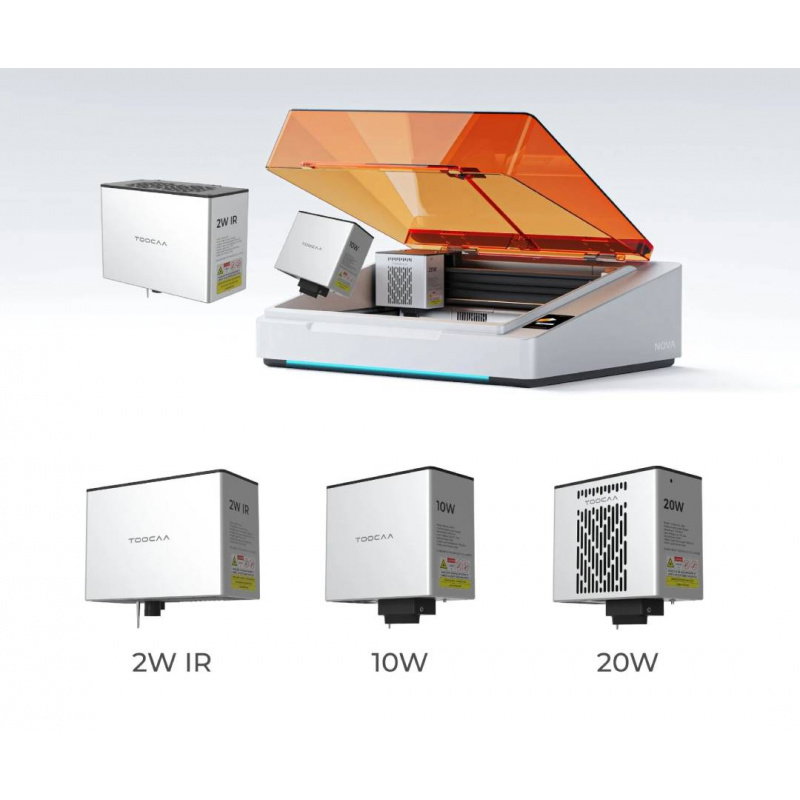

The interchangeable laser module supports 2W, 10W, and 20W IR options to accommodate a wide range of materials. Only the 10W module is included.
High performance, modularity and 360° rotational engraving
The TOOCAA NOVA achieves engraving speeds of up to 36,000 mm/min , allowing for the efficient completion of both single projects and larger series. The plotter's design is based on interchangeable laser modules , allowing for easy configuration changes without having to replace the entire device. The availability of 10W, 20W, and 2W IR versions allows for adapting the device to various applications, while extending its lifespan and reducing operating costs. The engraver also supports 360° rotational engraving thanks to the included rotary module and a design with an X-axis that can be rotated 90°, enabling work on cylindrical objects without additional supports.
Safe design and convenient connectivity
The TOOCAA NOVA is equipped with a sealed SafeShell enclosure that meets Class 1 standards , ensuring safe use at home, at school, or in the workshop. The security system includes flame detection, a tilt sensor, a lid lock, and parental lock , protecting the user during operation. A built-in filtration system and intelligent Air Assist support effective smoke extraction, helping to keep the lens and workstation clean. The plotter is compatible with TOOCAA Studio and LightBurn software and offers USB and Wi-Fi connectivity, allowing for convenient project transfer and work monitoring. It can be operated both from a computer and directly via the built-in touchscreen . Quiet operation at approximately 50 dB makes the engraver suitable for residential spaces. Additional features, such as a magnetic tool holder and a backlight that indicates the device's status, enhance the comfort of everyday use.
The low noise level of approximately 50 dB allows for comfortable use of the plotter at home.

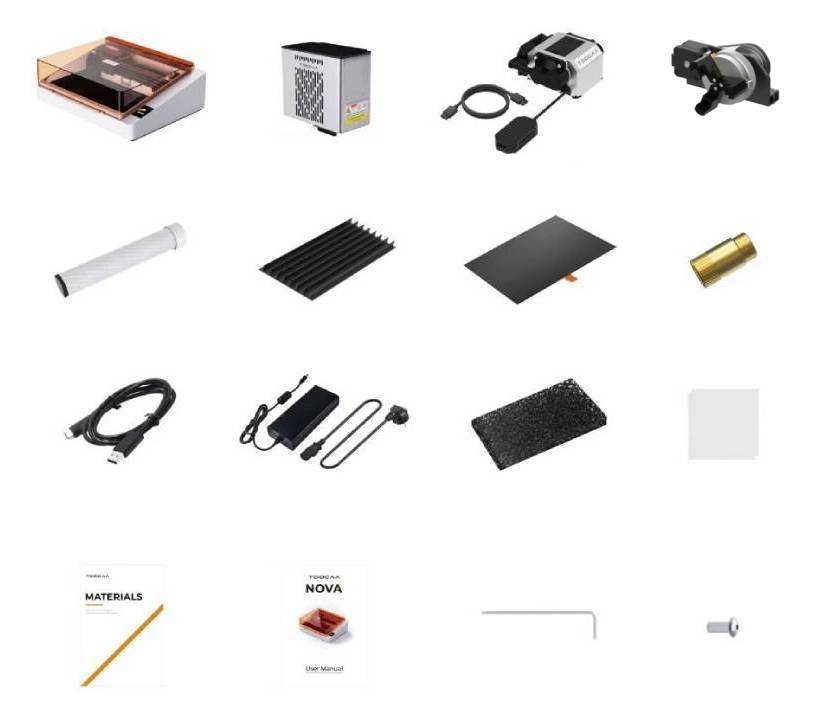

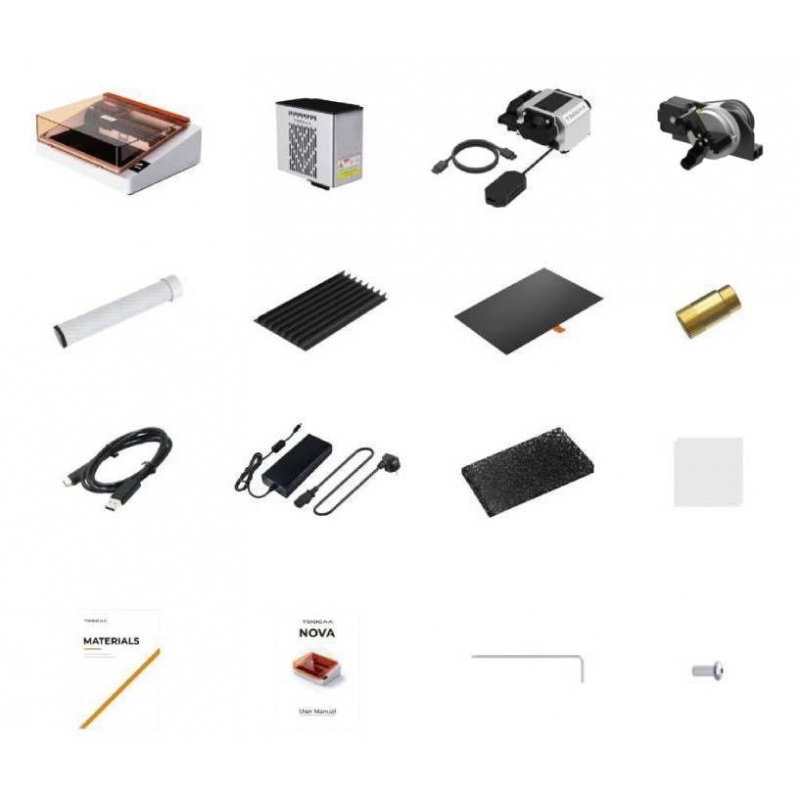

Elements included in the set.
Contents of the set
- TOOCAA NOVA laser engraving machine
- 10W laser module
- Rotation module
- Air Assist Kit
- Work panels x4
- Aluminum protective plate
- Pipe
- USB cable
- Power supply and power cord
- Filters, cloths and mounting accessories
- A4 test material
- User manual
| Technical specifications of the TOOCAA NOVA laser plotter | |
|---|---|
| Laser type | diode |
| Laser wavelength | 455 ± 5 nm |
| Laser output power | 10 W |
| Spot size | 0.15 x 0.15 mm |

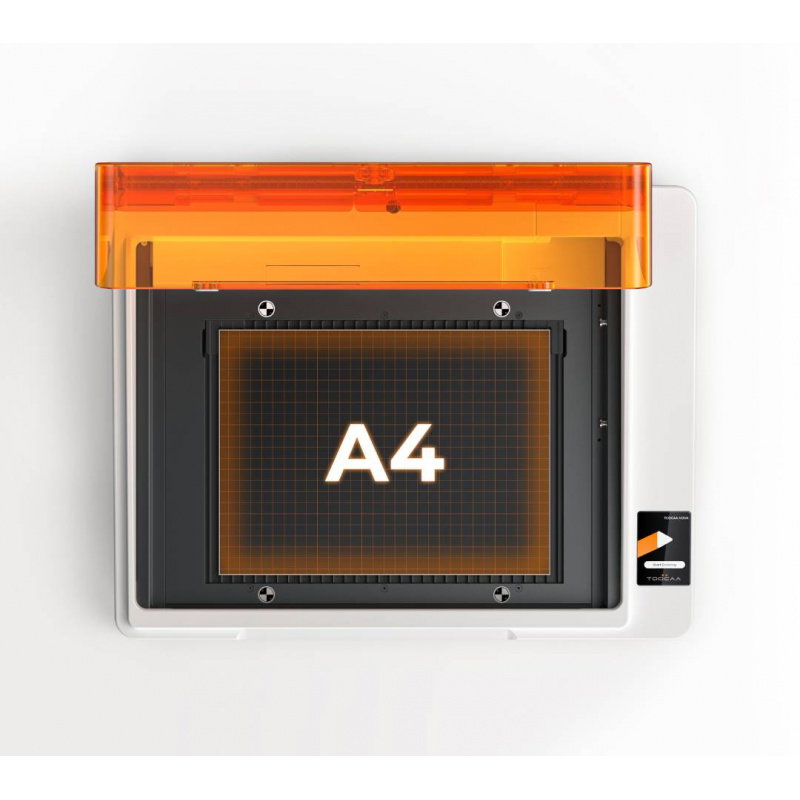

| Working field | 297 x 210 mm (A4) |
| Maximum engraving speed | 36,000 mm/min |
| Positioning accuracy | 0.01 mm |
| Repositioning accuracy | 0.01 mm |
| Supported materials | wood, plywood, MDF, bamboo, leather, fabrics, cardboard, acrylic (dark), lacquered metal, stainless steel, anodized aluminum, glass (dark), ceramics, stone, slate |
| Software | TOOCAA Studio, LightBurn |
| Supported systems | Windows, macOS |

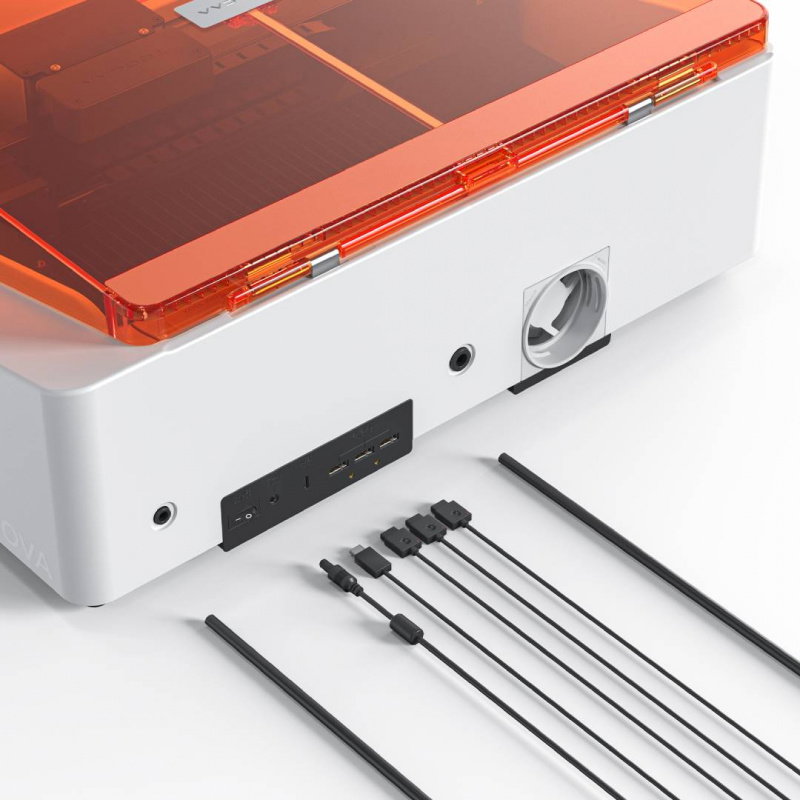

| Communication | USB Type-C, WiFi |
| Interfaces | emergency button, expansion port, rotary module support |
| Security | flame detection, tilt detection, lid opening sensor, parental lock, laser module monitoring, air assist, overheating protection, emergency button |
| Input voltage | AC 100V to 240V, 50/60Hz, 2.5A |
| Operating voltage | 24V / 7.5A |
| Housing material | aluminum alloy, ABS, PC |

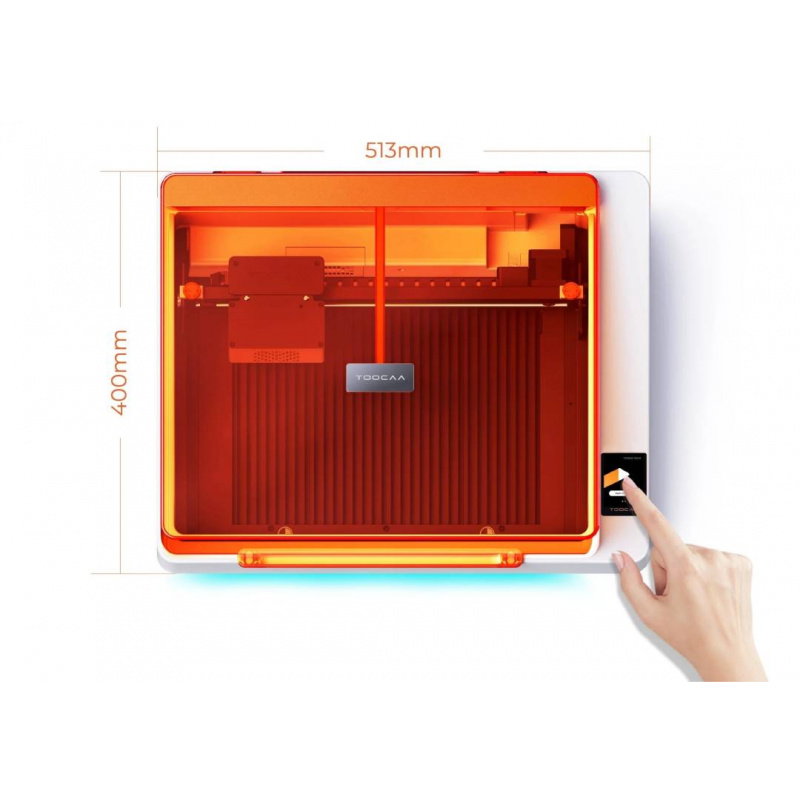

| Dimensions | 513 x 402 x 180 mm |
| Mass | 8.27 kg |
