Product description: TOOCAA NOVA 10 W Laser Plotter - Advanced

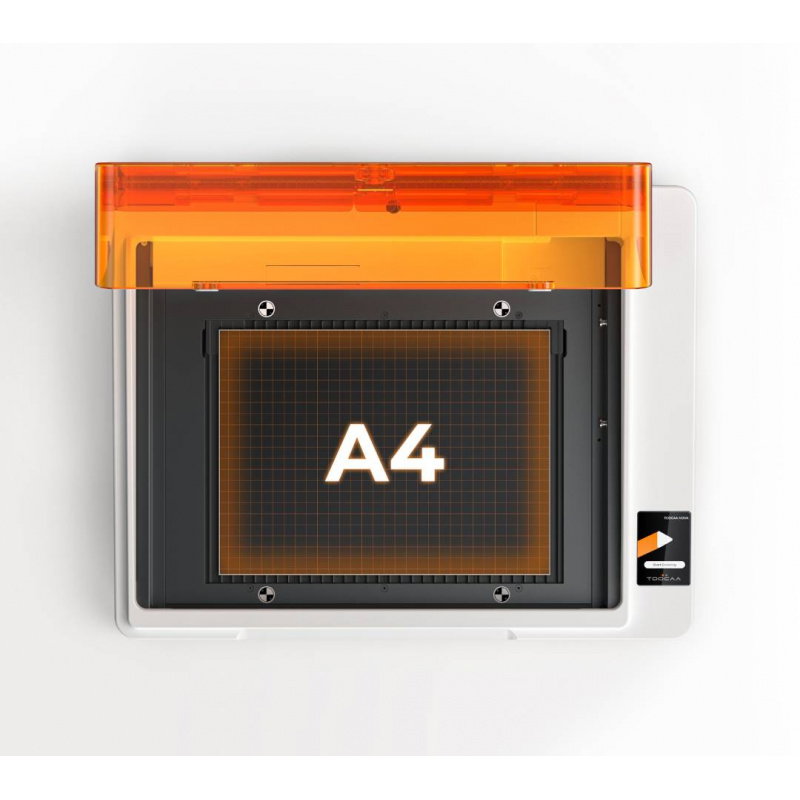

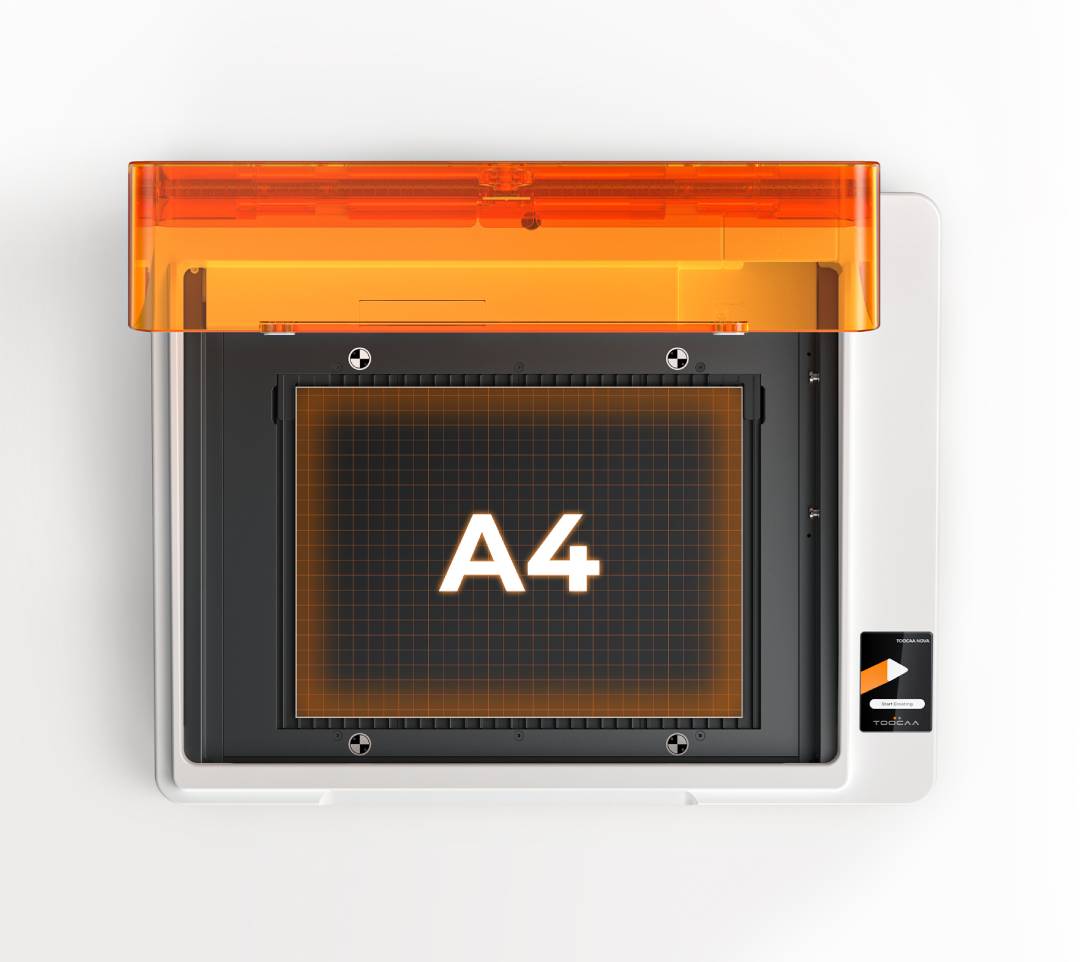

The TOOCAA NOVA is a modern laser engraver with an A4 work area of 297 x 210 mm , designed for comfortable and safe desktop operation. Featuring a Class 1 enclosure and extensive security systems, the plotter is ideal for use at home, in a workshop, at school, or in a small design studio. The NOVA model utilizes intelligent automation systems that significantly simplify the entire work preparation and execution process. A built-in 5 MPx camera is responsible for precise project positioning, work area preview, and automatic calibration, while the AI system recognizes materials and selects appropriate engraving and cutting parameters. Additionally, the autofocus function focuses in seconds , and Smart Air Assist automatically regulates airflow, reducing burn marks and improving detail quality. The engraver ensures positioning accuracy of 0.01 mm and reaches a working speed of up to 36,000 mm/min . The modular design allows for expansion with additional 20W and 2W IR laser modules, available separately. TOOCAA NOVA is compatible with TOOCAA Studio and LightBurn software, and communication can be achieved via USB Type-C, WiFi, or Bluetooth . The Advanced version is additionally equipped with the Air Assist system and an air purifier , which enhance work comfort and quality.

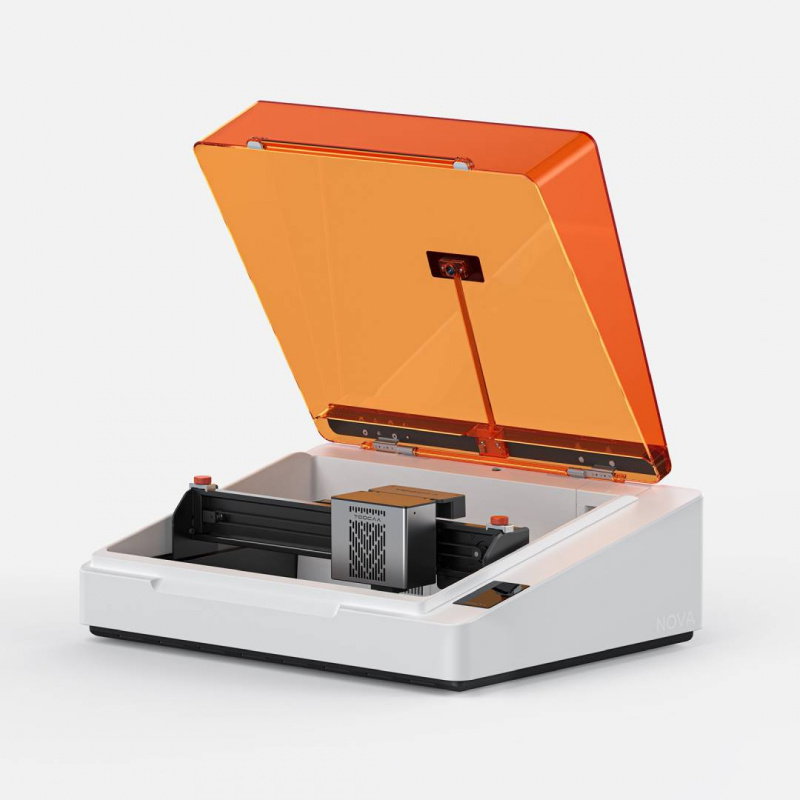

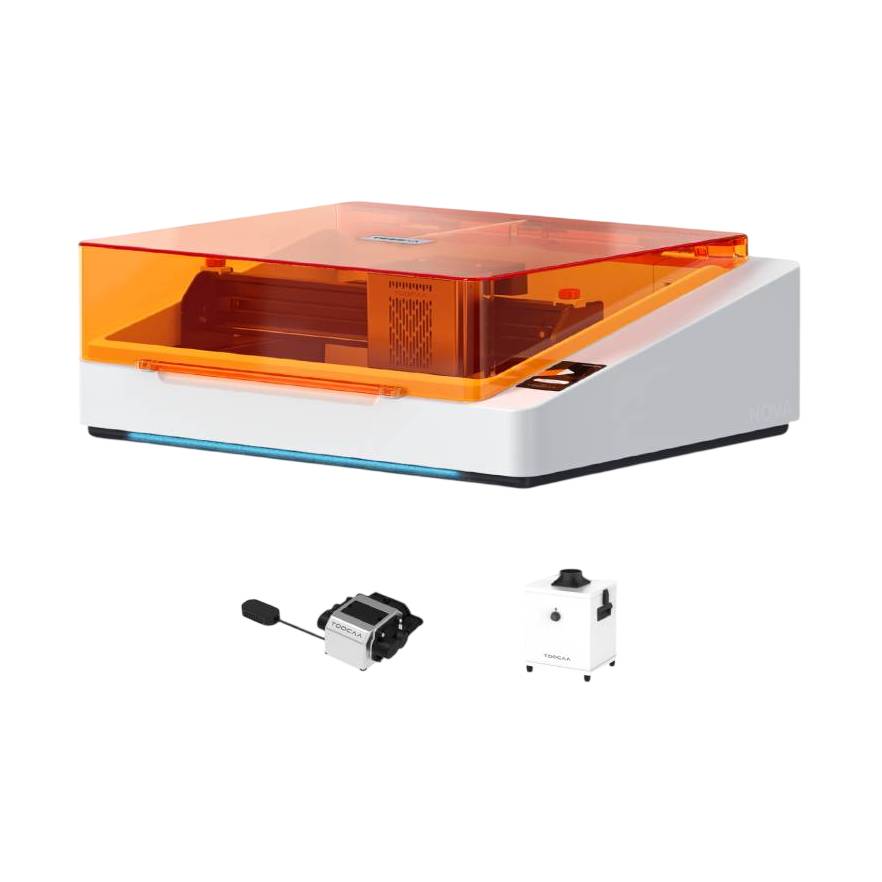

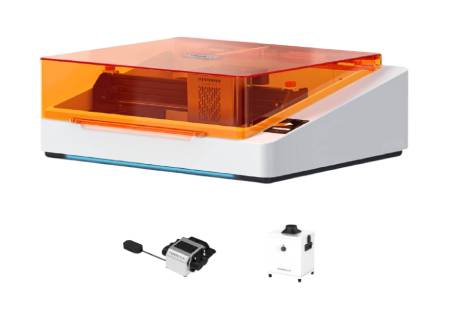

TOOCAA NOVA 10 W Laser Plotter - Advanced.
The built-in HD camera allows you to position the project on the material and view the work progress live.
Intelligent AI automation and precise control
TOOCAA NOVA is equipped with advanced automation systems that significantly simplify setup. An integrated 5 MPx camera enables precise project positioning, workspace preview, and automatic calibration without the need for manual settings. The AI system uses material identification cards to recognize material type and automatically select the appropriate engraving or cutting parameters from the TOOCAA Studio library. The autofocus function focuses in approximately 3 seconds , eliminating the need for manual adjustments, and for more demanding situations, an Advanced Focus mode is available for manual height adjustment . Additionally, Smart Air Assist automatically regulates airflow , improving detail quality and reducing burns, making operation exceptionally intuitive and similar to using a traditional printer.
Wide material compatibility and efficient laser cutting
TOOCAA NOVA allows you to work with a variety of materials such as wood, plywood , MDF , bamboo, leather, fabrics , cardboard , as well as surfaces such as anodized aluminum and ceramics . The version with a 10W laser module allows for cutting linden wood up to 6 mm thick in a single pass , significantly increasing project efficiency. The device is suitable for creating both decorative elements and functional consumer products. Automatic parameter selection allows for consistent and repeatable results without the need for manual configuration . Additionally, previewing the working area and visualizing the engraving path before starting work helps reduce the risk of errors and provides better control over the final result.
Engraving at speeds up to 36,000 mm/min significantly reduces project implementation time and increases work efficiency.

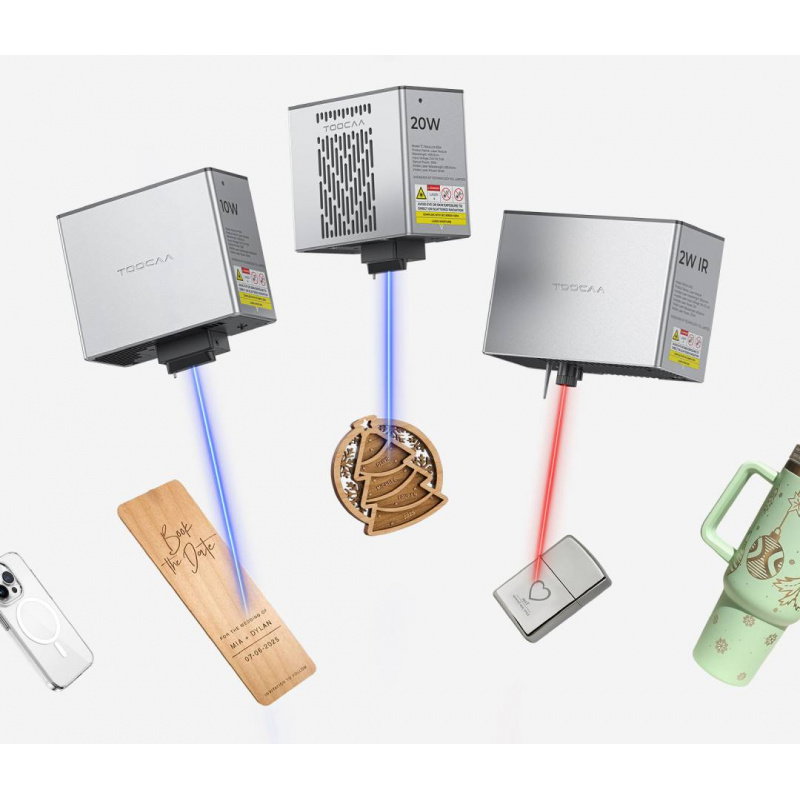

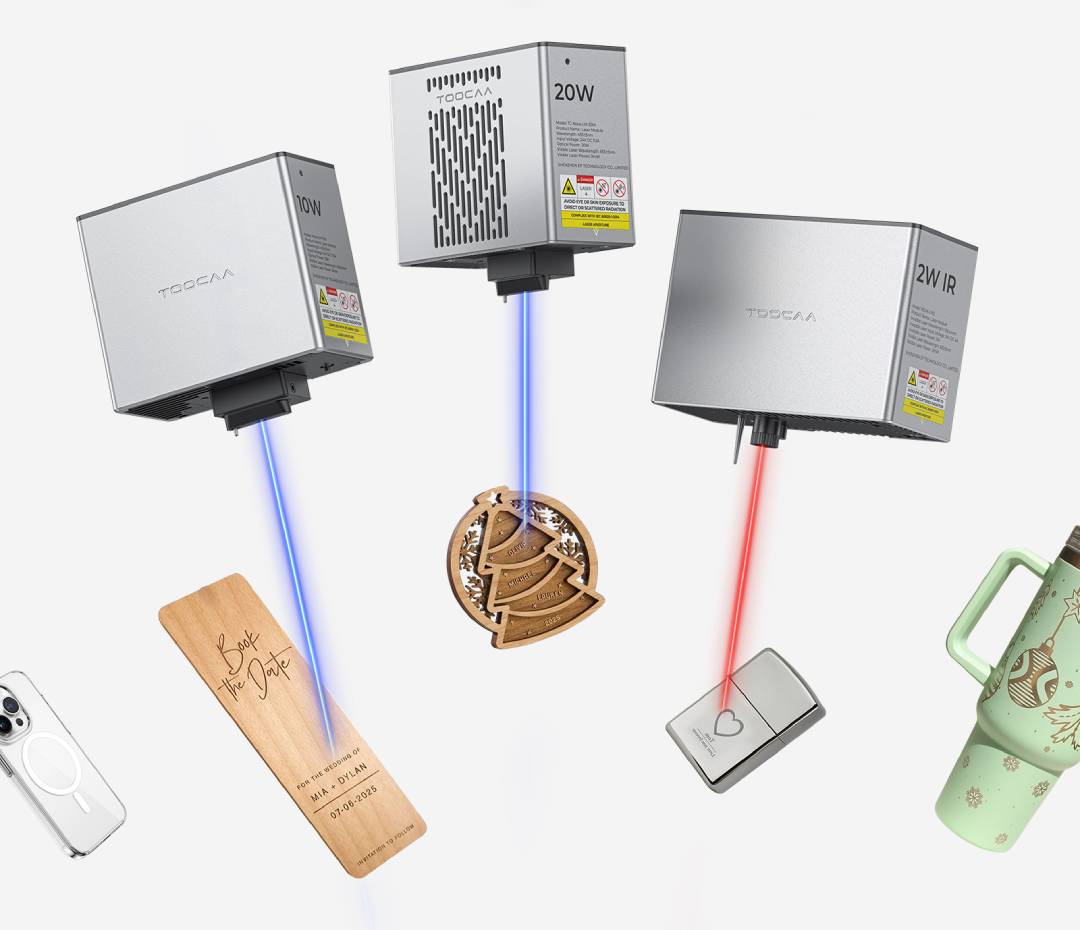

The interchangeable laser module supports 2W , 10W , and 20W IR options to accommodate a wide range of materials. Only the 10W module is included.

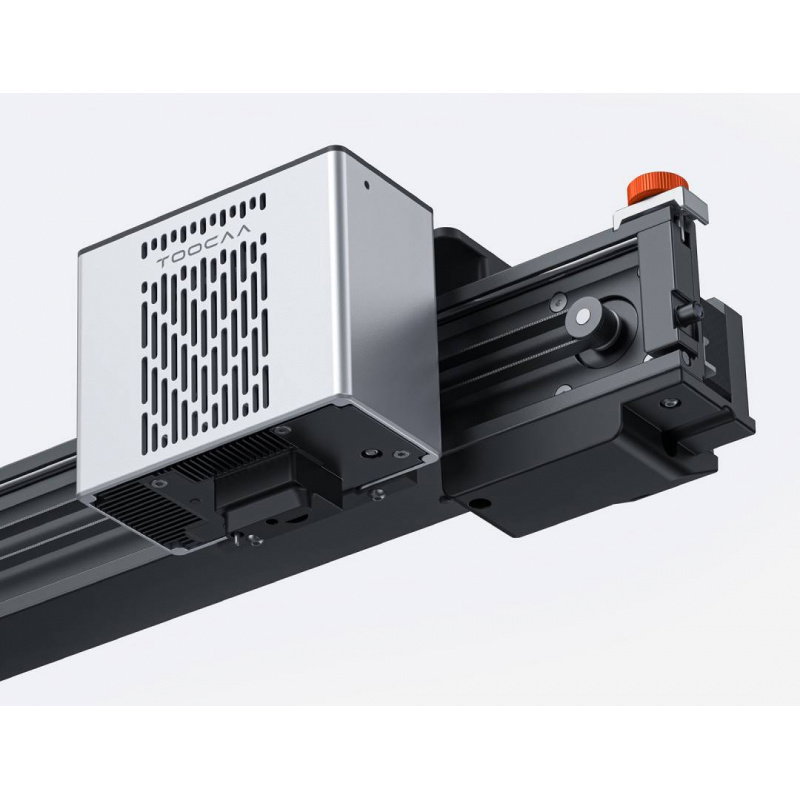

High precision 10W laser module
The 10W laser module offers excellent detail reproduction quality thanks to a focused spot size of 0.08 x 0.13 mm , enabling precise engraving of even the smallest details. The drive system enables speeds of up to 36,000 mm/min , resulting in faster project completion. The device's modular design allows for future expansion with a 20W head or an IR module for metal marking. The Advanced version is additionally equipped with a Smoke Purifier , which effectively removes smoke and odors generated during operation. This solution improves user comfort and helps maintain a cleaner work environment.
Cutting and engraving safety
The TOOCAA NOVA features a fully enclosed design that meets the Class 1 standard , ensuring a high level of safety when working at home, in the presence of children, and in educational environments. The protection system includes flame, tilt, lid opening, and laser module overheating detection, as well as a parental lock and emergency button . The device operates quietly, generating a noise level of approximately 50 dB , making it comfortable to use in a living space. Additional features, such as a magnetic tool holder and a backlight that indicates the operating status , enhance ease of use. The engraving machine is compatible with TOOCAA Studio and LightBurn software, and thanks to WiFi connectivity, it allows for wireless project transfer and process monitoring. An integrated filtration system and intelligent Air Assist support smoke extraction, helping to keep the device and workstation clean.
The TOOCAA Studio library includes over 25 themes and over 1,000 engraving templates.

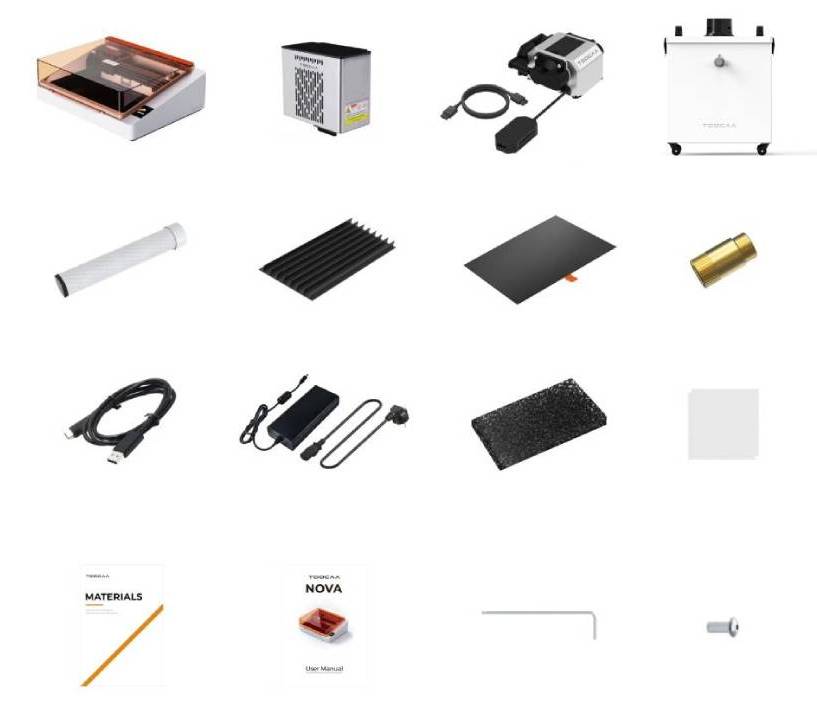

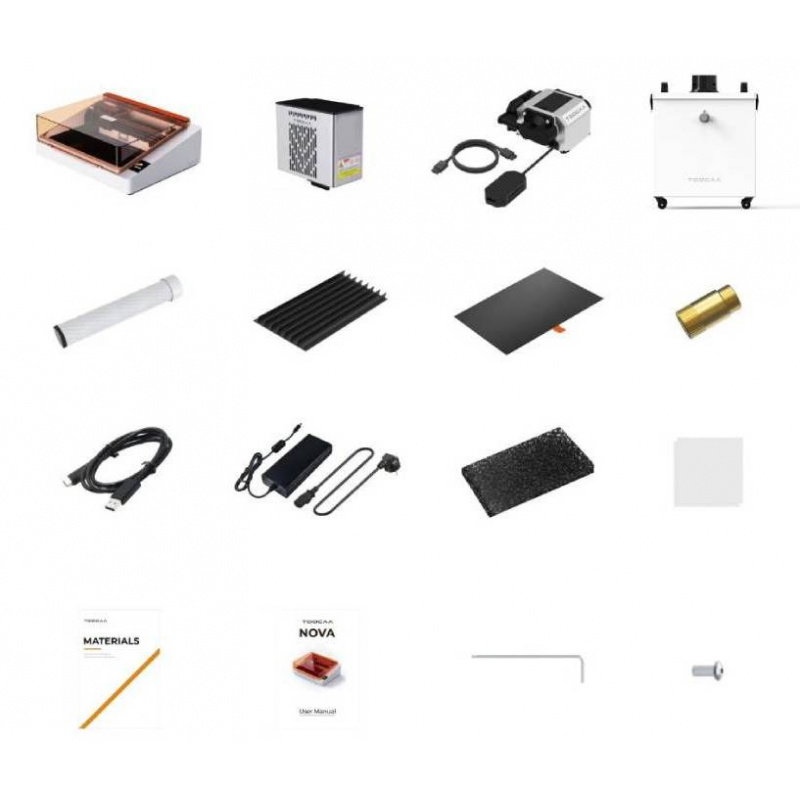

Elements included in the set.
Contents of the set
- TOOCAA NOVA laser engraving machine
- 10W laser module
- Air purifier
- Air Assist Kit
- Work panels x4
- Aluminum protective plate
- Pipe
- USB cable
- Power supply and power cord
- Filters, cloths and mounting accessories
- A4 test material
- User manual
| Technical specifications of the TOOCAA NOVA laser plotter | |
|---|---|
| Laser type | diode |
| Laser wavelength | 455 ± 5 nm |
| Laser power | 10 W |
| Spot size | 0.08 x 0.13 mm |
| Working field | 297 x 210 mm (A4) |
| Maximum engraving speed | 36000 mm/min |
| Positioning accuracy | 0.01 mm |
| Repositioning accuracy | 0.01 mm |
| Cutting in one pass (plywood) | up to 6 mm |
| Supported materials | wood, plywood, MDF, bamboo, leather, fabrics, cardboard, acrylic (dark), lacquered metal, stainless steel, anodized aluminum, glass (dark), ceramics, stone, slate |
| Software | TOOCAA Studio, LightBurn |
| Supported systems | Windows, macOS |
| Communication | USB Type-C, WiFi, Bluetooth |

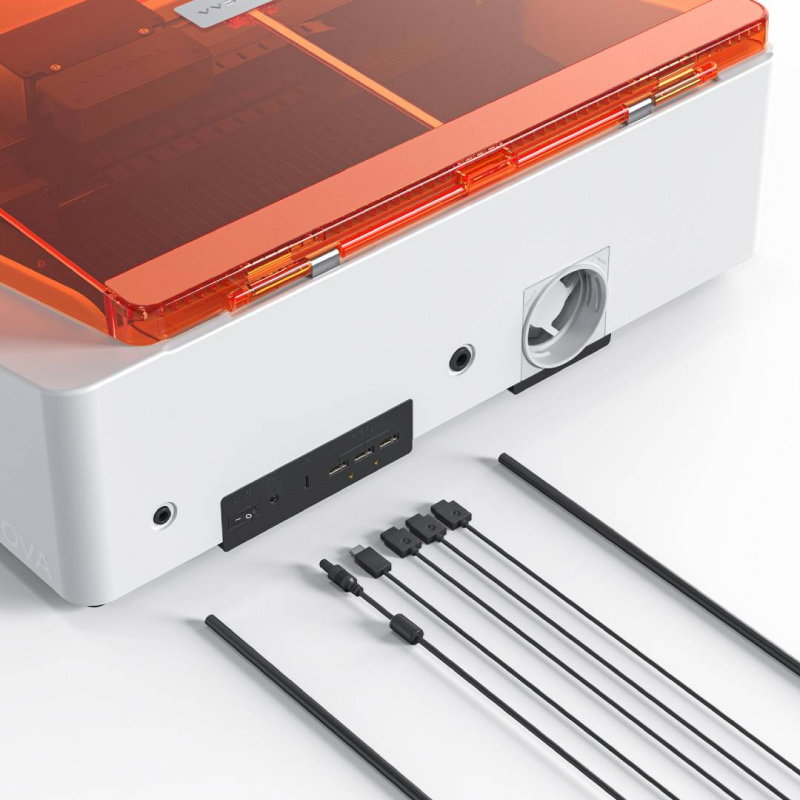

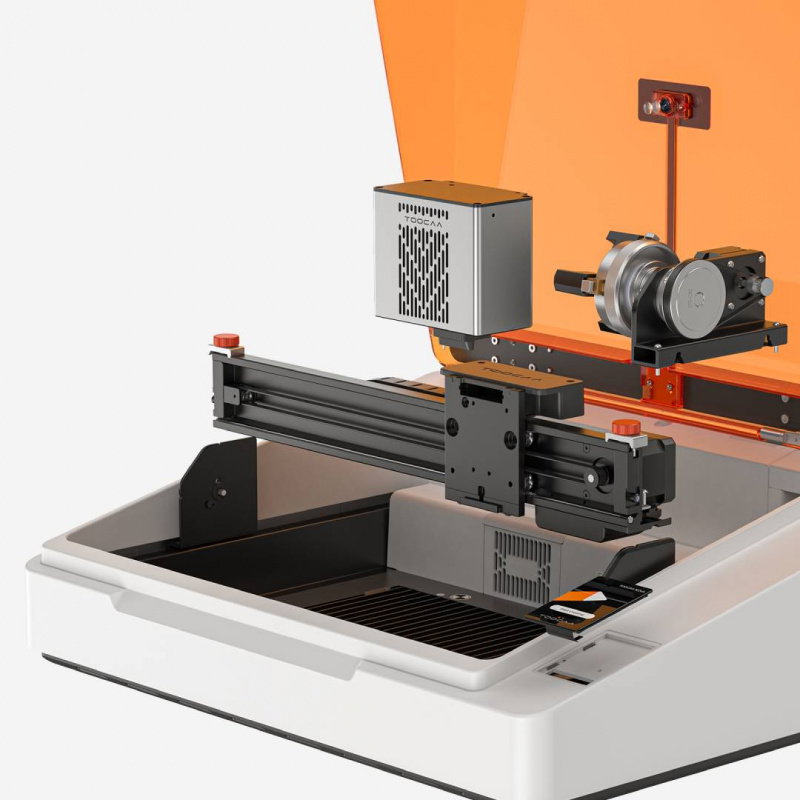

| Interfaces | emergency button, expansion port, rotary module support |
| Security | flame detection, tilt detection, lid opening sensor, parental lock, laser module monitoring, air assist, overheating protection, emergency button |
| Input voltage | AC 100V to 240V, 50/60Hz, 2.5A |
| Operating voltage | 24V / 5A |
| Housing material | aluminum alloy, ABS, PC |
| Dimensions | 513 x 402 x 180 mm |
| Mass | 8.27 kg |
