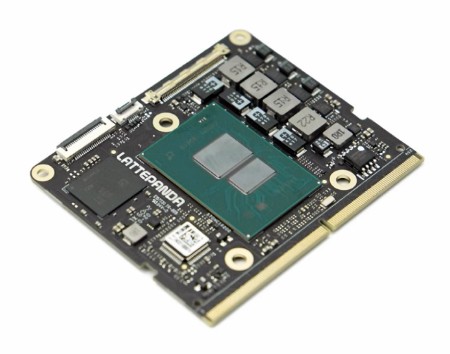

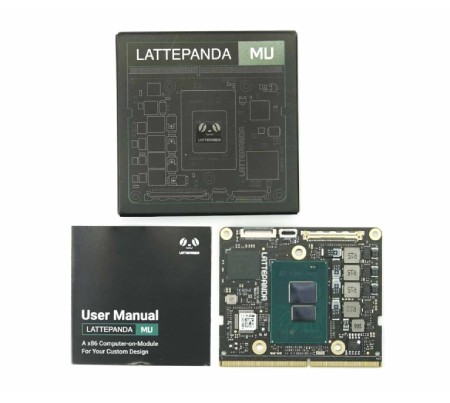

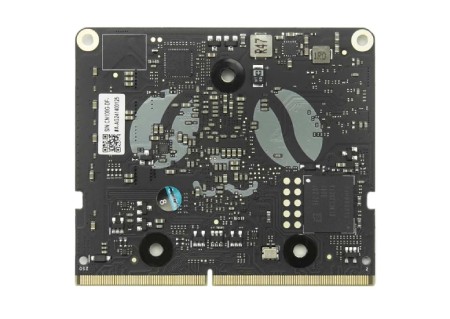

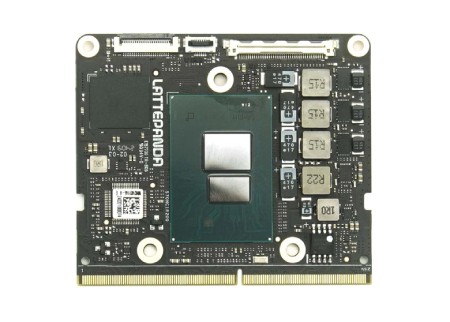

Product description: LattePanda Mu x86 - 16 GB RAM + 64 GB eMMC - Intel N100
LattePanda Mu is a powerful yet compact computer-on-module (COM) based on x86 architecture . With a quad-core Intel N100 processor, LattePanda Mu achieves excellent results in performance tests, outperforming competitive solutions such as Raspberry Pi 5 and Intel Celeron N5105. It has 16 GB of 4800 MHz LPDDR5 memory and 64 GB of eMMC memory , which provides high computing power and fast data access. Despite its small size ( 69.6 x 60 mm ), LattePanda Mu provides a wide range of expansion options - from PCIe, SATA, USB 3.2, GPIO , to the ability to connect three independent screens . Thanks to open design files, you can create your own baseboards, tailored to your specific requirements. LattePanda Mu supports Windows 10, Windows 11 and Ubuntu , making it an excellent choice for embedded system and AI application developers.
LattePanda Mu x86 - 16 GB RAM + 64 GB eMMC - Intel N100.
Small in size, big in power
LattePanda Mu offers performance comparable to larger computers while maintaining a compact form factor. The Intel N100 processor with a clock speed of up to 3.4 GHz allows for smooth operation, up to twice as fast as the Raspberry Pi 5. With four cores and four threads , LattePanda Mu is a great solution for AI, automation and embedded systems applications.
Miniature dimensions - maximum versatility

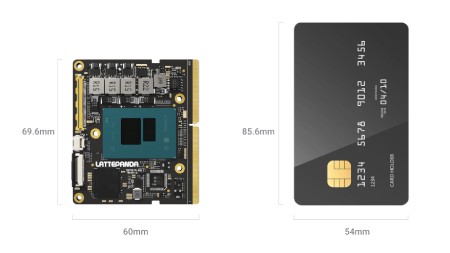

With dimensions of 69.6 x 60 mm , LattePanda Mu is smaller than a credit card , making it ideal for industrial embedded systems, robotics , smart devices and handhelds. The compact design allows for installation in places where space is limited while maintaining high computing power.
Energy flexibility and efficiency
LattePanda Mu allows for TDP configuration from 6W to 35W , allowing for power consumption and performance to be tailored to specific applications. 6W allows for silent, passive operation , while at 35W the module achieves maximum performance , requiring active cooling .
Wide selection of expansion ports
LattePanda Mu is equipped with a rich set of interfaces , which enable easy expansion and integration with various systems. Available interfaces include:
- PCIe 3.0 - up to 9 lanes for expansion cards
- SATA 3.0 - 2 ports for SSD / HDD
- USB 3.2 (10 Gb/s) - up to 4 ports for fast communication
- USB 2.0 (480 Mb/s) - 8 ports for peripherals
- 64 GPIO, I2C, UART - for specialized applications
The CPU TDP is adjustable from 9 W to 35 W.
Availability of KiCAD files to help you design your own expansion boards.
Baseboards - expand your possibilities
The manufacturer offers ready-made base plates that allow you to quickly start working with LattePanda Mu. Available are:
- Lite Carrier Board - the basic version, ideal for quick prototyping
- Full-Function Evaluation Carrier Board - full version, allowing access to all interfaces
Easy design of your own boards
LattePanda Mu offers open schematics and PCB files (in KiCAD format) that allow you to design your own customized baseboards . This allows for significantly reduced product development time and full control over your hardware.
Support for multiple operating systems
LattePanda Mu supports Windows 10, Windows 11 , and Ubuntu , so you can choose the system that best suits your needs. Whether you use Linux for automation or Windows for business applications, LattePanda Mu ensures full compatibility.
Practical applications
LattePanda Mu is used in many industries:
- Robotics and AI - efficient processor and the ability to connect AI accelerators
- Industrial Embedded Systems - Energy Efficiency and Compact Format
- Smart devices and handhelds - a great choice for mobile systems
- Automation and IoT - a rich set of interfaces for control devices
LattePanda Mu supports Windows 10, Windows 11 and Ubuntu.
| Comparison of LattePanda Mu N100 and LattePanda Mu N305 | ||
|---|---|---|
| Model | LattePanda Mu N100 | LattePanda Mu N305 |
| Processor (CPU) | Intel Processor N100, 4 cores, clocked at up to 3.4 GHz | Intel Core i3-N305, 8 cores, clocked at up to 3.8 GHz |
| RAM memory | 16GB LPDDR5 4800MT/s, ECC with IBECC support | 16GB LPDDR5 4800MT/s, ECC with IBECC support |
| Mass storage | ||
| Operating system | ||
| Extensions | - Up to 9 PCIe 3.0 lanes - Up to 4 USB 3.2 ports (10Gbps) - Expandable to 64 GPIO | - Up to 2 SATA 3.0 ports (6Gb/s) - 8 USB 2.0 ports - 4x UART - 4x I2C |
| Display | - 1x eDP 1.4 - 3x HDMI 2.0 / DisplayPort 1.4 | Supports up to 3 signals simultaneously |
| Dimensions | 60 x 69.6mm | |
| LattePanda Mu Technical Specifications | |
|---|---|
| Processor | Intel N100 |
| Number of cores | 4 |
| Operating systems | Windows 10 / Windows 11 Ubuntu |
| Processor clock speed | up to 3.4 GHz |
| Graphic layout | Intel UHD Graphics |
| RAM memory | 16GB LPDDR5 4800MT/s with IBECC support |
| Mass storage | 64GB eMMC 5.1 |
| GPIO | up to 64 pins extended with shift registers |
| Security | TDP from 6W to 35W |
| USB | 8 x USB2.0 Type A 4 x USB3.2 Gen2 Type-A |
| PCIe 3.0 | up to 9 lines |
| SATA3.0 | up to 2 ports |
| Audio | HD Audio, I2S |
| Camera | MIPI CSI-2, up to 8 tracks |
| SPI | yes, for second BIOS ROM and discrete TPM |
| SMBus | Yes |
| I2C | SoC 4 ports |
| UART | SIO 1 port; SoC 3 port |
| Supply voltage | from 9V to 20V |
| RTC battery | 3V |
| Working humidity | 0% to 80% relative humidity, non-condensing |
| Operating temperature | from 0℃ to 60℃ |
| Dimensions of the plate | 69.6x60mm |
