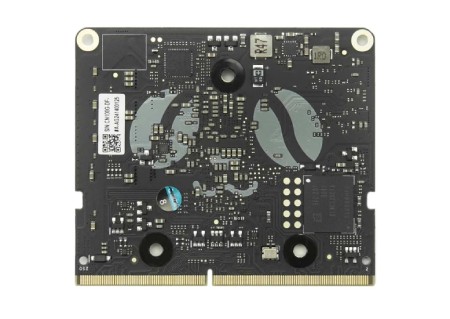

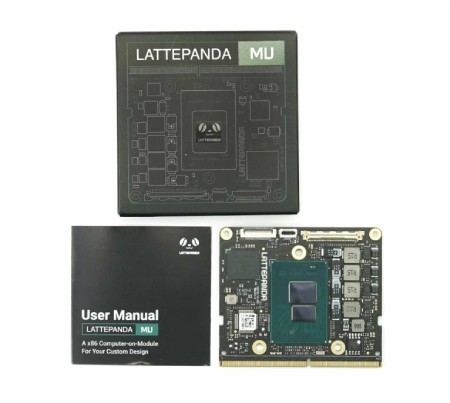

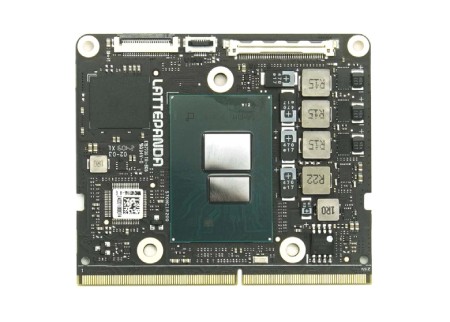

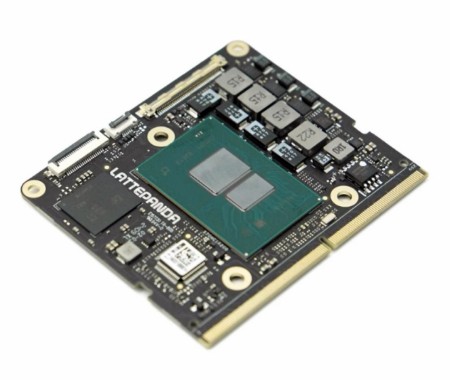

LattePanda Mu x86 - 16GB RAM + 64GB eMMC - Intel N305
LattePanda Mu is a compact x86 compute module equipped with an Intel N305 8-core processor clocked at up to 3.8 GHz, 16 GB LPDDR5 memory , and 64 GB eMMC storage . With a rich set of interfaces, including 3 HDMI/DisplayPort ports, 8 USB 2.0 ports, up to 4 USB 3.2 ports, and 9 PCIe 3.0 lanes , the module provides versatility in building custom backplanes. Ideal for AI, robotics, embedded computing, and many other applications.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: LattePanda Mu x86 - 16 GB RAM + 64 GB eMMC - Intel N305
LattePanda Mu is a miniature x86 computer that combines high performance with compact dimensions, enabling a wide range of applications. The Intel Core i3 N305 processor with 8 cores and 8 threads allows you to achieve excellent results in performance tests, outperforming other single-board computers such as the Raspberry Pi 5 or Intel Celeron N5105 . It has 16 GB of LPDDR5 memory at 4800 MHz and 64 GB of eMMC memory , which provides high computing power and fast data access. Despite its small size ( 69.6 x 60 mm ), LattePanda Mu offers rich expansion possibilities, including support for PCIe, SATA, USB 3.2, GPIO and many other interfaces. Open architecture and available design files allow you to create your own dedicated base boards , tailored to individual needs. With support for Windows 10, Windows 11 , and Ubuntu , LattePanda Mu is a great solution for both developers and engineers looking for a compact yet powerful computing module.
LattePanda Mu x86 - 16 GB RAM + 64 GB eMMC - Intel N305.
Botland is an official distributor of DFRobot open-source hardware. Every roboticist and practitioner of emerging technology has heard at least once of DFRobot solutions, built above all around Arduino. Our range holds original DFRobot products only.
Small in size, big in power
Despite its compact dimensions, LattePanda Mu offers performance comparable to full-fledged PCs . With an Intel N305 processor with 8 cores and clocked at up to 3.8 GHz , it provides excellent computing power in such a small package. It is an ideal solution for applications requiring mobility and low energy consumption, without compromising on performance.
Compact form - maximum versatility

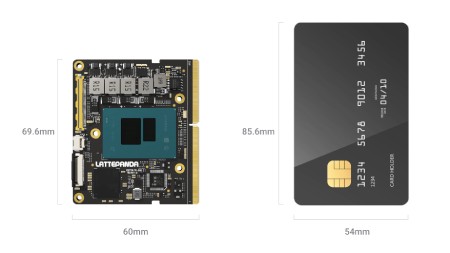

LattePanda Mu is a module smaller than a credit card , which allows for installation in limited spaces. Its small dimensions of 69.6 x 60 mm make it perfect for robotics , drones, AI devices or embedded systems, where both compactness and computing power count.
Flexibility in energy management
LattePanda Mu allows you to configure TDP from 9W to 35W , which allows you to adjust performance and power consumption to a specific application. In 9W mode, it is possible to work in passive cooling , making it ideal for quiet and energy-saving applications. At 35W, the module reaches maximum performance , but requires active cooling.
A rich set of extension interfaces
LattePanda Mu offers a wide range of ports that allow you to expand your system as you wish. With 9 PCIe 3.0 lanes, 8 USB 2.0 ports, 4 USB 3.2 ports, 2 SATA 3.0 ports and 64 expandable GPIOs , you can freely adapt the configuration to your requirements by integrating additional peripherals and accessories.
The CPU TDP is adjustable from 9 W to 35 W.
Availability of KiCAD files to help you design your own expansion boards.
Baseboards - unlimited possibilities
The manufacturer offers ready-made base plates that allow you to quickly start working with LattePanda Mu. Available are:
- Lite Carrier Board - compact version for rapid prototyping
- Full-Function Evaluation Carrier Board - version allowing access to all interfaces
Easier design of your own boards
LattePanda Mu offers open schematics and PCB files (in KiCAD format) that allow you to design your own customized baseboards . This is a huge time saver for engineers and developers who can focus on optimizing the design instead of building everything from scratch.
Support for multiple operating systems
LattePanda Mu runs on Windows 10, Windows 11 , and Ubuntu , giving you the freedom to choose the operating system that best suits your needs. Whether you work in a Linux or Windows environment, LattePanda Mu offers full compatibility and support for a wide range of applications.
Practical applications
LattePanda Mu is the perfect solution for:
- Robotics and artificial intelligence - efficient processor and GPU expansion option
- Embedded systems - small size allows integration in compact devices
- Handhelds and IoT devices - energy-efficient but efficient computing module
- Industrial automation - a wide range of interfaces enables flexible use in control applications
LattePanda Mu supports Windows 10, Windows 11 and Ubuntu.
Comparison of LattePanda Mu N100 and LattePanda Mu N305
| Model | LattePanda Mu N100 | LattePanda Mu N305 |
|---|---|---|
| Processor (CPU) | Intel Processor N100, 4 cores, clocked at up to 3.4 GHz | Intel Core i3 N305, 8 cores, clocked at up to 3.8 GHz |
| RAM memory | 8GB LPDDR5 4800MT/s, ECC with IBECC support (expandable to 16GB) | 16GB LPDDR5 4800MT/s, ECC with IBECC support |
| Mass storage | 64GB eMMC 5.1 | |
| Operating system | Windows 10 / Windows 11 / Ubuntu 22.04 & 24.04 | |
| Extensions | - Up to 9 PCIe 3.0 lanes - Up to 4 USB 3.2 ports (10Gbps) - Expandable to 64 GPIO | - Up to 2 SATA 3.0 ports (6Gb/s) - 8 USB 2.0 ports - 4x UART - 4x I2C |
| Display | - 1x eDP 1.4 - 3x HDMI 2.0 / DisplayPort 1.4 | Supports up to 3 signals simultaneously |
| Dimensions | 60 x 69.6mm |
LattePanda Mu N305 Technical Specifications
| Processor | Intel Core i3 N305 |
|---|---|
| Number of cores | 8 |
| Operating systems | Windows 10 / Windows 11 / Ubuntu 22.04 & 24.04 |
| Processor clock speed | up to 3.8 GHz |
| Graphic layout | Intel UHD Graphics |
| RAM memory | 16GB LPDDR5 4800MT/s with IBECC support |
| Mass storage | 64GB eMMC 5.1 |
| GPIO | up to 64 pins |
| TDP | Adjustable from 9 W to 35 W |
| USB | 8 x USB 2.0 Type A 4 x USB 3.2 Gen2 Type-A |
| PCIe 3.0 | up to 9 lines |
| SATA3.0 | up to 2 ports |
| Audio | HD Audio, I2S |
| Camera | MIPI CSI-2, up to 8 tracks |
| SPI | yes, for second BIOS ROM and separate TPM module |
| SMBus | Yes |
| I2C | SoC 4 ports |
| UART | SIO 1 port; SoC 3 port |
| Display interfaces | 3xHDMI 2.0/DisplayPort 1.4 Supports up to 3 signals simultaneously |
| Supply voltage | from 9V to 20V |
| RTC battery | 3V |
| Working humidity | 0% to 80% relative humidity, non-condensing |
| Operating temperature | from 0°C to 60°C |
| Dimensions of the plate | 69.6x60mm |
Useful links
| Name | Value |
|---|---|
| UC - Microcontroller | N305 |
| UC - RAM | 16 GB |
| UC - core | 8. Octa Core |
| UC - Digital pins | 64 |
| UC - External memory | eMMC 64GB |
| UC - freq | 3.8 GHz |
| UC - USB | USB pins |
| UC - HDMI | yes |
| UC - I2C | yes |
| UC - UART | yes |
| UC - Connector | pins |
| UC - SPI interface | yes |
| UC - LCD interface | yes |
| UC - Camera interface | yes |
| UC - Linux | yes |
| UC - Windows | yes |
| Width | 7.5 cm |
| Height | 2.5 cm |
| Depth | 1.5 cm |
| Weight | 0.036 kg |
