Product description: PwrCAN Cable - CAN communication cable XT30(2+2)-F - for PwrCAN 13.2 module - 50 cm - 2 pcs. - M5Stack A146-B
PwrCAN Cable from M5Stack is a dedicated CAN communication cable designed to work with the PwrCAN 13.2 module . Equipped with an XT30(2+2)-F connector, it combines the power and CAN signal lines in one cable, which reduces the risk of interference and ensures stable transmission. Thanks to the wires with appropriate cross-sections (18 AWG for power, 26 AWG for signal), it guarantees a reliable connection. Color markings ( VCC - red, GND - black, CAN L - white, CAN H - green ) facilitate correct installation. The solid construction makes the cable suitable for robotics, control systems, vehicle communication and building automation. The set includes 2 wires with a length of 50 cm .

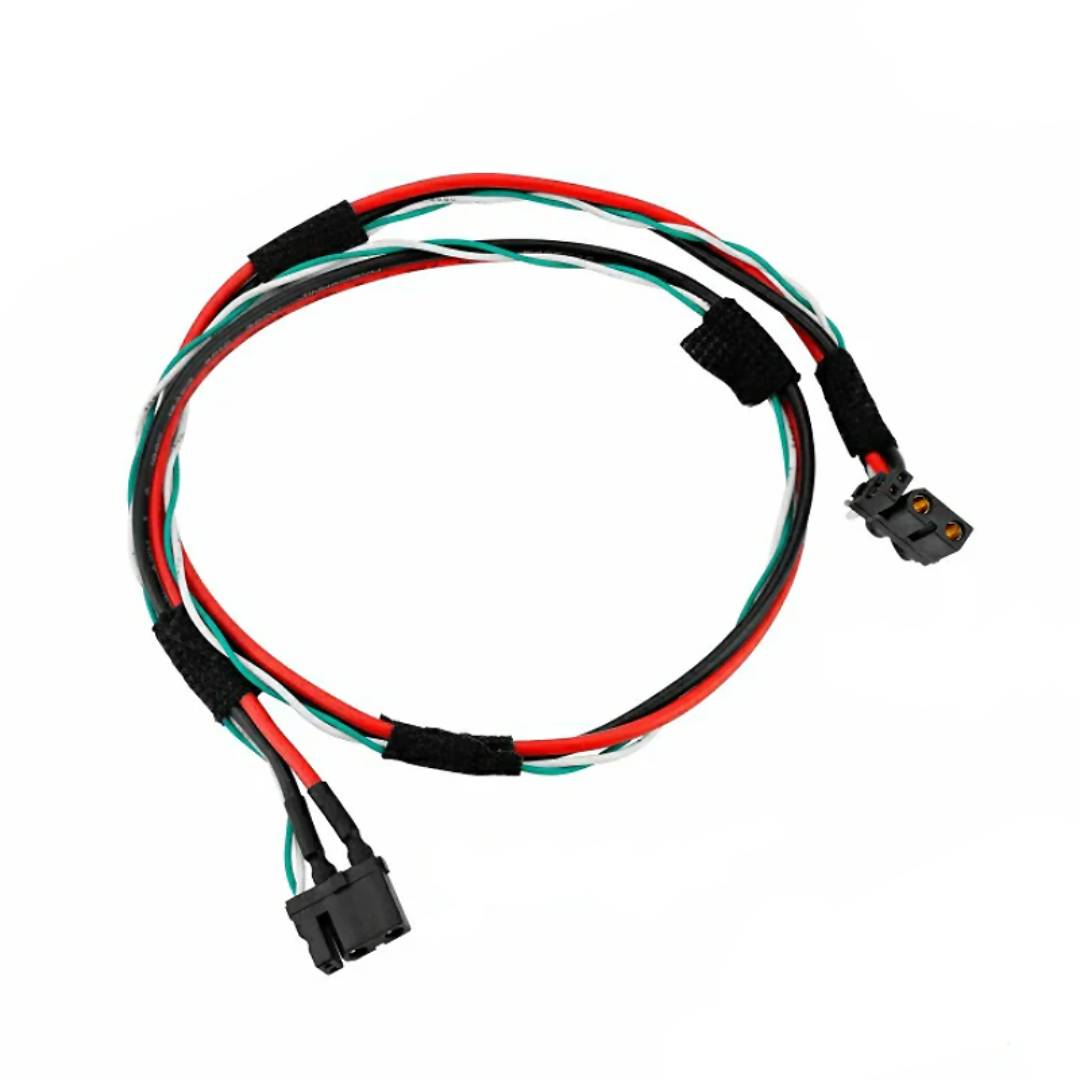

PwrCAN Cable - CAN communication cable XT30(2+2)-F - for PwrCAN 13.2 module - 50 cm - 2 pcs. - M5Stack A146-B.

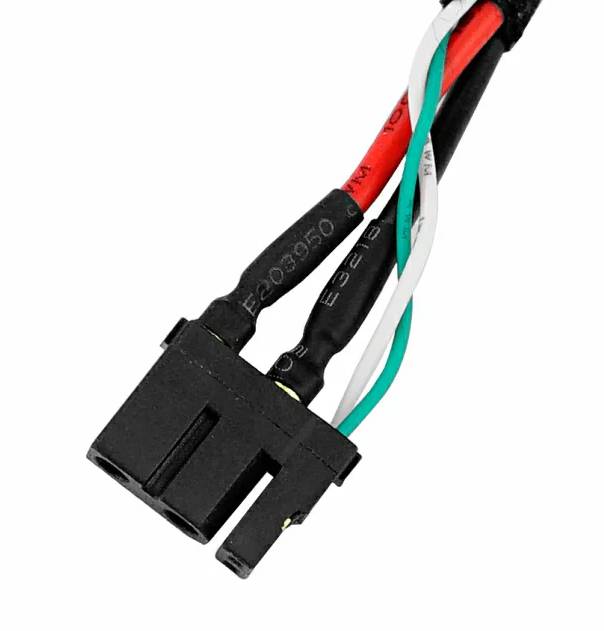

Color-coded wires facilitate correct installation.
Main features of the cable

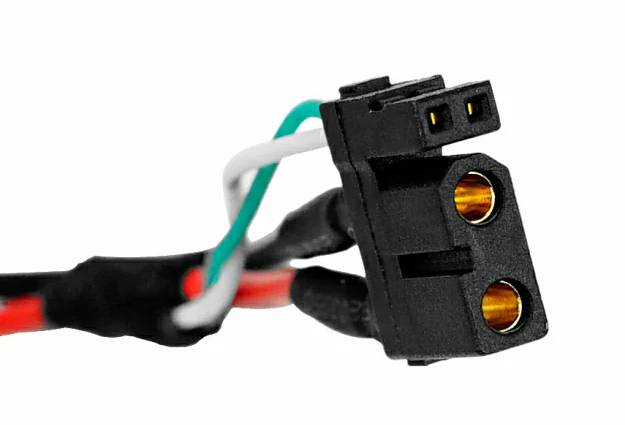

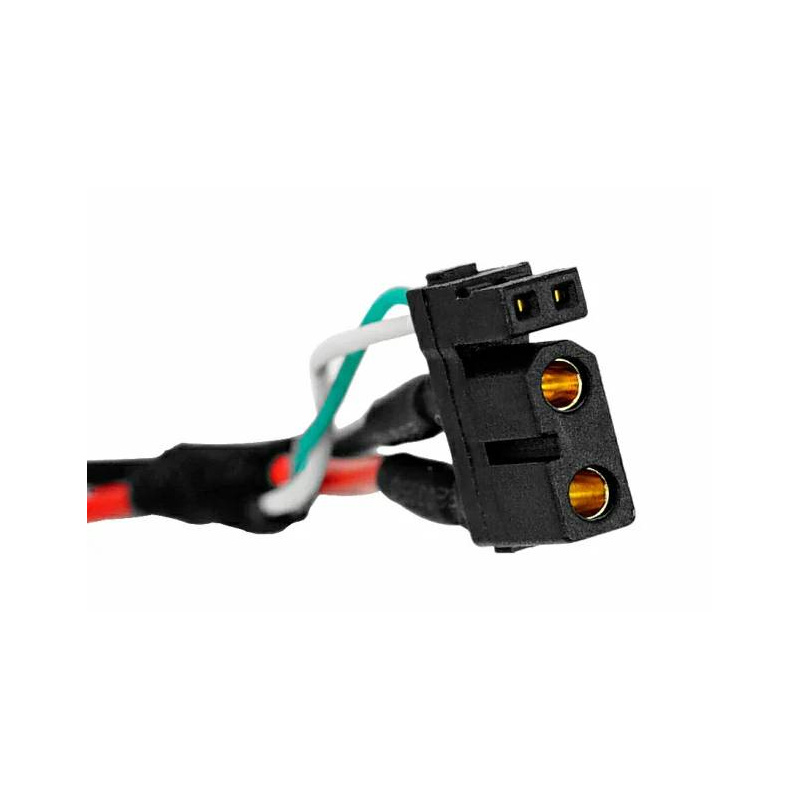

- XT30(2+2)-F connector - provides a stable and safe connection for both power and CAN signal

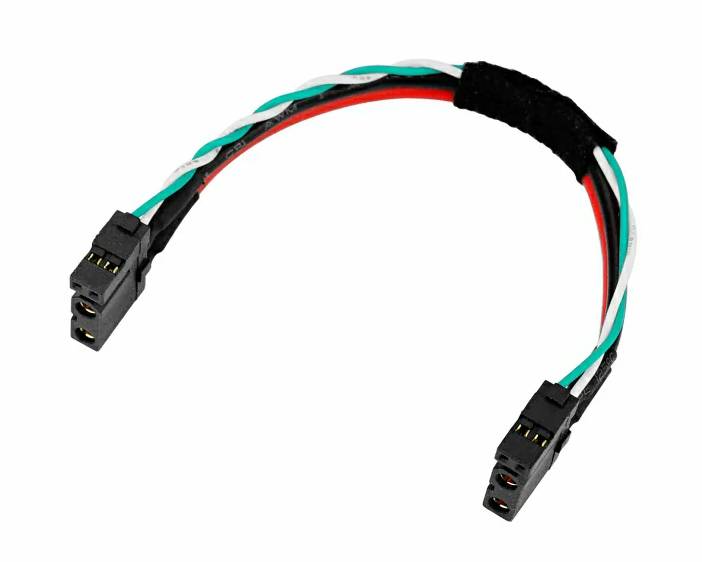

- Two lengths to choose from - the offer includes cables with a length of 10 cm and 50 cm, which allow for adjustment to various applications and mounting configurations
- High-quality cables - 18 AWG (power) and 26 AWG (signal) cables minimize losses and ensure reliable data transmission
- Compatibility with the PwrCAN 13.2 (M139) module - a dedicated solution for industrial automation and control systems
- Color-coded wires - facilitates correct connection:
- Red (VCC) - Power
- Black (GND) - ground
- White (L) - CAN Low line
- Green (H) - CAN High line
Practical applications
PwrCAN Cable is a key element of CAN communication systems, used in:
- Industrial automation - integration of machine control systems
- Robotics - connecting controllers and drives in mobile and stationary robots
- Vehicle communication - data transfer between ECU modules
- Building automation - management of intelligent control systems
- Protocol conversion - interfaces for cooperation of various CAN devices
PwrCAN 13.2 compatible
The cable is designed to work with the PwrCAN 13.2 (M139) module and supports CAN (Controller Area Network) communication. It allows data transmission in both low and high speed systems. It can be used with platforms such as ESP32 , STM32 , Raspberry Pi and Arduino , provided they have an appropriate CAN interface.
Technical specifications of cables
- Connector: XT30(2+2)-F (female)
- Cable diameter:
- Power: 18AWG
- Signal: 26AWG
- Wire marking:
- Red - VCC
- Black - GND
- White - CAN L
- Green - CAN H
- Compatibility: PwrCAN Module 13.2 (M139)
- Cable length: 50 cm
- Weight: 35 g (2 pcs.)

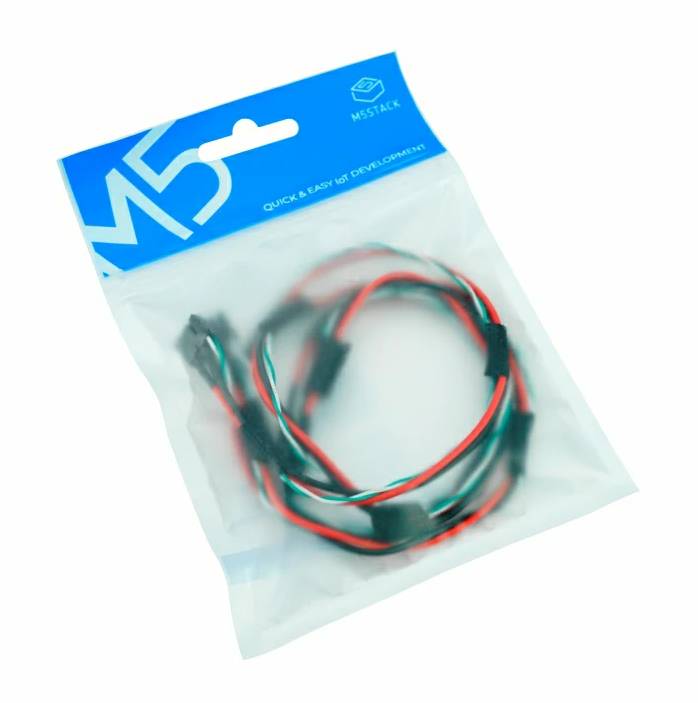

Kit Contents
- 2x PwrCAN Cable 50cm long
The set includes 2 cables.
