Product description: PwrCAN Cable - CAN communication cable XT30(2+2)-F - for PwrCAN 13.2 module - 10 cm - 10 pcs. - M5Stack A146
PwrCAN Cable from M5Stack is a specialized CAN communication cable designed to work with the PwrCAN 13.2 module . It uses the XT30(2+2)-F connector, which combines the power and CAN signal lines in one cable, which minimizes the risk of interference and ensures transmission stability. High-quality cables with appropriate cross-sections (18 AWG for power, 26 AWG for signal) ensure connection reliability. Standard wire marking ( VCC - red, GND - black, CAN L - white, CAN H - green ) facilitates correct installation. Thanks to its durable construction, PwrCAN Cable is used in robotics, machine control systems, vehicle communication and building automation. The set contains 10 pcs. of cables with a length of 10 cm .

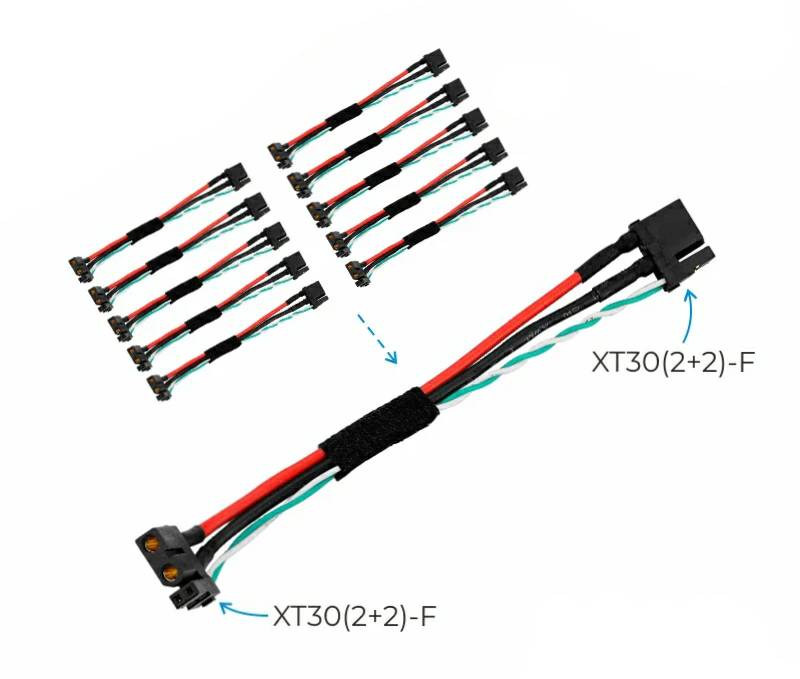

PwrCAN Cable - CAN communication cable XT30(2+2)-F - for PwrCAN 13.2 module - 10 cm - 10 pcs. - M5Stack A146.

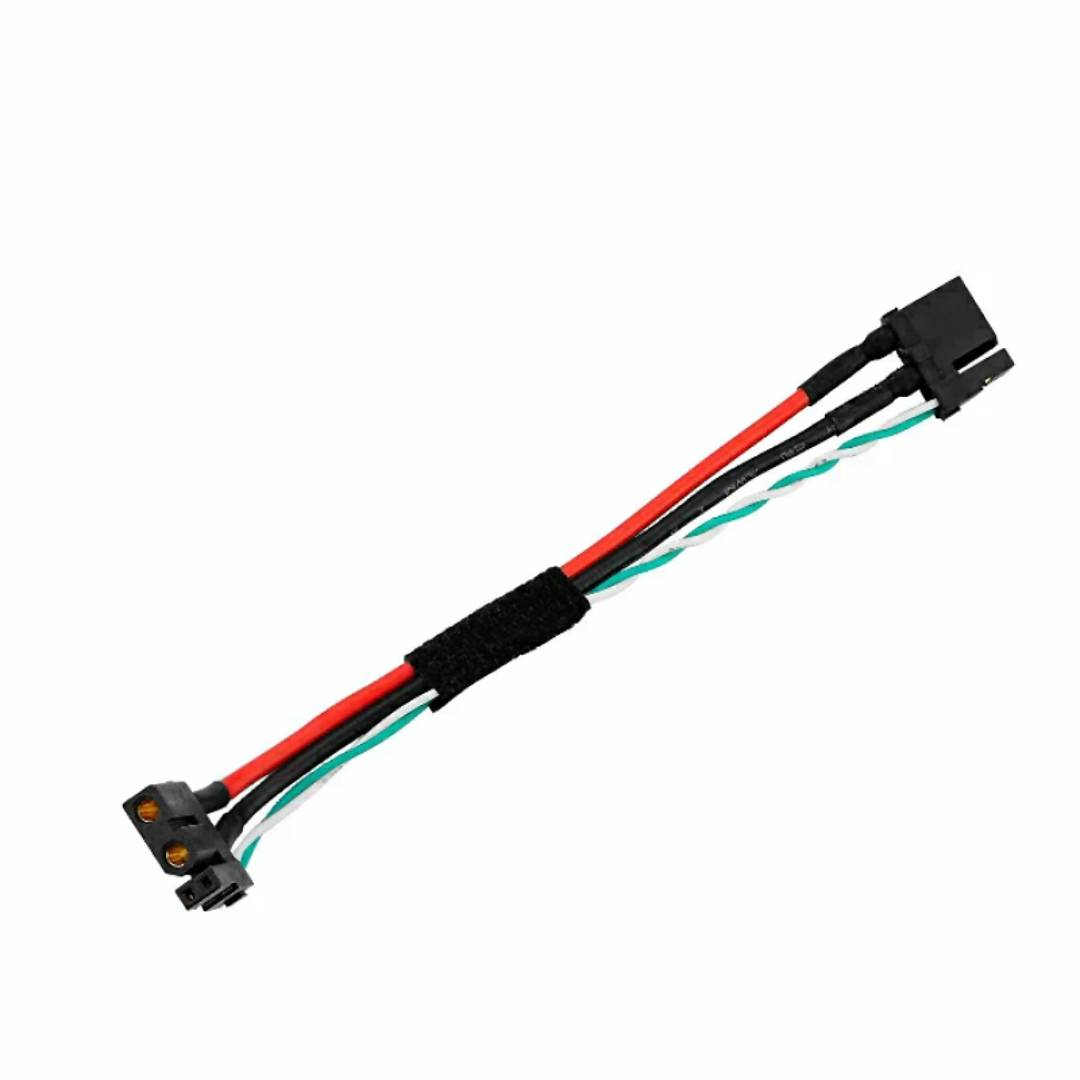

Color-coded wires facilitate correct installation.
Main features of the cable
- XT30(2+2)-F connector - stable and safe connection for power supply and CAN signal
- Two lengths to choose from - the offer includes cables in 10 cm and 50 cm lengths, which allows for flexible installation for various applications
- High-quality wires - 18 AWG (power) and 26 AWG (signal), ensuring low loss and transmission stability
- Compatibility with the PwrCAN 13.2 (M139) module - dedicated to industrial automation and control solutions
- Color coding of wires - simplified connection identification:
- Red (VCC) - Power
- Black (GND) - ground
- White (L) - CAN Low line
- Green (H) - CAN High line
Practical applications
PwrCAN Cable is designed to transmit data in CAN communication systems, making it an essential element in:
- Industrial automation - integration of machine control systems
- Robotics - connecting controllers and drives in mobile and stationary robots
- Vehicle communication - data transfer between ECU modules
- Building automation - management of intelligent control systems
- Protocol conversion - interfaces for cooperation of various CAN devices
PwrCAN 13.2 compatible
The cable is designed for use with the PwrCAN 13.2 (M139) module , which uses the CAN (Controller Area Network) standard for communication between devices. It supports both low-speed and high-speed transmission applications. It can be used in ESP32 , STM32 , Raspberry Pi and Arduino- based systems if they are equipped with an appropriate CAN interface.
Technical specifications of cables
- Connector: XT30(2+2)-F (female)
- Cable diameter:
- Power: 18AWG
- Signal: 26AWG
- Wire marking:
- Red - VCC
- Black - GND
- White - CAN L
- Green - CAN H
- Compatibility: PwrCAN Module 13.2 (M139)
- Cable length: 10 cm
- Weight: 47.5 g (10 pcs.)
Kit Contents
- 10x PwrCAN Cable 10cm long
The set contains 10 cables.
