Product description: Nuclear radiation detector - FNIRSI GC-01
The FNIRSI GC-01 is a compact ionizing radiation meter designed for industrial, laboratory, educational, and diagnostic applications. It utilizes an energy-compensated GM tube (Geiger-Müller counter) for precise detection of gamma, beta, and X-ray radiation . The meter allows for real-time radiation dose monitoring, cumulative dose recording, and alarm threshold configuration. The detector is equipped with a color LCD display showing the current radiation level, a graph of changes, average and maximum values, and the device's operating time. The FNIRSI GC-01 supports several measurement units, including μSv/h, μGy/h, mR/h, CPS, and CPM . The built-in 1100 mAh lithium battery provides up to 10 hours of mobile operation , and is charged via a USB Type-C port.

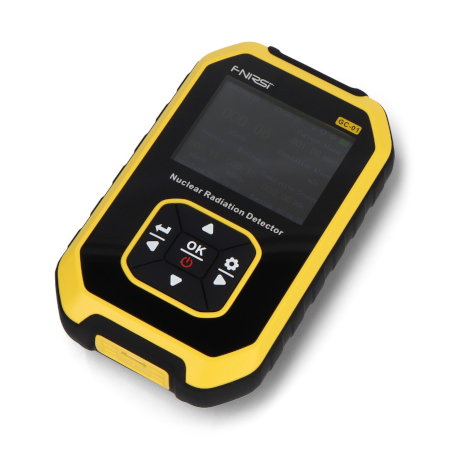

Nuclear radiation detector - FNIRSI GC-01.
The dosimeter detects beta, gamma and X-ray radiation.
Main features of the meter
- γ, X and β radiation detection : allows the detection of gamma, X-ray and beta radiation
- Geiger-Müller counter : energy-compensated GM tube ensures high measurement sensitivity
- Real-time measurement : ongoing monitoring of radiation levels with results presented on the screen
- Cumulative dose measurement : the ability to control total radiation exposure
- Multi-mode alarm : light, sound and vibration signaling after exceeding the set threshold

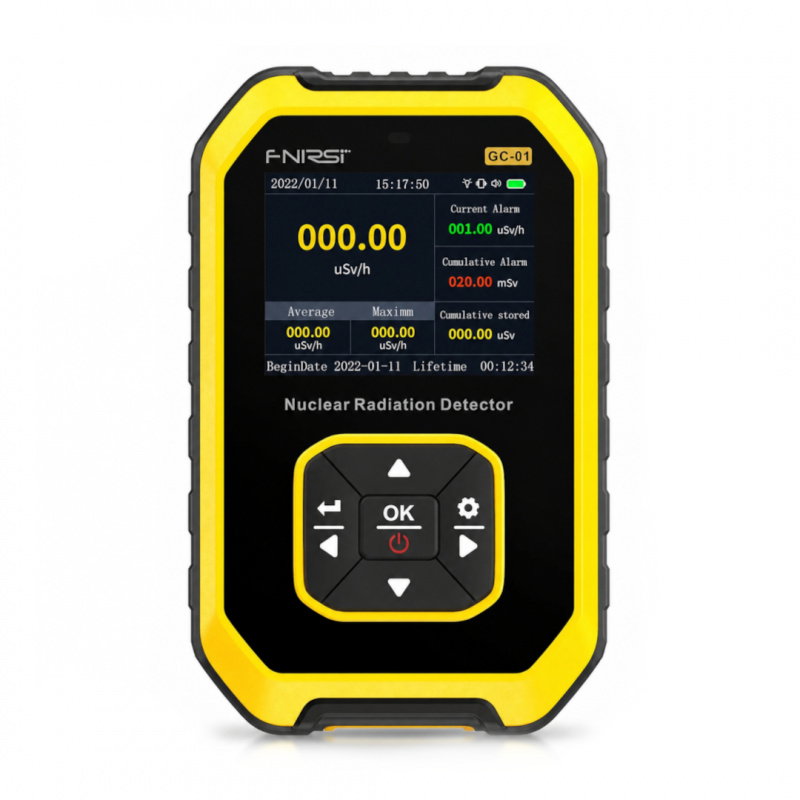

- Color LCD display : clear interface with graph, average and maximum values
- Multiple measurement units : supports μSv/h, μGy/h, mR/h, CPS and CPM
- 1100 mAh battery : up to about 10 hours of mobile operation
- Charging via USB Type-C : convenient power supply from a charger, computer or power bank
- Compact housing : dimensions 120 x 78 x 27 mm facilitate transport and field work
Technical specifications of the FNIRSI GC-01 detector
- Detector type: Energy compensated GM tube (Geiger-Müller counter)
- Supported radiation: γ, X, β
- Instantaneous dose range: 0.00 μSv/h to 10,000 μSv/h
- Cumulative dose range: 0.00 μSv to 500.0 mSv
- Energy range: 48 keV to 1.5 MeV
- Energy accuracy: ≤ ±30% for 137Cs
- Sensitivity: 80 CPM/μSv for Co-60
- Supported units: μSv/h, μGy/h, mR/h, CPS, CPM
- Alarm: light, sonic, vibratory
- Interface language: Chinese / English
- Power supply: 1100 mAh lithium battery
- Charging connector: USB Type-C
- Working time: up to about 10 hours
- Dimensions: 120 x 78 x 27 mm
Contents of the set
- FNIRSI GC-01 radiation detector
- USB Type-C cable

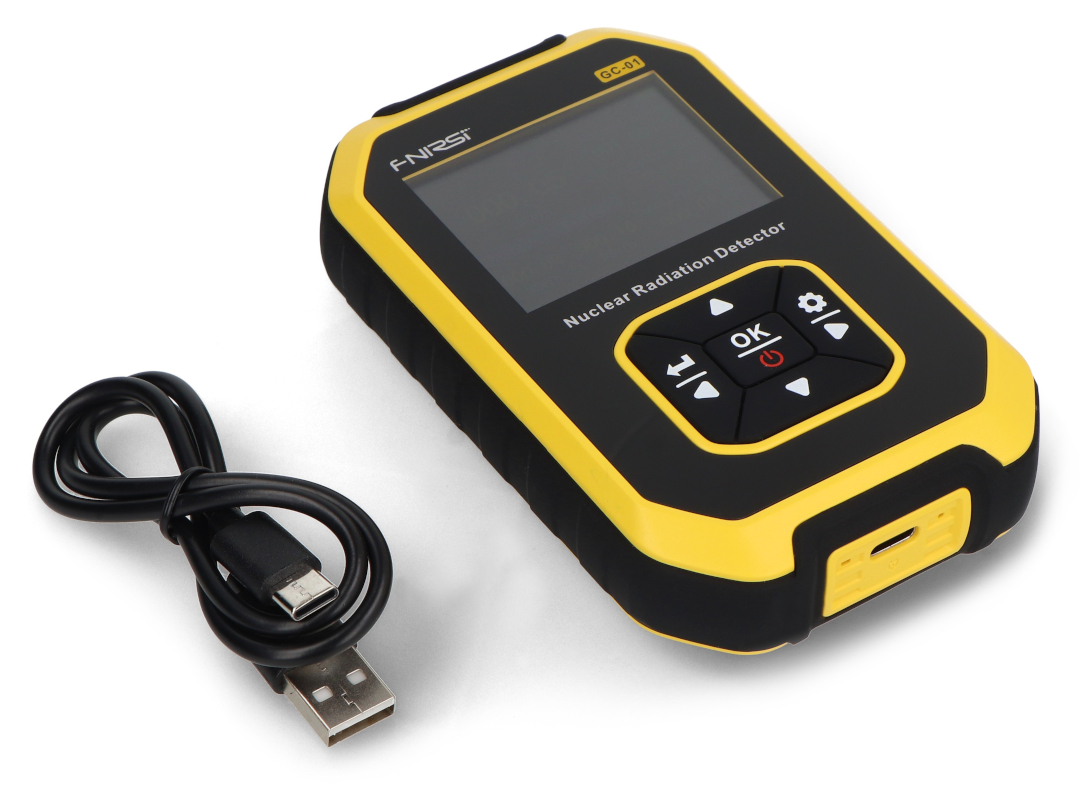

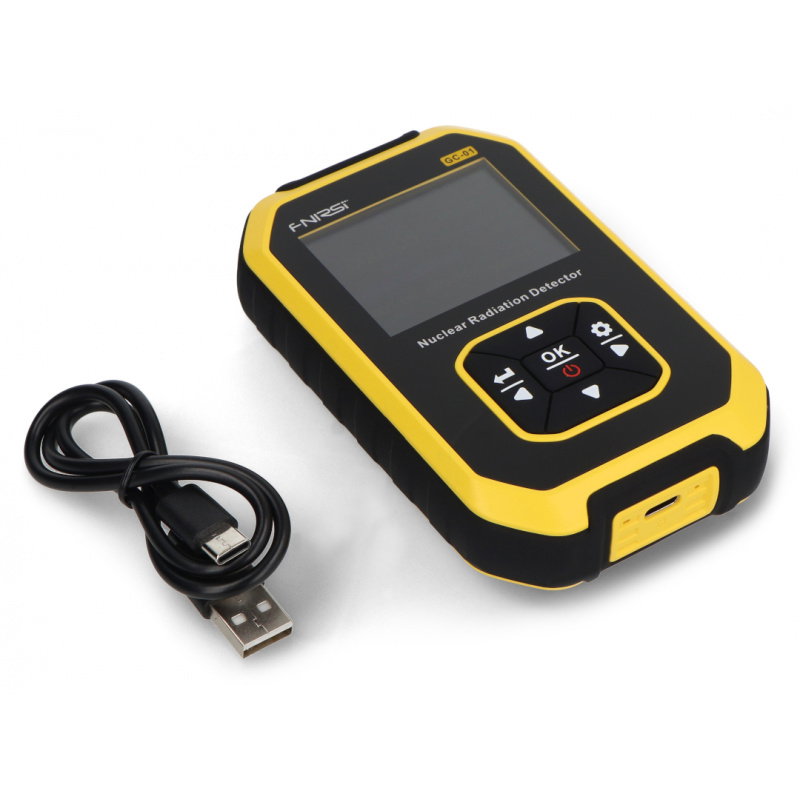

Elements included in the set.
