Product description: xTool F2 Ultra - MOPA 60 W + 40 W diode laser cutter and engraver
The xTool F2 Ultra is an advanced laser cutter and engraver combining a 60W MOPA laser with a 40W diode laser . This combination provides exceptional versatility – from color engraving of metals to precise cutting and marking of materials such as wood, acrylic, and leather . The device is equipped with a dual 48MPx camera system , which enables precise positioning with a precision of up to 0.2mm . With a working speed of up to 15,000mm/s and a working area of 220 x 220mm , the F2 Ultra allows for the quick and precise completion of even the most demanding projects. MOPA technology guarantees high-quality metal cutting and allows for long-lasting, colorful effects on a variety of surfaces . It's the ideal solution for companies, workshops, and creatives looking for a universal and efficient tool for professional material processing.

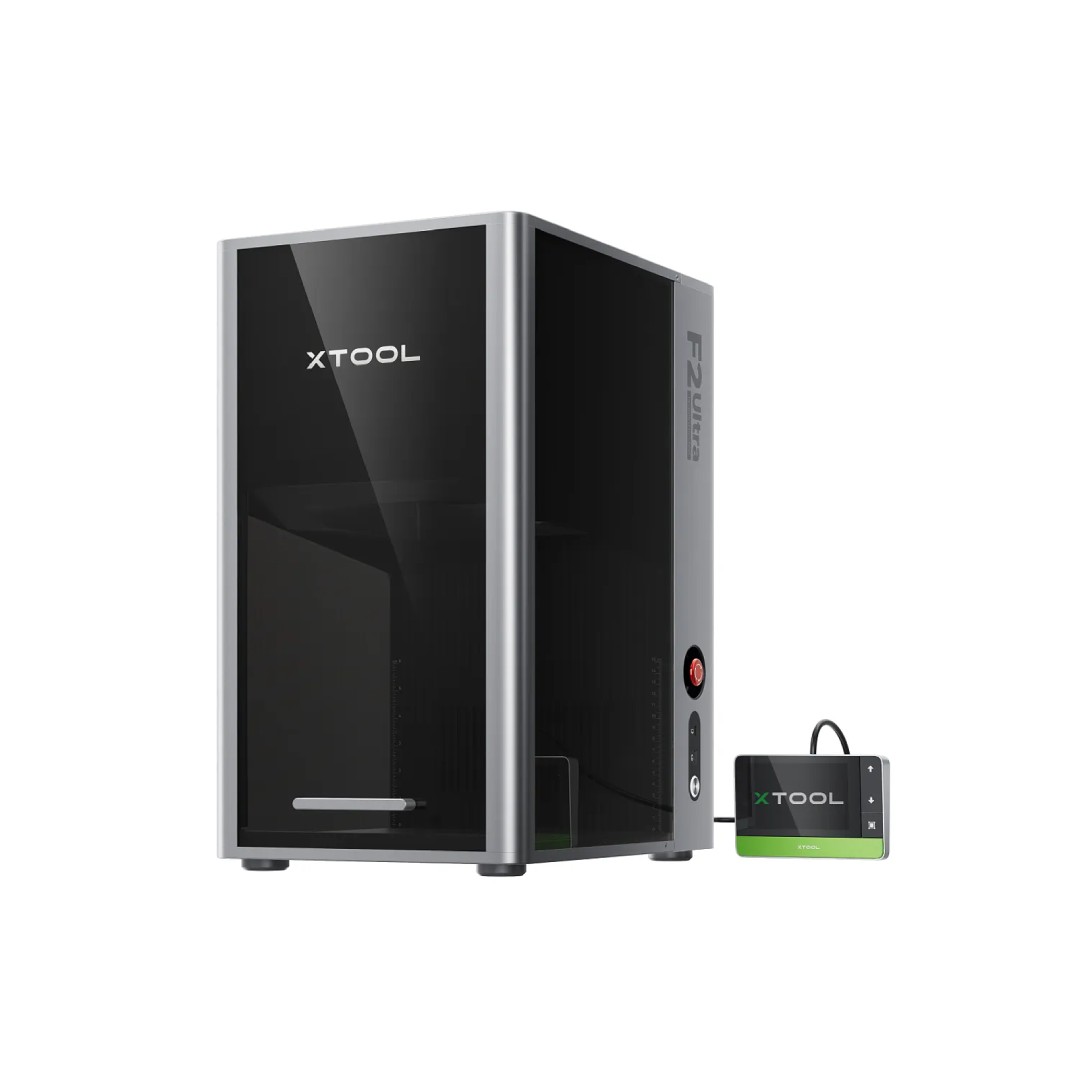

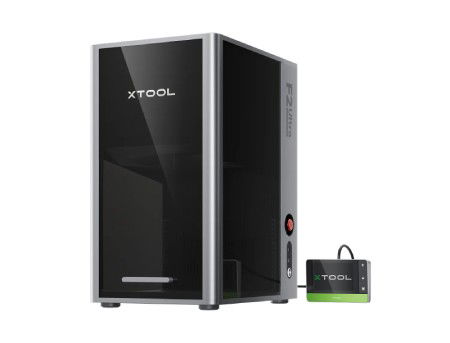

xTool F2 Ultra - MOPA 60 W + 40 W diode laser cutter and engraver.

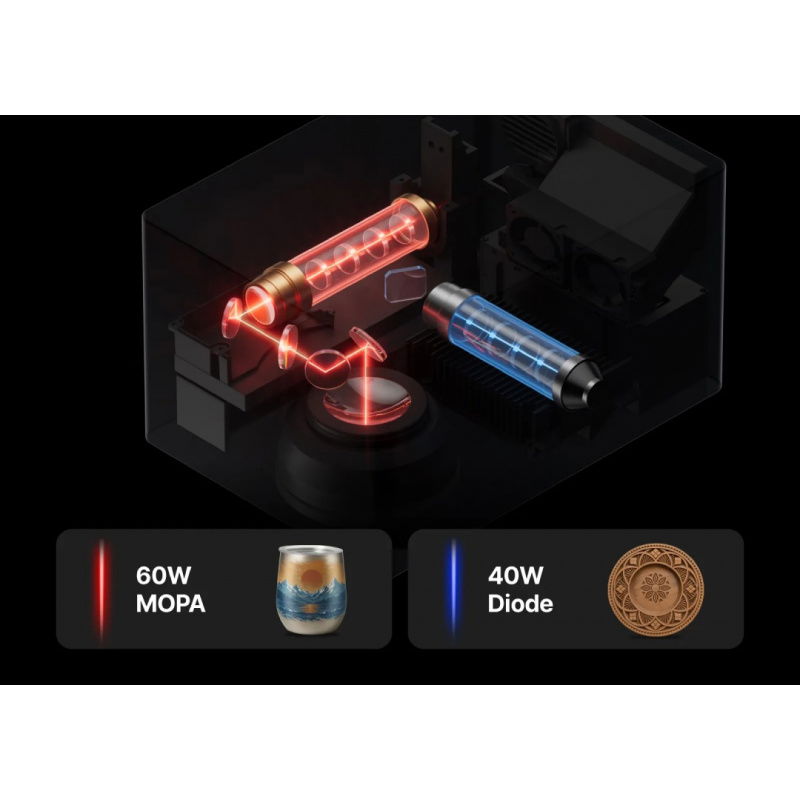

xTool F2 Ultra which combines a 60 W MOPA laser and a 40 W diode laser.
Advanced laser system
The xTool F2 Ultra is equipped with two laser sources – a 60W MOPA laser and a 40W diode laser – providing exceptional application versatility. The MOPA laser enables extremely precise color engraving on metals , allowing for over 100 shades of color on surfaces such as stainless steel, titanium, and other metals . The diode laser, on the other hand, excels at processing non-metallic materials such as wood, acrylic, and leather , ensuring clean and smooth edges even with larger cutting thicknesses.
Unparalleled accuracy with dual camera system
The F2 Ultra utilizes two 48MP camera modules , which enable extremely precise positioning with an accuracy of 0.2mm . This technology ensures perfect detail reproduction, which is crucial when working on small parts and complex designs . The dual camera system significantly increases engraving and cutting precision, enabling the creation of even the most demanding designs.
Modern metal cutting and engraving
The xTool F2 Ultra with a 60W MOPA laser enables precise cutting of metals such as stainless steel, brass, and aluminum, offering deeper and cleaner cuts than standard lasers. MOPA technology provides full control over pulse frequency and increased power , allowing you to process metals up to 2mm thick . This results in exceptionally sharp and accurate edges, ideal for professional metalworking applications.
Impressive work speed
The F2 Ultra reaches a working speed of up to 15,000 mm/s , making it one of the fastest machines in its class. This high performance allows for significantly shorter project completion times , increasing efficiency in both single orders and mass production. This speed combined with precision means that the F2 Ultra is perfect for environments that require high productivity.

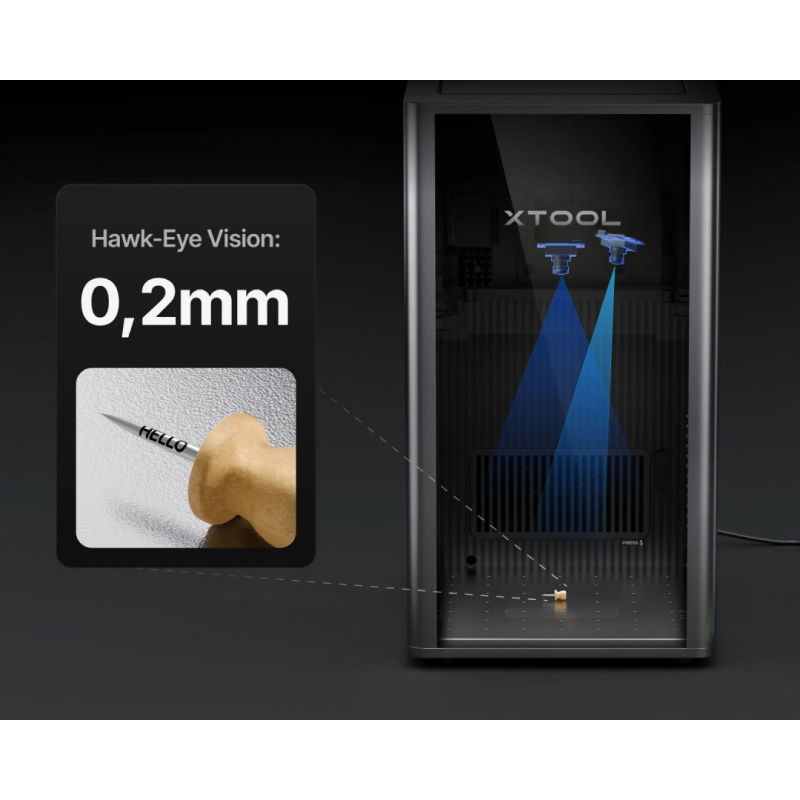

Two 48MP AI cameras increase accuracy to 0.2mm.

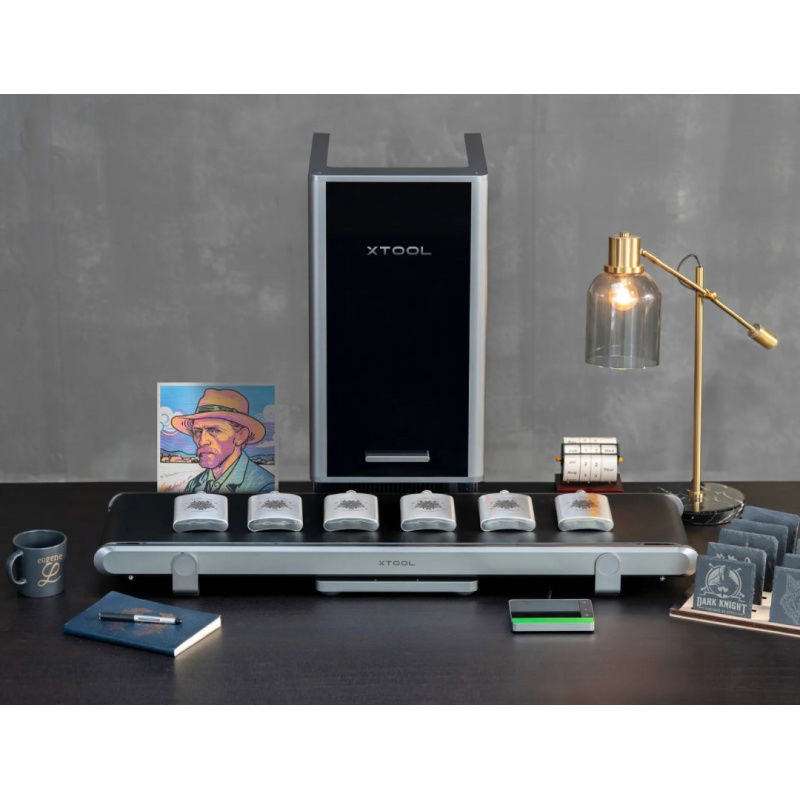

Thanks to the separately available conveyor belt, the dimensions of the working area are increased to 220 x 500 mm.
Larger work area with optional conveyor belt
The standard work area of the xTool F2 Ultra is 220 x 220 mm , which is perfectly adequate for most projects. However, by connecting an optional conveyor belt, the work area increases to 220 x 500 mm , enabling the processing of larger components and mass production without the need for frequent material repositioning. The expanded work area and process automation significantly streamline workflows, shortening the turnaround time for large orders.
Intuitive operation and intelligent functions
The F2 Ultra works with xTool Creative Space software , offering a range of advanced features, such as automatic color recognition and 3D modeling. Artificial intelligence-powered automatic calibration allows for quick adjustment of parameters to the material type, reducing errors and waste. Thanks to its ease of use and advanced features , the xTool F2 Ultra is perfect for both professional workshops and precision material processing enthusiasts.
Kit contents
- xTool F2 Ultra
- Touch controller
- Drain pipe
- Charger
- Power cord
- USB cable
- USB key
- Panel with strips
- Positioning element
- Lint-free cloth
- Screwdriver
- Materials package
- Instructions

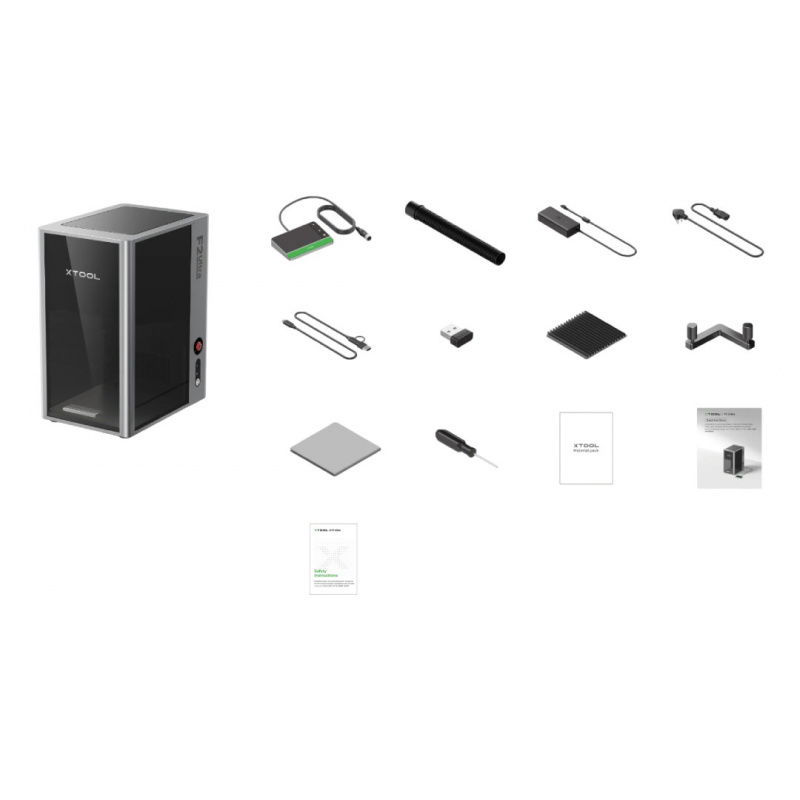

Elements included in the set.
| xTool F2 Ultra Technical Specifications | |
|---|---|
| Laser type | 40W diode laser + 60W MOPA laser |
| Operating modes | Engraving, cutting |
| Supported materials - cutting |
LED: paper, wood, leather, MDF, felt, dark acrylic MOPA: brass, stainless steel, aluminum |
| Supported materials - engraving |
LED: paper, wood, leather, MDF, stainless steel, some dark acrylics, bamboo, fabrics, dark glass, ceramics, jade, marble, slate, cement, brick, coated metal, painted metal MOPA: stainless steel, aluminum, brass, silver, plastic, platinum, titanium, gold |
| Work area | 220 x 220 mm |
| Max operating speed | 15000 mm/s |
| Max cutting thickness (plywood) | 23 mm in multiple passes |
| Max cutting thickness (acrylic) | 20 mm in multiple passes |
| Max processing height | 150 mm |
| Max rotary engraving diameter | 150 mm |
| Supported software | xTool Creative Space / Atomm |
| Operating system | Windows / macOS |
| Connection method | USB / WiFi / IP |
| Built-in camera | Dual 48 MPx camera |
| Positioning method | Camera positioning |
| Focus mode | Autofocus |
| Preview method | Smart Camera Preview |
| Movement accuracy | 0.00482 mm |
| Safety certificate | Class 4 |
| Max input power | 400 W |
| Power supply input voltage | From 220V to 240V, AC 50/60 Hz |
| Dimensions | 294 x 429 x 521 mm |
| Mass | 21.6 kg |
