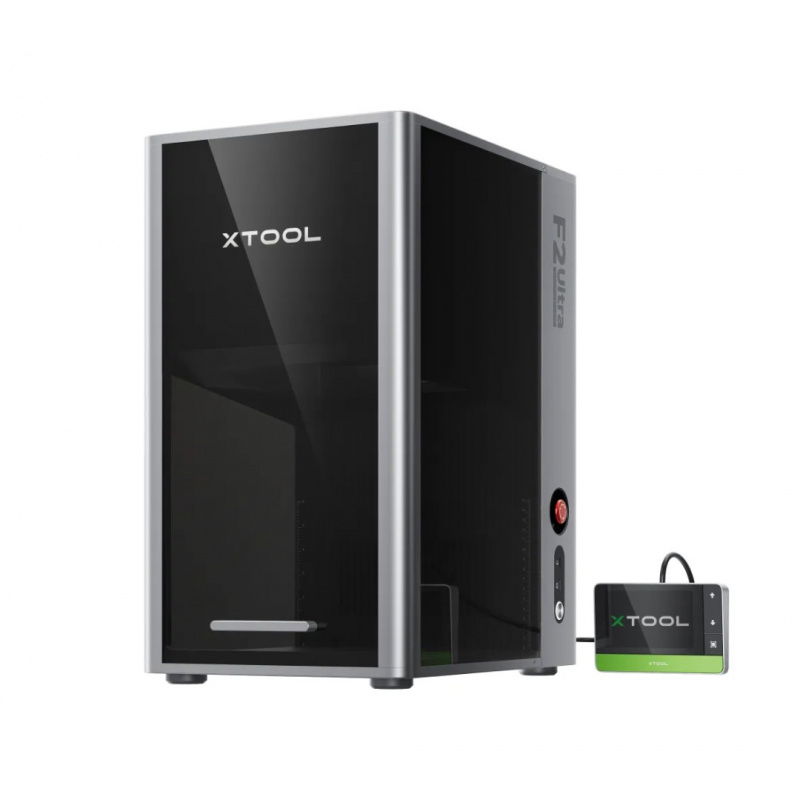

Product description: xTool F2 Ultra - MOPA 60 W + 40 W diode laser cutter and engraver - Deluxe version
The xTool F2 Ultra is an advanced laser cutting and engraving machine that combines a 60W MOPA laser with a 40W diode laser . This combination allows the F2 Ultra to deliver a wide range of capabilities, including color engraving on metals and cutting and engraving on materials such as wood, acrylic, and leather . The device is equipped with dual 48MPx cameras that ensure precise positioning with an accuracy of 0.2mm . The F2 Ultra allows for the rapid completion of complex projects with a working speed of up to 15,000mm/s and a working area of 220 x 220mm (with a conveyor belt up to 220 x 500mm). Thanks to MOPA technology, the device enables precise metal cutting and achieves clear, long-lasting color effects on a variety of materials. It is ideal for companies and creatives looking for a versatile, efficient tool for material processing.
xTool F2 Ultra - MOPA 60 W + 40 W diode laser cutter and engraver - Deluxe version.
xTool F2 Ultra which combines a 60 W MOPA laser and a 40 W diode laser.

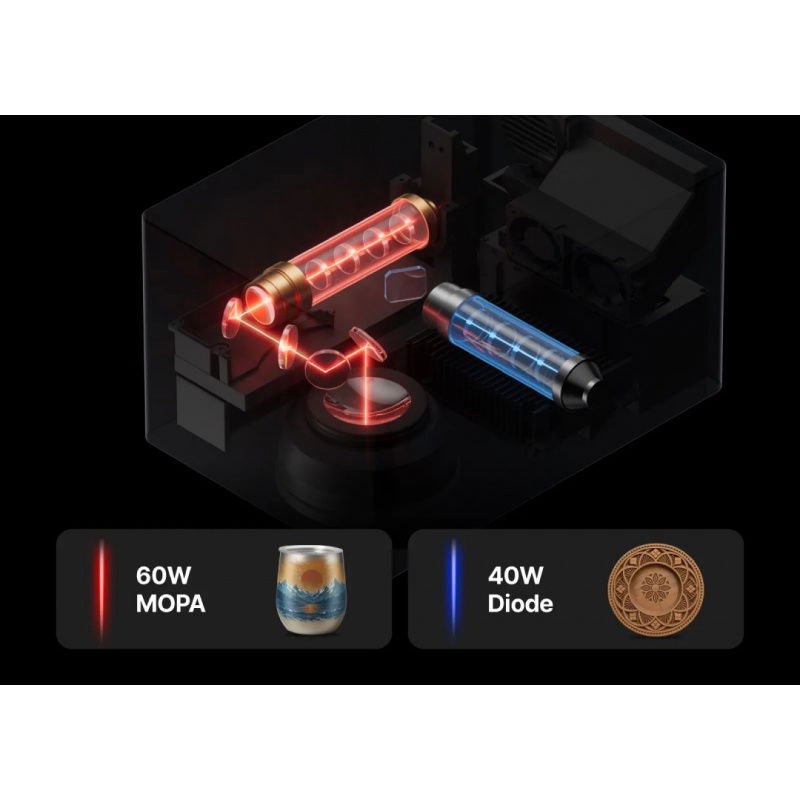

Powerful laser combination
The xTool F2 Ultra is equipped with two lasers – a 60W MOPA and a 40W diode – allowing for an incredibly wide range of applications. The MOPA provides precise cutting and engraving of metals such as stainless steel, aluminum, and brass , while also enabling the creation of a wide range of colors on metal, including holographic effects . The 40W diode laser is ideal for working with non-metallic materials such as wood, acrylic, leather, and bamboo , enabling the cutting of thick materials with unprecedented precision.
Exceptional precision thanks to dual cameras
The F2 Ultra features dual 48MP cameras that provide unprecedented positioning accuracy of 0.2mm . These cameras allow the device to achieve high precision and detail, even when working with the smallest components. Dual cameras allow for more accurate design reproduction , which is particularly useful for fine engraving and precision cutting.
Efficient cutting and engraving of various materials
The F2 Ultra offers significantly greater performance than many other devices on the market. The MOPA laser cuts metals up to 2mm thick , which is five times more efficient than a 20W laser. The 40W diode laser, on the other hand, easily cuts acrylic up to 20mm thick, wood up to 23mm thick, and other high-density materials . Thanks to innovative settings and technologies, such as adjustable frequency and pulse width , the device can achieve deeper and more detailed cuts compared to standard solutions.
Unmatched operating speed
The F2 Ultra boasts an operating speed of up to 15,000 mm/s , making it a high-performance machine ideal for high-volume production . This speed significantly accelerates engraving and cutting processes. This allows for more projects to be completed in less time. The increased speed also makes the device more efficient for large production runs.

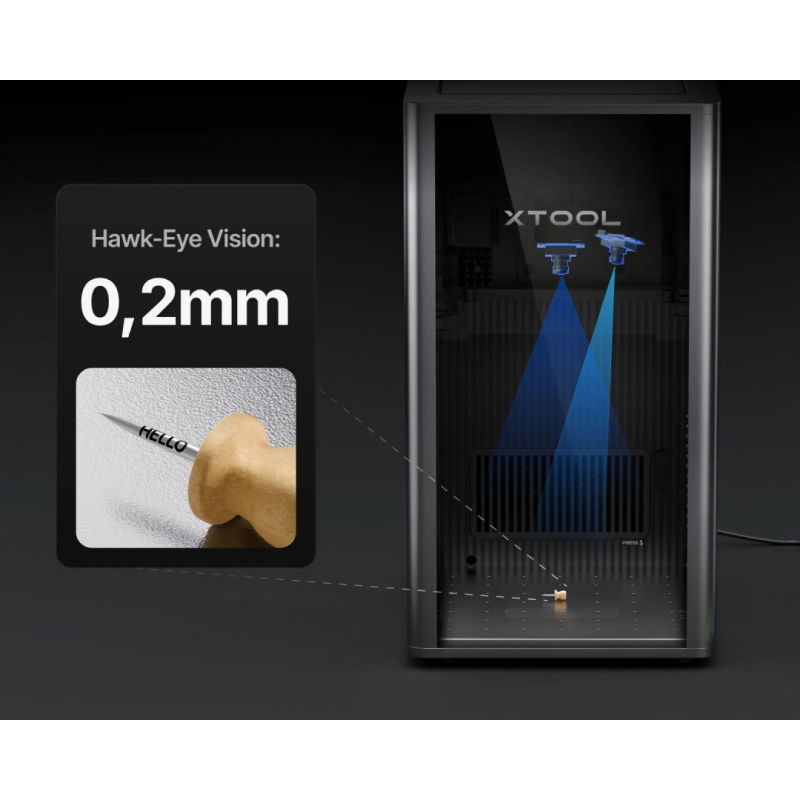

Two 48MP AI cameras increase accuracy to 0.2mm.

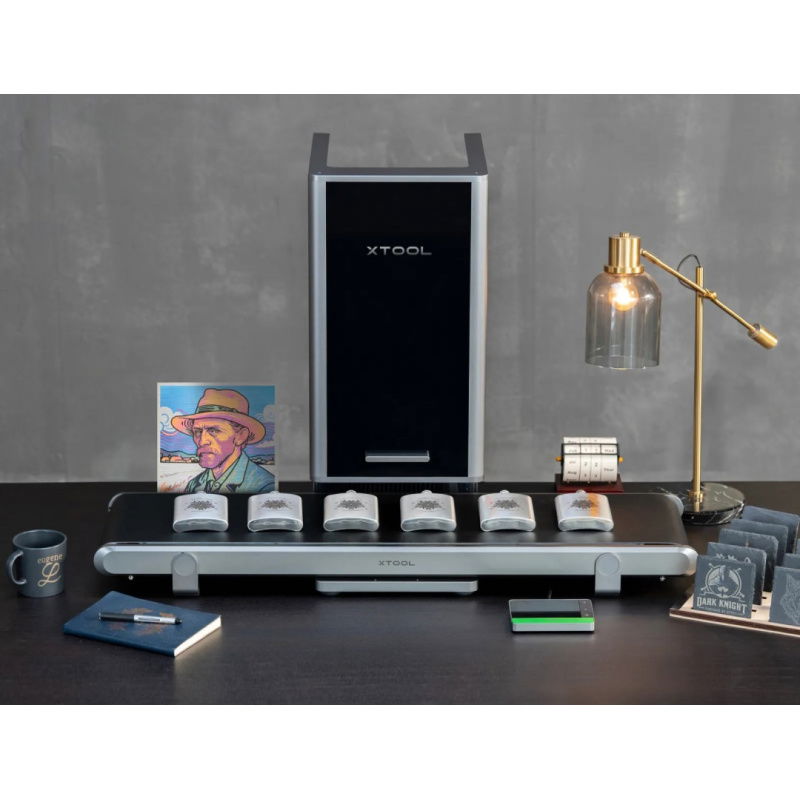

Thanks to the conveyor belt, the dimensions of the working area are increased to 220 x 500 mm.

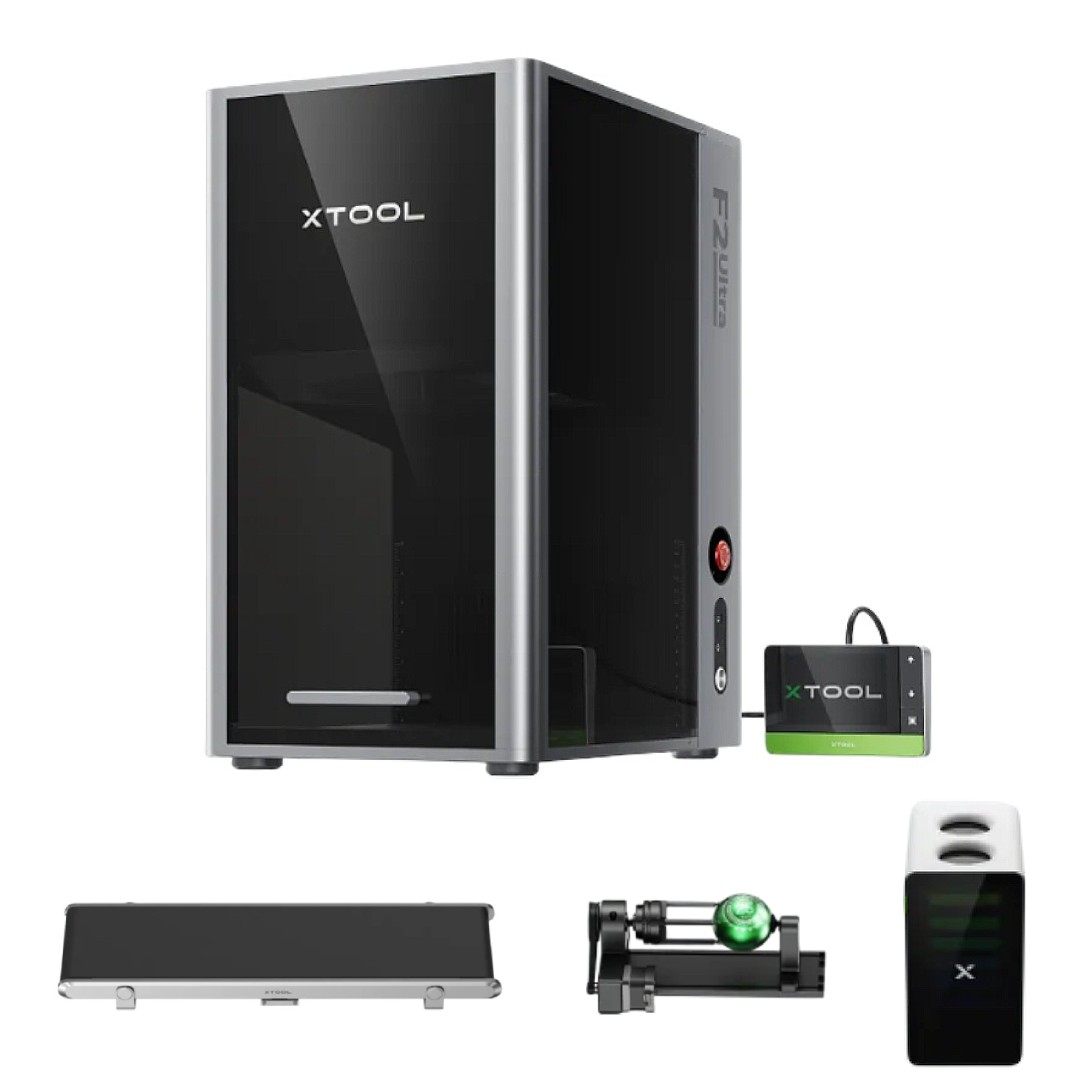

Additional accessories included in the Deluxe set
The xTool F2 Ultra Deluxe is a kit that includes not only the main unit but also additional accessories that make work much easier. The kit includes the Auto Streamline conveyor belt , which allows you to expand your workspace and increase productivity by automatically moving materials. The RA2 Pro (4-in-1) module is an advanced rotary system that allows you to engrave and cut cylindrical objects, such as glass bottles or cups, in various positions. Additionally, the SafetyPro AP2 Air Purifier provides effective air filtration, removing harmful particles generated during the machining process, ensuring a safer working environment.
Advanced functionality and easy operation
The xTool F2 Ultra comes equipped with xTool Creative Space software and features like automatic color recognition and 3D modeling , which significantly simplify operation. With the help of artificial intelligence, users can quickly adjust settings to match materials, minimizing errors and waste . These features make the F2 Ultra an ideal solution for both hobbyists and professionals looking for a powerful tool for advanced material processing.
Contents of the set
- xTool F2 Ultra
- Conveyor belt
- RA2 Pro Rotation Module
- SafetyPro AP2 Air Purifier
- Touch controller
- Drain pipe
- Charger
- Power cord
- USB cable
- USB key
- Panel with strips
- Positioning element
- Lint-free cloth
- Screwdriver
- Materials package
- Instructions

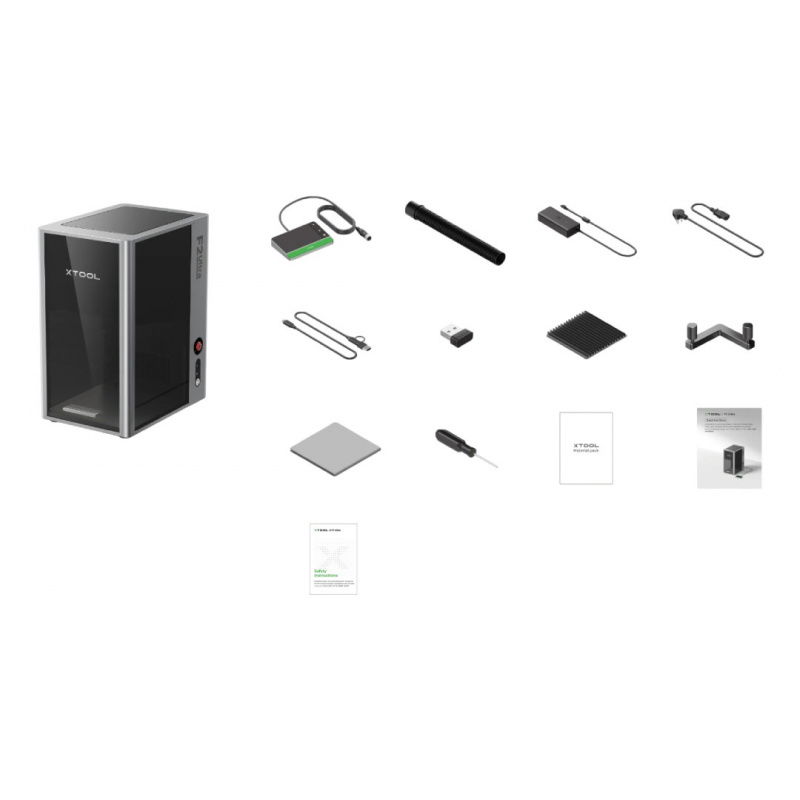

Elements included in the set.
| xTool F2 Ultra Technical Specifications | |
|---|---|
| Laser type | 40W diode laser + 60W MOPA laser |
| Operating modes | Engraving, cutting |
| Supported materials - cutting |
LED: paper, wood, leather, MDF, felt, dark acrylic MOPA: brass, stainless steel, aluminum |
| Supported materials - engraving |
LED: paper, wood, leather, MDF, stainless steel, some dark acrylics, bamboo, fabrics, dark glass, ceramics, jade, marble, slate, cement, brick, coated metal, painted metal MOPA: stainless steel, aluminum, brass, silver, plastic, platinum, titanium, gold |
| Work area | 220 x 220 mm (220 x 500 mm with conveyor belt) |
| Max operating speed | 15000 mm/s |
| Max cutting thickness (plywood) | 23 mm in multiple passes |
| Max cutting thickness (acrylic) | 20 mm in multiple passes |
| Max processing height | 150 mm |
| Max rotary engraving diameter | 150 mm |
| Supported software | xTool Creative Space / Atomm |
| Operating system | Windows / macOS |
| Connection method | USB / WiFi / IP |
| Built-in camera | Dual 48 MPx camera |
| Positioning method | Camera positioning |
| Focus mode | Autofocus |
| Preview method | Smart Camera Preview |
| Movement accuracy | 0.00482 mm |
| Safety certificate | Class 4 |
| Max input power | 400 W |
| Power supply input voltage | From 220V to 240V, AC 50/60 Hz |
| Dimensions | 294 x 429 x 521 mm |
| Mass | 21.6 kg |
