Product description: xTool F2 Ultra - MOPA 60 W laser cutter and engraver - included with conveyor belt
The xTool F2 Ultra is a modern laser cutting and engraving machine that utilizes an advanced 60W MOPA laser . It allows for the quick completion of complex designs with a working speed of up to 15,000 mm/s and a working area of 220 x 220 mm . This laser technology produces over 100 different colors on stainless steel and titanium, enabling the creation of durable, aesthetic markings and special effects. The version with the Auto Streamline conveyor belt significantly increases the working area (up to 220 x 500 mm) and speeds up the processing of larger batches. Dual 48 MPx cameras with AI function enable exceptionally precise material positioning, making the device ideal for engraving and cutting even the smallest elements. The integrated autofocus system and intuitive xTool Creative Space software make the F2 Ultra a tool ready for professional applications without the need for additional configuration.

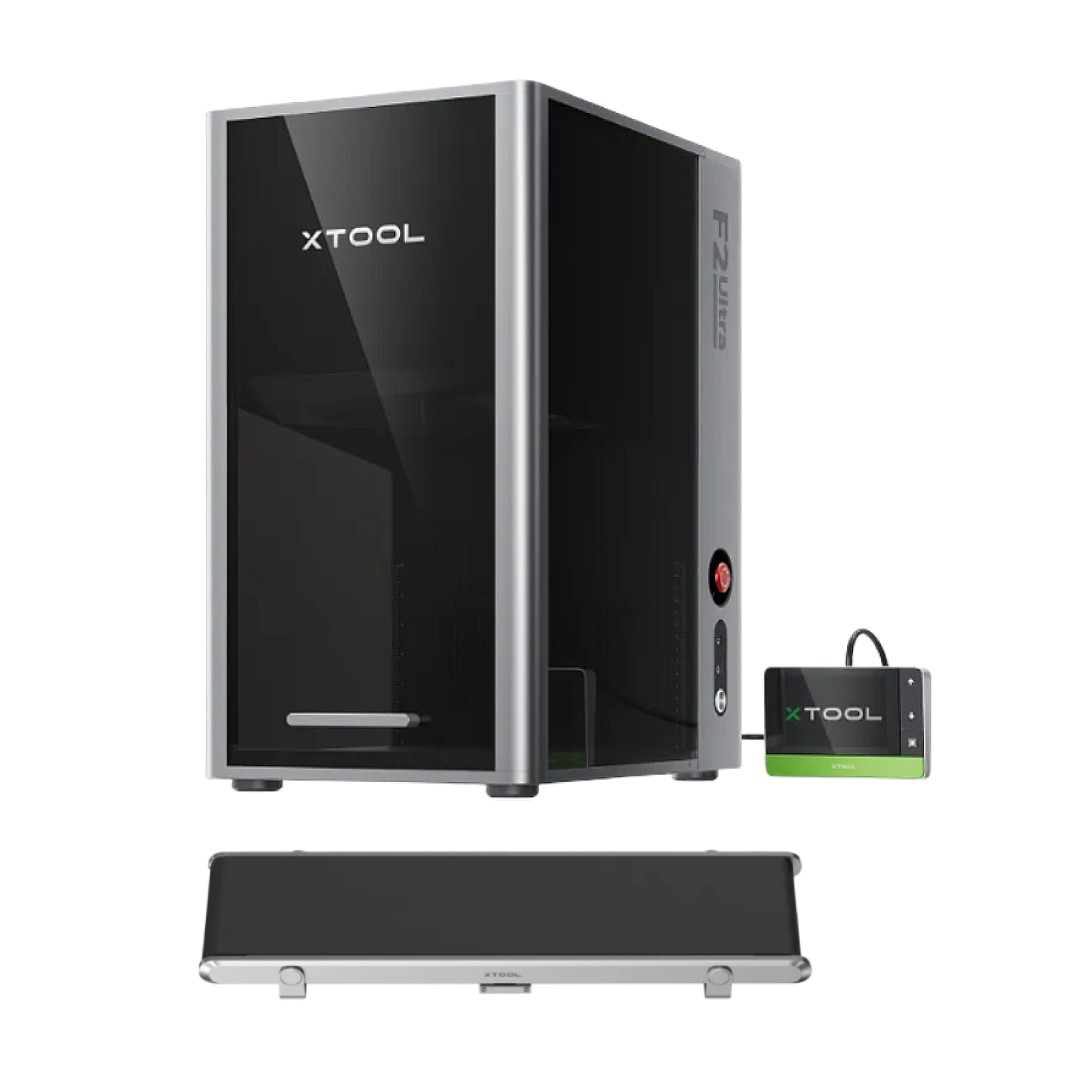

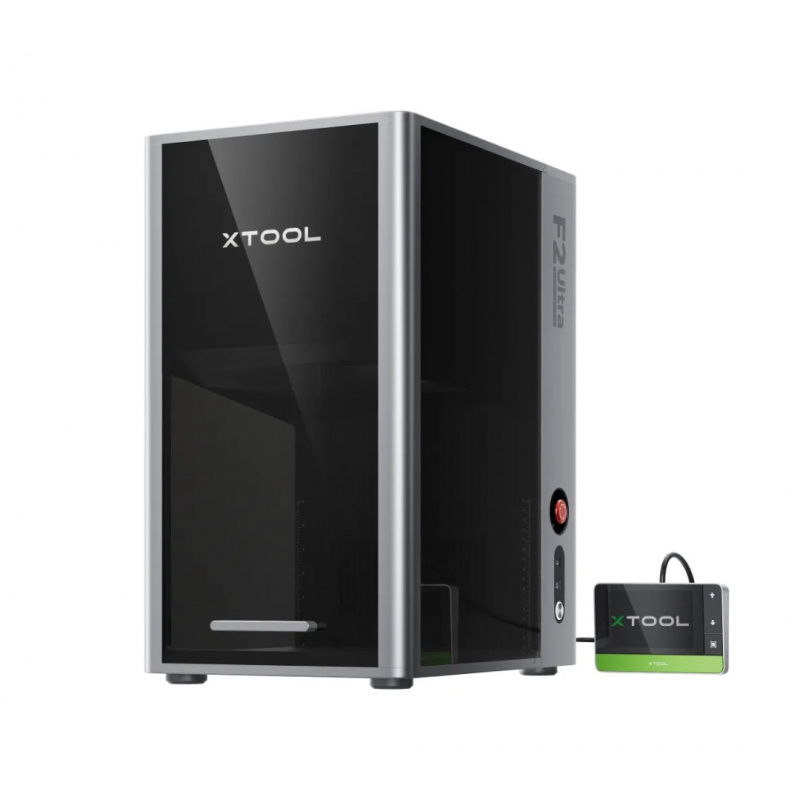

xTool F2 Ultra - MOPA 60 W laser cutter and engraver - included with conveyor belt.

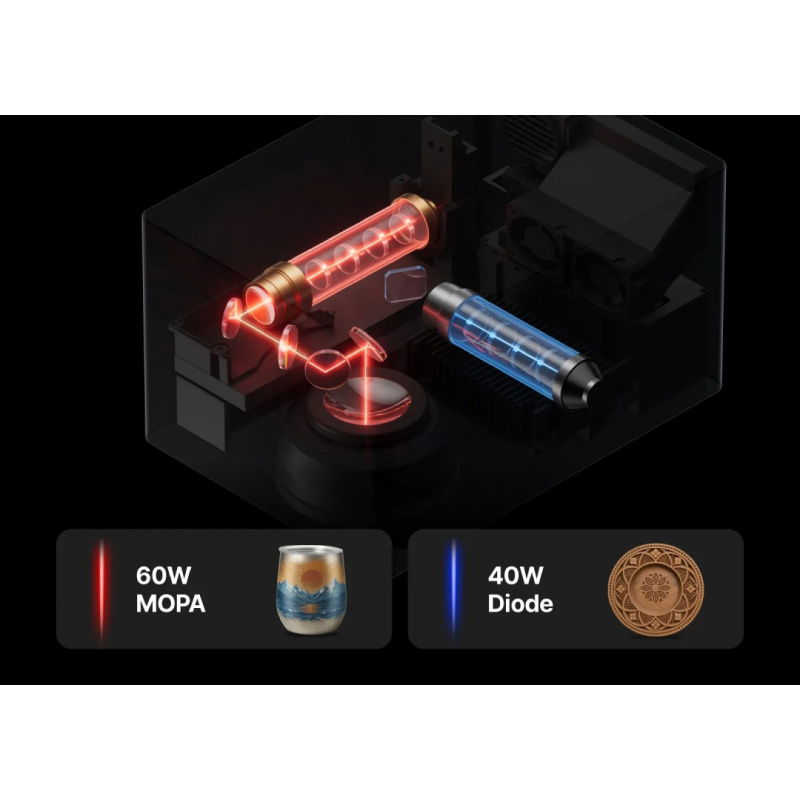

xTool F2 Ultra is also available in a version with an additional 40 W diode laser.
Powerful MOPA laser system
The xTool F2 Ultra utilizes a single 60W MOPA laser system , enabling a wide range of industrial applications. MOPA technology enables precise control of pulse width and frequency , resulting in deeper, more accurate cuts and more complex engraving effects—including holographic effects and a full color palette on metals . This technology allows you to achieve results unattainable with traditional diode lasers.
Accuracy with AI cameras
The F2 Ultra is equipped with a dual 48MPx camera system , which guarantees exceptional positioning precision—down to 0.2mm . The use of two cameras significantly improves detail reproduction, enabling precise matching of the design to the material . This is particularly important when engraving small details, creating ornaments, or marking small items in mass production.
Professional metal cutting and color engraving
Thanks to MOPA technology, it is possible to engrave and cut metals such as stainless steel, brass, aluminum, silver, platinum, and titanium . The device allows for deep cuts in metals up to 2 mm thick and creates clear, abrasion-resistant markings . Pulse and frequency control also allows for subtle tonal transitions and full-color effects – particularly appreciated in the jewelry, electronics, and decorative arts industries.
Industrial-grade performance
The F2 Ultra offers impressive operating speeds of up to 15,000 mm/s , making it an exceptionally efficient tool for large-scale projects. Shorter turnaround times allow for increased production without compromising quality . Automation features and workflow optimization, such as a conveyor belt, also make it suitable for processing large volumes of material.
Two 48MP AI cameras increase accuracy to 0.2mm.

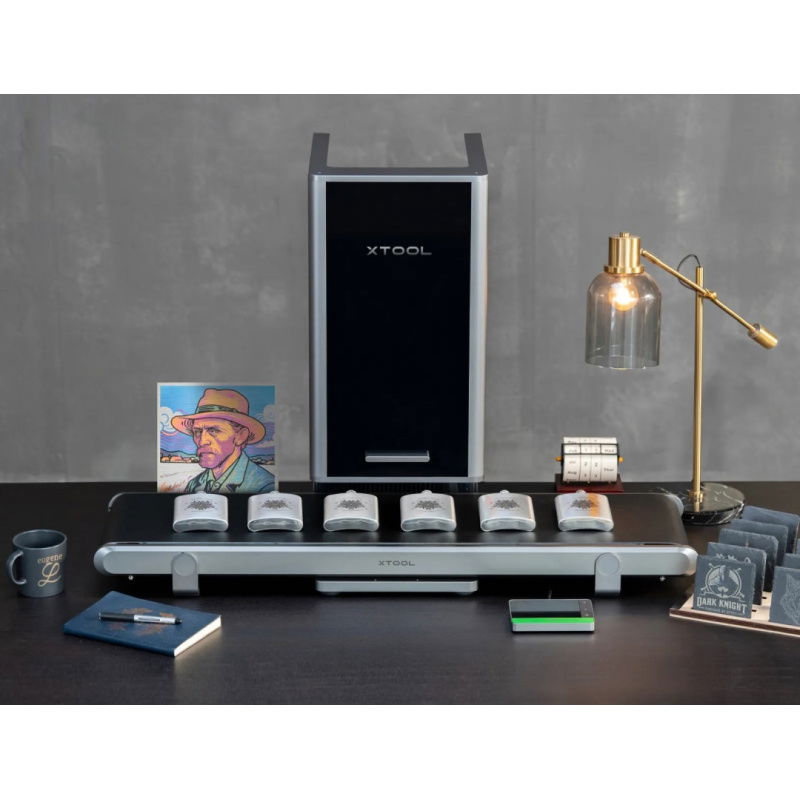

Thanks to the conveyor belt, the dimensions of the working area are increased to 220 x 500 mm.
Larger working area with conveyor belt
The standard 220 x 220 mm work area can be easily expanded to 220 x 500 mm using the included conveyor belt. This is ideal for automated production and processing of long items such as nameplates, key rings, tools, or metal packaging. The conveyor belt ensures continuous operation without the need for manual material movement , saving time and increasing repeatability.
Smart functions and easy operation
Thanks to the advanced xTool Creative Space software and integration with the Atomm platform, you gain access to thousands of ready-made projects , predefined settings, and AI-powered tools. The system automatically recognizes colors, enables rapid 3D modeling, and provides real-time previews. Even those with no prior experience can get started in just minutes.
Contents of the set
- xTool F2 Ultra
- Conveyor belt
- Touch controller
- Drain pipe
- Charger
- Power cord
- USB cable
- USB key
- Panel with strips
- Positioning element
- Lint-free cloth
- Screwdriver
- Materials package
- Instructions

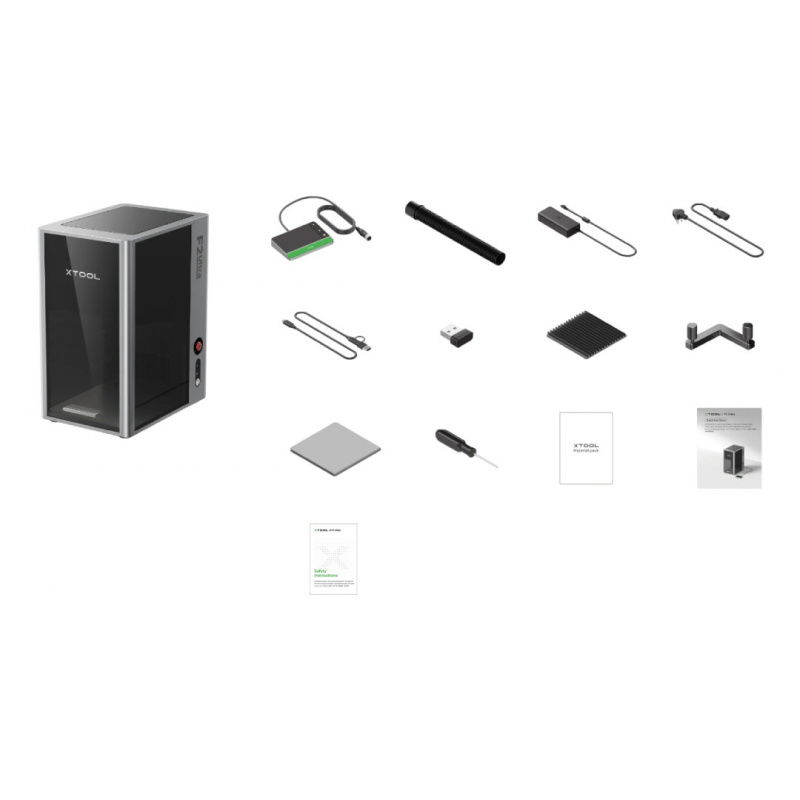

Elements included in the set.
| xTool F2 Ultra Technical Specifications | |
|---|---|
| Laser type | MOPA 60W Laser |
| Operating modes | Engraving, cutting |
| Supported materials - cutting |
brass, stainless steel, aluminum |
| Supported materials - engraving |
stainless steel, aluminum, brass, silver, plastic, platinum, titanium, gold |
| Work area | 220 x 220 mm (220 x 500 mm with conveyor belt) |
| Max operating speed | 15000 mm/s |
| Max processing height | 150 mm |
| Max rotary engraving diameter | 150 mm |
| Supported software | xTool Creative Space / Atomm |
| Operating system | Windows / macOS |
| Connection method | USB / WiFi / IP |
| Built-in camera | Dual 48 MPx camera |
| Positioning method | Camera positioning |
| Focus mode | Autofocus |
| Preview method | Smart Camera Preview |
| Movement accuracy | 0.00482 mm |
| Safety certificate | Class 4 |
| Max input power | 400 W |
| Power supply input voltage | From 220V to 240V, AC 50/60 Hz |
| Dimensions | 294 x 429 x 521 mm |
| Mass | 21.6 kg |
