Product description: xTool F2 Ultra - MOPA 60 W laser cutter and engraver - Deluxe version
The xTool F2 Ultra is a high-end laser cutter and engraver , powered by an advanced 60W MOPA laser that produces over 100 intense colors on metals such as stainless steel and titanium . With a speed of up to 15,000 mm/s and a standard working area of 220 x 220 mm , the device easily handles even the most demanding projects. The Deluxe kit includes an Auto Streamline conveyor belt , which expands the working area to 220 x 500 mm , significantly speeding up and automating work on larger production runs. Dual 48 MPx cameras supported by artificial intelligence guarantee perfect positioning and accuracy when processing even the smallest details. The device is also equipped with an automatic focusing system and user-friendly xTool Creative Space software, making the F2 Ultra Deluxe a comprehensive, professional solution – ready to use almost immediately after unpacking.

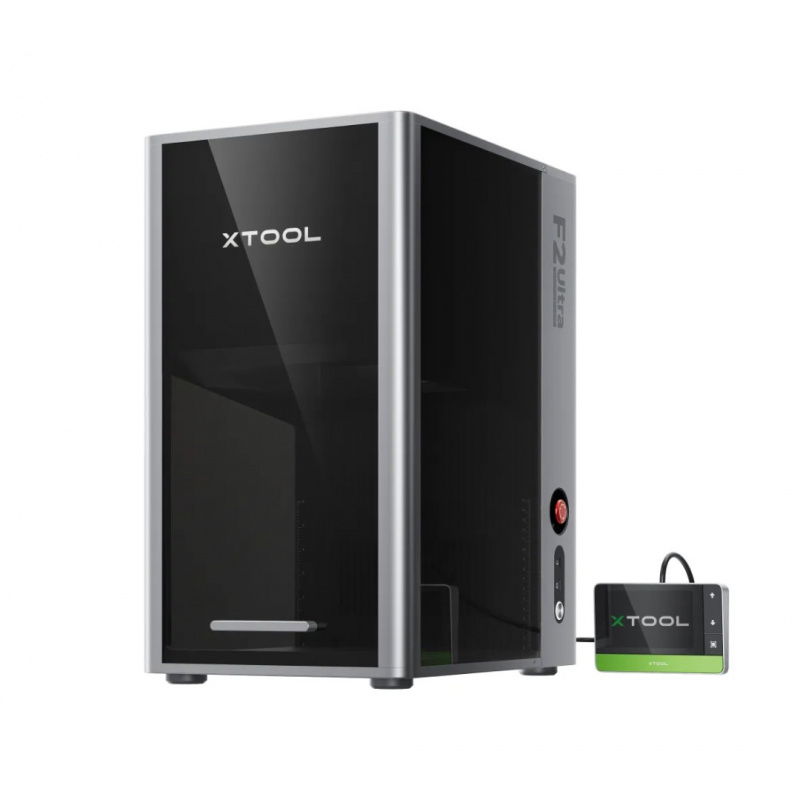

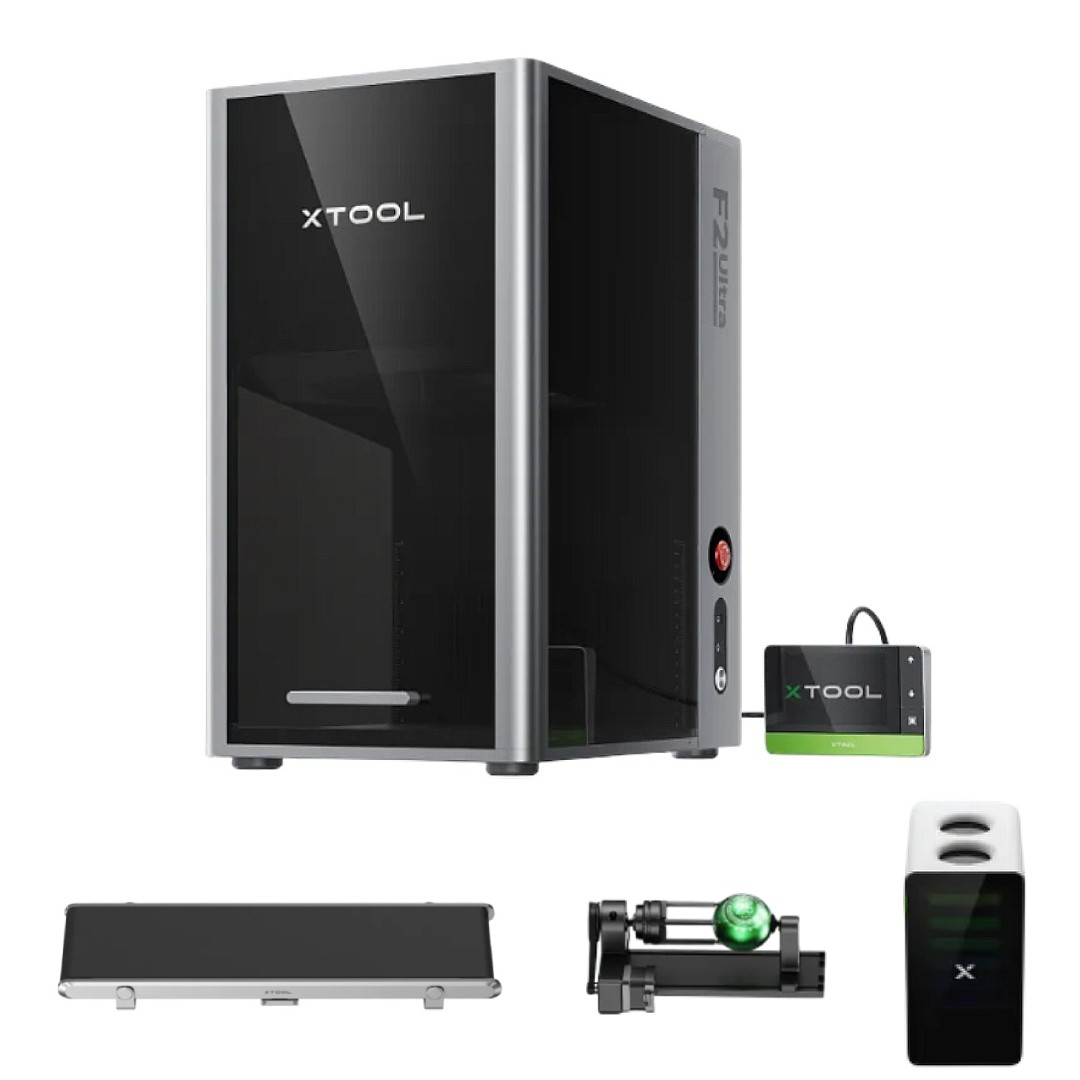

xTool F2 Ultra - MOPA 60 W laser cutter and engraver - Deluxe version.

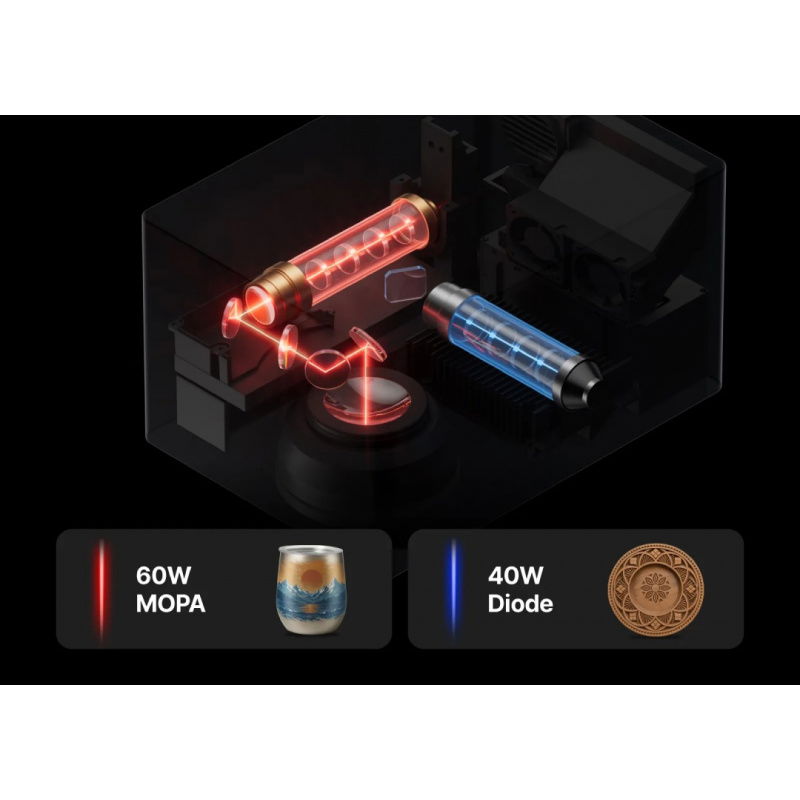

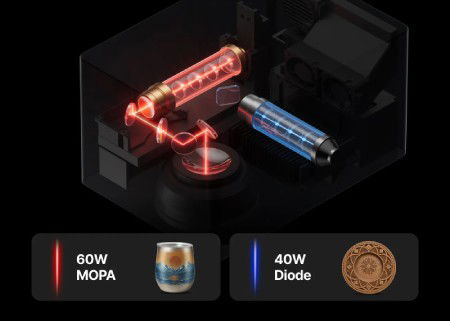

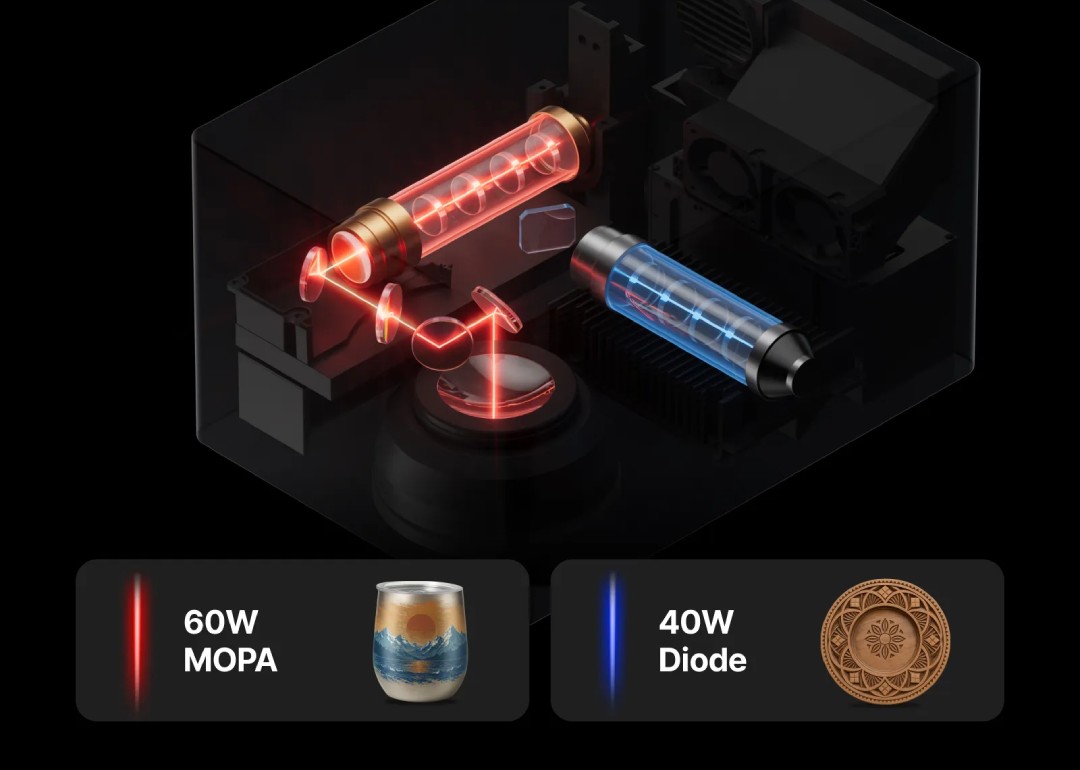

xTool F2 Ultra is also available in a version with an additional 40 W diode laser.
Powerful MOPA laser system
The xTool F2 Ultra utilizes a single 60W MOPA laser system , enabling a wide range of industrial applications. MOPA technology enables precise control of pulse width and frequency , resulting in deeper, more accurate cuts and more complex engraving effects—including holographic effects and a full color palette on metals . This technology allows you to achieve results unattainable with traditional diode lasers.
Accuracy with AI cameras
The F2 Ultra is equipped with a dual 48MPx camera system , which guarantees exceptional positioning precision—down to 0.2mm . The use of two cameras significantly improves detail reproduction, enabling precise matching of the design to the material . This is particularly important when engraving small details, creating ornaments, or marking small items in mass production.
Professional metal cutting and color engraving
Thanks to MOPA technology, it is possible to engrave and cut metals such as stainless steel, brass, aluminum, silver, platinum, and titanium . The device allows for deep cuts in metals up to 2 mm thick and creates clear, abrasion-resistant markings . Pulse and frequency control also allows for subtle tonal transitions and full-color effects – particularly appreciated in the jewelry, electronics, and decorative arts industries.
Industrial-grade performance
The F2 Ultra delivers impressive operating speeds of up to 15,000 mm/s , making it an extremely efficient tool for large-scale projects. Shorter lead times allow for increased production without compromising quality . Automation features and workflow optimization, such as a conveyor belt, make that the device is also suitable for processing large amounts of material.

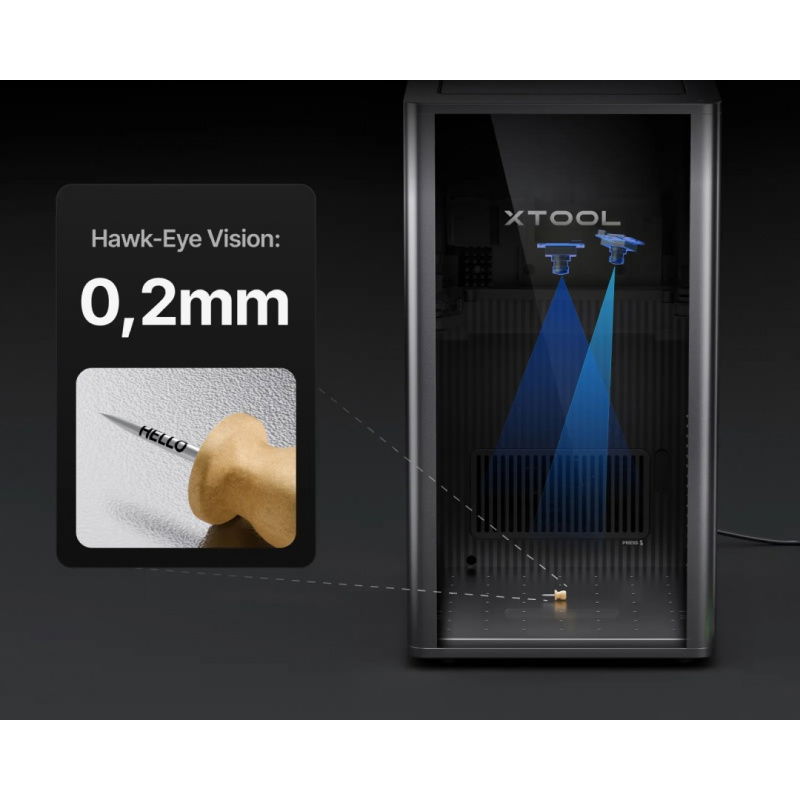

Two 48MP AI cameras increase accuracy to 0.2mm.

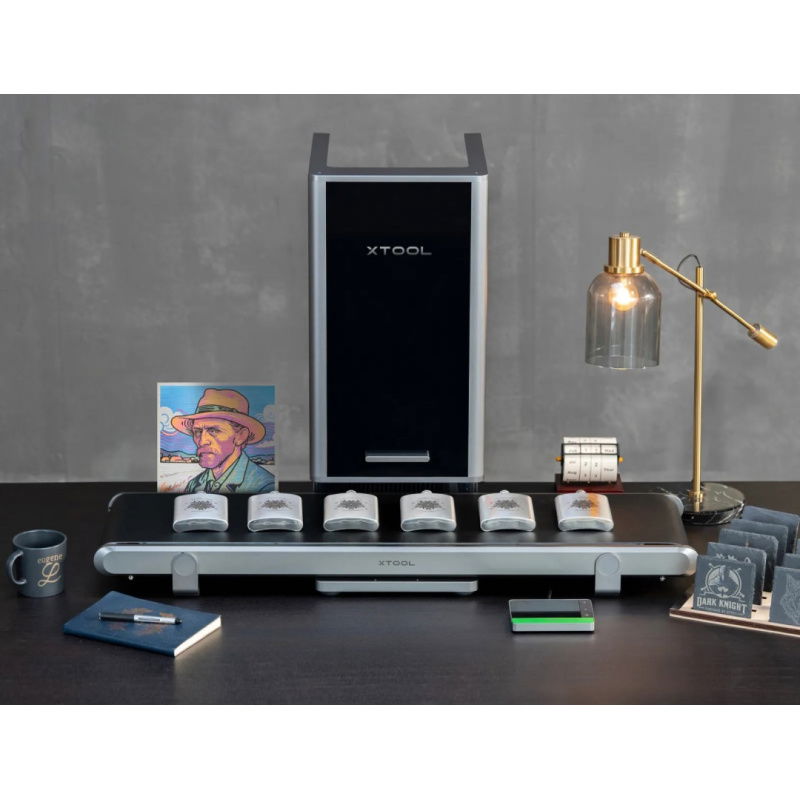

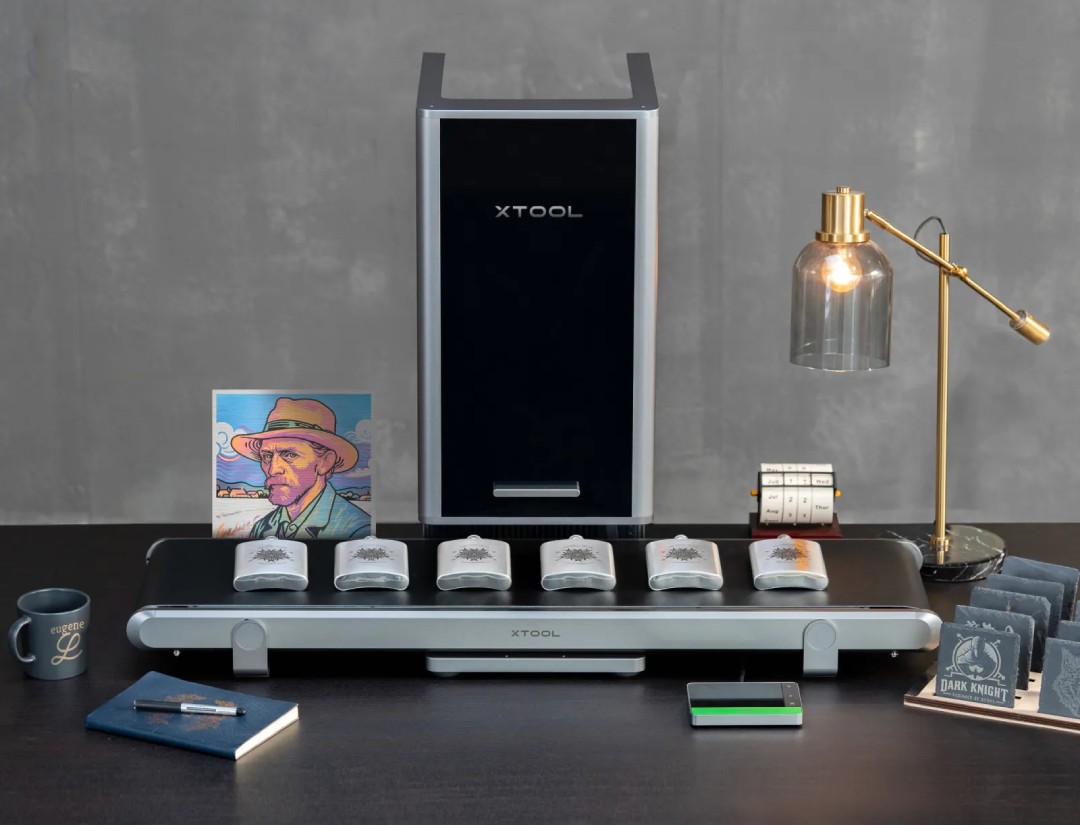

Thanks to the conveyor belt, the dimensions of the working area are increased to 220 x 500 mm.
Additional accessories included in the Deluxe set
The xTool F2 Ultra Deluxe is a kit that includes not only the main unit but also additional accessories that make work much easier. The kit includes the Auto Streamline conveyor belt , which allows you to expand your workspace and increase productivity by automatically moving materials. The RA2 Pro (4-in-1) module is an advanced rotary system that allows you to engrave and cut cylindrical objects, such as glass bottles or cups, in various positions. Additionally, the SafetyPro AP2 Air Purifier provides effective air filtration, removing harmful particles generated during the machining process, ensuring a safer working environment.
Smart functions and easy operation
Thanks to the advanced xTool Creative Space software and integration with the Atomm platform, you gain access to thousands of ready-made projects , predefined settings, and AI-powered tools. The system automatically recognizes colors, enables rapid 3D modeling, and provides real-time previews. Even those with no prior experience can get started in just minutes.
Contents of the set
- xTool F2 Ultra
- Conveyor belt
- RA2 Pro Rotation Module
- SafetyPro AP2 Air Purifier
- Touch controller
- Drain pipe
- Charger
- Power cord
- USB cable
- USB key
- Panel with strips
- Positioning element
- Lint-free cloth
- Screwdriver
- Materials package
- Instructions

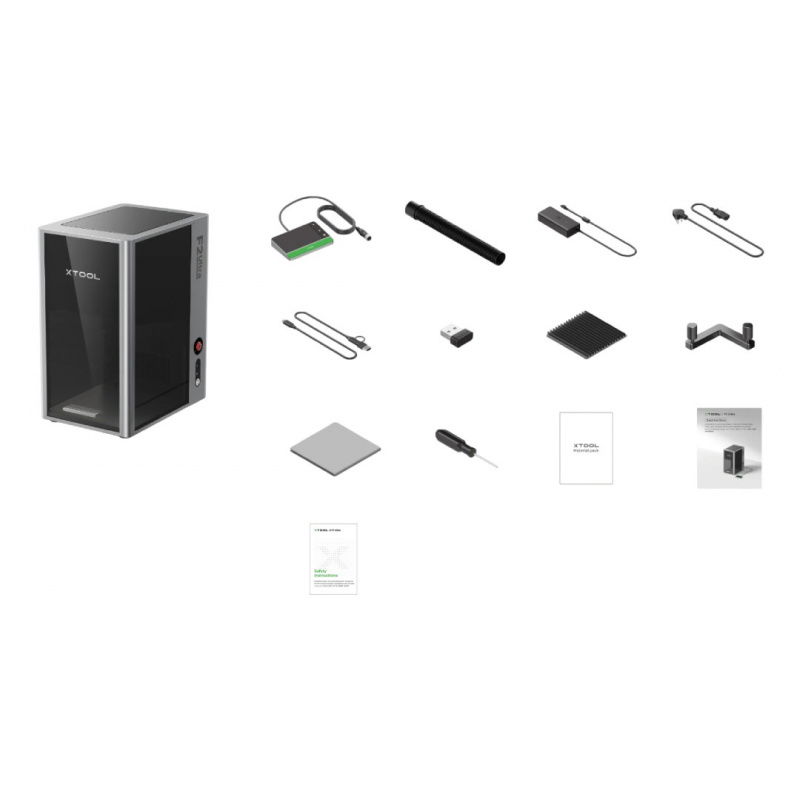

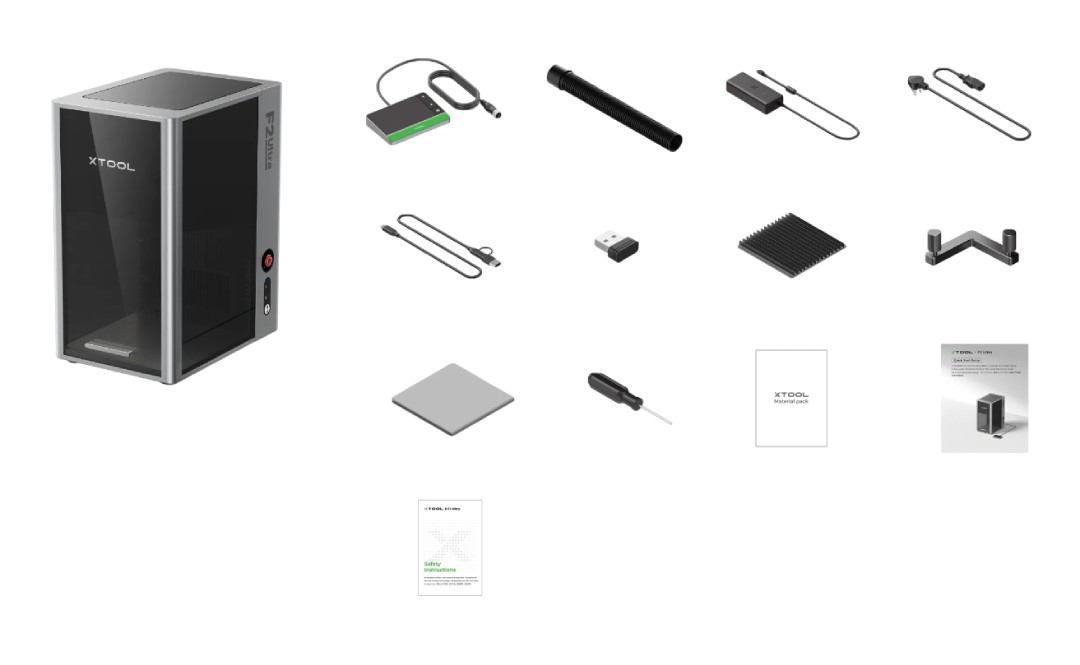

Elements included in the set.
| xTool F2 Ultra Technical Specifications | |
|---|---|
| Laser type | MOPA 60W Laser |
| Operating modes | Engraving, cutting |
| Supported materials - cutting |
brass, stainless steel, aluminum |
| Supported materials - engraving |
stainless steel, aluminum, brass, silver, plastic, platinum, titanium, gold |
| Work area | 220 x 220 mm (220 x 500 mm with conveyor belt) |
| Max operating speed | 15000 mm/s |
| Max processing height | 150 mm |
| Max rotary engraving diameter | 150 mm |
| Supported software | xTool Creative Space / Atomm |
| Operating system | Windows / macOS |
| Connection method | USB / WiFi / IP |
| Built-in camera | Dual 48 MPx camera |
| Positioning method | Camera positioning |
| Focus mode | Autofocus |
| Preview method | Smart Camera Preview |
| Movement accuracy | 0.00482 mm |
| Safety certificate | Class 4 |
| Max input power | 400 W |
| Power supply input voltage | From 220V to 240V, AC 50/60 Hz |
| Dimensions | 294 x 429 x 521 mm |
| Mass | 21.6 kg |
