Product description: W6300-EVB-Pico - board with RP2040 microcontroller and Ethernet - WIZnet
The W6300-EVB-Pico is an advanced development board equipped with an RP2040 microcontroller with a dual-core ARM Cortex M0+ processor and a hard-coded WIZnet W6300 network controller. The module provides stable and fast Ethernet connectivity with support for IPv4/IPv6 , TCP/UDP, and other popular protocols. Pinout compatibility with the Raspberry Pi Pico makes the W6300-EVB-Pico a great choice for both beginners and professionals developing embedded systems with networking. An integrated RJ45 port, built-in USB Type-C converter , and 2MB Flash memory make the board ready to run right out of the box.

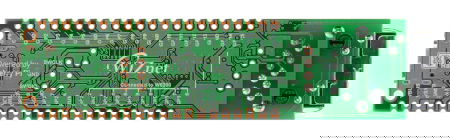

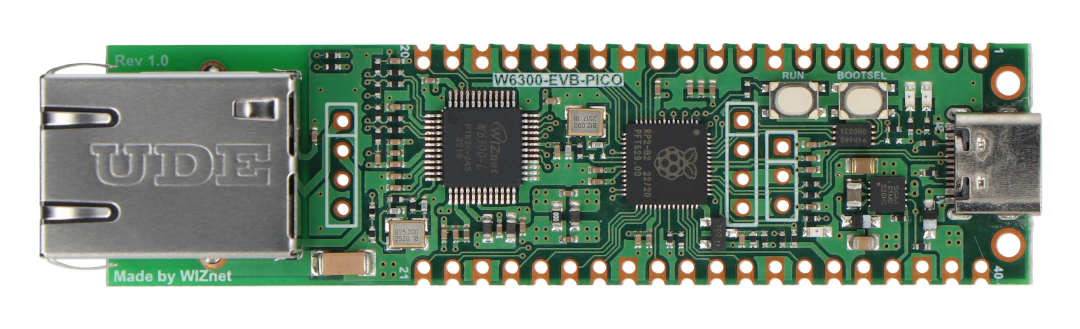

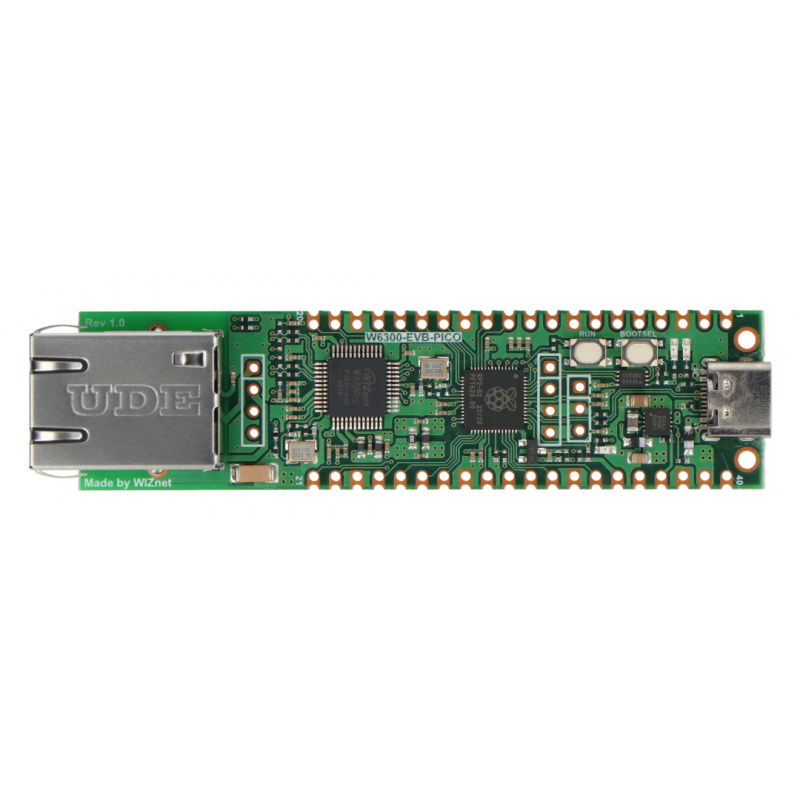

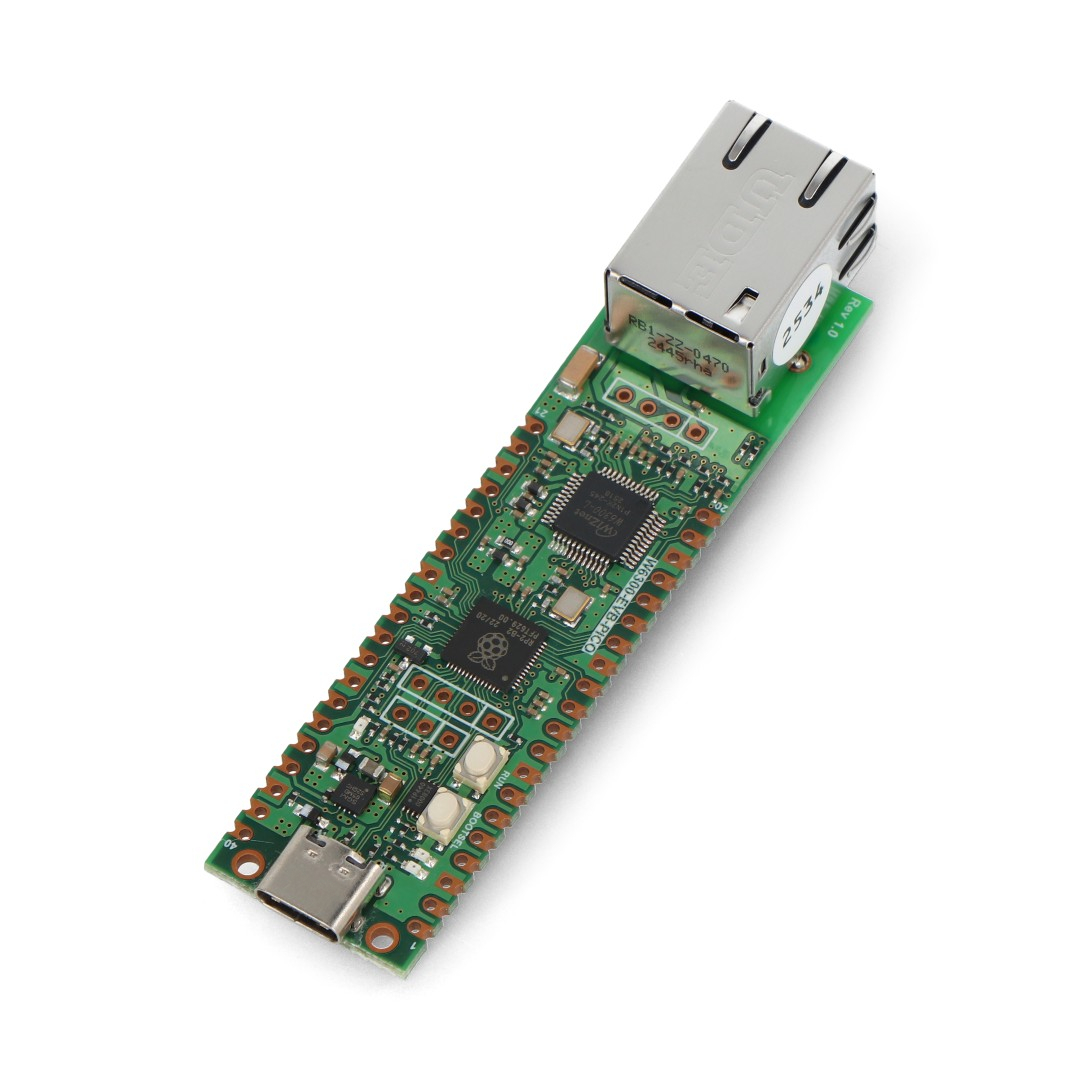

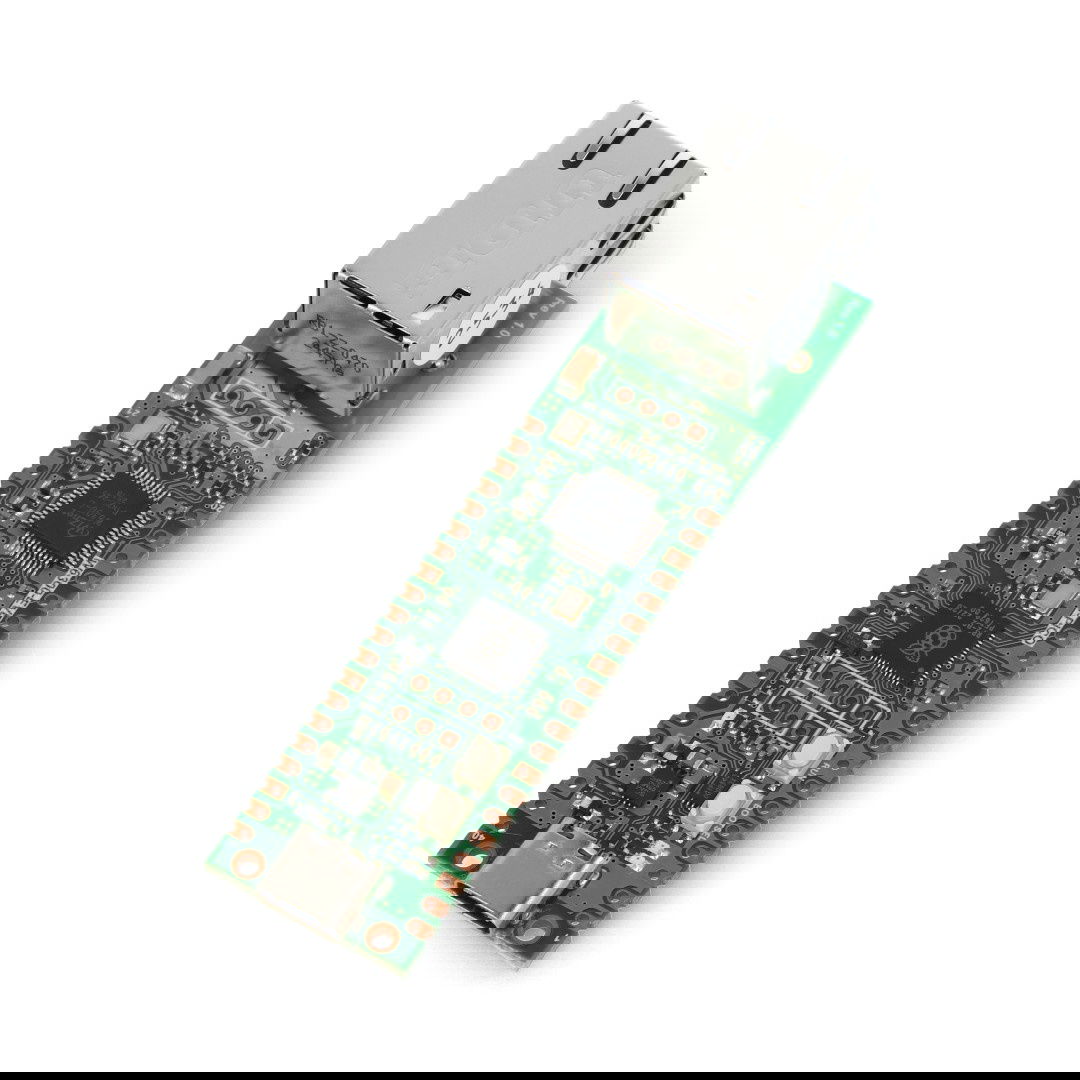

W6300-EVB-Pico - board with RP2040 microcontroller and Ethernet - WIZnet.
The board is equipped with a Raspberry Pi RP2040 microcontroller.
Main features of the W6300-EVB-Pico
- Dual-core RP2040 microcontroller : clock speed up to 133 MHz, 264 kB SRAM, 2 MB QSPI Flash memory
- Integrated W6300 Ethernet Controller : Full IPv4/IPv6, TCP/UDP support, up to 8 hardware sockets
- Full compatibility with Raspberry Pi Pico : identical pinouts, ability to use existing libraries and shields
- RJ45 port built into the PCB : no additional Ethernet modules required
- SPI and QSPI communication with W6300 : efficient data transmission
- Auto-Negotiation and Full/Half Duplex support : flexibility in network conditions
- Complete set of peripherals : UART, SPI, I2C, PWM, ADC, PIO, Timers
- Powered by USB Type-C : compatible with modern power supplies
Module pins

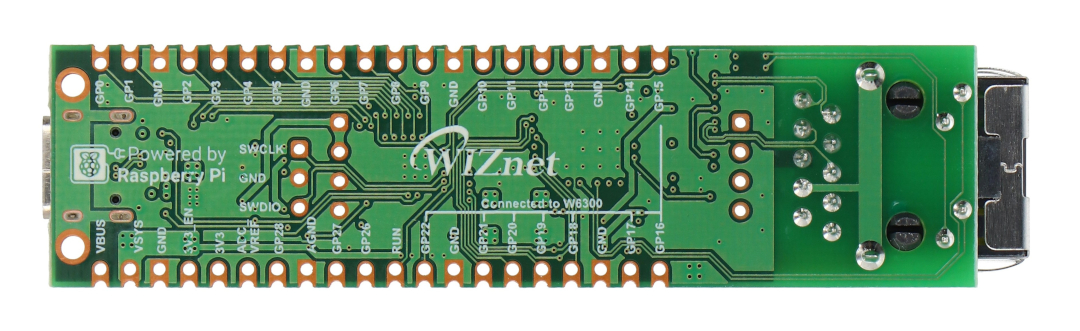

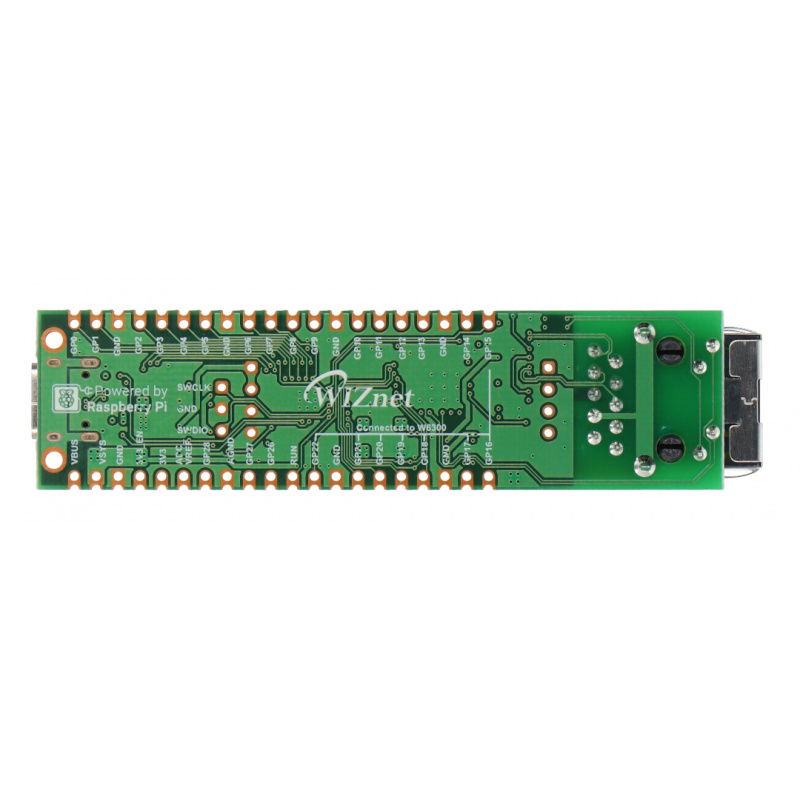

The W6300-EVB-Pico retains the typical Raspberry Pi Pico pinout , but additionally uses GPIO15 - GPIO22 to communicate with the W6300 in QSPI mode . This means that when using Ethernet functions, these pins cannot be used as GPIOs.
Most important pin assignments:
- GPIO15 - INTn (W6300 interrupt)
- GPIO16 - CSn (chip select)
- GPIO17 - SCLK (SPI clock)
- GPIO18-21 - QSPI IO0-IO3
- GPIO22 - RSTn (W6300 reset)
- GPIO25 - built-in LED
- GPIO29 - ADC3 (VSYS/3 measurement)
The module also provides:
- 3-pin SWD debug port
- pin 3V3_EN for turning off the 3.3 V power supply
- RUN pin to reset the RP2040
The W6300-EVB-Pico has an Ethernet connector.
Elements included in the set.
W6300-EVB-Pico Technical Specifications
- Microcontroller: RP2040 (Dual-core ARM Cortex M0+)
- CPU clock speed: up to 133 MHz
- Memory: 264 kB SRAM, 2 MB QSPI Flash
- Number of GPIO pins: 30 (4 with ADC function)
- Communication interfaces: 2x UART, 2x I2C, 2x SPI, 16x PWM channels
- Operating voltage of the logic part: 3.3 V
- Pinout: Raspberry Pi Pico compatible
- Supported Internet Protocols: TCP, UDP, IPv4, IPv6, ICMPv4, ICMPv6, ARP, IGMP, MLDv1, PPPoE
- Number of sockets: 8 independent
- TX/RX memory: 16 kB (total)
- USB connector: USB Type-C
- Ethernet port: RJ45 (RB1-125BAG1A)
- Ethernet type: 10 / 100 Mb/s, Full / Half Duplex
- Supply voltage (VBUS): 5 V ±10%
- System Voltage Range (VSYS): 4.3 V to 5.5 V
- Operating temperature: from -20°C to 85°C`
- Dimensions: 51 x 21 mm (format compatible with Raspberry Pi Pico)
Kit contents

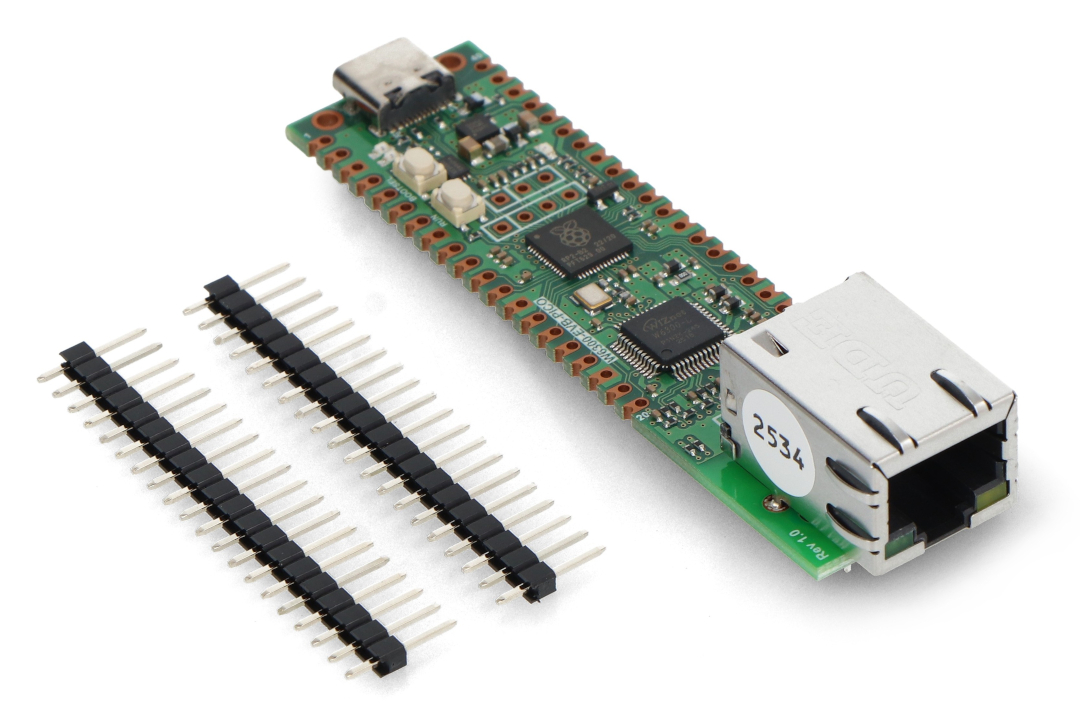

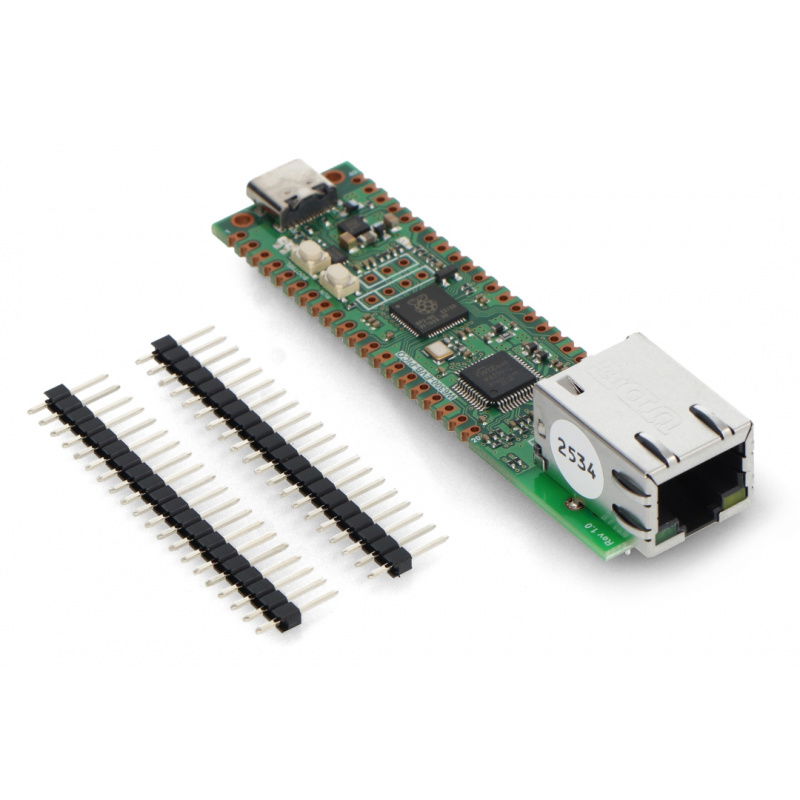

- 1x W6300-EVB-Pico board
- 2x Goldpin strip
