Product description: 39BYGL215A stepper motor with threaded shaft 12V/ 0.4A/ 0.20Nm
Bipolar stepper motor, four-wire. It has a threaded shaft, which enables the device to be used as a linear actuator. The motor moves along the shaft at the speed of 1 cm per 5 turns. It is used where precision and repeatability of movements is important. The shaft does not have a lock, it can be unscrewed and replaced with a longer or shorter one.
It is powered with 12 V, draws current 0.4 A per coil. Holding torque is 2.03 kg*cm (0.20 Nm). Dimensions: 39 x 39 x 34 mm.
Accessories
There are also accessories available in our shop to make stepper motors easier to use:
- Stepper motor driver - simple to use, small modules that allow you to control direction, speed and resolution. We have also prepared instructions for connecting different types of stepper motors.
Applications for stepper motors:
- printers
- CNC devices
- 3D printers
- laser devices
- manipulators
Stepper motor specifications
- Resolution: 0.01 mm
- Rated voltage: 12 V
- Current consumption per coil: 0,4 A
- Coil resistance 30 Ω
- Winding inductance: 42 mH
- Holding torque 2.03 kg*cm (0.20 Nm)

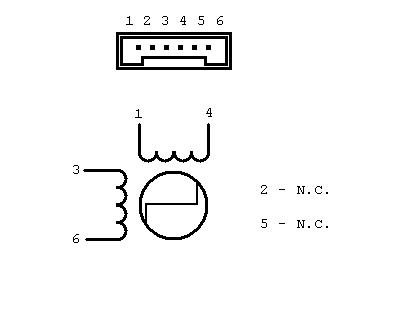

- Leads: bipolar (four wires)
- Shaft length: 100 mm
- Shaft diameter: 5 mm
- Weight: 180 g
- Dimensions: 39 x 39 x 34 mm (without shaft) - NEMA 15
Stepper motor39BYGL215A with threaded shaft 12V / 0.4A / 0.20Nm - SparkFun ROB-10848.
