Product description: Arduino UNO Q 4 GB
The Arduino UNO Q is an advanced minicomputer that combines a microprocessor running Debian OS with a real-time microcontroller , ideal for developing advanced applications in robotics, IoT, and artificial intelligence. Thanks to the Qualcomm Dragonwing™ QRB2210 processor (quad-core 2 GHz ARM Cortex A53) and the STM32U585 microcontroller (ARM Cortex M33), the UNO Q offers high computing power and precise control. It features 4 GB of LPDDR4 RAM, 16 GB of built-in eMMC memory , and WiFi 5 (2.4 GHz/5 GHz) and Bluetooth 5.1 connectivity modules for fast and reliable communication with other devices. The USB Type-C connector allows for power, display, and connection of peripherals (e.g., keyboard, mouse, microphone), while the Qwiic port allows for rapid system expansion without the need for soldering . UNO Q maintains compatibility with classic Arduino UNO shields and Modulino modules , significantly increasing its versatility. Programming is easy thanks to support for the Arduino IDE and Arduino App Lab , which allows you to combine Arduino, Python, and AI code in a single, intuitive environment.

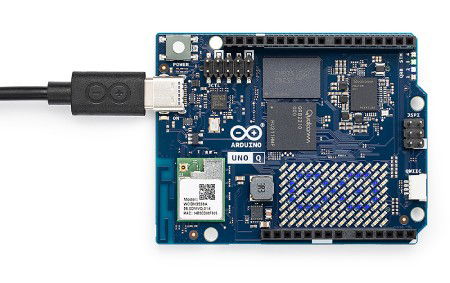

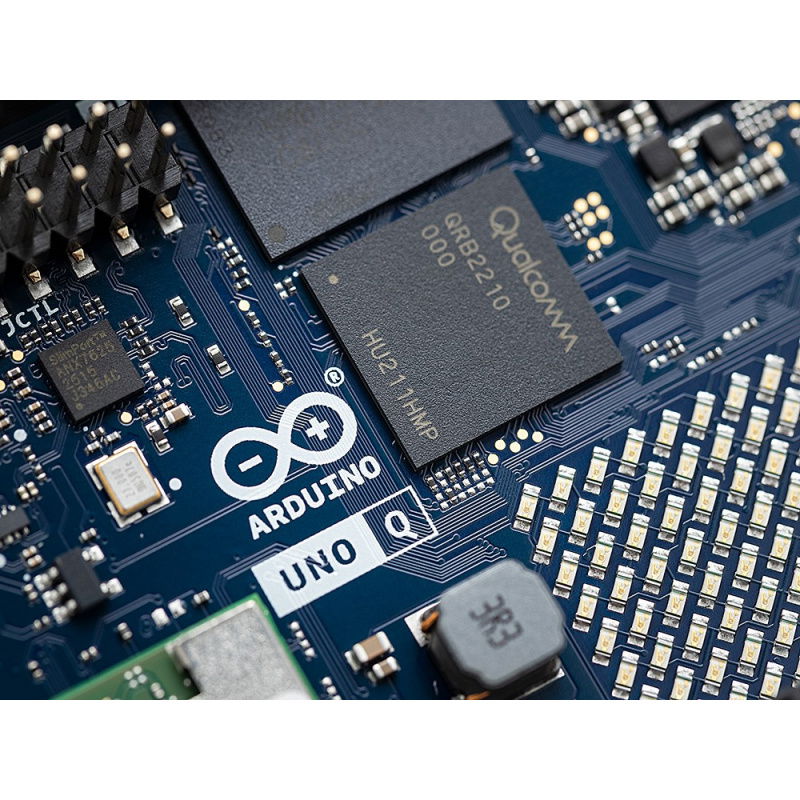

Arduino UNO Q 4GB.
Arduino UNO Q enables the implementation of the most demanding applications, including object recognition, sound detection, voice recognition, and solutions based on artificial intelligence.
Main features of Arduino UNO Q
- Qualcomm Dragonwing™ QRB2210 microprocessor : quad-core ARM Cortex A53 2 GHz with Adreno GPU and camera and display support
- STM32U585 microprocessor : ARM Cortex M33 up to 160 MHz, responsible for real-time control
- Memory : 4 GB RAM LPDDR4, 16 GB built-in eMMC memory (no need for an SD card)
- Connectivity : WiFi 5 (2.4 GHz / 5 GHz) and Bluetooth 5.1, providing a wide range of wireless communication
- Connectors : USB Type-C for power, video output and connecting peripherals (keyboard, mouse, microphone, camera), Qwiic connector for easy system expansion
- Integrated LED matrix : 8 x 13 LEDs for visual notifications and user interaction
Connectivity and outputs
The UNO Q offers a range of connectivity options, including WiFi 5 and Bluetooth 5.1 , allowing for easy communication with external devices. Additionally, the USB Type-C port not only provides power but also allows for display transfer, keyboard, mouse, and other peripherals. The integrated Qwiic port makes it easy to expand the system with additional modules without the need for soldering. The platform also supports classic interfaces such as I2C, SPI, PWM, UART, CAN, and GPIO . enabling full control over external devices.
Arduino UNO Q Programming
UNO Q supports the traditional Arduino IDE and Arduino CLI development tools, but also fully utilizes its capabilities with Arduino App Lab . This modern development environment allows seamless transitions between Arduino code, Python, and AI algorithms . The integrated Linux-based environment makes programming more flexible and convenient, and integrating code and scripts is easier than ever before. UNO Q allows for complete control over your projects , whether you're working with a microprocessor or a real-time system.

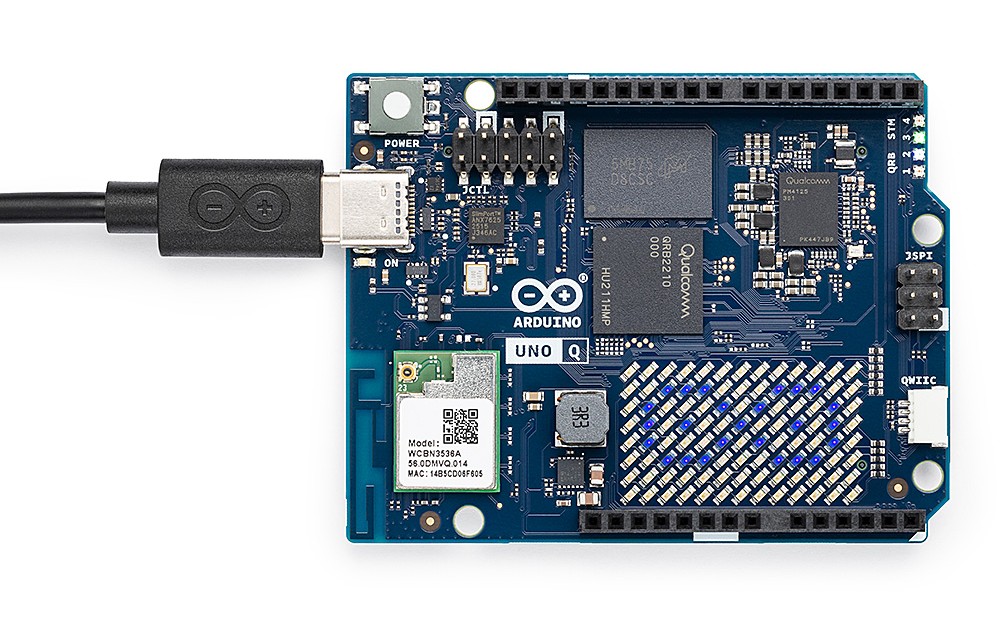

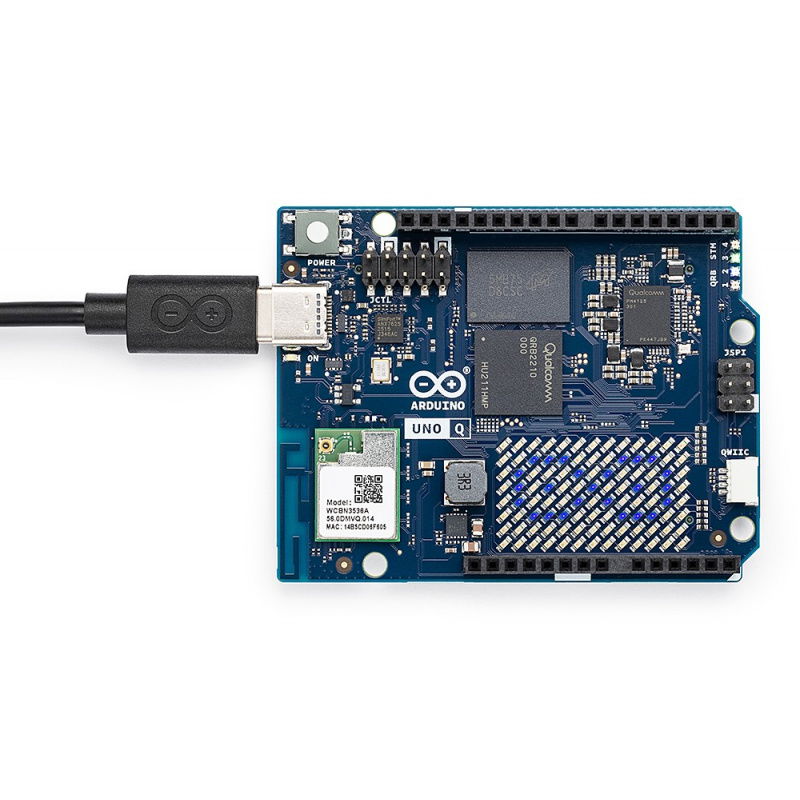

The USB Type-C connector allows you to power the board, transmit images, and connect peripherals such as a keyboard, mouse, microphone, or camera.
Programming is easy with support for Arduino IDE and Arduino App Lab.
Arduino App Lab
Arduino App Lab is an integrated development environment that allows you to easily integrate Arduino, Python, and AI code in one place. App Lab comes preinstalled on the UNO Q, allowing you to get started immediately . With it, you can seamlessly transition between programming with Arduino, writing scripts in Python, and using AI models , all from a single interface. This intuitive environment allows for rapid application development and testing of advanced features like object recognition and sound analysis.
Choosing between UNO R4 and UNO Q
Both boards belong to the UNO family, but were designed with different needs in mind. The UNO R4 is a classic microprocessor board, ideal for simple and effective hardware projects —perfect for reading sensors, controlling actuators, or creating IoT prototypes. It's fully compatible with the Arduino IDE, libraries, and shields, making it a great choice for learning, experimenting, and quickly launching projects. The UNO Q goes a step further, combining an STM32U585 microprocessor with a Linux-capable Qualcomm Dragonwing™ QRB2210 processor. This allows you to run AI models, process image and sound, and integrate advanced web applications while maintaining full control over the hardware.
| Arduino UNO Q Technical Specifications | |
|---|---|
| Microprocessor (MPU) | Qualcomm Dragonwing™ QRB2210: Quad-Core ARM CortexA53 @ 2 GHz, Adreno GPU, 2x ISP (13 MP + 13 MP or 25 MP) @ 30 fps |
| Microcontroller (MCU) | STM32U585: ARM Cortex M33 up to 160 MHz, 2 MB Flash, 786 kB SRAM |
| Memory | 4 GB RAM LPDDR4, 16 GB eMMC built-in |
| Power supply | USB Type-C 5V DC max 3A, VIN Input: 5V DC |
| Communication | WiFi 5 (2.4 GHz / 5 GHz), Bluetooth 5.1 |
| Interfaces | I2C/I3C, SPI, PWM, UART, CAN, PSSI, GPIO, JTAG, ADC |

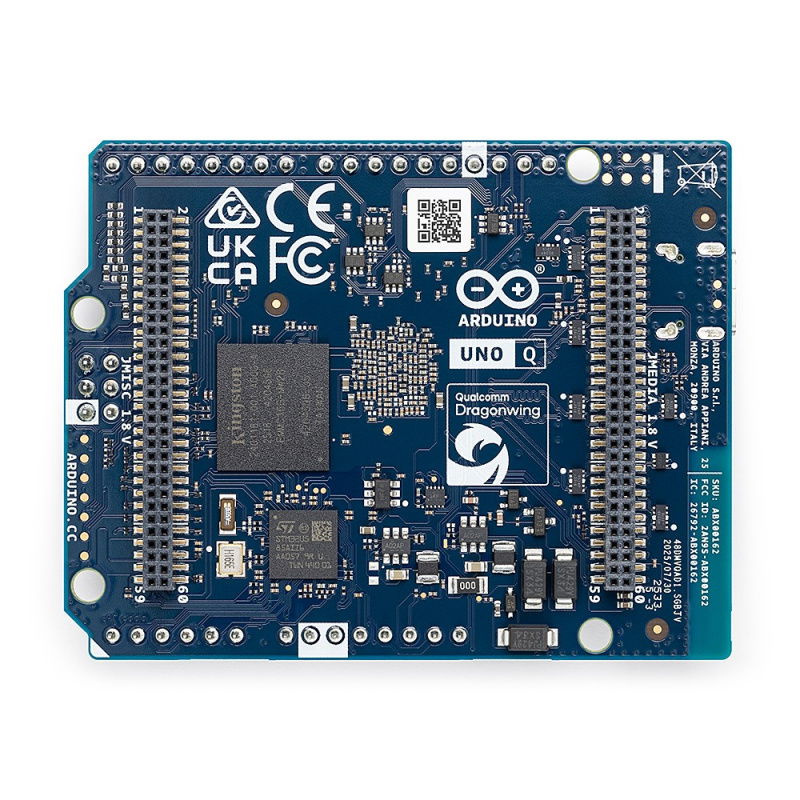

| Video | support for video output via USB Type-C, MIPI DSI pins on the JMEDIA connector |
| Additional features | 4 x programmable RGB LEDs, 8 x 13 LED matrix, 1 x Qwiic connector (3.3V, I2C), 1 x user button, JCTL connector for remote MPU debugging, audio: mic in/headphone out/line out on JMISC connector |
| Main Processor (MPU) Operating System | Linux Debian OS with full upstream support |
| Real-time system | Arduino Core running on Zephyr OS |
| Containerization | Docker and Docker Compose support |
| Supported Systems for Arduino App Lab | Windows 10 or later (64-bit), macOS 11 or later (64-bit), Linux: Ubuntu 22.04 or Debian Trixie (64-bit) |

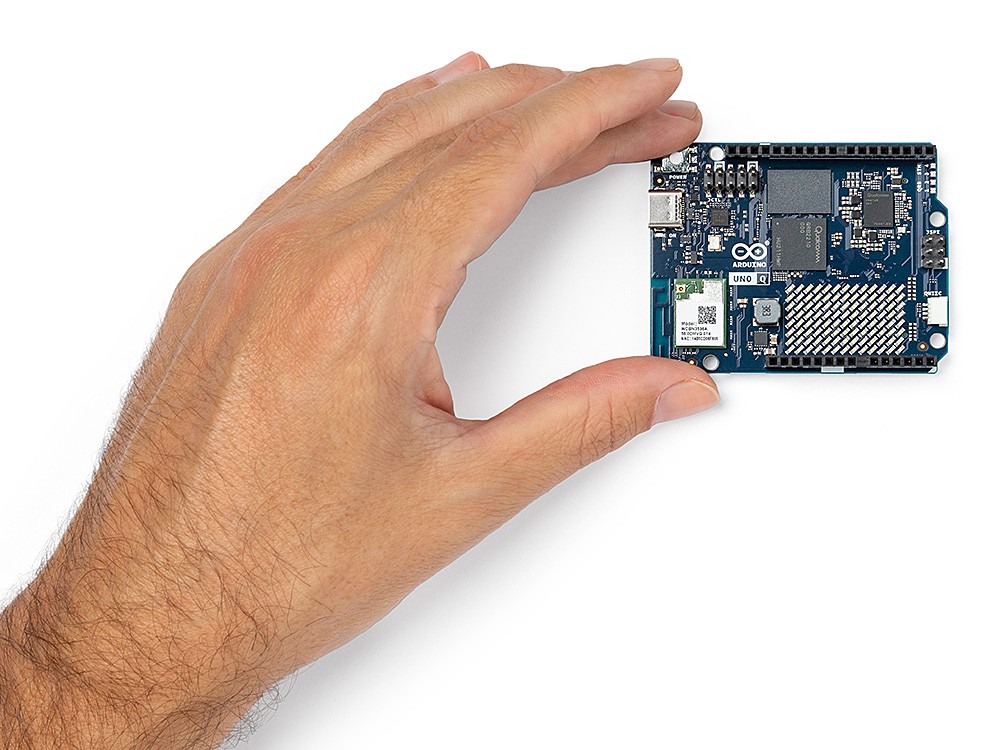

| Dimensions | 68.85 x 53.34 mm (classic UNO format) |
