Product description: CAN Bus module - TJA1051T/3 - Adafruit 5708
The module is based on the TJA1051T/3 system, enabling the connection of the microcontroller with any extension that communicates via the CAN bus . The module is powered with the voltage of 3.3 V / 5 V , it also works with boards powered with the voltage of 12 V and 24 V. It is characterized by low electromagnetic emission (EME) and high electromagnetic immunity (EMI). It has also been equipped with a voltage converter that allows it to work with 3.3 V boards without the need for an additional power supply.
Also check the manufacturer's user guide !
Components included in the set.

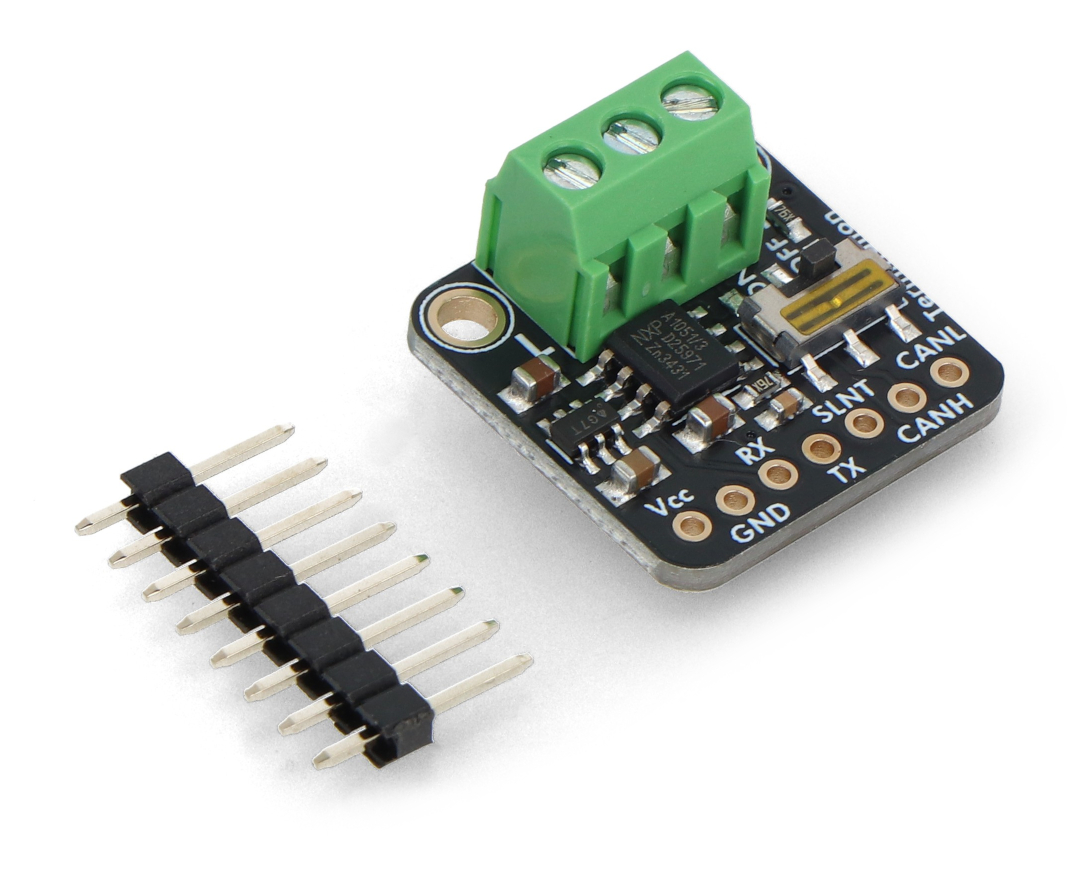

CAN Bus module - TJA1051T/3 - Adafruit 5708.
What is the CAN bus?
CAN stands for Controller Area Network and is a multi-master serial bus for bi-directional data transfer. It provides half-duplex communication with a transmission speed of up to 1 Mbit/s. Its reliability makes the CAN bus widely used in motor vehicles, agricultural equipment and broadly understood industrial automation.

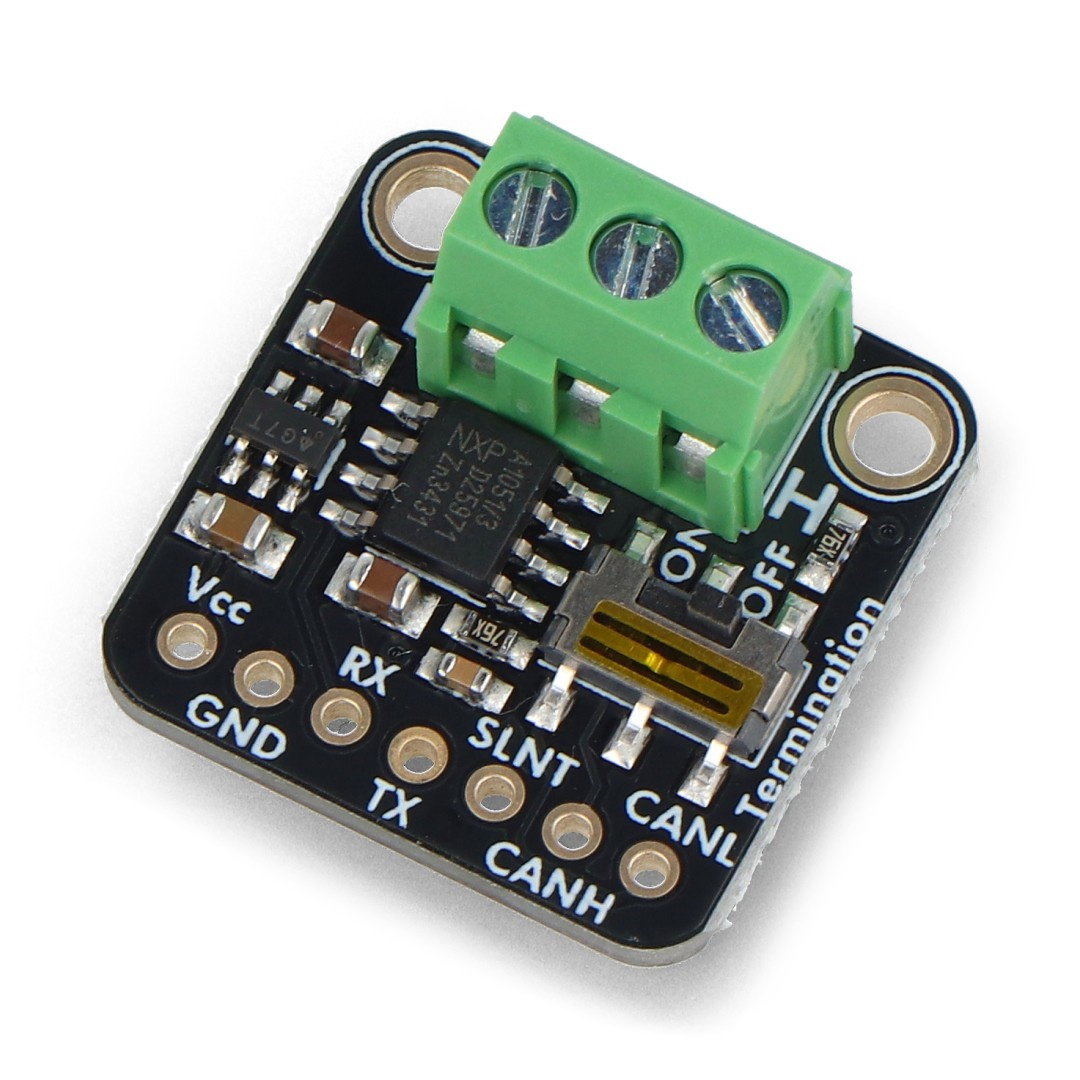

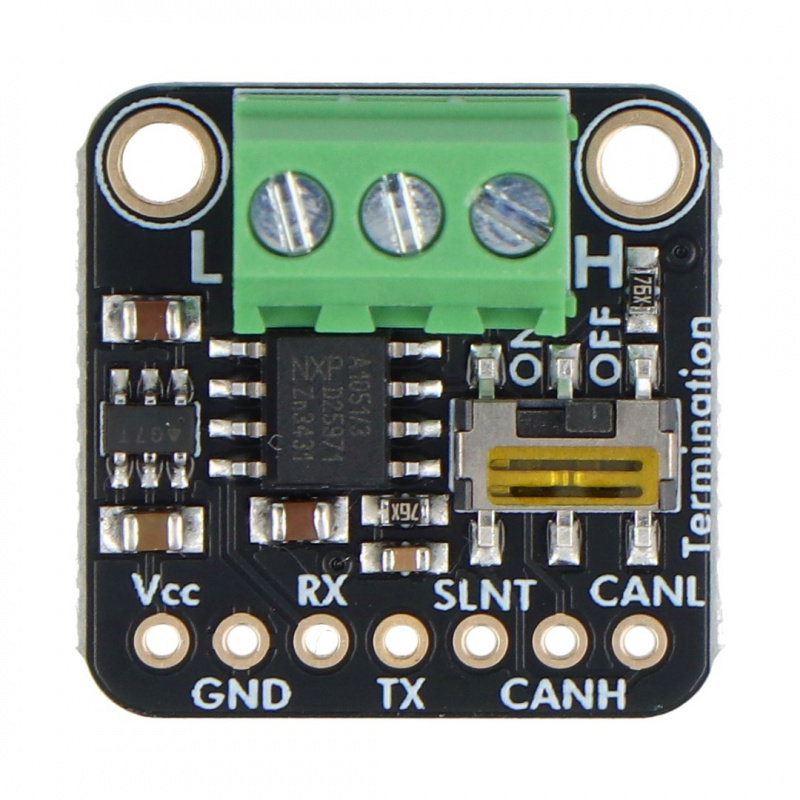

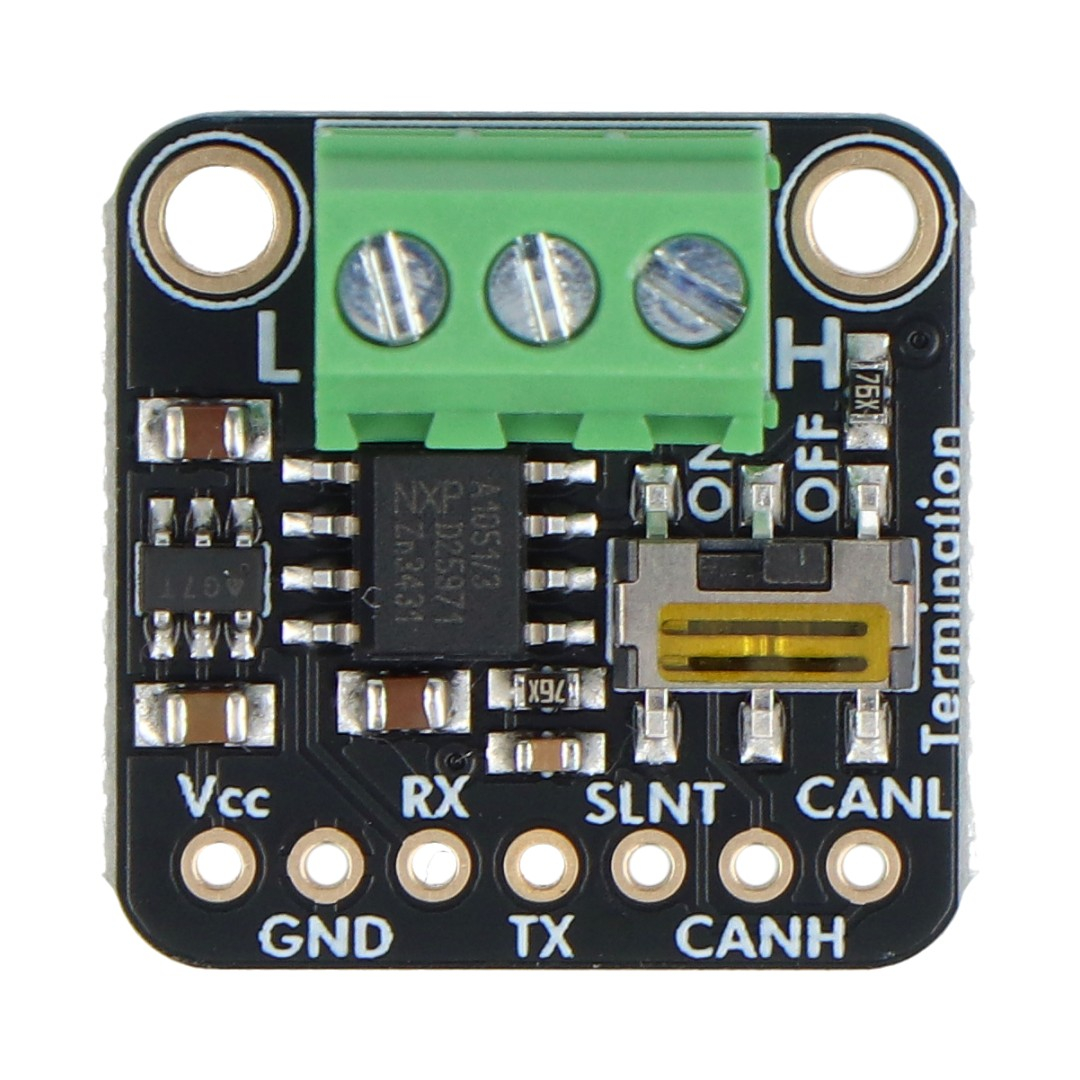

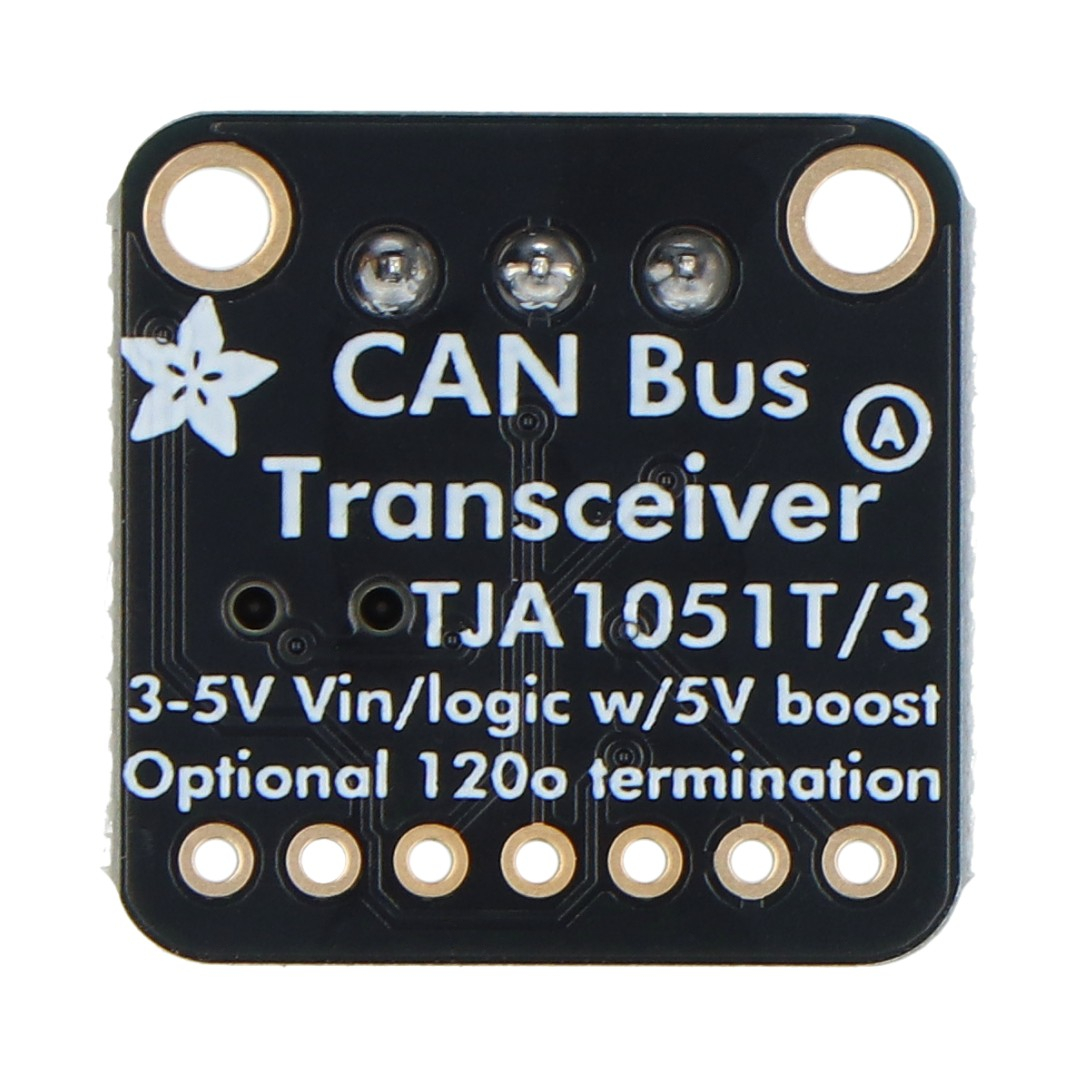

Description of board pins
- H / L - CAN bus transmission lines
- GND - system ground
- VCC - input voltage in the range from 3 V to 5 V
- RX - serial interface receiver communication line (CAN input)
- TX - serial interface transmitter communication line (CAN output)
- SLNT - enables the sleep mode of the TJA1051/3
- CANH - CAN bus transmission line (high)
- CANL - CAN bus transmission line (low)
CAN module technical specification
- Built-in chip: TJA1051T/3
- Built-in logic level converter: 3.3 V / 5 V
- CAN FD transmission speed: up to 5 Mbit/s
- Supply voltage: 3 V to 5 V
- Standards met: ISO 11898-2:2003
- Built-in protections: thermal protection
- Module dimensions: 20.3 x 20.2 x 4 mm
- Weight 1.4g

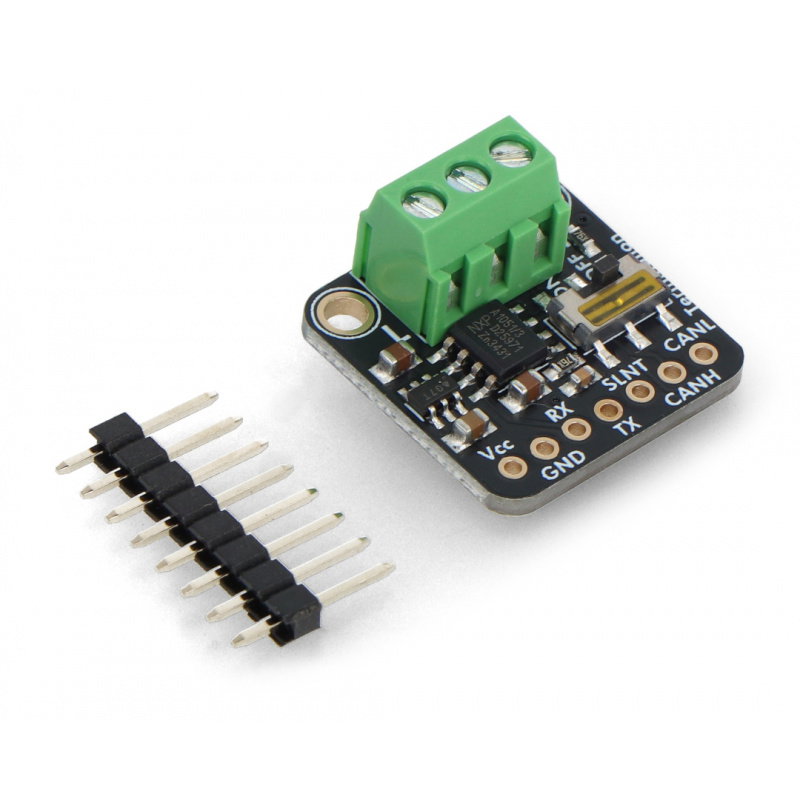

Kit contents
- CAN Bus module - TJA1051T/3 - Adafruit
- Goldpin strip 1x8 pin - 2.54 mm
- 1x3 pin screw connector
The board is powered with the voltage from 3 V to 5 V.
