Product description: TOOCAA NOVA 20 W Laser Plotter - Advanced
TOOCAA NOVA is a modern AI-enabled laser engraving machine , Equipped with a 20W module, it's designed for comfortable desktop operation. Its compact design and A4 297 x 210 mm workspace make the plotter ideal for home, office, and studio use. A fully enclosed Class 1 enclosure and an extensive security system ensure a high level of user safety. Intelligent systems automatically recognize materials, adjust focus, and select operating parameters , while a built-in HD camera enables real-time preview and precise project positioning. The device can be operated via a touchscreen or TOOCAA Studio and LightBurn software , with USB Type-C and Wi-Fi connectivity. The modular design allows for interchangeable laser heads, adapting the device to various applications. The Advanced version is additionally equipped with an Air Assist system and an air purifier , which increase comfort and work quality.

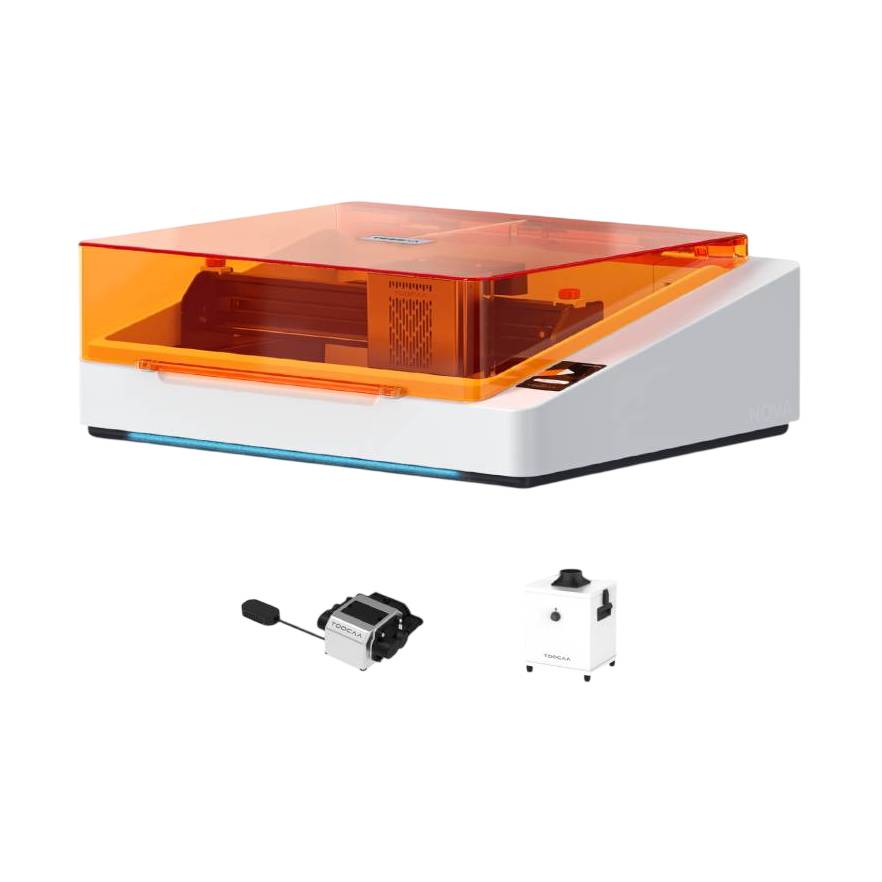

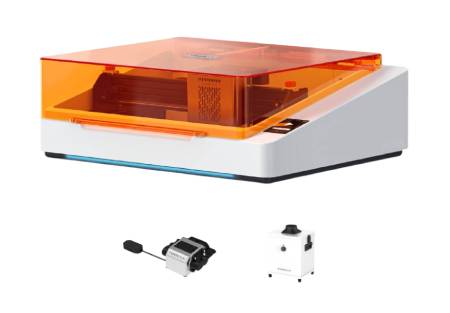

TOOCAA NOVA 20 W Laser Plotter - Advanced.
The built-in HD camera allows you to position the project on the material and view the work progress live.
AI and real-time preview for accurate engraving
The TOOCAA NOVA 20 W utilizes advanced artificial intelligence technologies to streamline project preparation for engraving. The system automatically identifies materials using ID cards and selects appropriate operating parameters , eliminating the need for manual settings. An integrated 5MP HD camera provides a live preview in "What You See Is What You Get" mode, enabling precise design placement on the material . High positioning accuracy allows you to see the final result before work begins . This solution accelerates project implementation and minimizes the risk of errors.

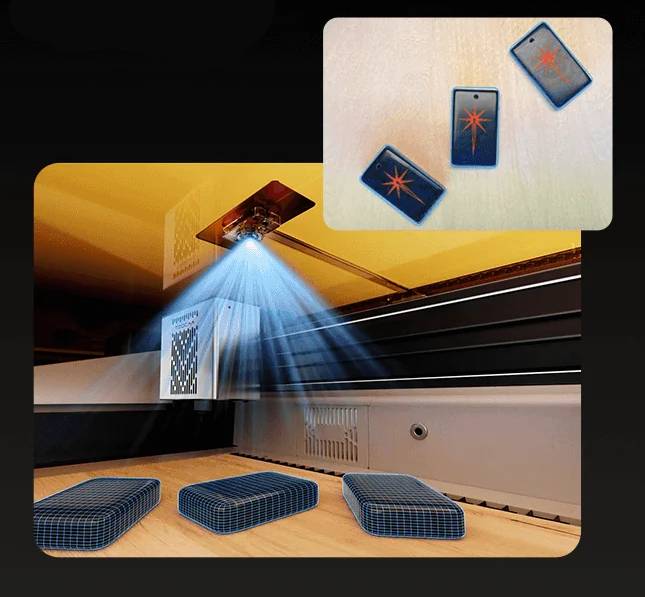

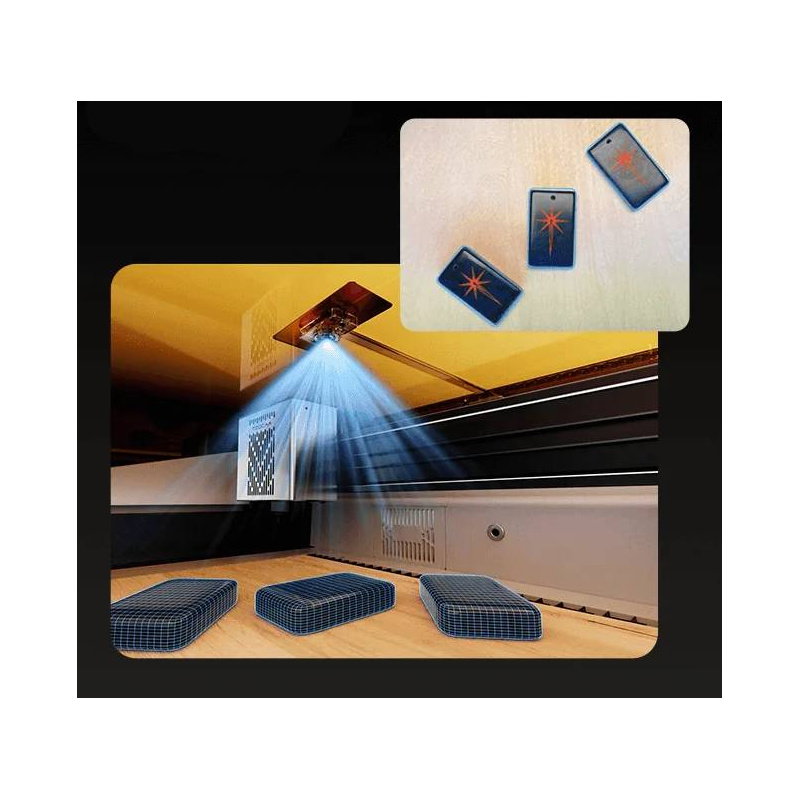

Intelligent material recognition and autofocus
TOOCAA NOVA automatically detects selected materials based on ID cards or system settings , allowing you to quickly select appropriate operating parameters, such as power, speed, and engraving depth. The autofocus function automatically adjusts the laser head height to the material surface, ensuring optimal beam focus. This solution works well with both thin and thick materials, such as wood or acrylic. For more demanding projects , an advanced mode is available, allowing manual adjustment of material thickness . Thanks to the high level of automation and a 297 x 210 mm working area, operation is simple and intuitive, similar to working with a classic office printer.
Engraving at speeds up to 36,000 mm/min significantly reduces project implementation time and increases work efficiency.

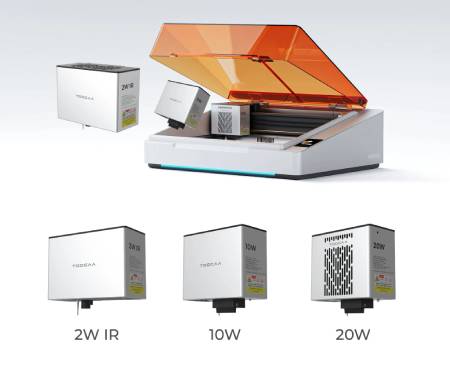

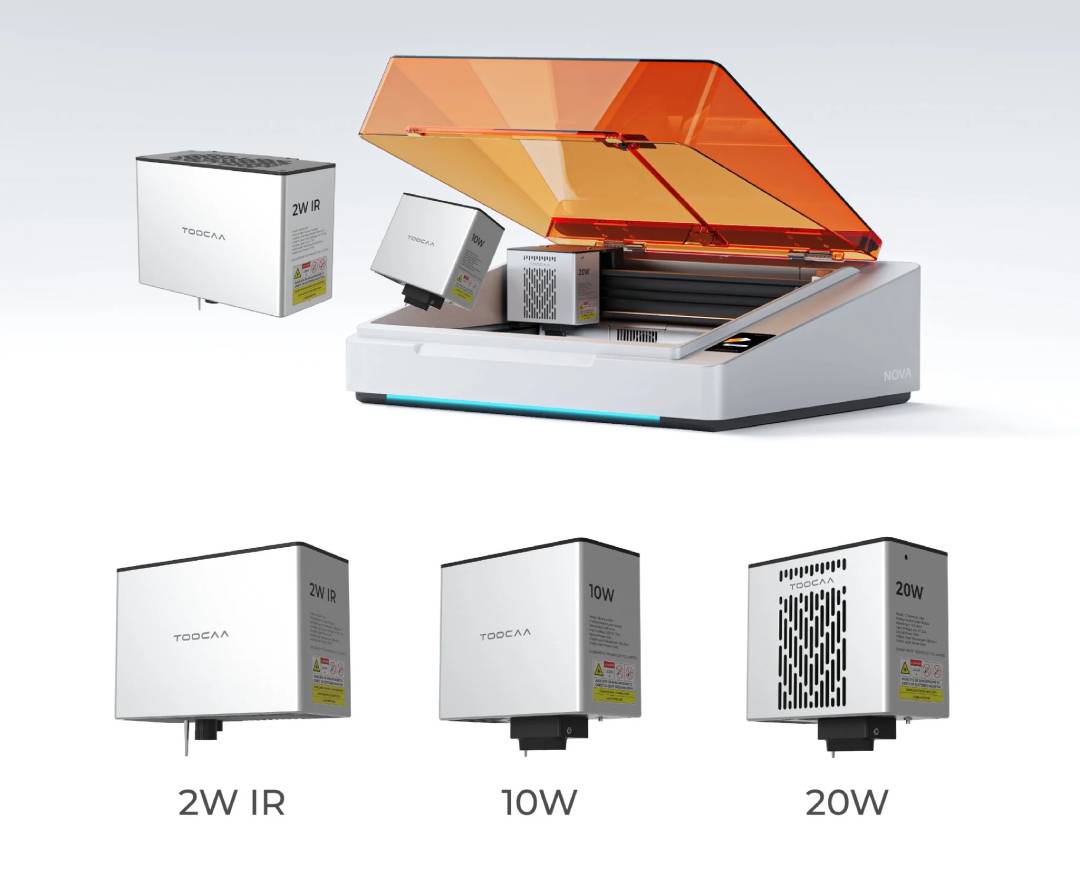

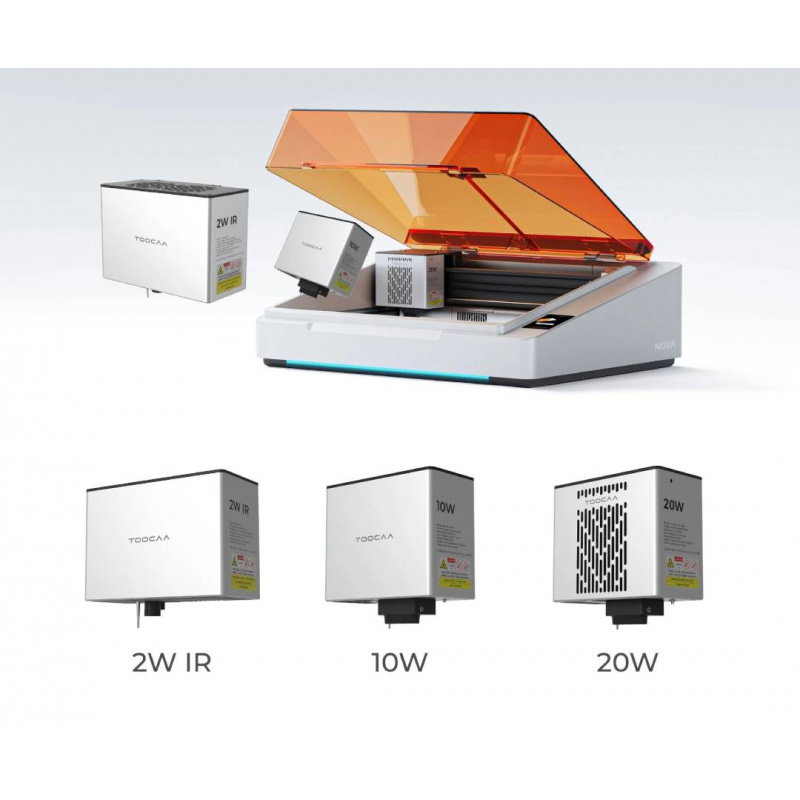

The interchangeable laser module supports 2W, 10W, and 20W IR options to accommodate a wide range of materials. Only the 20W module is included.
High performance and modular design
The TOOCAA NOVA offers engraving speeds of up to 36,000 mm/min , enabling the efficient completion of both single projects and larger batches. The 20W laser module allows for deep engraving and precise cutting of thicker materials in a single pass. The device utilizes interchangeable laser modules , allowing for easy configuration changes without having to replace the entire engraving machine. Available 10W, 20W, and 2W IR versions provide flexibility and allow you to adapt the device to your current needs. The Advanced version is additionally equipped with a Smoke Purifier , which effectively removes smoke and odors, improving work comfort and environmental cleanliness.

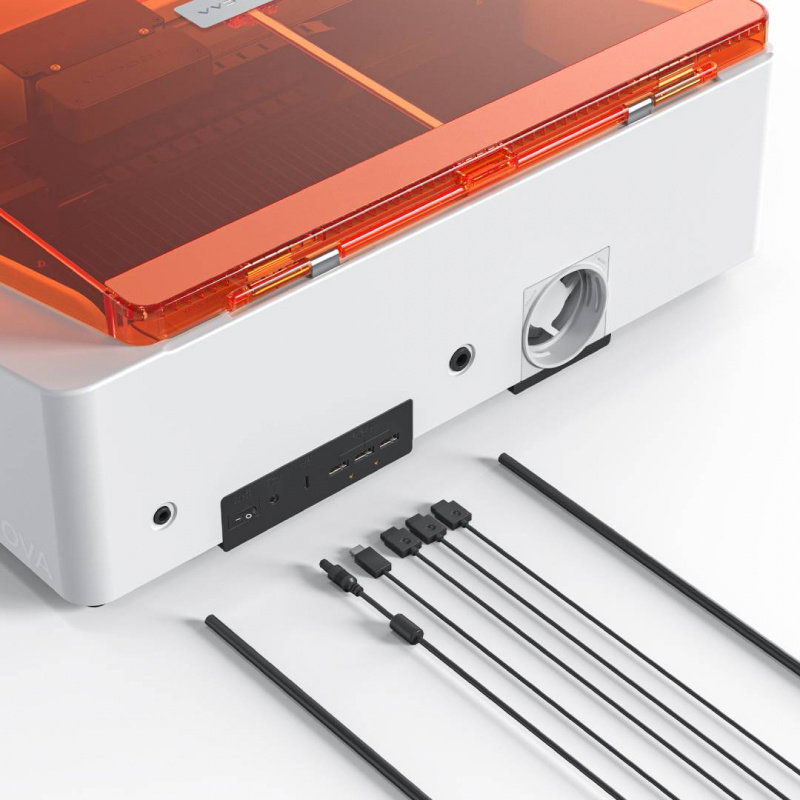

Secure housing and convenient connectivity
The TOOCAA NOVA features a closed SafeShell design compliant with Class 1 standards , ensuring safe use at home, at school, and in the workplace. The security system includes flame detection, a tilt sensor, a lid lock, and parental controls , ensuring protection at every stage of the workflow. An integrated filtration system with intelligent Air Assist effectively removes smoke and contaminants, helping to keep the lens and workspace clean. The plotter is compatible with TOOCAA Studio and LightBurn software and offers USB and Wi-Fi connectivity, allowing for convenient project transfer and work monitoring. Operation is possible both from a computer and directly on the built-in touchscreen . The low noise level of approximately 50 dB allows for comfortable use in the home. Additional features, such as a magnetic tool zone and a backlight that indicates the device's status, enhance the convenience of everyday work.
The low noise level of approximately 50 dB allows for comfortable use of the plotter at home.

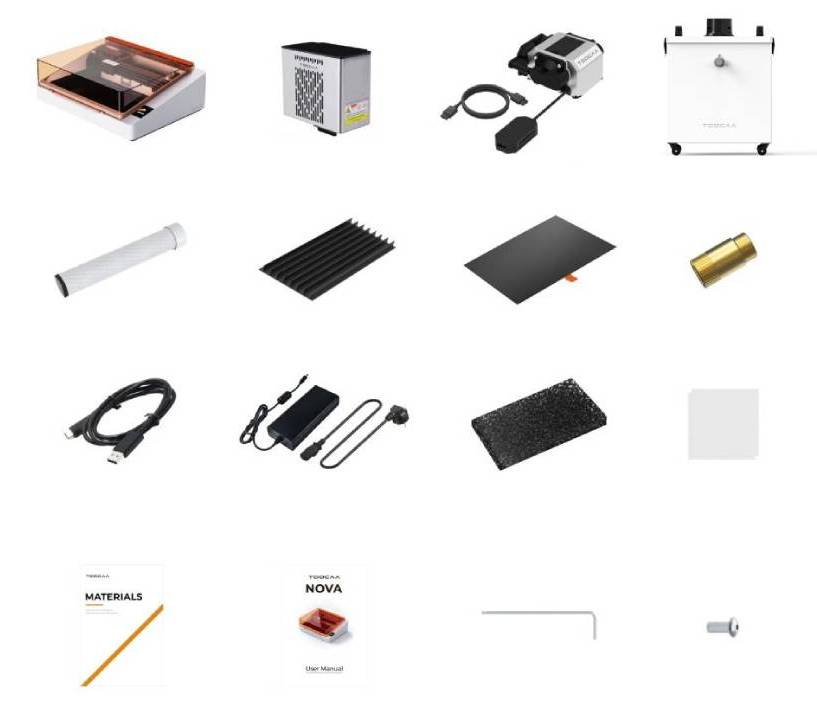

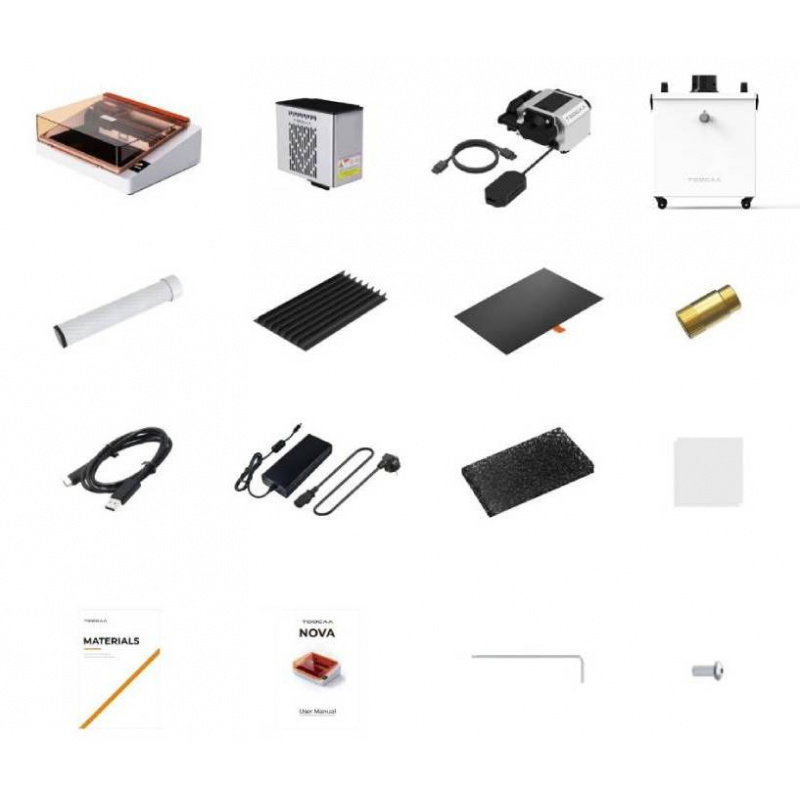

Elements included in the set.
Kit contents
- TOOCAA NOVA laser engraving machine
- 20W laser module
- Air purifier
- Air Assist Kit
- Work panels x4
- Aluminum protective plate
- Pipe
- USB cable
- Power supply and power cord
- Filters, cloths and mounting accessories
- A4 test material
- User manual
| Technical specifications of the TOOCAA NOVA laser plotter | |
|---|---|
| Laser type | diode |
| Laser wavelength | 455 ± 5 nm |
| Laser output power | 20 W |
| Spot size | 0.15 x 0.15 mm |
| Working field | 297 x 210 mm (A4) |
| Maximum engraving speed | 36,000 mm/min |
| Positioning accuracy | 0.01 mm |
| Repositioning accuracy | 0.01 mm |
| Supported materials | wood, plywood, MDF, bamboo, leather, fabrics, cardboard, acrylic (dark), lacquered metal, stainless steel, anodized aluminum, glass (dark), ceramics, stone, slate |
| Software | TOOCAA Studio, LightBurn |
| Supported systems | Windows, macOS |
| Communication | USB Type-C, WiFi |
| Interfaces | emergency button, expansion port, rotary module support |
| Security | flame detection, tilt detection, lid opening sensor, parental lock, laser module monitoring, air assist, overheating protection, emergency button |
| Input voltage | AC 100V to 240V, 50/60Hz, 2.5A |
| Operating voltage | 24V / 7.5A |
| Housing material | aluminum alloy, ABS, PC |

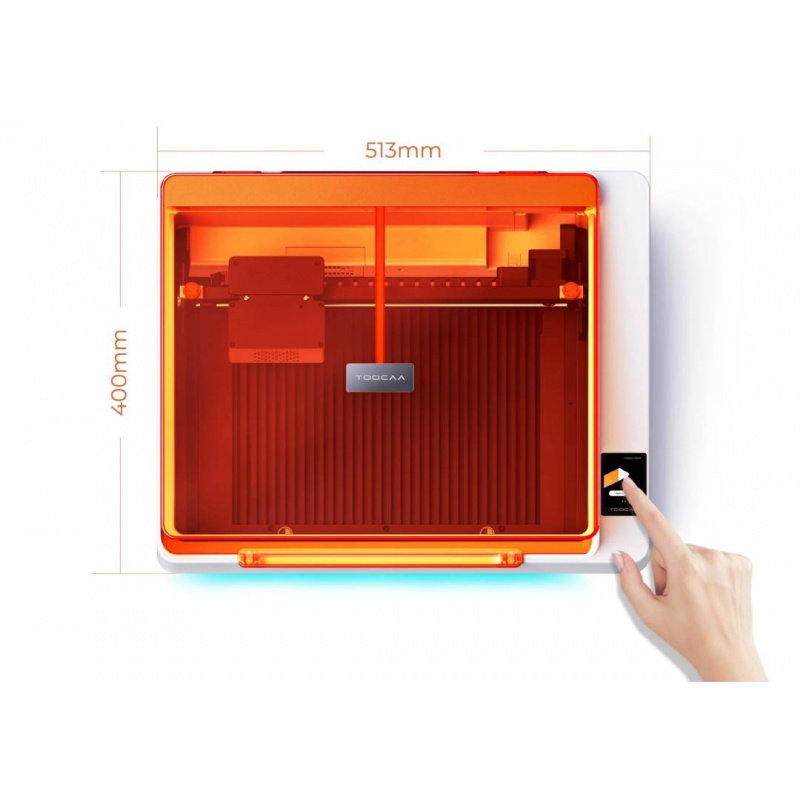

| Dimensions | 513 x 402 x 180 mm |
| Mass | 8.27 kg |
