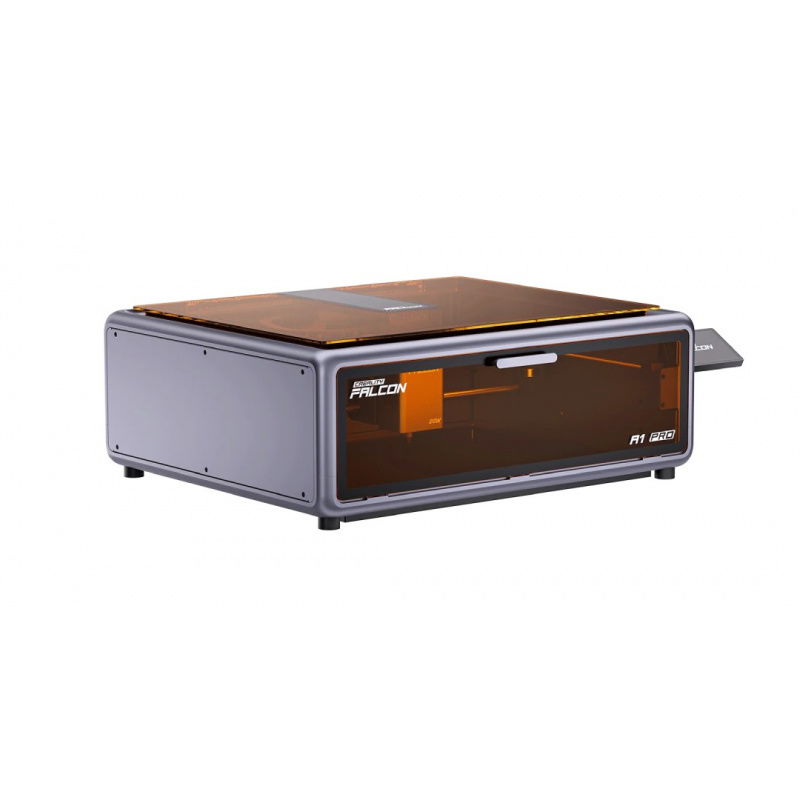

Product description: Laser cutter - Creality Falcon A1 Pro - 20 W
The Creality Falcon A1 Pro is a modern laser engraving machine designed for users who demand efficiency, simplicity, and safety . Equipped with a 20W blue laser , it offers a 268 x 358mm work area, allowing for cutting up to 10mm plywood and 8mm acrylic. The AI Vision system with an HD camera provides automatic focus and visual design positioning, while the touchscreen simplifies operation without a computer. A workflow speed of up to 600mm/s , support for over 300 materials, full integration with Falcon Design Space software, and a Class 1 enclosed design make the Falcon A1 Pro ready to work right out of the box – both in the studio and at home.

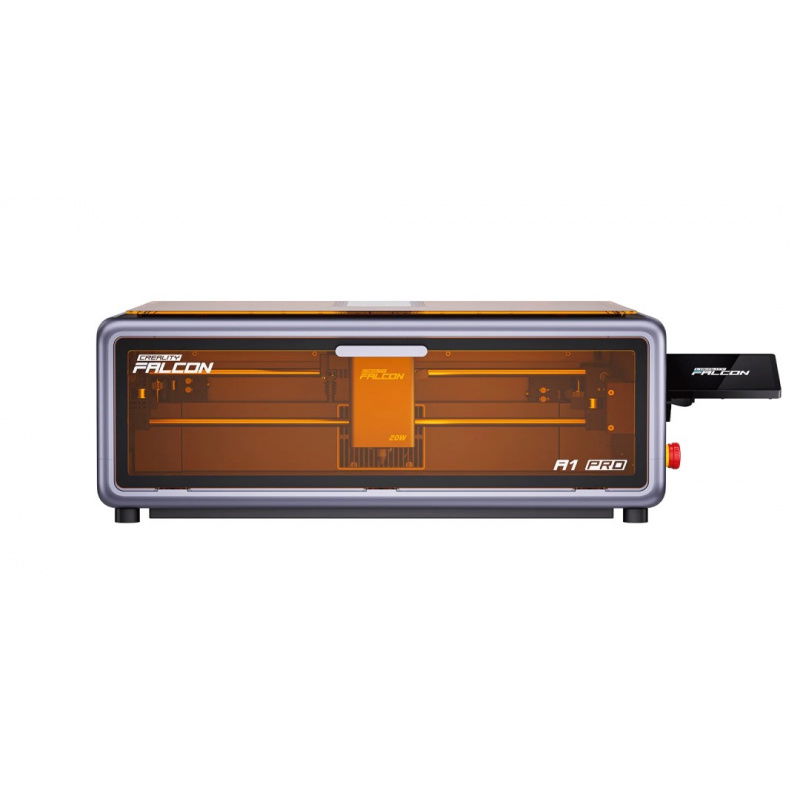

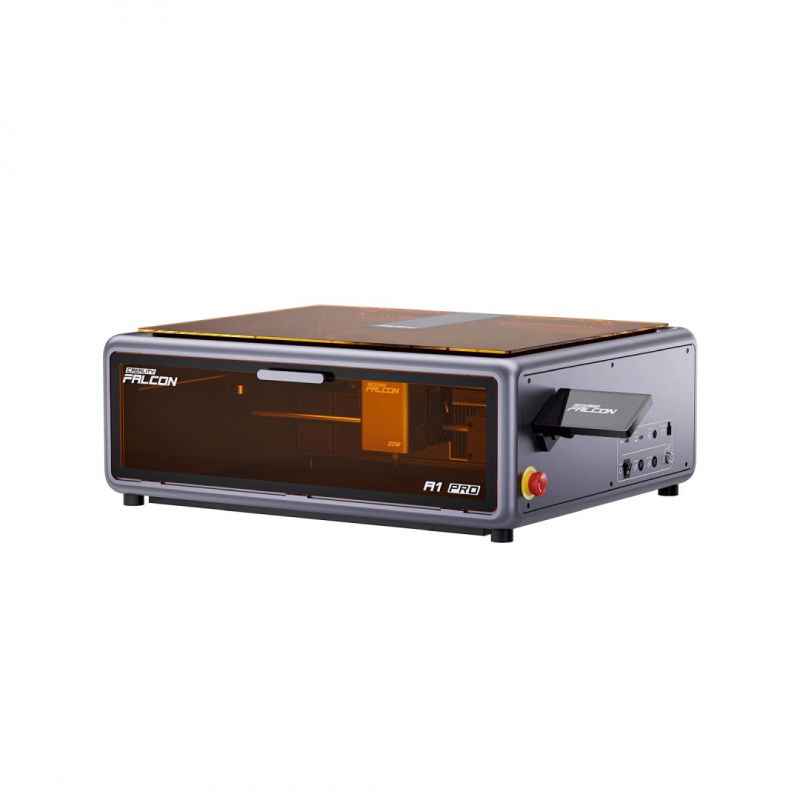

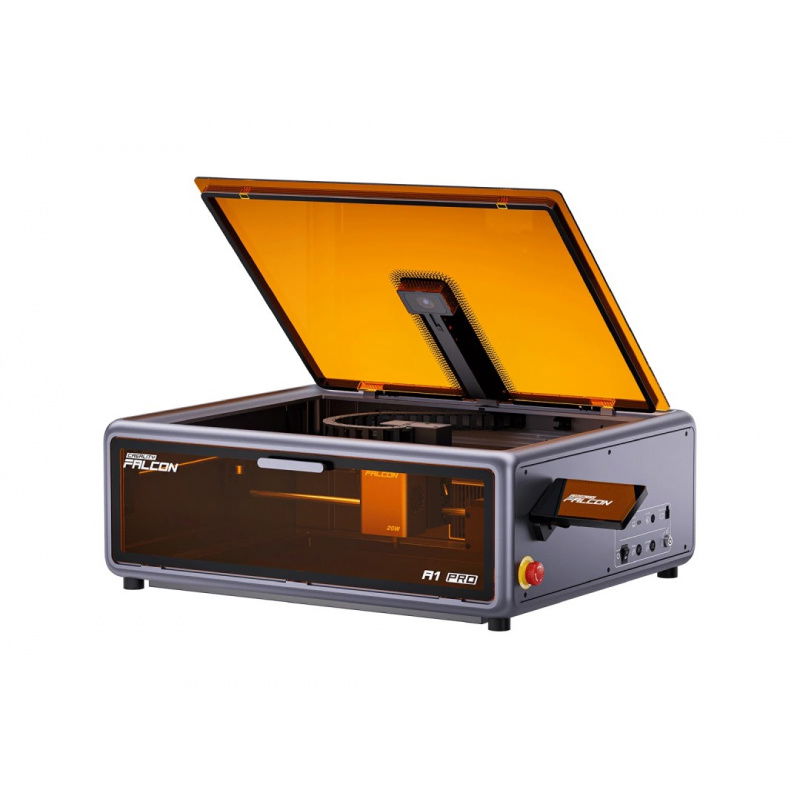

Laser Plotter - Creality Falcon A1 Pro - 20 W

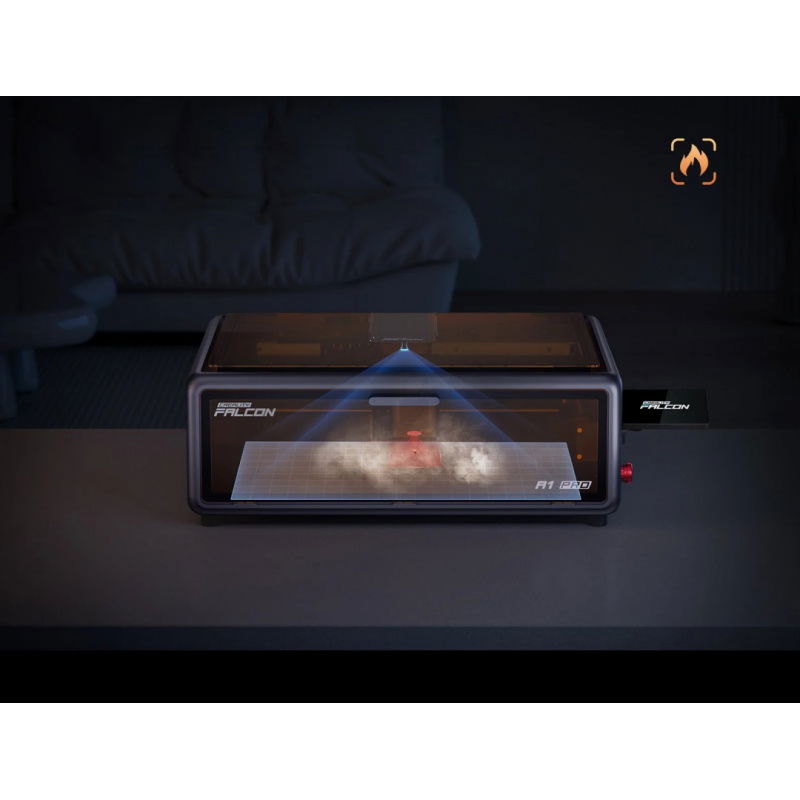

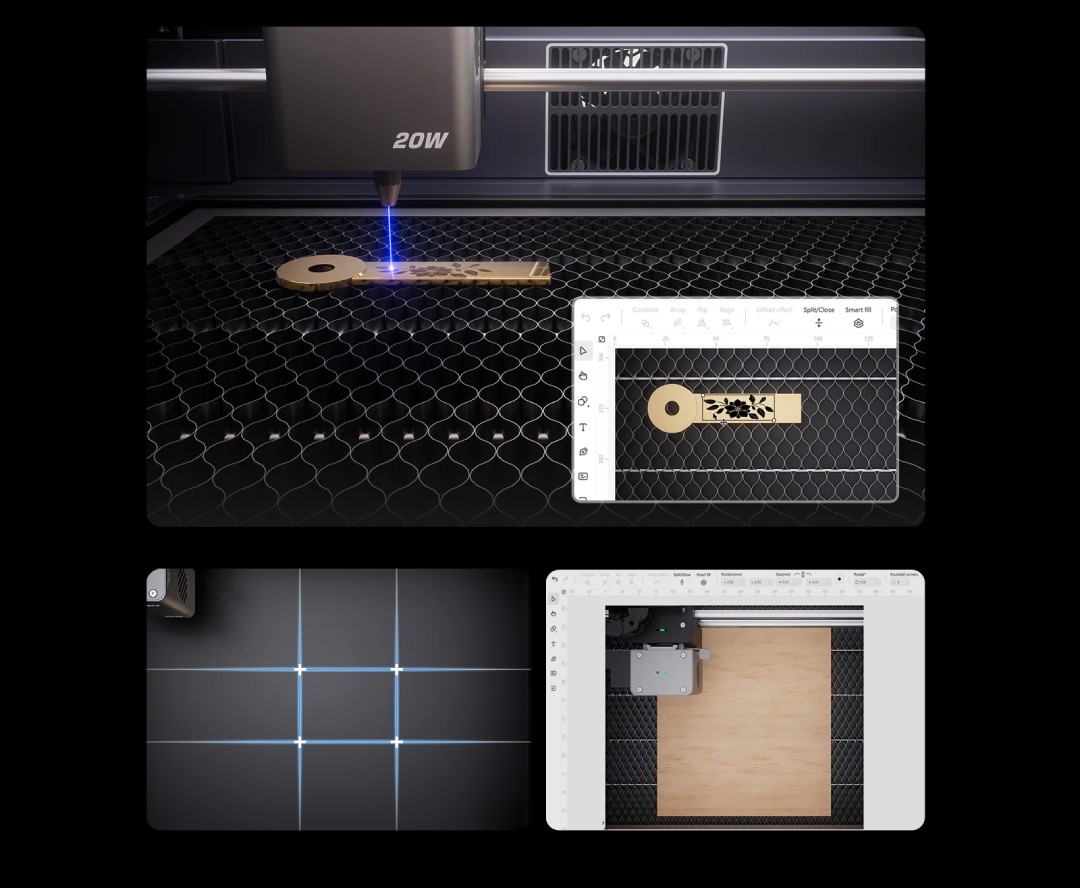

The top-down camera allows you to view the entire area and precisely position objects.
Professional 20W power - cutting and engraving without compromise
The Creality Falcon A1 Pro is equipped with a powerful 20W blue laser , enabling precise cutting of thicker materials in a single pass— up to 10mm of wood or 8mm of acrylic . Thanks to advanced optics and high energy concentration, the device handles a variety of surfaces, from wood and leather to stainless steel and plastics . This allows for the completion of even the most demanding hobby and commercial projects. The entire unit is designed with the efficiency and precision typical of industrial-grade machines in mind.

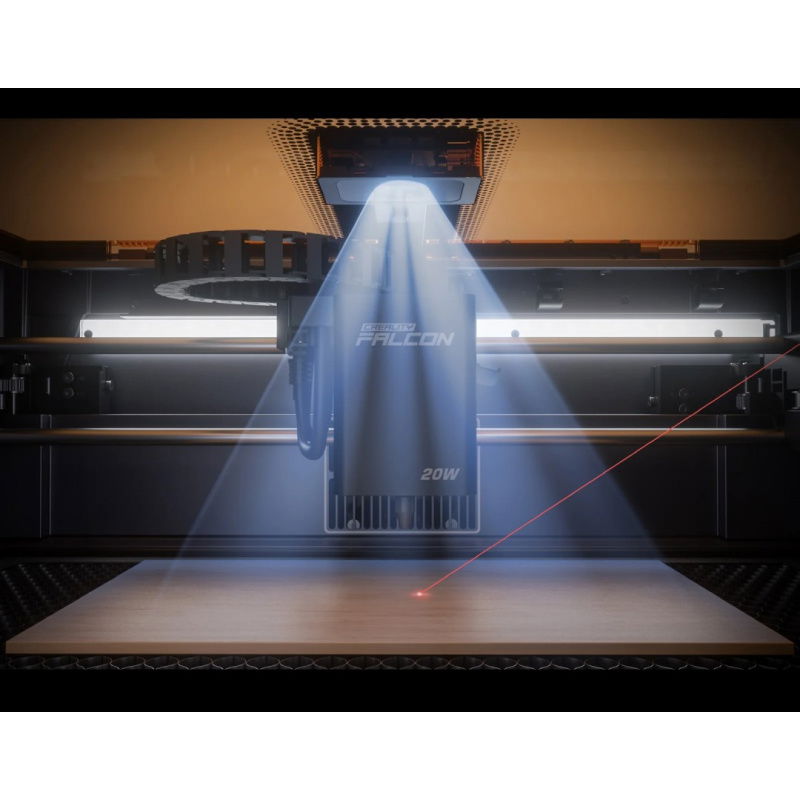

Intelligent autofocus with camera - perfect focus in 3 seconds

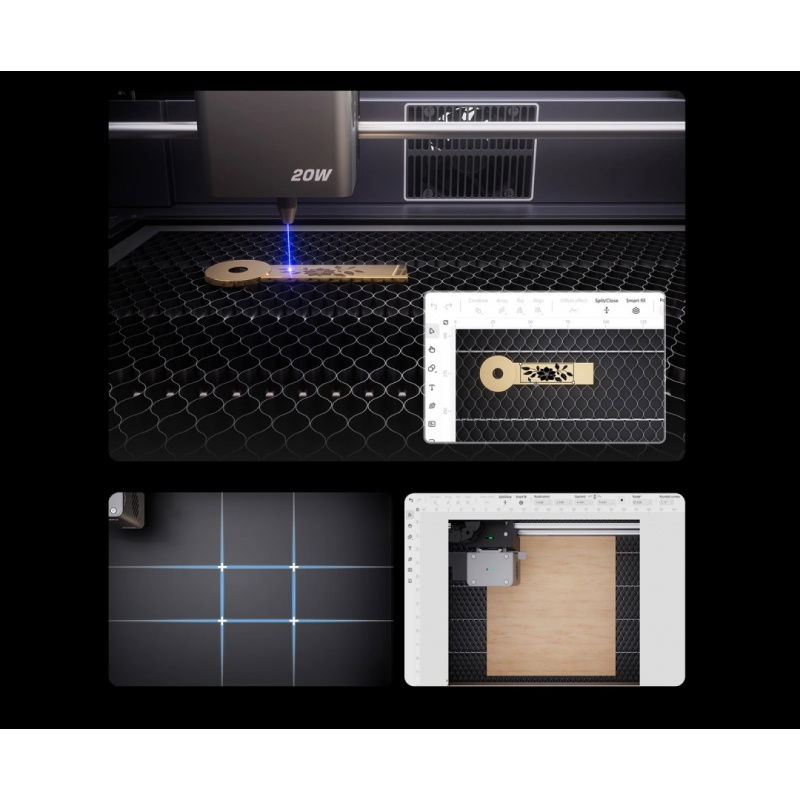

The integrated AI Vision system with an HD camera and laser rangefinder enables automatic focal length adjustment with an accuracy of less than 0.3 mm in just 3 seconds . This is a huge advantage, especially when frequently switching between materials or projects with different heights. The camera not only ensures focus but also allows for visual positioning of the artwork, real-time preview of the work area, and intelligent framing . This helps you avoid errors and achieve consistent results from the first use.

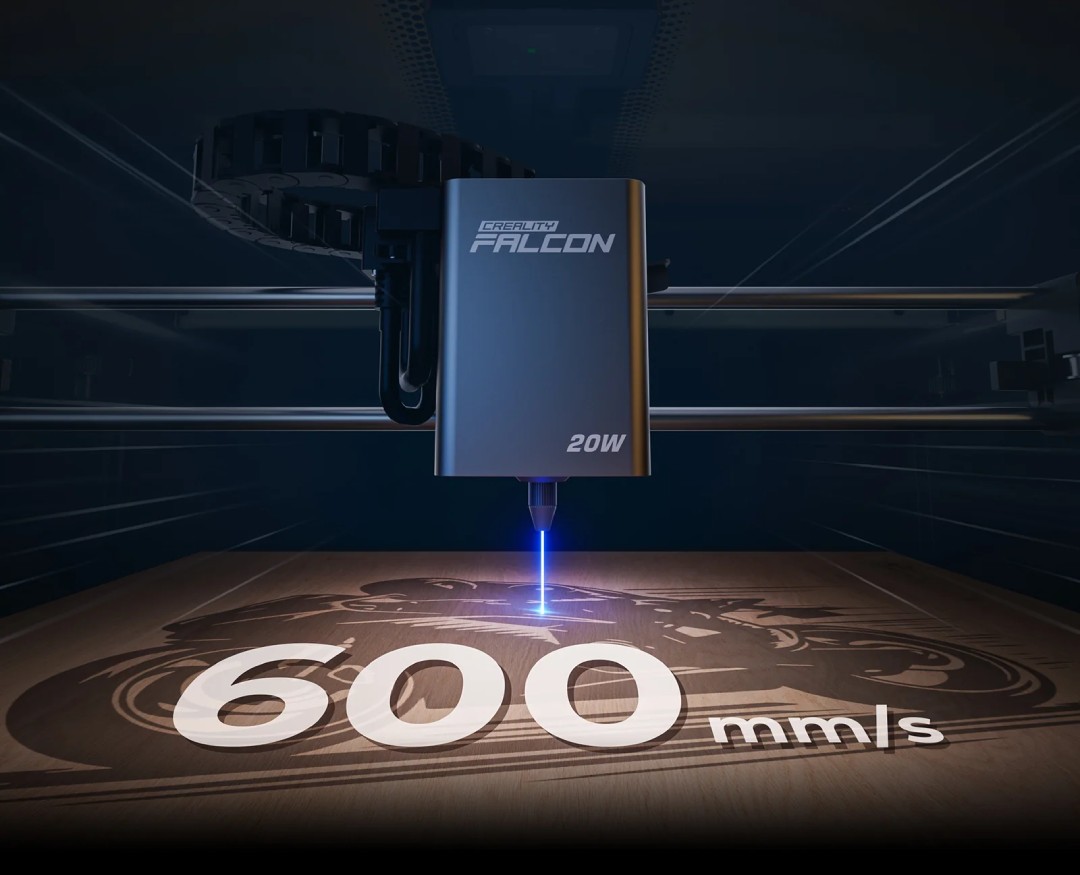

High speed and stability - up to 600 mm/s
The Falcon A1 Pro reaches operating speeds of up to 600 mm/s , making it one of the fastest laser engravers in its class. Performance goes hand in hand with quality – even at high speeds, the device maintains complete stability and precision. It's an ideal solution for both single-item production and mass marking or cutting . The intelligent engraving function for multiple items simultaneously increases efficiency, shortening project turnaround times.

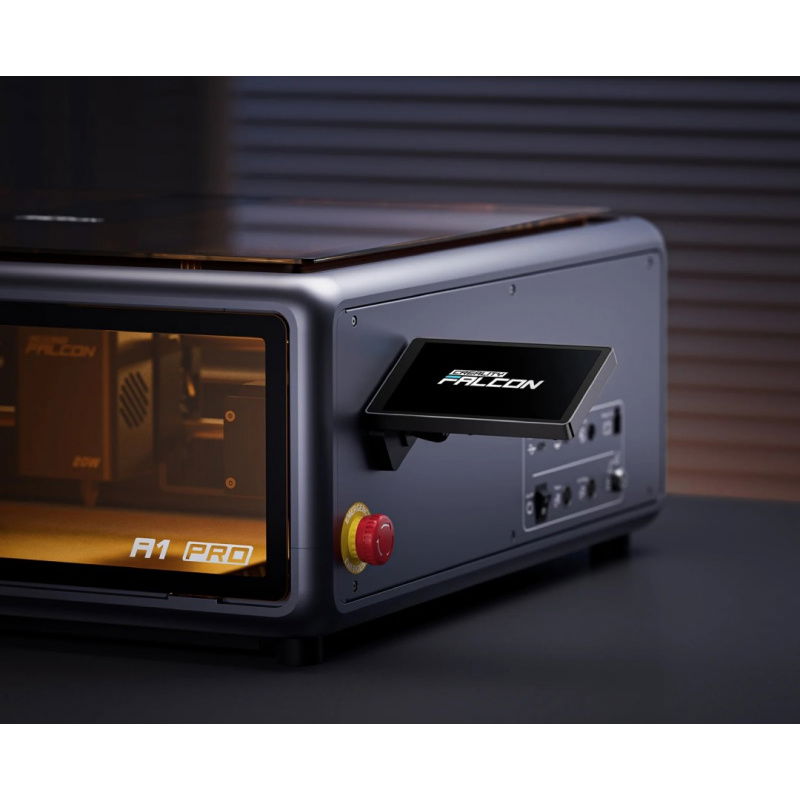

Integrated touchscreen - smartphone-like control
The A1 Pro features a modern touchscreen that resembles a smartphone interface. It lets you easily manage projects, View your activity history and track your engraving progress in real time—all without the need for a computer. The interface also allows for quick file transfers from the mobile app , making the workflow even more convenient. This is a perfect solution for those who value simplicity, mobility, and intuitive control.

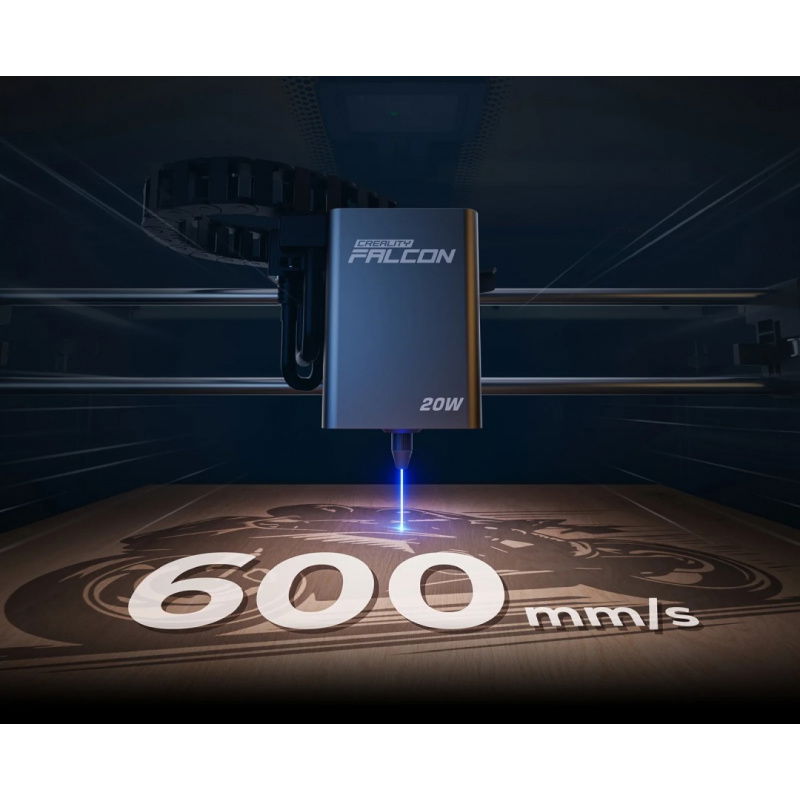

High speed translates into high work efficiency.

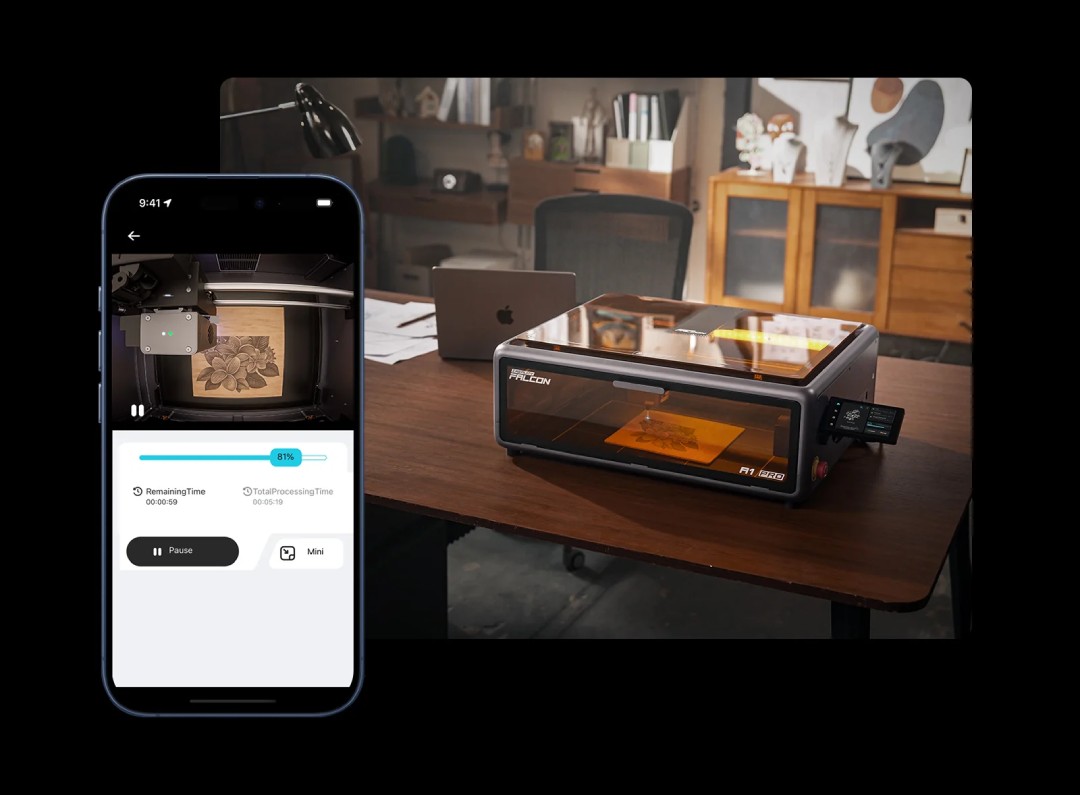

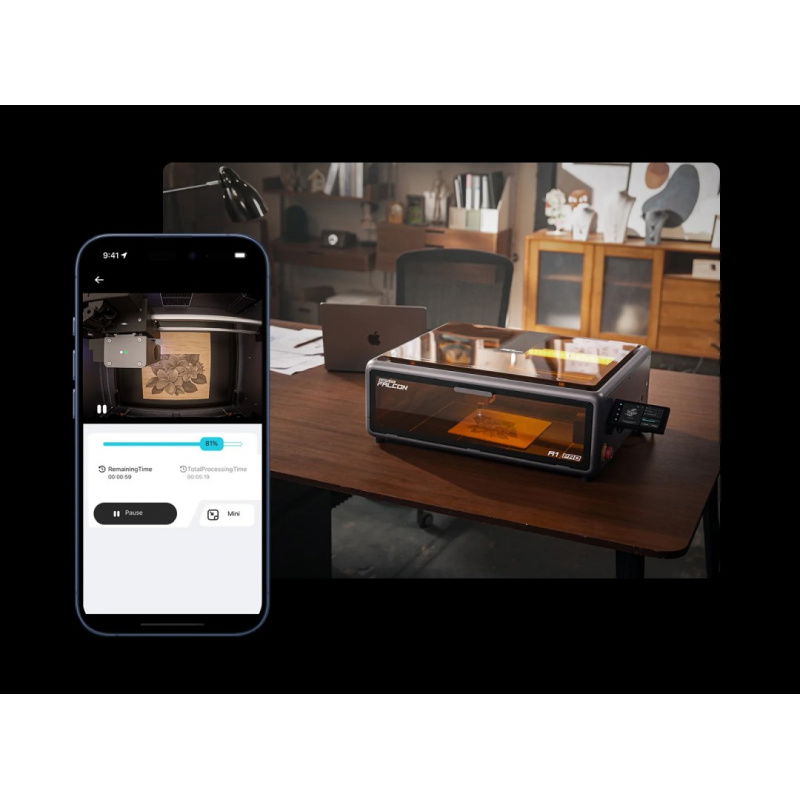

The application allows you to monitor work progress in real time from anywhere.
All-in-One design - safe and home-like

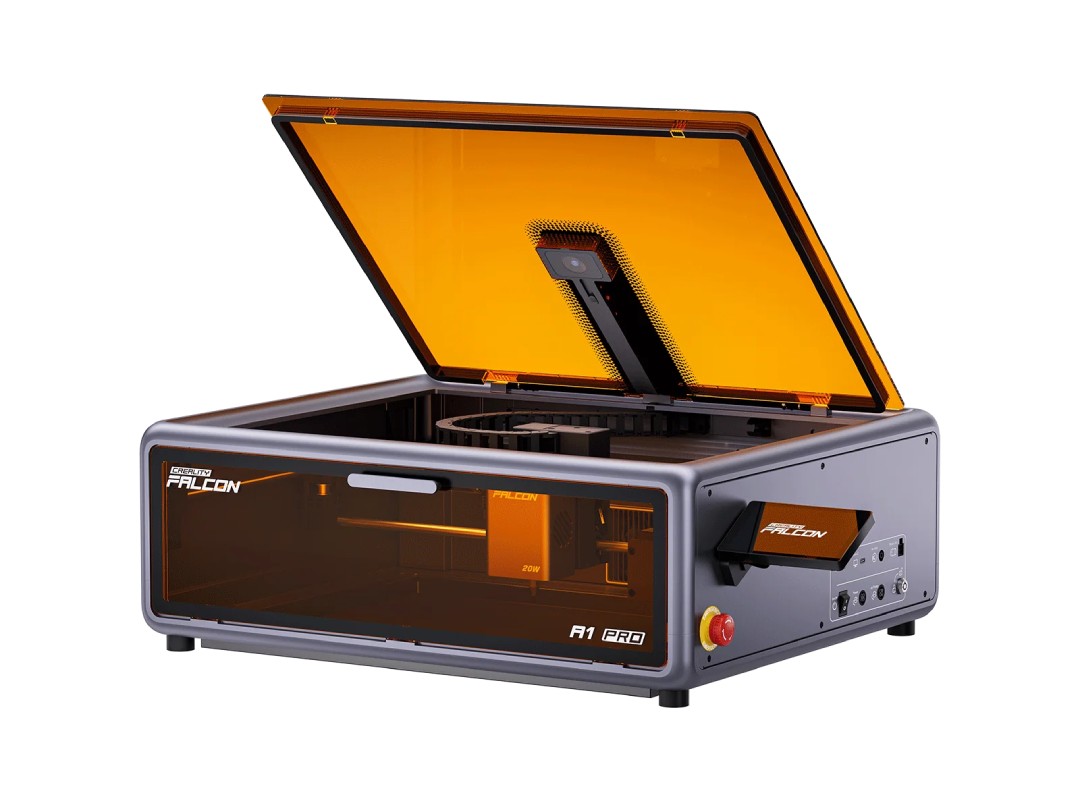

The Falcon A1 Pro is designed as a compact all-in-one device, ideal for home use. The entire unit is housed in a sealed, Class 1 laser safety enclosure equipped with eight protective zones, an eye shield, cover opening sensors, and a flame detection system . A smoke filter and dual fans efficiently extract exhaust fumes during cutting. At 567 x 468 x 211 mm, the plotter takes up up to 47% less space than comparable models, and a transparent window allows for convenient viewing of the laser.
Falcon Design Space - more than software
The manufacturer has designed a dedicated Falcon Design Space platform to operate the device, guiding the user through the entire process—from design, through settings, and finally engraving. Thanks to ready-made templates, intelligent prompts, and automatic parameter configuration , even beginners can achieve satisfying results without tedious testing. The application also works with popular LightBurn and LaserGRBL software, ensuring full compatibility with numerous file formats. It's not just a tool, but a complete creative ecosystem that supports the development and monetization of projects.

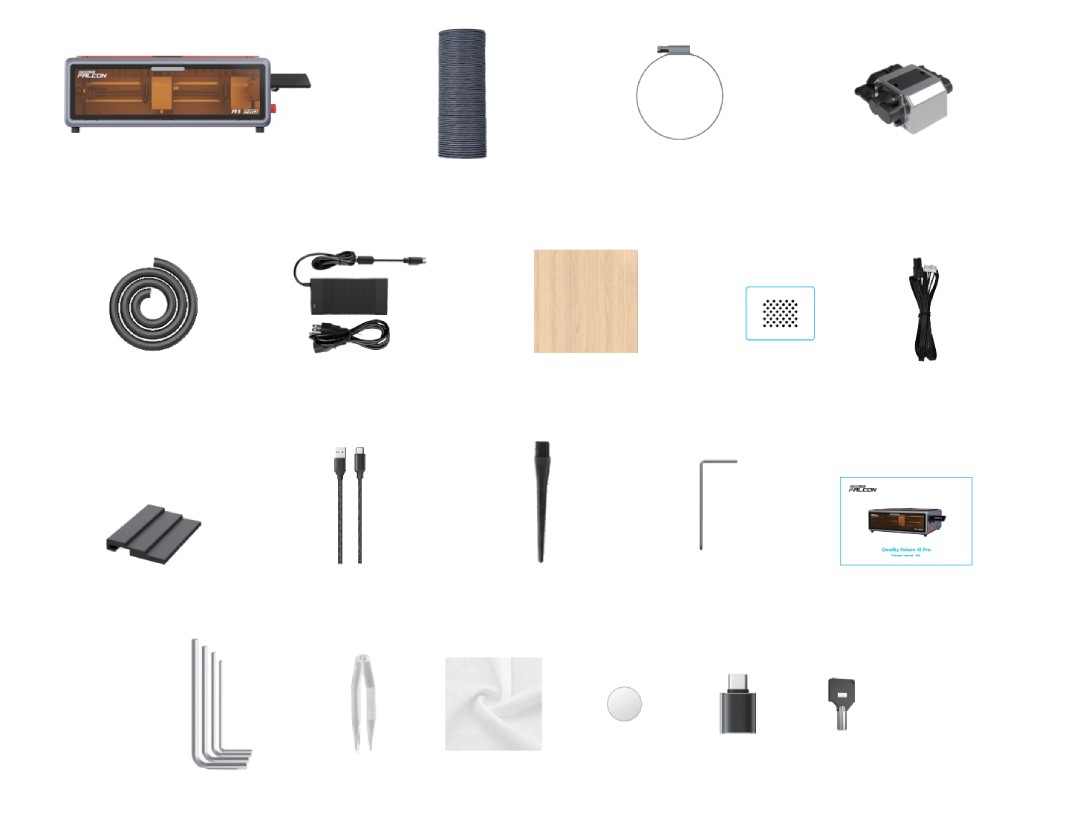

Contents of the set
- Creality Falcon A1 Pro 20W
- Charger
- Exhaust pipe
- Cable tie
- Silicone cable
- Plywood 300 x 300 x 3 mm
- Focusing block
- Calibration card
- USB Type-A to USB Type-C cable and adapter
- Tweezers, brush, lint-free cloth
- Protective lens
- Allen key set M1.5 / M2 / M2.5 / M3
- User manual

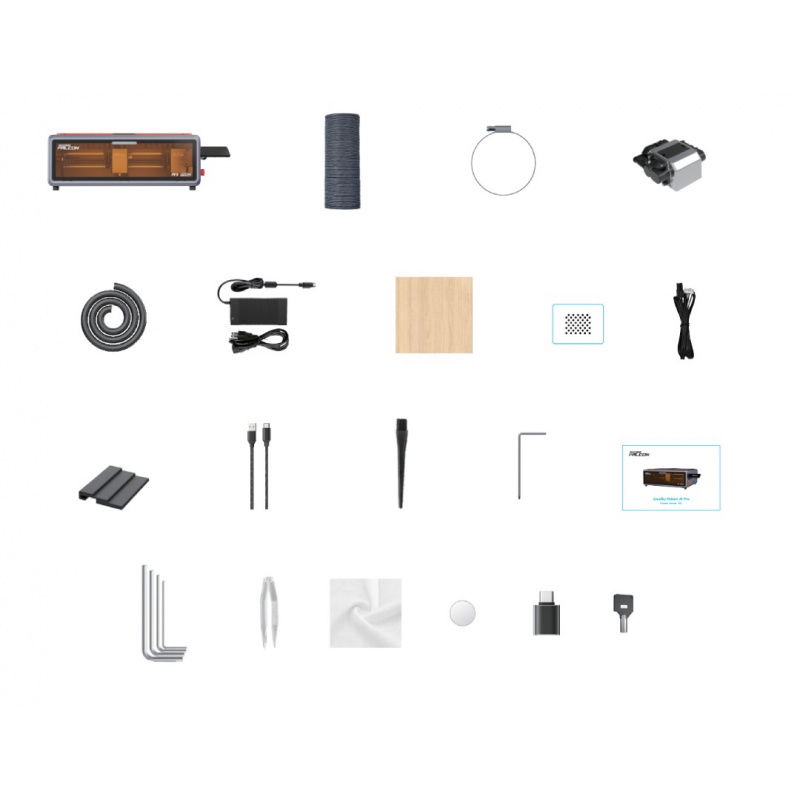

Elements included in the set.
| Creality Falcon A1 Pro plotter technical specifications | |
|---|---|
| Laser type | Semiconductor blue laser |
| Optical power | 20 W |
| Laser wavelength | 455 ±5 nm |
| Work area | 268 x 358 mm |
| Maximum operating speed | 600 mm/s |
| Autofocus system | AI Vision + red laser rangefinder |
| Autofocus precision | < 0.3 mm |
| Operating systems | Windows, macOS |
| Software | Falcon Design Space, LightBurn, LaserGRBL |
| File formats | jpeg, jpg, png, bmp, svg, dxf etc. |
| Materials | wood, acrylic, paper, rubber, leather, glass, plastic, painted metal |
| Laser safety | Class 1 |
| Input voltage | From 100V to 240V, 50/60Hz |
| Output voltage | DC 24V / 7.5A |
| Operating temperature | from 5°C to 35°C |
| Dimensions | 567 x 468 x 211 mm (685 x 468 x 211 mm with screen) |
| Mass | 16.8 kg |
