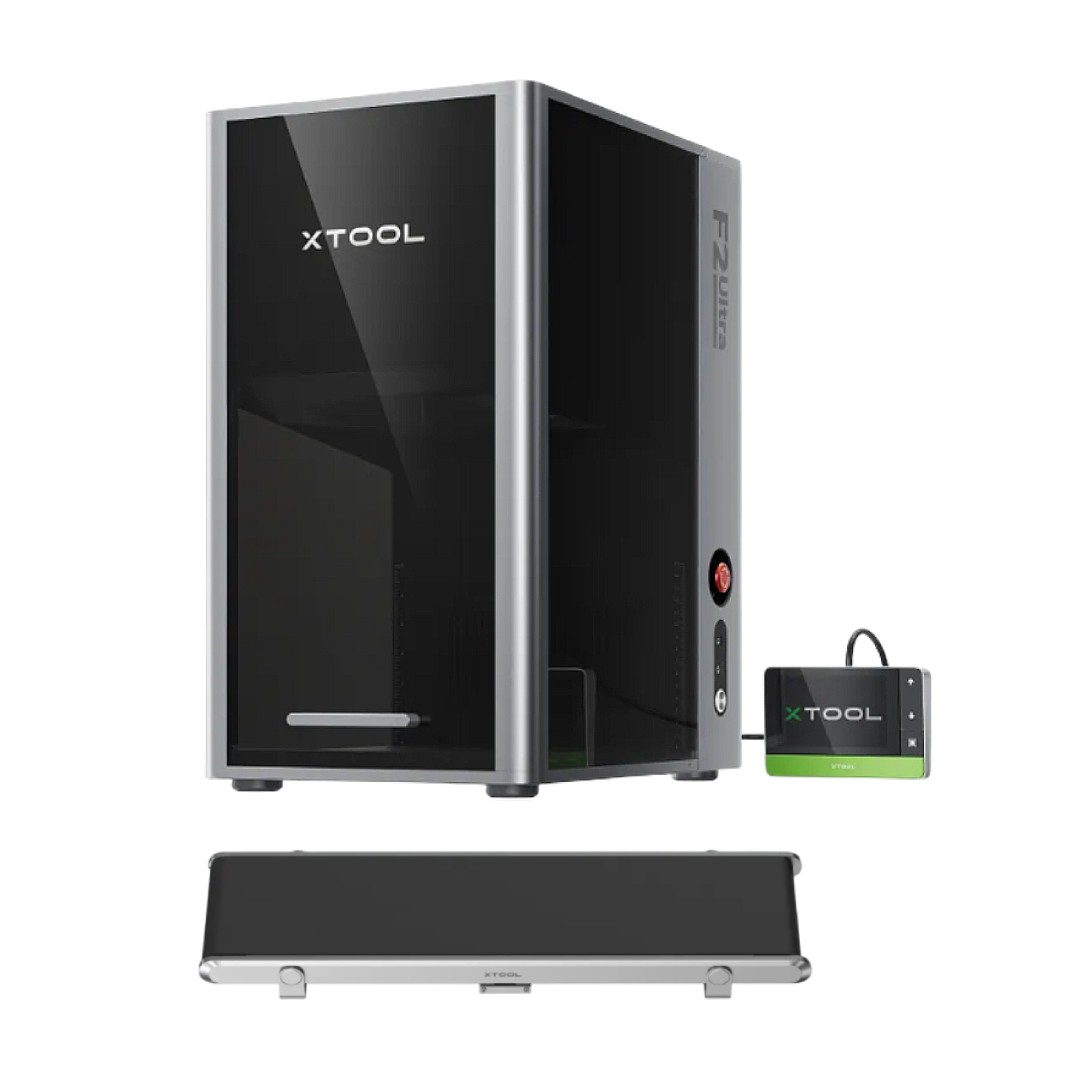

Product description: xTool F2 Ultra - MOPA 60 W laser cutter and engraver + 40 W diode - included with a conveyor belt
The xTool F2 Ultra is a professional laser cutter and engraver that combines a 60W MOPA laser with a 40W diode laser . This combination allows the F2 Ultra to deliver a wide range of capabilities, including color engraving on metals and cutting and engraving on materials such as wood, acrylic, and leather . Equipped with dual 48MPx cameras , the F2 Ultra allows for precise positioning with an accuracy of 0.2mm . The F2 Ultra allows for the quick completion of complex designs with a working speed of up to 15,000mm/s and a working area of 220x220mm (with a conveyor belt up to 220x500mm). Thanks to MOPA technology, the device enables precise metal cutting and achieves clear, long-lasting color effects on a variety of materials. It is ideal for companies and creatives looking for a versatile, efficient tool for material processing.

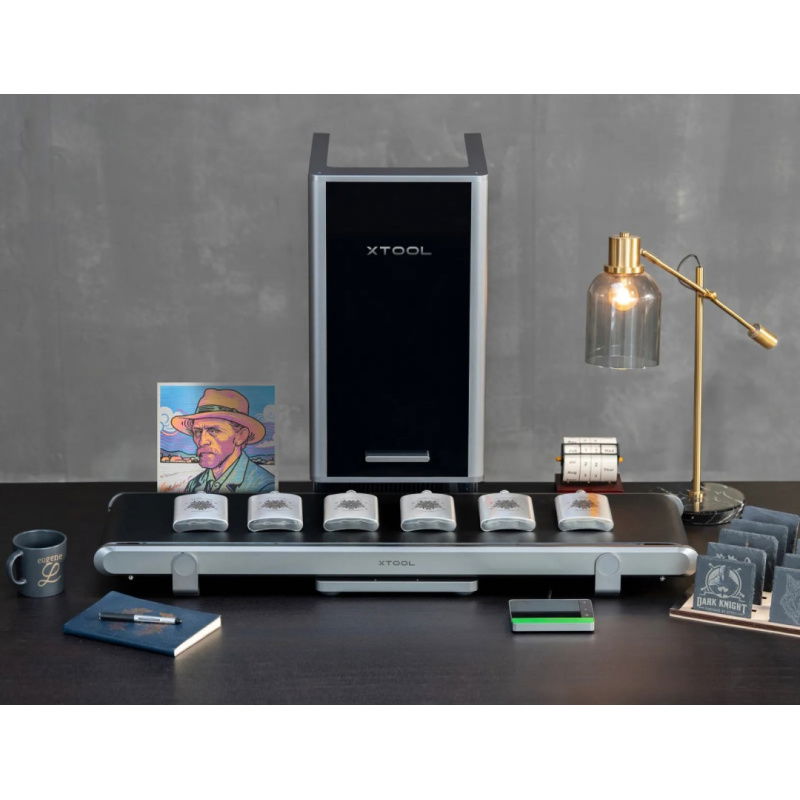

xTool F2 Ultra - MOPA 60 W + 40 W diode laser cutter and engraver - included with a conveyor belt.

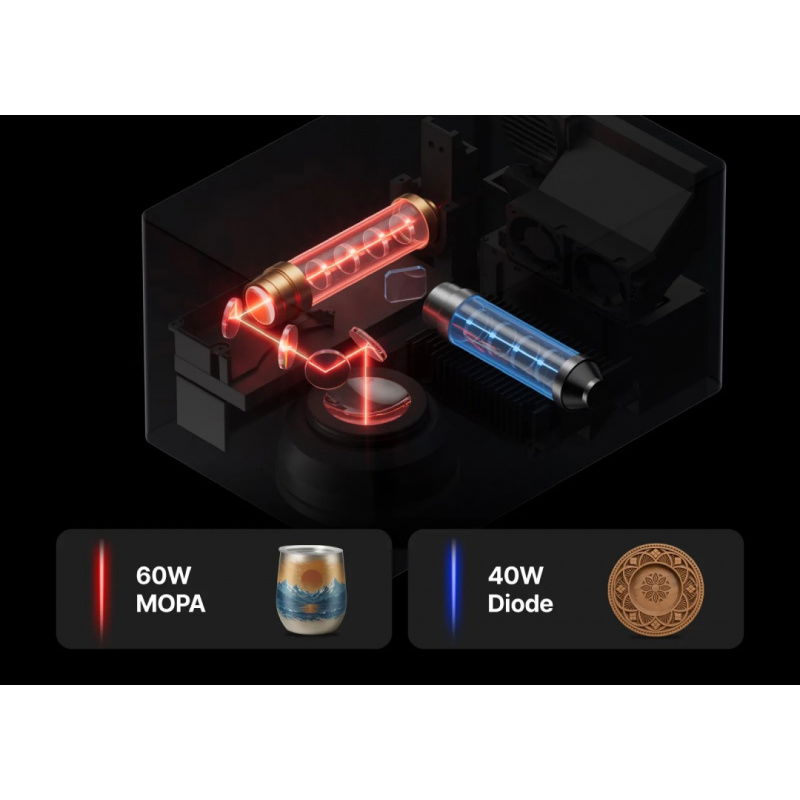

xTool F2 Ultra which combines a 60 W MOPA laser and a 40 W diode laser.
Powerful laser system
The xTool F2 Ultra is equipped with two lasers – a 60W MOPA and a 40W diode – allowing for an incredibly wide range of applications. The MOPA enables precise color marking on metals , offering over 100 different colors on stainless steel, titanium, and more . The diode laser, on the other hand, is ideal for cutting non-metallic materials like wood, acrylic, and leather , ensuring clean edges even when cutting thick materials.
Exceptional precision thanks to dual cameras
The F2 Ultra features dual 48MP cameras that provide unprecedented positioning accuracy of 0.2mm . These cameras allow the device to achieve high precision and detail, even when working with the smallest components. Dual cameras allow for more accurate design reproduction , which is particularly useful for fine engraving and precision cutting.
Innovative metal cutting and engraving
The F2 Ultra, with its 60W MOPA laser , cuts metals like stainless steel, brass, and aluminum , achieving deeper cuts than traditional lasers. MOPA offers increased power and frequency control, allowing it to cut metals up to 2mm thick . This technology produces precise, sharp edges, making the F2 Ultra an ideal choice for advanced metal processing.
Unmatched operating speed
The F2 Ultra boasts an operating speed of up to 15,000 mm/s , making it a high-performance machine ideal for high-volume production . This speed significantly accelerates engraving and cutting processes, allowing you to complete more projects in less time. This increased speed also makes the machine more efficient for large production runs.

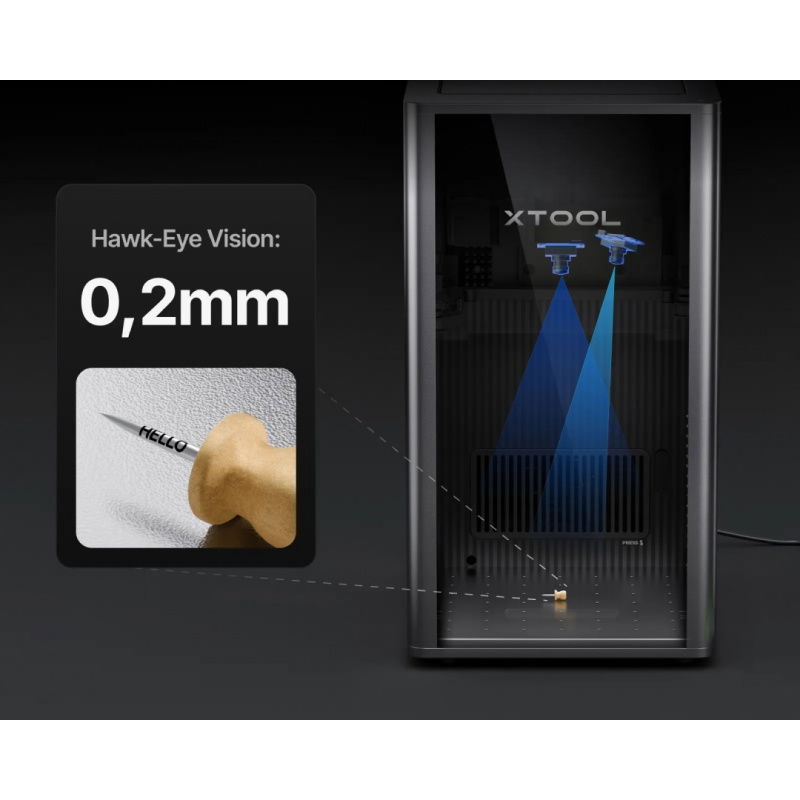

Two 48MP AI cameras increase accuracy to 0.2mm.
Thanks to the conveyor belt, the dimensions of the working area are increased to 220 x 500 mm.
Extended work surface with conveyor belt
The standard xTool F2 Ultra offers a 220 x 220 mm work area , sufficient for many projects, but with the additional conveyor belt, the work area expands to 220 x 500 mm . This allows users to complete larger projects, such as batch production or cutting large materials , without the need for frequent setup changes. This option automates processes, speeding up the completion of larger orders.
Advanced functionality and easy operation
The xTool F2 Ultra comes equipped with xTool Creative Space software and features like automatic color recognition and 3D modeling , which significantly simplify operation. With the help of artificial intelligence, users can quickly adjust settings to match materials, minimizing errors and waste . These features make the F2 Ultra an ideal solution for both hobbyists and professionals looking for a powerful tool for advanced material processing.
Contents of the set
- xTool F2 Ultra
- Conveyor belt
- Touch controller
- Drain pipe
- Charger
- Power cord
- USB cable
- USB key
- Panel with strips
- Positioning element
- Lint-free cloth
- Screwdriver
- Materials package
- Instructions

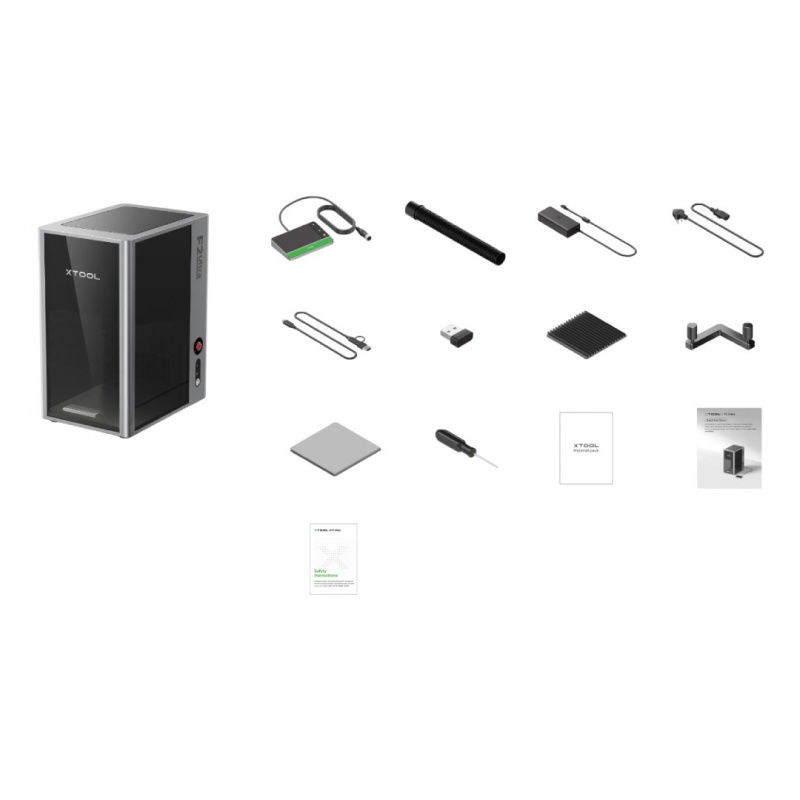

Elements included in the set.
| xTool F2 Ultra Technical Specifications | |
|---|---|
| Laser type | 40W diode laser + 60W MOPA laser |
| Operating modes | Engraving, cutting |
| Supported materials - cutting |
LED: paper, wood, leather, MDF, felt, dark acrylic MOPA: brass, stainless steel, aluminum |
| Supported materials - engraving |
LED: paper, wood, leather, MDF, stainless steel, some dark acrylics, bamboo, fabrics, dark glass, ceramics, jade, marble, slate, cement, brick, coated metal, painted metal MOPA: stainless steel, aluminum, brass, silver, plastic, platinum, titanium, gold |
| Work area | 220 x 220 mm (220 x 500 mm with conveyor belt) |
| Max operating speed | 15000 mm/s |
| Max cutting thickness (plywood) | 23 mm in multiple passes |
| Max cutting thickness (acrylic) | 20 mm in multiple passes |
| Max processing height | 150 mm |
| Max rotary engraving diameter | 150 mm |
| Supported software | xTool Creative Space / Atomm |
| Operating system | Windows / macOS |
| Connection method | USB / WiFi / IP |
| Built-in camera | Dual 48 MPx camera |
| Positioning method | Camera positioning |
| Focus mode | Autofocus |
| Preview method | Smart Camera Preview |
| Movement accuracy | 0.00482 mm |
| Safety certificate | Class 4 |
| Max input power | 400 W |
| Power supply input voltage | From 220V to 240V, AC 50/60 Hz |
| Dimensions | 294 x 429 x 521 mm |
| Mass | 21.6 kg |
