Product description: Shelly 1PM Gen4 kit - WiFi / Bluetooth / ZigBee / Matter 16 A relay - energy measurement - 4 pcs.
This set of four Shelly 1PM Gen4 controllers are compact, built-in modules that enable remote control of electrical devices and precise energy consumption measurement. Each controller combines ZigBee, WiFi, Bluetooth 5.0, and Matter standards, ensuring broad compatibility with smart home systems. Their small size allows them to be mounted in flush-mounted boxes, behind light switches, or sockets. Built-in power measurement allows for real-time energy consumption analysis, while schedule and scene support enables the creation of advanced automation solutions without the need for an additional hub.
Shelly 1PM Gen4 Kit - WiFi / Bluetooth / ZigBee / Matter 16 A relay - energy measurement - 4 pcs.
The Shelly 1PM Gen4 set of 4 controllers are compact built-in modules that enable remote control of electrical devices and precise measurement of energy consumption.Special features
- Multi-standard communication: ZigBee (802.15.4), WiFi 802.11 b/g/n, Bluetooth 5.0 and Matter support
- Energy consumption measurement: built-in wattmeter and ammeter with real-time readings
- Flush-mounted: compact housing allows installation in electrical boxes
- No hub required: can work via WiFi without a central unit
- Integration with automation systems: MQTT, HTTPS, Web Hooks, KNXnet/IP and ShellyScript support
- Schedules and scenes: up to 20 tasks to automate device operation
- Repeater function: ZigBee and WiFi signal amplification
- Thermal protection: built-in temperature sensor to protect against overheating
- Remote access: control via app, web browser or integration with smart home platforms
Practical applications
Shelly 1PM Gen4 controllers are ideal for automating lighting, controlling sockets, blinds, pumps, and heating systems. They enable remote switching of devices and monitoring their energy consumption, which helps optimize operating costs. Supporting multiple communication protocols, the modules can be easily integrated into existing Smart Home installations. They are suitable for both single-family homes and offices and commercial buildings where energy consumption control and process automation are essential.
Shelly 1PM Gen4 Technical Specifications
- Power supply: 110 V to 240 V~; 24 V to 30 V
- Power consumption: < 1 W
- Neutral wire required: yes
- WiFi: 802.11 b/g/n; 2412 MHz to 2472 MHz; < 20 dBm; up to 30 m indoors / up to 50 m outdoors (depending on conditions)
- Bluetooth: 5.0; 2402 MHz to 2480 MHz; < 4 dBm; up to 10 m indoors / up to 30 m outdoors (depending on conditions)
- ZigBee: 802.15.4, <20 dBm, 2400 MHz to 2483.5 MHz; up to 100 m indoors / up to 300 m outdoors (depending on conditions)
- Repeater function: yes
- AC voltage measurement (voltmeter): yes
- AC current measurement (ammeter): yes
- Internal temperature sensor: yes
- Processor: ESP-Shelly-C68F
- Flash memory: 8 MB
- Number of schedules: 20
- Webhooks (URL actions): 20, with the ability to assign 5 URLs to each webhook
- Scripting support: yes
- MQTT communication: yes
- Operating temperature: -20°C to 40°C
- Operating humidity: 30% RH to 70% RH
- Maximum installation height: 2000 m
- Dimensions: 37 x 42 x 16 mm
- Weight: 27 g

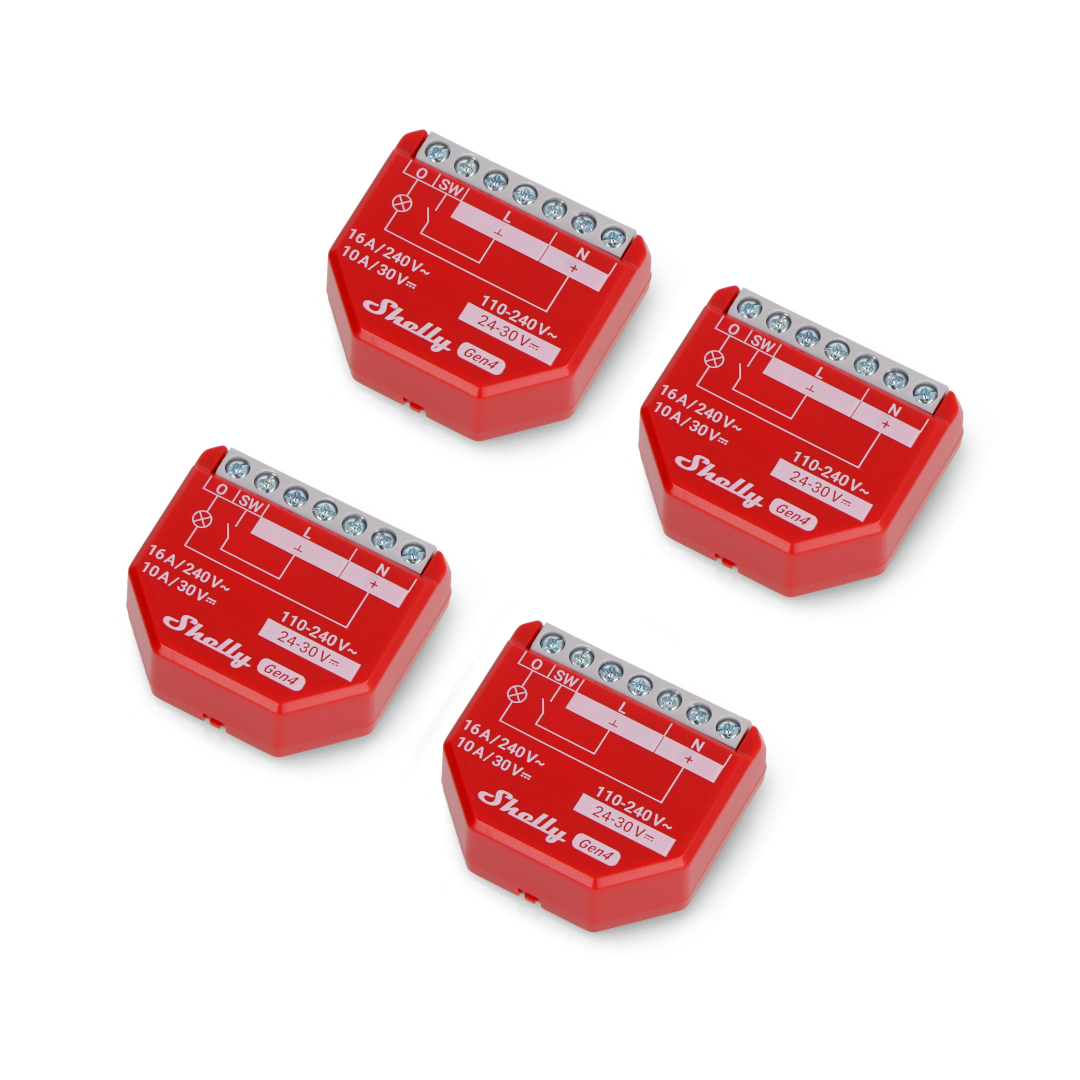

Contents of the set
- 4x Shelly 1PM Gen4 ZigBee / Matter controller
- Manufacturer's documentation
Built-in power measurement allows you to analyze energy consumption in real time, while support for schedules and scenes enables the creation of advanced automation. | Shelly Gen1, Gen2, Gen3, and Gen4 Device Comparison | ||||
|---|---|---|---|---|
| Function | Shelly Gen 1 | Shelly Gen 2 (Plus/Pro, Mini) | Shelly Gen 3 | Shelly Gen 4 |
| WiFi | 2.4 GHz WiFi | 2.4 GHz WiFi | 2.4 GHz WiFi | 2.4GHz WiFi (WiFi 6) |
| Computing power | Basic | More efficient processors than Gen 1 | Shelly Chip for Optimal Performance | The most advanced computing power |
| Memory | Primary memory | Up to 4 MB Flash (8 MB in PRO) | 8 MB Flash, 256 kB RAM | More than Gen 3 (512kB RAM) |
| Bluetooth | NO | Yes - for easy setup | Yes - for easy setup | Yes - for easy setup |
| Scripts and automation | NO | Expanded automation capabilities | Advanced scripting and automation | Advanced scripting and automation |
| Energy monitoring | Basic (selected models) | Extended monitoring (some models) | Advanced monitoring and security features | Advanced monitoring and security features |
| Device control | MQTT, CoAP, HTTP Webhooks | MQTTS, HTTP/HTTPS Webhooks, MQTT + Cloud | MQTTS, HTTP/HTTPS Webhooks, MQTT + Cloud | MQTTS, HTTP/HTTPS Webhooks, MQTT + Cloud |
| Virtual components | NO | Available (PRO only) | Supported | Supported |
| KNX support | NO | Yes (selected PROs only) | Yes (selected devices) | Yes (selected devices) |
| Bluetooth Gateway | NO | Yes (except BLU TRV, requires Gateway Gen 3) | Yes (except BLU TRV, requires Gateway Gen 3) | Yes (except BLU TRV, requires Gateway Gen 3) |
| KVS (Key-Value Store) | NO | Yes | Yes | Yes |
| Timer Loop | NO | Auto ON/OFF simultaneously | Auto ON/OFF simultaneously | Auto ON/OFF simultaneously |
| Range extender | NO | Yes | Yes | Yes (WiFi and ZigBee) |
| AP and WiFi simultaneously | NO | Yes | Yes | Yes |
| Ethernet | NO | Yes (PRO only) | Yes (PRO only) | Yes (PRO only) |
| Destiny | Basic home automation | More possibilities, scripts, better components | Advanced automation, future-proof solutions | Full automation, maximum flexibility |
| Protocol support | Lack | BTHome, MQTT+Cloud, KNX (PRO) | BTHome, KNXnet/IP, Matter, MQTT+Cloud, Virtual Components | BTHome, Matter, ZigBee, TCP/IP Modbus, KNXnet/IP, MQTT+Cloud |
