Product description: 3D printer - Original Prusa XL - 1 head - self-assembly kit
Original Prusa XL is an advanced CoreXY 3D printer , offering a build volume of 360 x 360 x 360 mm , ideal for large projects. It is equipped with a single head , but thanks to an optional system, it allows you to work with up to five independent heads, which allows you to print from different materials in a single process. The modern Nextruder with a strain gauge sensor guarantees a perfect first layer, and the modular heating table with 16 controlled segments eliminates the risk of thermal deformation. Phase Stepping technology allows for quiet operation, even with intensive printing, and advanced features such as Input Shaper and Pressure Advance ensure ultra-fast and precise printing. The printer supports a wide range of filaments , including PLA, PETG, ASA, ABS, Flex, PVA and other technical materials, which makes it an excellent choice for professionals and 3D printing enthusiasts. The kit consists of elements for self-assembly .

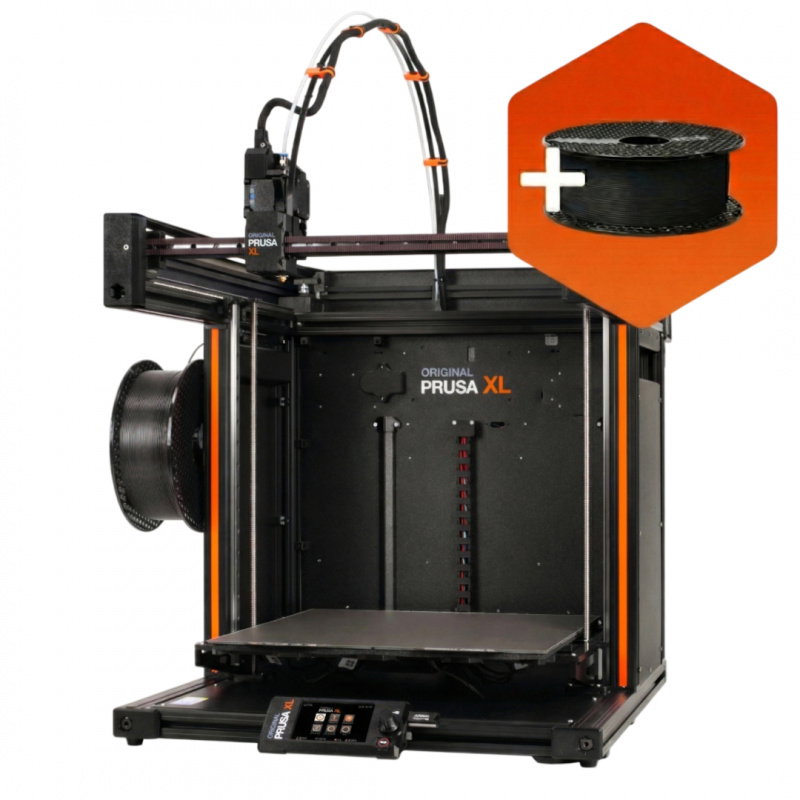

3D printer - Original Prusa XL - 1 head - self-assembly kit.
Prusa XL offers a large build volume of 360 x 360 x 360 mm.
Large work space
The Original Prusa XL offers an impressive 360 x 360 x 360 mm build volume , allowing for the most demanding and extensive projects. This makes it an ideal solution for professionals and hobbyists looking for a reliable 3D printer for creating large models. Additionally, it provides flexibility in working with different types of filaments.
Modular heated table
The innovative, segmented heating table consists of 16 individually controlled tiles , which ensure even heat distribution over the entire working surface . This solution minimizes the risk of thermal deformation and guarantees excellent adhesion of prints. Thanks to this technology, it is possible to obtain optimal printing conditions , regardless of the size of the model, which significantly improves its quality and stability.
Nextruder - the new generation of extruder
Prusa XL is equipped with a modern Nextruder extruder with a strain gauge sensor , which ensures a perfect first layer of printing. Thanks to the 1:10 gear ratio and the built-in accelerometer , the extruder offers precise and reliable filament feeding, which translates into high quality prints. Additionally, it does not require printing a full cleaning tower, so the amount of waste and leftover filament is significantly minimized.
Optional multi-material printing
Thanks to the optional head-swapping system, Prusa XL allows you to work with up to five extruders . This allows you to combine different materials in one print, such as soft TPU with carbon fiber-enriched filaments, opening up new possibilities for creating complex 3D models. Additionally, the Spool Join function automatically starts taking filament from the next spool when the current one runs out, allowing for uninterrupted printing. It is ideal both for using up leftover filaments and for large projects.
The Spool Join function automatically starts taking filament from the next spool.
How Phase Stepping technology works.
Advanced features for ultra-fast printing
Built-in Input Shaper and Pressure Advance technologies enable ultra-fast printing without losing quality. Thanks to them, Prusa XL adjusts printing parameters in real time , reducing vibrations and ensuring precise reproduction of even intricate details.
Quiet operation even at high speeds
Thanks to Phase Stepping technology, the printer precisely monitors the motors' reactions and automatically adjusts the control signals , which allows it to operate exceptionally quietly. Even at high speeds, the device operates almost silently, making it ideal for use in places such as a home office. Additionally, activating Stealth mode allows for even further reduction of noise levels . Watch the video that explains how Phase Stepping technology works!
Intuitive operation and modern software
Prusa XL runs on the latest 32-bit platform and is compatible with the Prusa Connect network solution, allowing remote monitoring and management of the printing process . The intuitive interface and regular software updates make the printer easy and enjoyable to use.
Intuitive control panel
The control panel is very intuitive - you can use both the physical knob and the color touch screen . The LCD panel makes it easy to navigate the menu and offers clear instructions. Additional options, such as G-code preview, QR codes, object cancellation and other functions , make operating the printer convenient and enjoyable.
The color LCD touch screen makes it easy to use the printer.
| Technical specifications and comparison of Prusa MK4S and Prusa XL printers | ||
|---|---|---|
| Model: | MK4S | Prusa XL |
| Printing method: | FDM | FDM |
| Print size: | 250x210x220mm | 360x360x360mm |
| Nozzle temperature: | up to 300°C | up to 290°C |
| Table temperature: | up to 120°C | up to 120°C |
| Nozzle diameter: | standard: 0.4 mm, possibility of mounting a nozzle of a different diameter | standard: 0.4 mm, possibility of mounting a nozzle of a different diameter |
| Layer height: | from 0.05mm to 0.3mm | from 0.05mm to 0.3mm |
| Supported filament: | PLA, PETG, ABS, ASA, Flex, HIPS, PA, PVA, PC, PP, CPE, PVB, NGEN, composites and others | PLA, PETG, Flex, PVA, PC, PP, CPE, PVB and with Prusa Enclosure ABS, ASA, HIPS, PA |
| Filament diameter: | 1.75mm | 1.75mm |
| Extruder: | Nextruder | Nextruder, Direct Drive, E3D V6 compatible (with adapter) |
| Table heating: | the whole table | 16 separate heating tiles |
| Display: | LCD, 3.5" | LCD, 3.5" |
| Motherboard: | 32bit, xBuddy with STM32 | 32bit, xBuddy with STM32 |
| Stepper motors: | Trinamic 2130 | Trinamic 2130 |
| Operating mode: | USB drive, LAN, Prusa Connect | USB drive, LAN, Prusa Connect |
| Charger: | 240 W | 240 W |
| Printer dimensions: | 500x550x400mm | 700x900x720mm |
| Mass: | 7kg | 27.9 kg |
