Product description: 3D printer - Original Prusa XL - 1 head - assembled
Original Prusa XL is an advanced CoreXY 3D printer , designed for large projects. It has a spacious build volume of 360 x 360 x 360 mm , which allows you to create larger and more complex models. The printer is equipped with a single head , but also offers optional support for five independent tool heads , which allows you to print multiple materials at the same time. Thanks to the functions of automatic cleaning, calibration and resuming printing after a power outage, it is extremely easy to use and minimizes the risk of problems during work. Input Shaper and Pressure Advance technologies ensure precise prints at high speeds, and Phase Stepping technology allows for quiet operation, even with intensive printing. The printer supports a wide range of filaments , including PLA, PETG, ASA, ABS, Flex, PVA and other technical materials. Thanks to the full assembly, it is ready to use right out of the box , which significantly simplifies its setup. Additionally, Prusa XL is compatible with Prusa Connect , allowing for remote printing management.

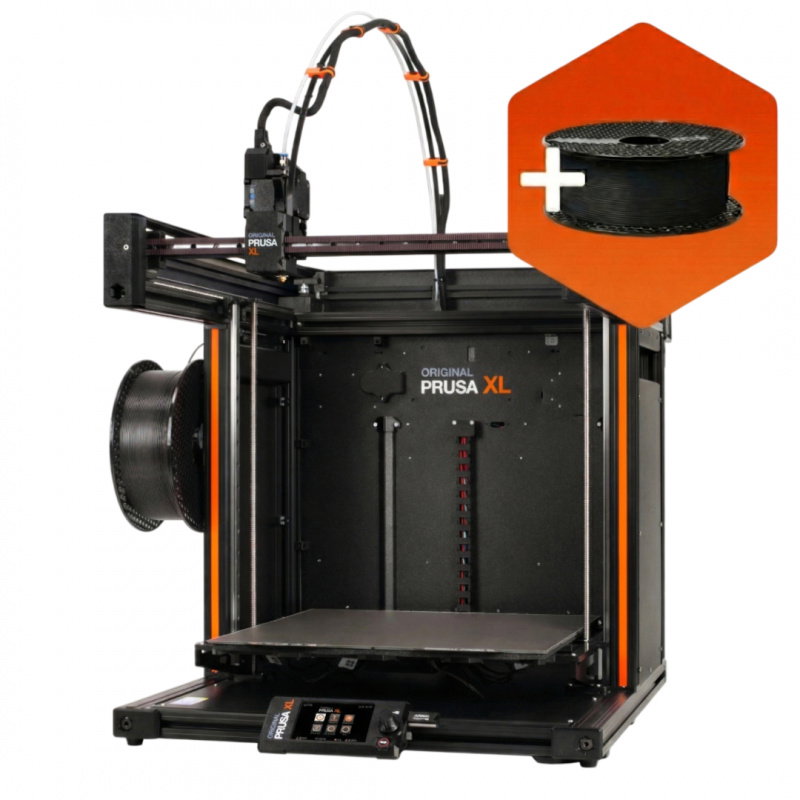

3D printer - Original Prusa XL - 1 head - assembled.

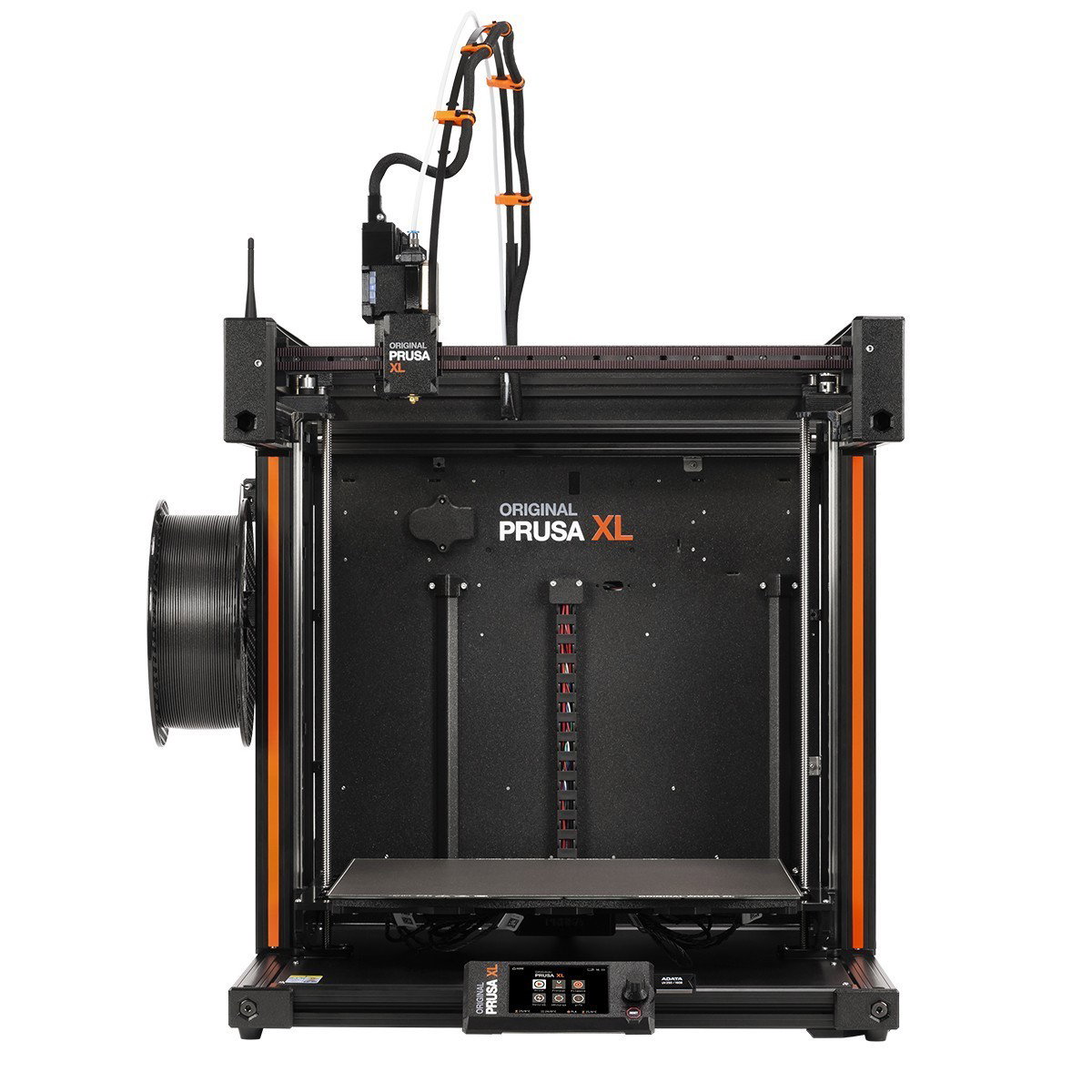

Prusa XL offers a build volume of 360 x 360 x 360 mm.
Printing without wasting material
Traditional single- extruder printers require nozzle cleaning after every color or material change, which generates large amounts of waste, up to four times the weight of the printed object. Prusa XL is designed to enable efficient multi-material printing without filament waste . Typically, a small cleaning tower is used to stabilize the pressure in the nozzle, but with properly dried filaments and an infill cleaning function , the printer allows printing without generating filament waste.
Combining materials in one print
With independent tool heads , you can easily use different materials and combine them in one print . You can combine Flex with PETG, and use PLA to print easily removable supports. If your project requires advanced materials, such as using carbon fiber filaments, you can use a cheaper material to print supports, which will reduce costs.
Best performance in multi-material printing
Original Prusa XL is a multi-material printer that allows for lightning-fast tool changes. Thanks to the Input Shaper and Pressure Advance technologies, it delivers the highest quality prints in record time, outperforming the competition on the market. It works with the same precision and quality as the award-winning MK4 . Nextruder guarantees high efficiency , especially with very steep overhangs of up to 15° and easily handles flexible filaments. Additionally, thanks to optimized print profiles, you can design parts with a precision of up to 0.2 mm .
Turn leftovers into massive projects with Spool Join
Spool Join automatically starts feeding filament from the next spool when the current one runs out, allowing you to print without interruption. It’s perfect for both using up leftover filament and for large projects: simply load up to five 2kg spools , activate Spool Join, and let the printer print a huge 10kg model without your intervention.

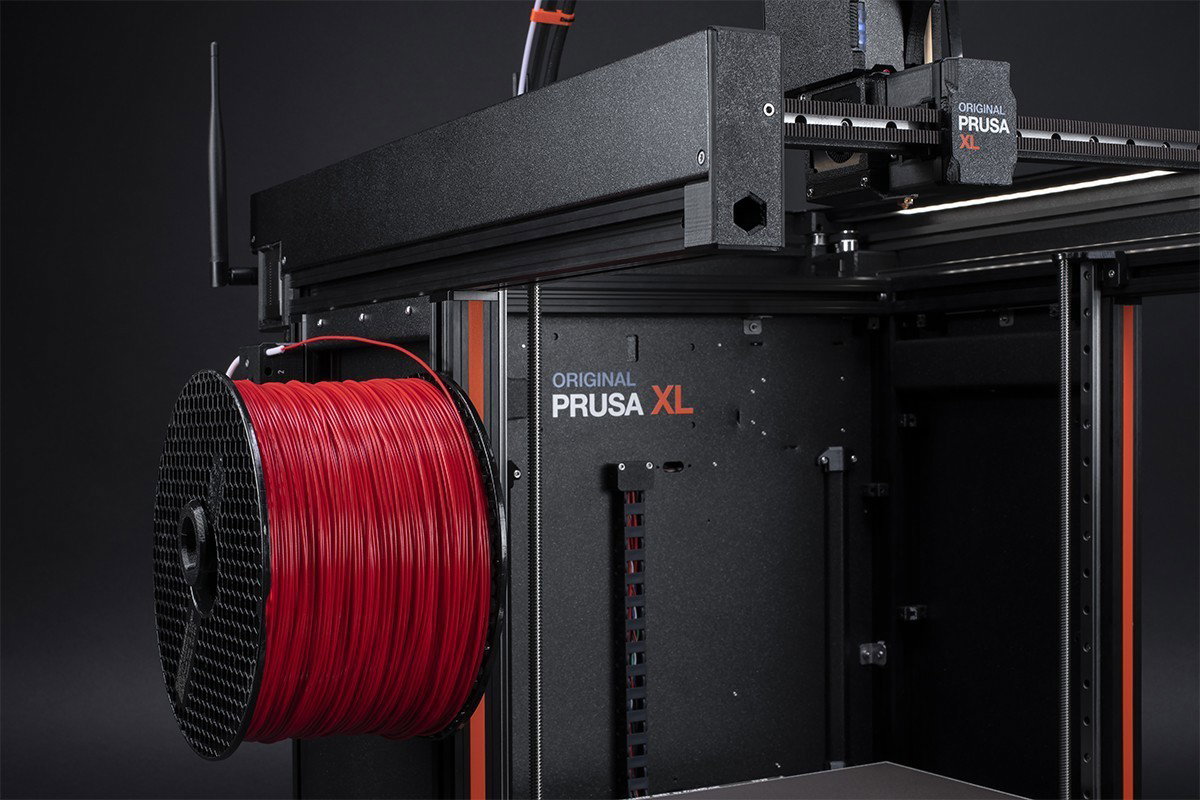

The Spool Join function automatically starts taking filament from the next spool.
How Phase Stepping technology works.
Quiet operation even at high speeds
Phase Stepping technology allows the printer to precisely analyze the motors' reactions and automatically adjust the control signals . Thanks to this, Prusa XL works exceptionally quietly , even at high speeds. This allows it to be used in rooms such as a home office. Additionally, you can enable Stealth mode to reduce the noise even more! Watch the video explaining how Phase Stepping technology works!
Simple operation
The Original Prusa XL is incredibly easy to use, thanks to automatic calibration and one-click printing . You don't have to worry about setting the nozzle distance from the bed or running out of material halfway through the print. The printer requires minimal maintenance , and a detailed manual will guide you through every step.
Remote control and monitoring with Prusa Connect
The Original Prusa XL supports both wired and wireless connections , allowing you to remotely control your printer from anywhere with the secure Prusa Connect system. Simply load G-code into your browser and start printing in seconds. Prusa Connect offers a variety of features, such as scheduling prints or monitoring the process via webcam .

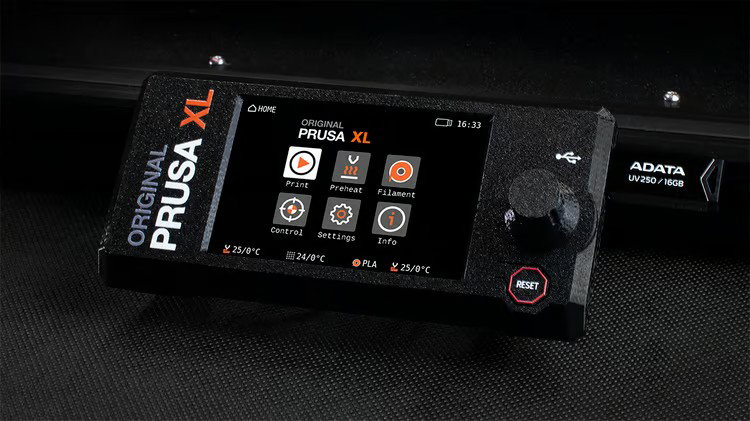

Intuitive LCD panel
Choose your favorite way to control the XL! You can use the physical knob or the intuitive touch screen . The color LCD panel offers easy menu navigation and simple instructions, while additional features such as G-code preview, QR codes, object cancellation and many other improvements make operating the printer a pleasure!

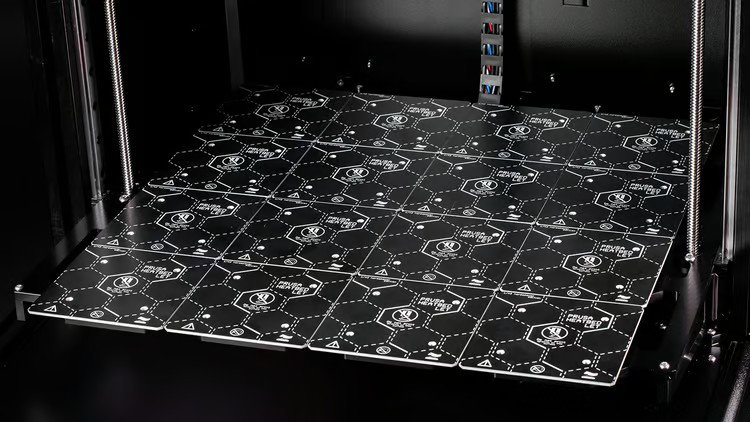

The printer is equipped with a modular segmented heating table.
Innovative segmented heating table
For even better print quality, Prusa XL is equipped with a modular segmented heating bed , controlled by a separate control board. It consists of 16 independent segments , which eliminates thermal warping issues that can occur in printers with one large heating bed. Additionally, thanks to double-sided print sheets with different surfaces , you will always find the optimal option for each material.
Designed for offline use
Prusa XL was created with offline functionality in mind, meaning you can use it without the need for an internet connection . The printer can be fully configured and used without internet access, without any limitations or loss of functionality.
| Technical specifications and comparison of Prusa MK4S and Prusa XL printers | ||
|---|---|---|
| Model: | MK4S | Prusa XL |
| Printing method: | FDM | FDM |
| Print size: | 250x210x220mm | 360x360x360mm |
| Nozzle temperature: | up to 300°C | up to 290°C |
| Table temperature: | up to 120°C | up to 120°C |
| Nozzle diameter: | standard: 0.4 mm, possibility of mounting a nozzle of a different diameter | standard: 0.4 mm, possibility of mounting a nozzle of a different diameter |
| Layer height: | from 0.05mm to 0.3mm | from 0.05mm to 0.3mm |
| Supported filament: | PLA, PETG, ABS, ASA, Flex, HIPS, PA, PVA, PC, PP, CPE, PVB, NGEN, composites and others | PLA, PETG, Flex, PVA, PC, PP, CPE, PVB and with Prusa Enclosure ABS, ASA, HIPS, PA |
| Filament diameter: | 1.75mm | 1.75mm |
| Extruder: | Nextruder | Nextruder, Direct Drive, E3D V6 compatible (with adapter) |
| Table heating: | the whole table | 16 separate heating tiles |
| Display: | LCD, 3.5" | LCD, 3.5" |
| Motherboard: | 32bit, xBuddy with STM32 | 32bit, xBuddy with STM32 |
| Stepper motors: | Trinamic 2130 | Trinamic 2130 |
| Operating mode: | USB drive, LAN, Prusa Connect | USB drive, LAN, Prusa Connect |
| Charger: | 240 W | 240 W |
| Printer dimensions: | 500x550x400mm | 700x900x720mm |
| Mass: | 7kg | 27.9 kg |
