Product description: 3D printer - Original Prusa XL - 5 heads - Enclosure Bundle - self-assembly kit
Original Prusa XL is an advanced CoreXY 3D printer , offering a build volume of 360 x 360 x 360 mm . It is equipped with five independent heads , which allows printing from different materials in one process. Nextruder with a strain gauge sensor allows you to get an excellent first layer of prints, and a modular heating table with 16 independently controlled segments minimizes the risk of thermal deformation. Thanks to Phase Stepping technology, the printer works exceptionally quietly, even at high speed. The Input Shaper and Pressure Advance functions guarantee fast and accurate printing. The printer supports a wide range of filaments , including PLA, PETG, ASA, ABS, Flex, PVA and other technical materials, making it an ideal solution for both professionals and 3D printing enthusiasts. The kit includes an official housing and all the elements necessary for self-assembly .

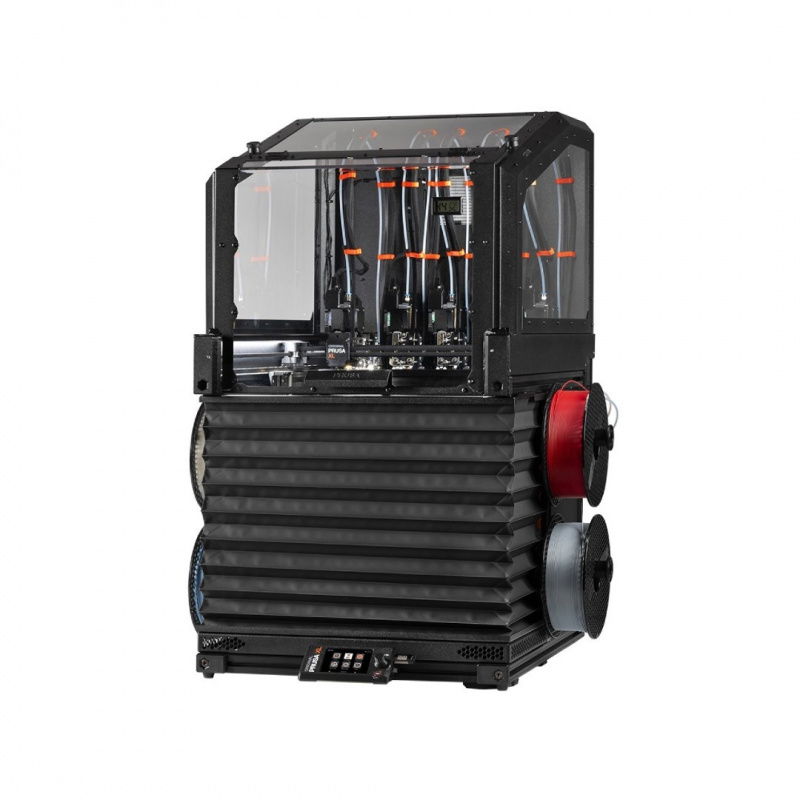

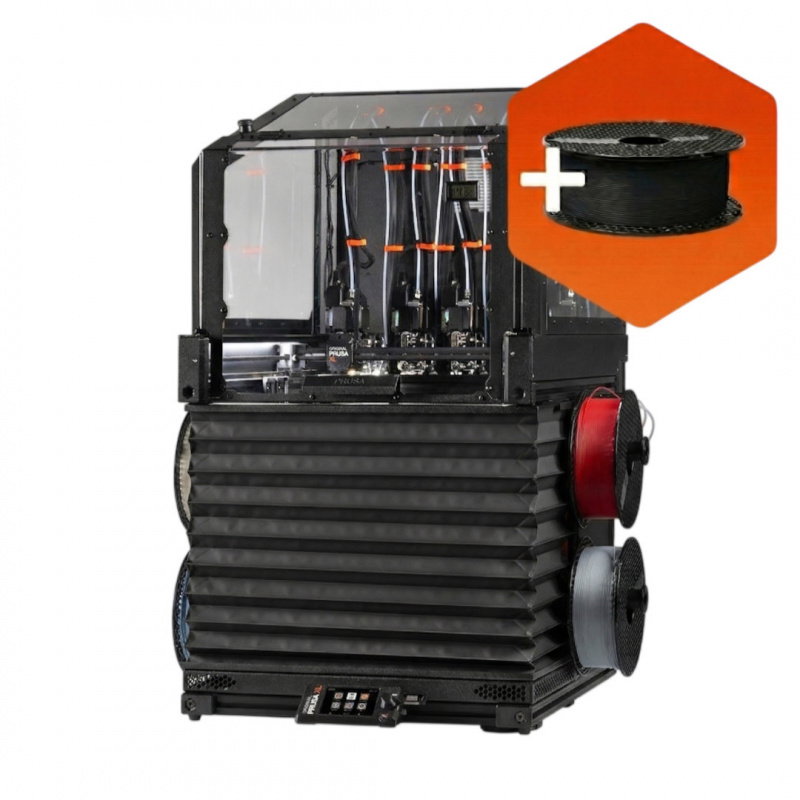

3D printer - Original Prusa XL - 5 heads - Enclosure Bundle - self-assembly kit.

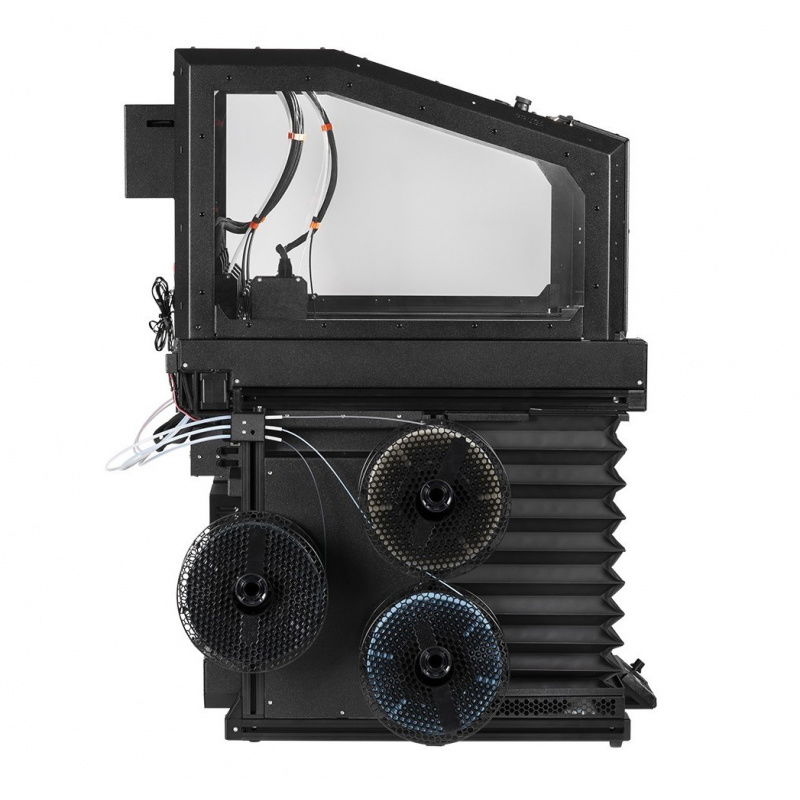

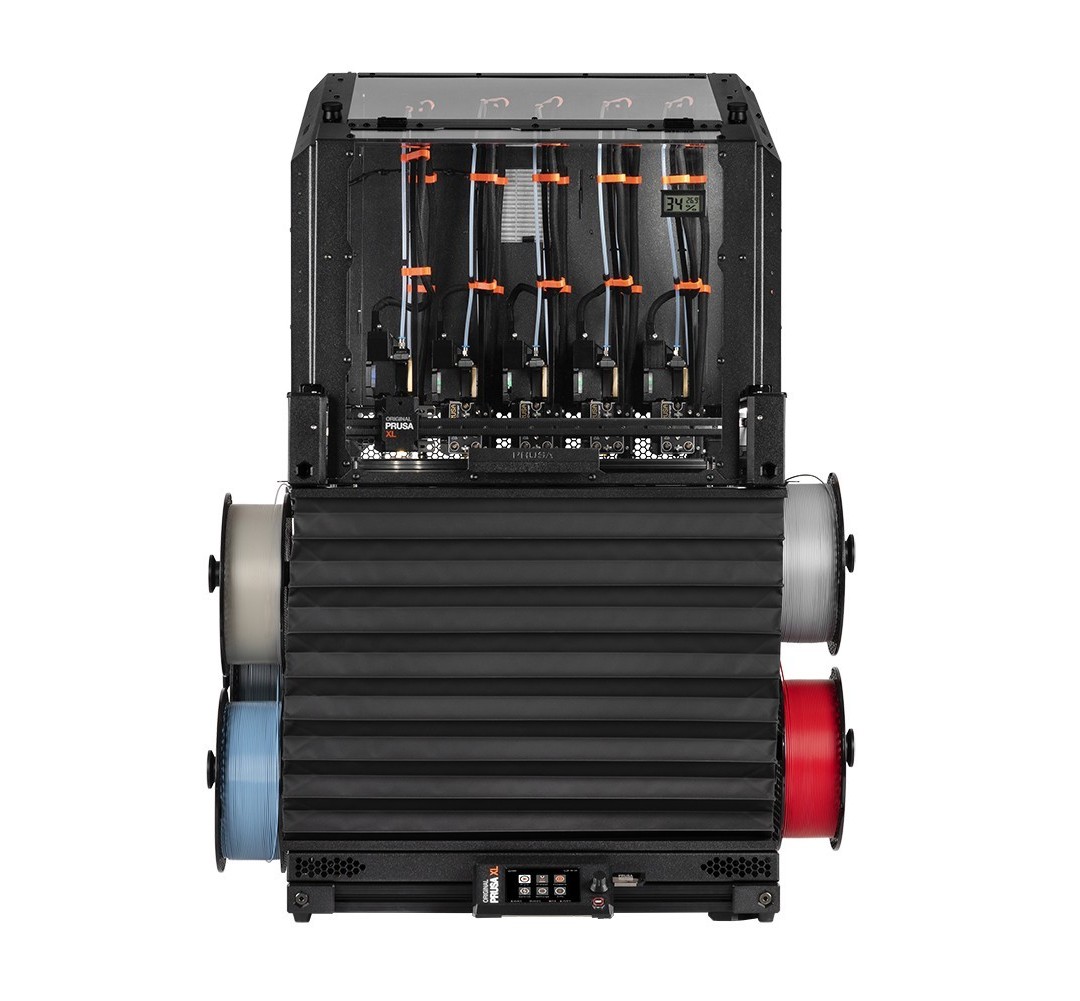

Prusa XL offers a large build volume of 360 x 360 x 360 mm.
Enclosure Bundle - optimal printing conditions
The official Original Prusa XL Enclosure provides a stable temperature environment , eliminating drafts and protecting prints from warping. The design of the enclosure supports printing from demanding materials such as ASA , ABS or PC, increasing the quality and reliability of prints. Thanks to the use of an advanced HEPA filtration system with an efficiency of 99.9% , the enclosure effectively removes unpleasant odors and ultra-fine particles (UFPS), increasing work safety. The foldable front in the form of an accordion cover facilitates access to the workspace and supports optimal ventilation, especially when printing from sensitive materials such as PLA. The enclosure additionally quietens the device , making it ideal for work in office and educational environments. The whole thing has been designed specifically for full compatibility with the XL series.
Waste-free multi-material printing
Original Prusa XL was designed for efficient multi-material printing without material waste. The system of independent tool heads eliminates the need for a cleaning tower, which significantly reduces filament consumption . The innovative Spool Join function automatically switches printing to a new spool after the previous one is finished , allowing you to create large models weighing up to 10 kg without supervision. The printer supports a wide range of materials - from PLA and PETG, through Flex and PCCF, to PVA - enabling precise connection of components with different properties. This approach guarantees high quality and maximum efficiency of filament use.
The Original Prusa XL printer is fully compatible with standard filament spools weighing up to 2 kg . For information on supported materials, see the official Prusa guide - check it out!
Large work area and segmented heating table
The 360 x 360 x 360 mm workspace allows for large technical and functional prints without compromise. The modular heating table consisting of 16 individually controlled tiles guarantees even heat distribution and effectively eliminates the risk of deformation caused by uneven heating. The built-in Input Shaper and Pressure Advance technologies allow for excellent detail quality with significantly reduced printing time. Accuracy of up to 0.2 mm allows for the creation of perfectly matched components. Combined with refined print profiles, the final effects are equal to professional industrial solutions.
Quiet and reliable operation even under heavy loads
The advanced Phase Stepping system is responsible for the quiet and smooth operation of the printer , even during intensive printing. The Power Panic function automatically saves the head position in the event of a power loss , allowing you to resume printing without losing material or time. Nextruder with a tensometric contact sensor and full calibration automation ensure that every first layer is perfectly placed. Compatibility with a wide range of filaments, including Flex, PCCF, ASA and PVA, makes Prusa XL a universal tool for advanced applications. It is a reliable solution that can be safely left unattended.
How Phase Stepping technology works.

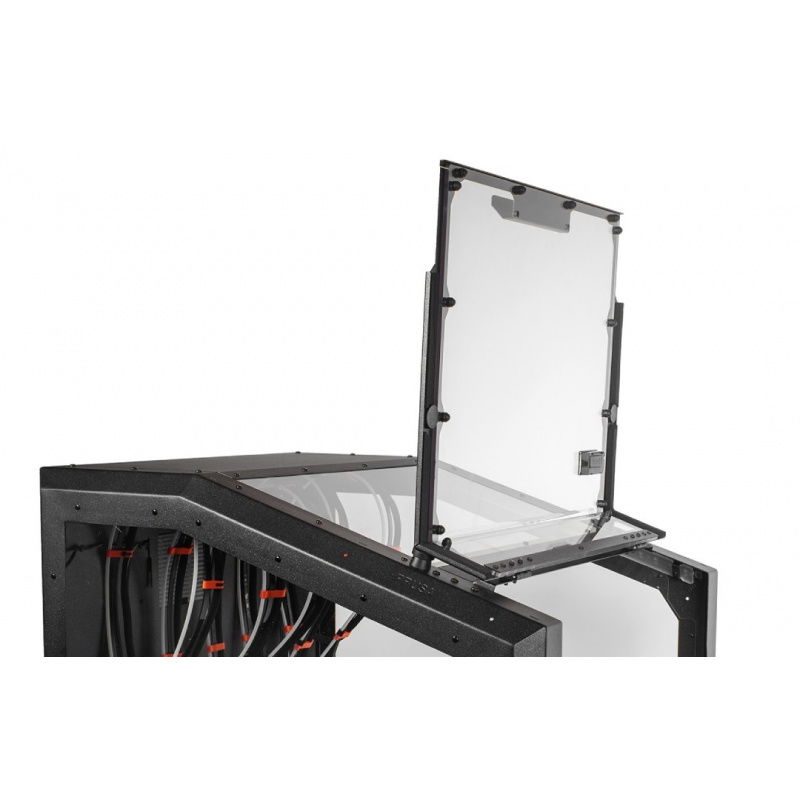

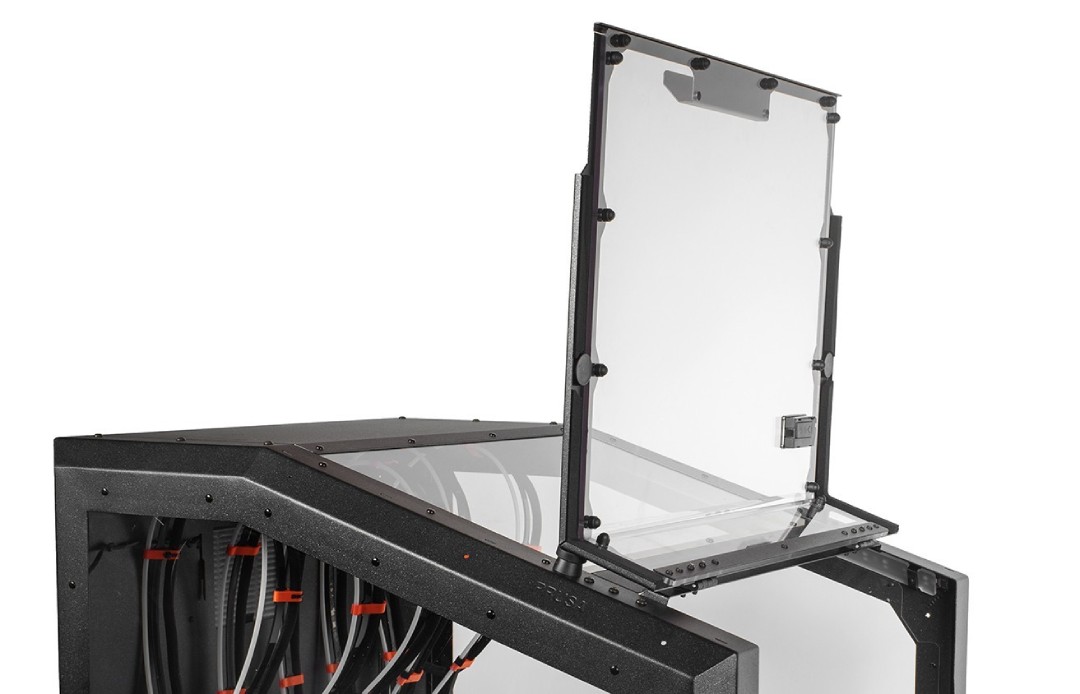

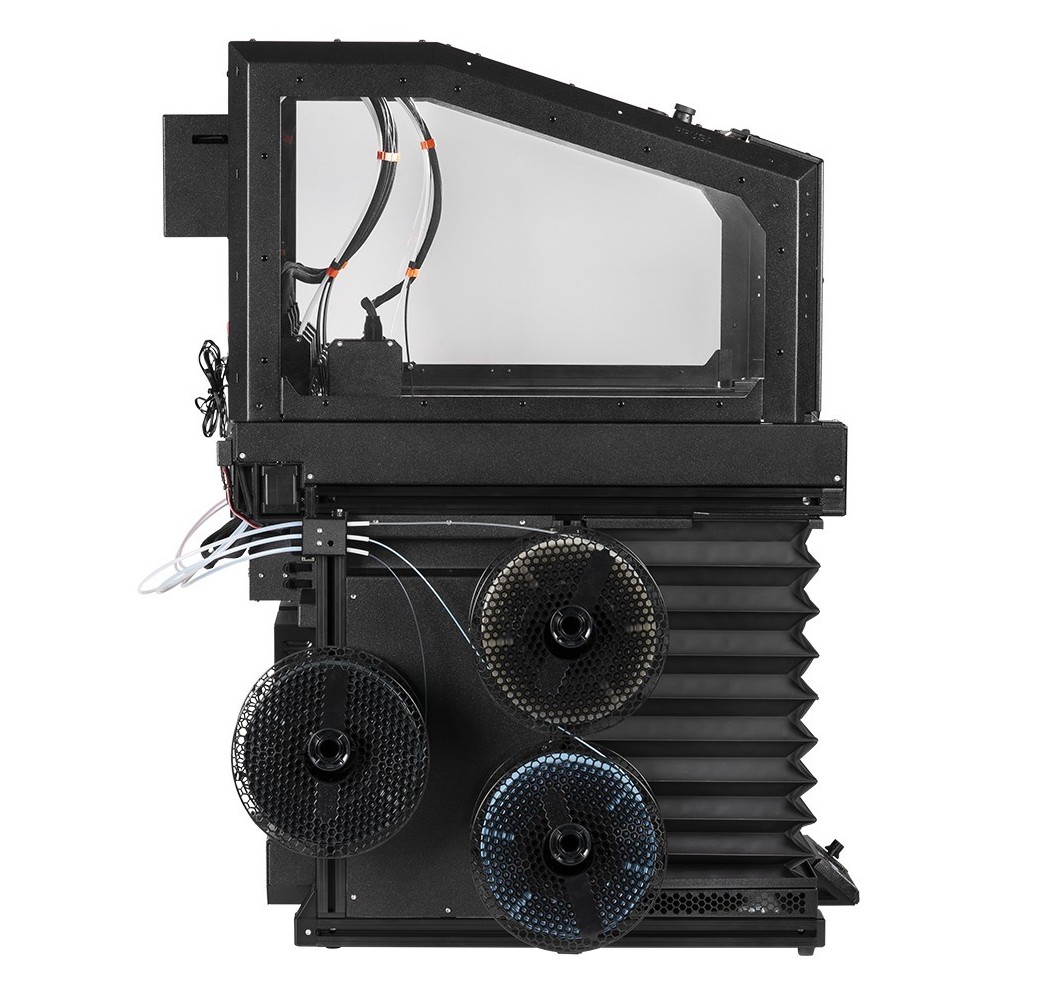

The case frame is made of metal, and the side and top panels are made of PETG.
WiFi connectivity and remote control via Prusa Connect
The Original Prusa XL printer allows convenient management both locally and remotely thanks to the support of WiFi and LAN networks. G-code files can be sent directly via a web browser, and monitoring the printing process is possible using an optional camera. The user interface is based on a 3.5-inch touchscreen with an additional knob , which ensures convenient and intuitive operation. The printer offers full functionality also in offline mode - without the need for an Internet connection, while ensuring privacy and data security. Prusa XL is a solution designed for professionals who require full control over the printing process.
Other Key Features
The heart of the printer is the xBuddy motherboard equipped with a 32-bit STM32 microcontroller , supported by precise Trinamic 2130 stepper motors with a pitch of 1.8°. Material extrusion is carried out by the modern Nextruder with an all-metal hotend and a drive system with a 10:1 planetary gear, which ensures exceptional filament feeding precision. The printer is equipped with a number of advanced sensors , including a tensometric sensor, detecting filament, a Power Panic function and four high-precision thermistors. The software is open-source , and the manufacturer systematically provides firmware updates, introducing new functions and improvements.
Kit Contents
- Original Prusa XL with 5 heads partially assembled
- Original Prusa XL Enclosure
- PEI steel plate (double sided, satin)
- Filament Prusament PLA Galaxy Black 1kg
- Bearing grease, alcohol wipes, nozzle cleaning needle
- Tool set: universal wrench, 13-16, pliers, Allen and Torx keys
- USB stick with sample G-codes
- 3D Printing Handbook

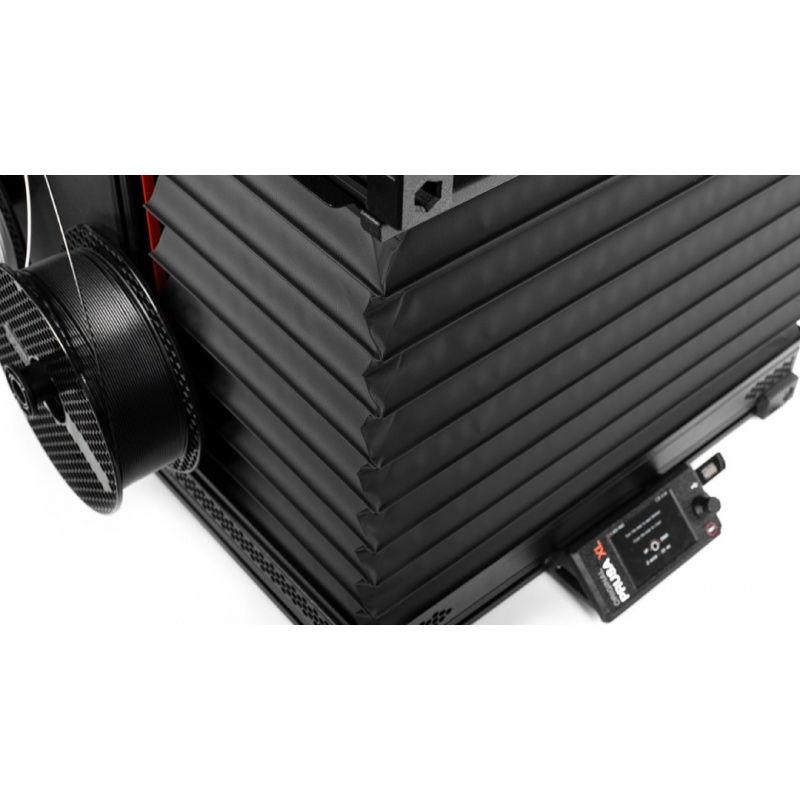

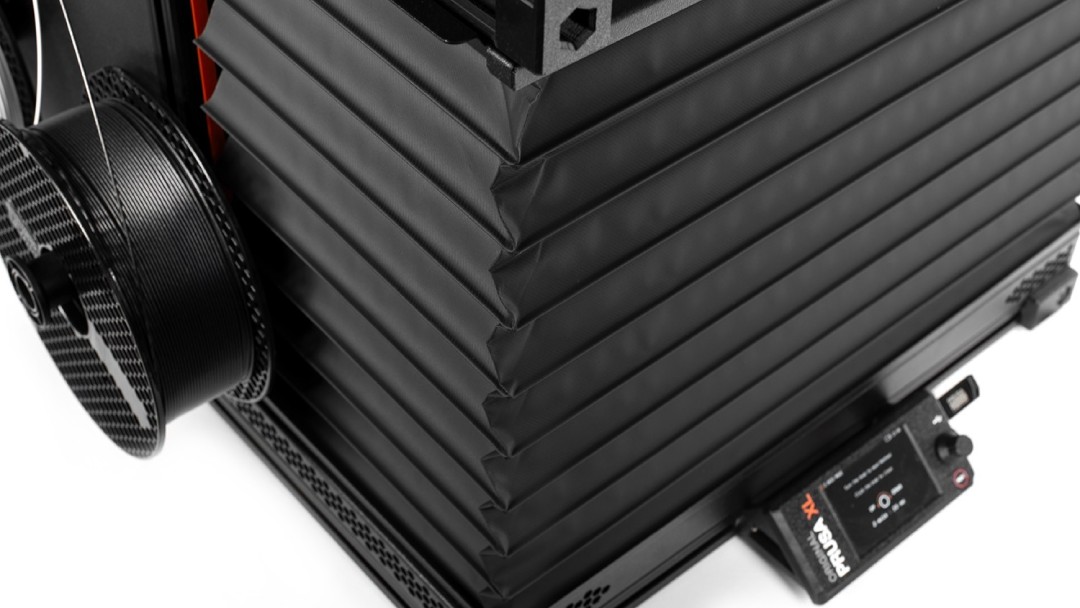

The accordion cover is foldable, allowing for better airflow when printing with filaments such as PLA.
| Technical specifications and comparison of Prusa MK4S and Prusa XL printers | ||
|---|---|---|
| Model: | MK4S | Prusa XL |
| Printing method: | FDM | FDM |
| Print size: | 250x210x220mm | 360x360x360mm |
| Nozzle temperature: | up to 300°C | up to 290°C |
| Table temperature: | up to 120°C | up to 120°C |
| Max. temperature in the chamber: | 45°C (in housing) | 45°C (in housing) |
| Nozzle diameter: | standard: 0.4 mm, possibility of mounting a nozzle of a different diameter | standard: 0.4 mm, possibility of mounting a nozzle of a different diameter |
| Layer height: | from 0.05mm to 0.3mm | from 0.05mm to 0.3mm |
| Supported filament: | PLA, PETG, ABS, ASA, Flex, HIPS, PA, PVA, PC, PP, CPE, PVB, NGEN, composites and others | PLA, PETG, Flex, PVA, PC, PP, CPE, PVB and with Prusa Enclosure ABS, ASA, HIPS, PA |
| Filament diameter: | 1.75mm | 1.75mm |
| Extruder: | Nextruder | Nextruder, Direct Drive, E3D V6 compatible (with adapter) |
| Table heating: | the whole table | 16 separate heating tiles |
| Display: | LCD, 3.5" | LCD, 3.5" |
| Motherboard: | 32bit, xBuddy with STM32 | 32bit, xBuddy with STM32 |
| Stepper motors: | Trinamic 2130 | Trinamic 2130 |
| Operating mode: | USB drive, LAN, Prusa Connect | USB drive, LAN, Prusa Connect |
| Charger: | 240 W | 240 W |
| Printer dimensions: | 500x550x400mm | 700x900x720mm |
| Mass: | 7kg | 33.7 kg |
