Description of Starter Kit with minicomputer Raspberry Pi 4 B
Set includes the minicomputer Raspberry Pi 4 model B with 4 GB of RAM along with the official case and the original power supply of 5.1 V, maximum load current of 3.0 A. The kit also includes accessories such as: two wires microHDMI, fast memory card with the operating system and the Ethernet cable.
| L. p. | Photo | Name |
|---|---|---|
| 1 |  |
Raspberry Pi model 4B 4 GB RAM - popular minicomputer in the latest version with 64-bit CPU 1.8 GHz, 4 GB of RAM, a built-in Dual-Band wi-fi module and Bluetooth 5.0. |
| 2 |  |
Original power supply Raspberry Pi 5.1 V, maximum load current of 3.0 A with a USB connector C. Sent in a randomly selected color. |
| 3 |  |
Official case for Raspberry Pi 4B - has the possibility of configuring side walls and top flap, it gives access to audio and videoconnectors, microSD card, power supply and GPIOs. |
| 4 |  |
Official microHDMI cable 1 m length to connect the Raspberry Pi to a display. Sent in a randomly selected color. |
| 5 |  |
Memory card microSD 16 GB class 10, high speed memory card with NOOBssoftware. |
| 6 |  |
Ethernet Patchcord UTP 5ewith length of over 1 m, which allows to make a connection to the Internet. |
What is minicomputer Raspberry Pi 4?
This is the latest model from the popular board Raspberry Pi 4 model B. This model is distinguished by:
- powerful processor Broadcom BCM2711- quad-core 64-bit ARM-8 Cortex-A72 1.8 GHz,
- two microHDMI ports - allows you connect two displays
- two USB 3.0 and 2 USB 2.0 portsprovide higher speed of data exchange from different media than in the previous version
- power connector USB-C- allows for current up to 3.0 A
- dual-band wi-fi- 2.4 GHz and 5 GHz, Bluetooth 5 / BLE,
- Ethernet at speeds of 1000 Mbpswith the ability to power up from PoE
The rest of the specifications are compatible with the previous model 3 B+, that is: four USB ports, 40 pin GPIO header, microSD card slot, DSI and CSI connectors, and four mounting holes.

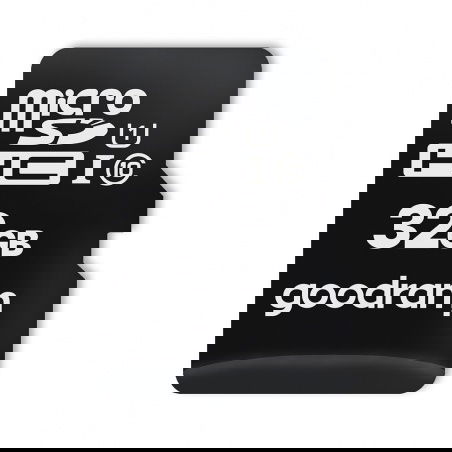

| The storage medium of this set is a 32 GB microSD card. |
Why you should choose a set from the official distributor?
In order to run the Raspberry Pi 4 you need a with the appropriate parameters: the output voltage of above 5 V and the maximum output current up to 3.0 A. Original power supply included in the set has been tested and allows for stable operation of the minicomputer at full load. Thanks to the official case, you will avoid possible physical damage and accidental short circuits, for example, of the GPIO ports. High speed memory card 16 GB allows for installing the operating system immediately after its installation and connecting the minicomputer to the Internet via a cable. Included accessories such as microHDMI cables allow you to connect the Raspbery Pi to any display with an HDMI socket.
Specification and comparison of Raspberry Pi 3B+ and 4
| Basic information | ||
|---|---|---|
 |
 |
|
| Model | Raspberry Pi 3 model B+ | Raspberry Pi 4 |
| Edition | 3 - by 2018. | 6 - 2019. |
| Technical specification | ||
| Processor chipset | Broadcom BCM2837B0 64-bit | Broadcom BCM2711 64-bit |
| Core | Quad-Core ARM Cortex-A53 | Quad-Core ARM Cortex-A72 |
| Operating systems |
Linux Raspberry Pi OS Windows 10 IoT |
Linux Raspberry Pi OS |
| Clock frequency | 1.4 GHz | 1.8 GHz |
| Architecture | ARMv8-A | ARMv8-A |
| RAM | 1 GB LPDDR2 @ 900 MHz |
Three versions
|
| Memory | microSD memory card | microSD memory card |
| Connectors GPIO |
40-pin GPIO header (2x20 pin) raster 2.54 mm |
40-pin GPIO header(2x20 pin) raster 2.54 mm |
| Power supply |
|
|
| Dimensions | 85 x 56 x 17 mm | 85 x 56 x 17 mm |
| Interfaces | ||
| USB interface | 4x USB 2.0 - connector type A |
2x USB 2.0 connector type A 2x USB 3.0 connector type A |
| Network interface | Ethernet port 300 Mbps | Ethernet port 100/1000 Mbps |
| Wi-Fi Interface |
Dual Band (2.4 GHz and 5 GHz 802.11 b/g/n/ac |
Dual Band (2.4 GHz and 5 GHz 802.11 b/g/n/ac |
| Bluetooth | Low Energy, BLE 4.2 | Low Energy, BLE 5 |
| Camera | CSI connector | CSI connector |
| Touchscreen display | DSI connector | DSI connector |
| Video |
HDMI HD 1080px / 30 fps 1080p30 H. 264 OpenGLES 1.1, 2.0 |
2 x microHDMI H. 265 4K 60 fps H. 264, 1080p, 30 fps OpenGLES 1.1, 2.0, 3.0 |
| Communication | UART, SPI, I2C, GPIO | UART, SPI, I2C, GPIO |
Useful links |
Advantages
- Comprehensive starter kit with everything needed to get started
- Includes the powerful Raspberry Pi 4B with 4 GB of RAM and a 64-bit CPU at 1.8 GHz
- Dual-Band Wi-Fi and Bluetooth 5.0 for versatile connectivity options
- Two USB 3.0 ports for faster data transfer
- Comes with an official power supply ensuring stable operation under full load
- Official case helps prevent physical damage and accidental short circuits
- High-speed microSD card included, allowing immediate installation of the operating system
- Ethernet cable included for reliable internet connection
- Positive reviews highlighting ease of setup, good performance, and versatility
Disadvantages
- MicroSD card compatibility issue reported by one user, requiring reinstallation
- The housing does not provide access to GPIO without opening it
- Potential need for additional cooling solutions as the case can cause high temperatures (around 70 degrees)
AI generated based on user reviews
