Product description: reComputer AI Industrial R2135-12 - Raspberry Pi CM5 8 GB RAM + 32 GB eMMC - Seeedstudio 114993595
reComputer AI Industrial R2135-12 is an advanced industrial computer designed for AI and video analytics applications. It is based on the Raspberry Pi Compute Module 5 (CM5) with a quad-core Cortex A76 processor, which is paired with the Hailo-8 AI accelerator, offering impressive performance of up to 26 TOPS . The system supports both WiFi and Bluetooth 5.0 , as well as optional 4G LTE , making it ideal for applications requiring comprehensive data processing in the field, such as smart factories, video monitoring, and AIoT systems.

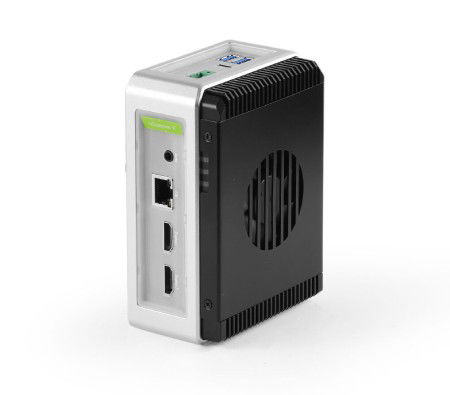

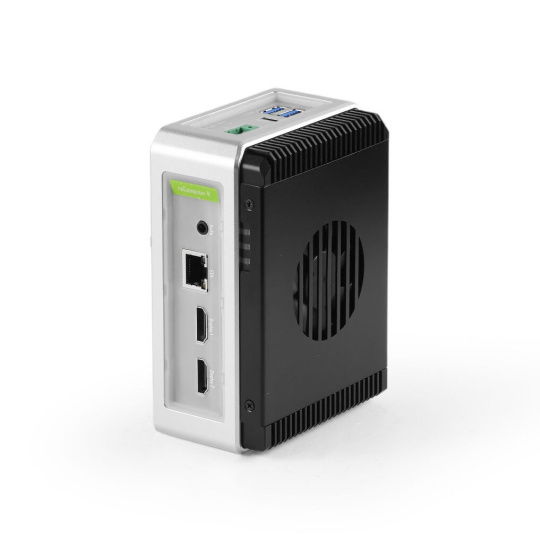

reComputer AI Industrial R2135-12 - Raspberry Pi CM5 8 GB RAM + 32 GB eMMC - Seeedstudio 114993595.

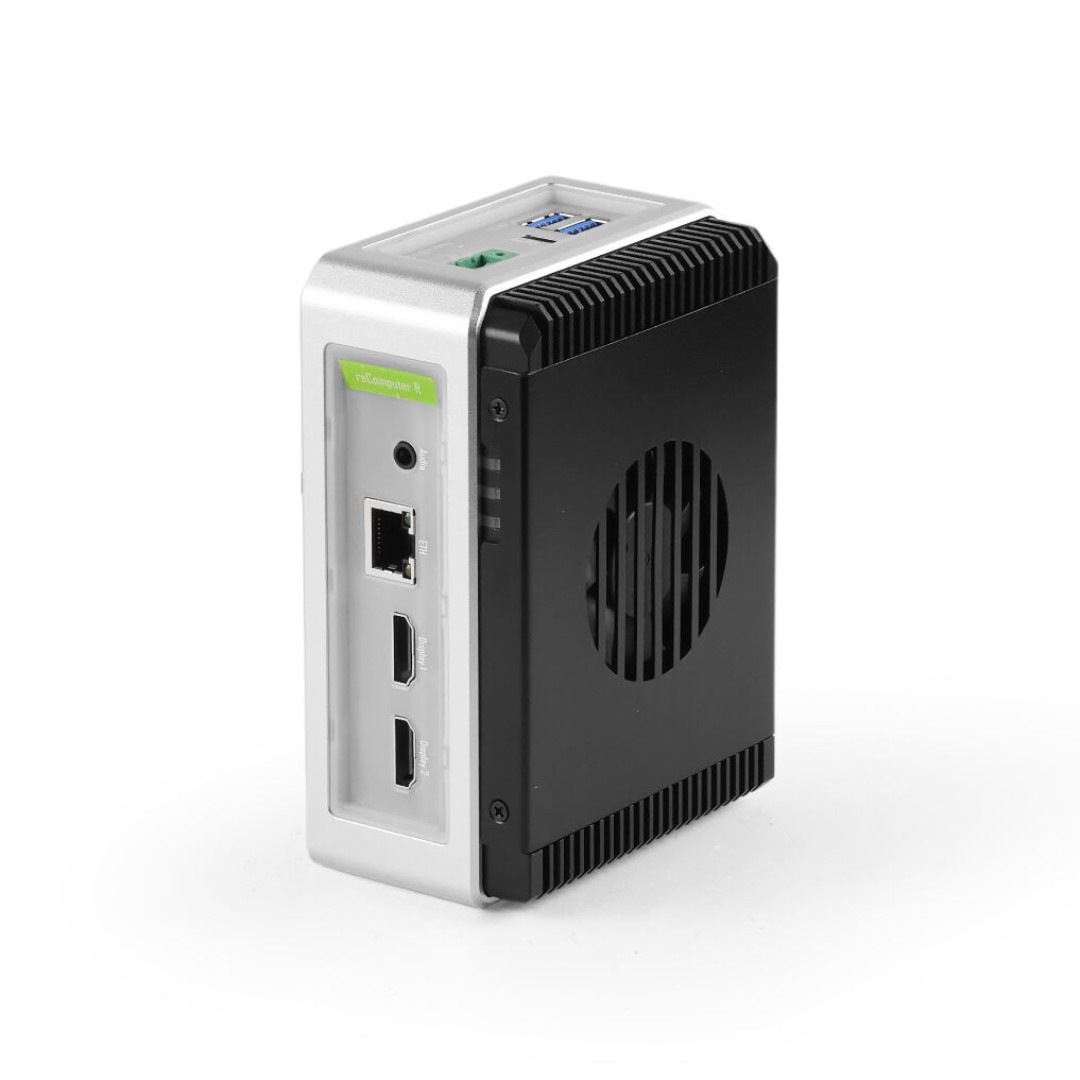

reComputer AI Industrial R2135-12 is based on the Raspberry Pi Compute Module 5.
Key Features of the reComputer AI Industrial R2135-12
- High performance: Hailo-8 accelerator offers 26 TOPS, which enables fast real-time processing of video data
- Versatile interfaces: equipped with 2x HDMI 2.0, 2x USB 3.2, 1x USB Type-C, Gigabit Ethernet and M.2 and miniPCle slots
- Industrial reliability: wide temperature range from -20°C to 65°C, aluminum housing, cooling system with heat sink and fan, and watchdog for 24/7 reliability
- Power supply versatility: 9V to 36V power input, enabling wide integration in various industrial environments
Interfaces in reComputer
reComputer AI Industrial R2135-12 offers a wide range of interfaces for connecting external devices . It has two HDMI 2.0 ports for high-resolution display, a Gigabit Ethernet port for fast data transmission , and two USB 3.2 ports and one USB Type-C port for connecting peripherals. Additionally, there is a miniPCle slot for 4G LTE support and two M.2 slots for expansion with AI accelerators or additional SSD media.
The design of the reComputer AI Industrial case

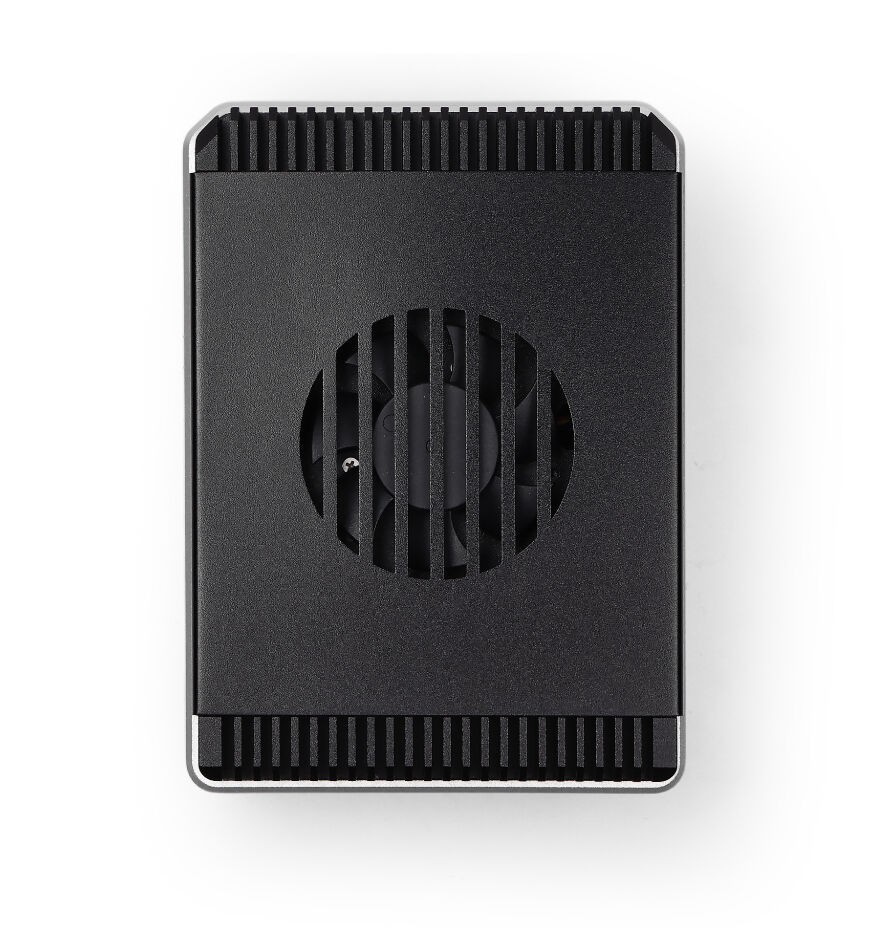

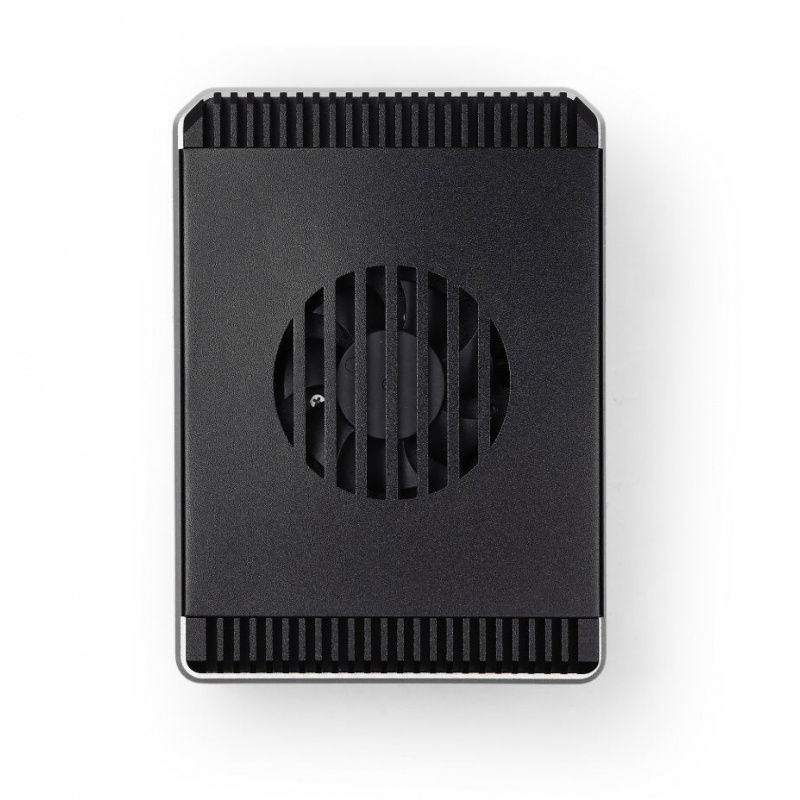

The computer is enclosed in a solid aluminum casing , providing protection against mechanical damage and high temperatures. The casing supports DIN rail or wall mounting , which makes the system versatile in industrial applications. Equipped with appropriate ventilation holes and a radiator with a fan , the reComputer maintains the appropriate operating temperature, even in difficult conditions.

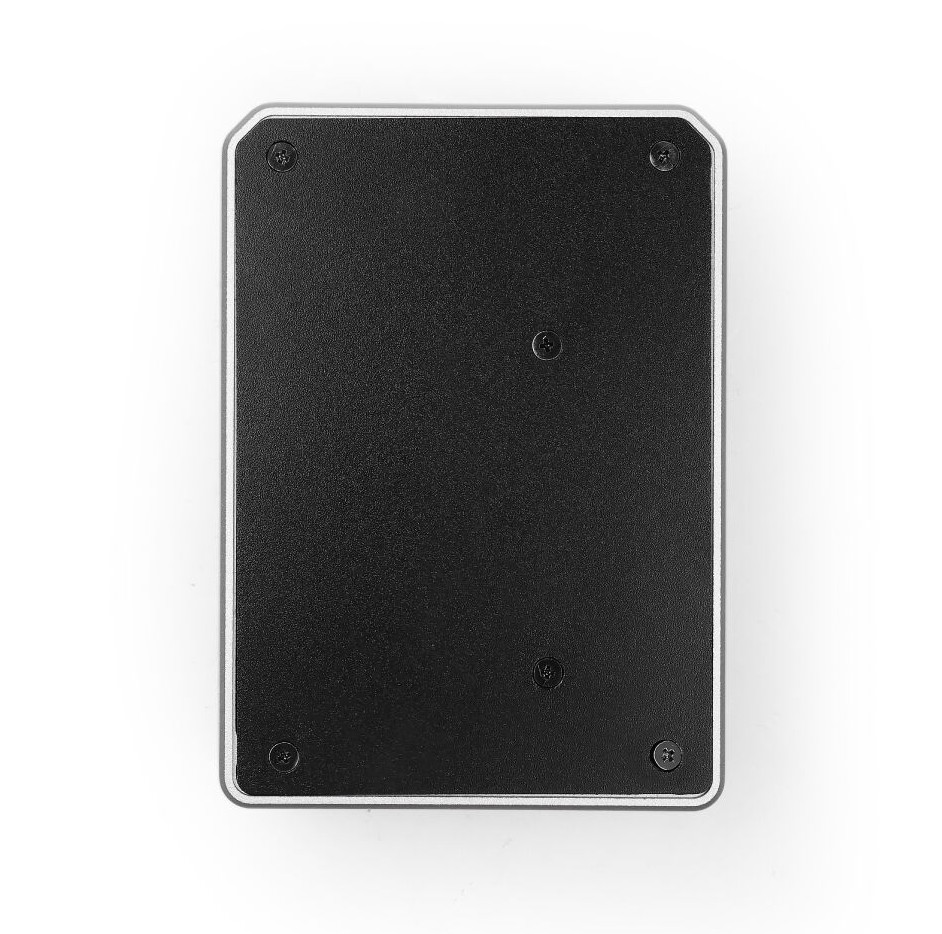

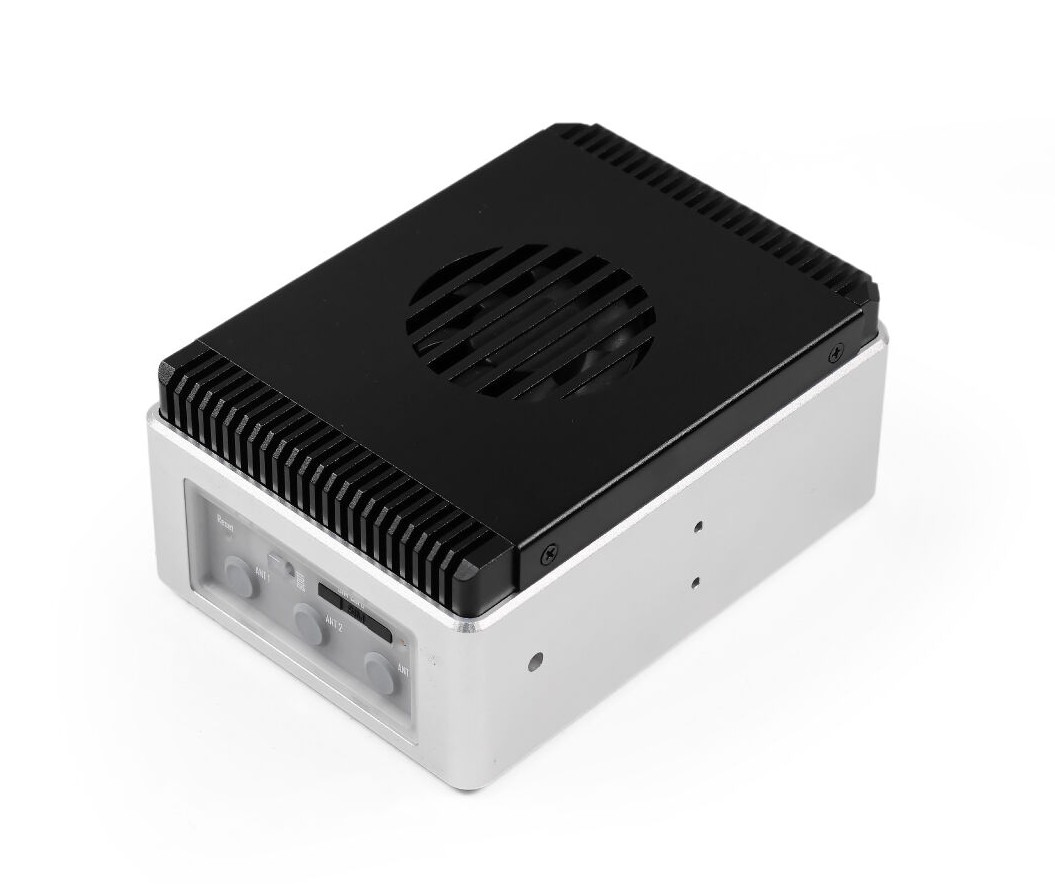

The housing allows for mounting on a DIN rail or wall.
Power supply and assembly reComputer AI Industrial R2135-12
The ReComputer AI Industrial R2135-12 supports a wide input voltage range of 9 V to 36 V , which allows the device to be powered in various industrial environments. Power is supplied via a 2-pin screw connector or the included power adapter . Installation is extremely simple, as the device can be mounted on a DIN rail or on a wall, which provides great convenience in integration with other systems.
Practical applications
reComputer AI Industrial R2135-12 is an ideal solution for many industrial applications, such as smart factories, video monitoring, object recognition, and anomaly detection . Thanks to its high AI processing performance, the system can be used for image analysis, face recognition, motion tracking , and many other advanced tasks in real time. It can also be used in smart commerce, traffic management, and smart transportation solutions.
Kit Contents
- 1x reComputer AI Industrial R2135-12
- 1x DIN rail clip
- 1x Screw pack
- 1x DC Power Adapter 9V to 36V
- 1x Power supply 12V/3A (with 4 interchangeable plugs)
- 1x User Manual

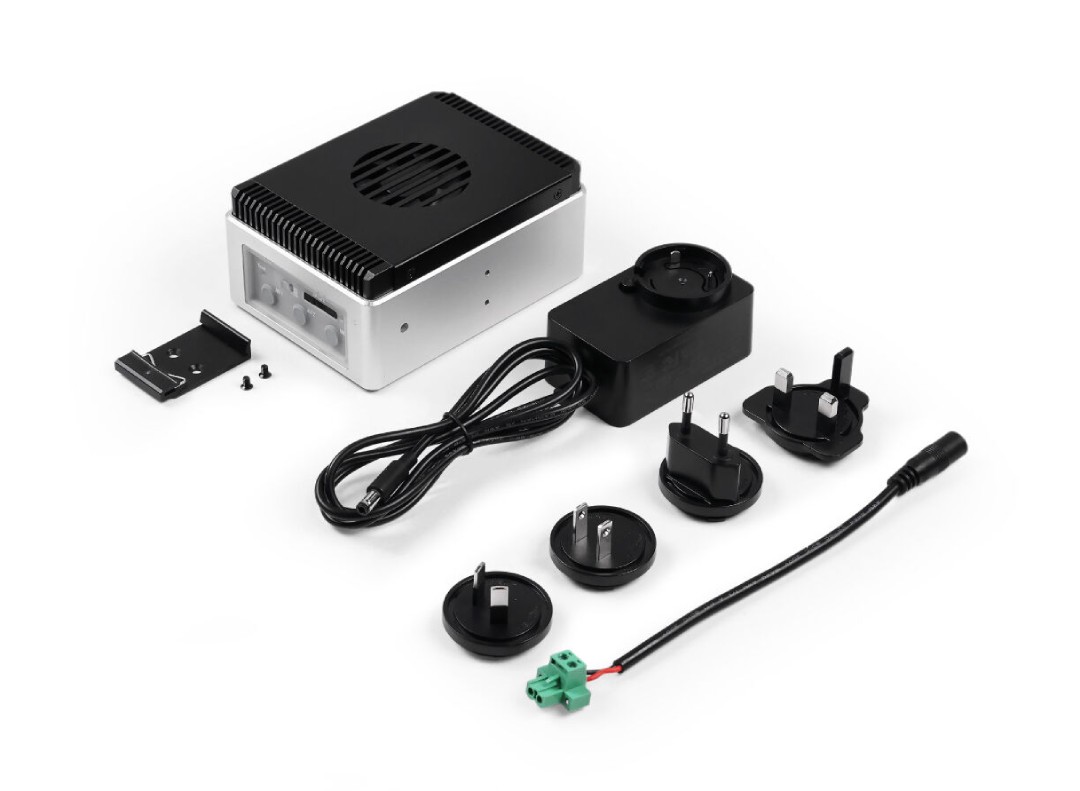

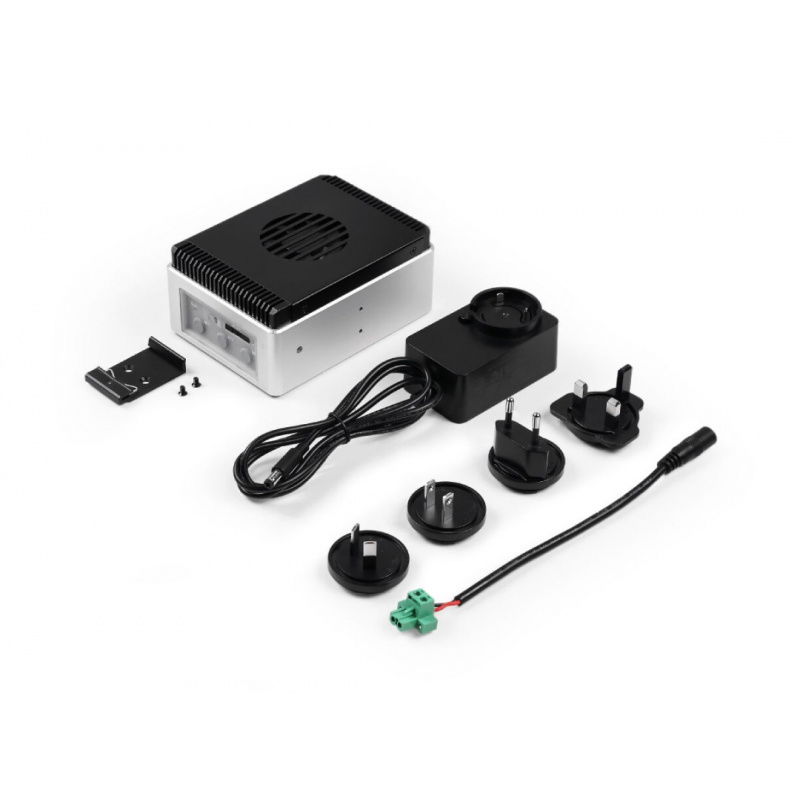

Items included in the set.
| Technical Specifications reComputer AI Industrial R2135-12 | |
|---|---|
| CPU | Raspberry Pi Compute Module 5, 2.4 GHz Quad-Core Cortex A76 64-bit Processor |
| GPU | Raspberry Pi Compute Module 5, VideoCore VII |
| AI Processor | Hailo-8 M.2 Accelerator, 26 Tera-Operations Per Second (TOPS) |
| RAM | 8GB |
| eMMC | 32GB |
| Operating system | Raspbian, Debian |
| Power input | 9 V to 36 V DC, 2-pin screw connector |
| Video decoder | 4Kp60 HEVC decoder |
| Ethernet | 1x 10/100/1000 Mbps, RJ45 |
| USB | 2x USB 3.2 ports, USB Type-A; 1x USB 2.0 port, USB Type-C (for debugging and OS updates) |
| Display | 2x HDMI 2.0 ports |
| Audio | 1x 3.5mm audio jack |
| M.2 Slot | 1x PCIe 3.0 to M.2, M.2 M-key 2242 (occupied by Hailo-8 AI accelerator) |
| miniPCIe | 1x miniPCIe for 4G |
| SIM-Slot | 1x SIM card slot |
| LED | 3x LED (Power / ACT / 4G) |
| Button/Switch | 1x Reset Button; 1x Start Switch |
| Wireless connectivity | WiFi 2.4/5.0GHz, BLE 5.0, 4G LTE (optional) |
| Antenna | 3x antenna holes |
| Degree of protection | IP40 |
| Operating temperature | -20°C to 65°C |
| Working humidity | from 10% RH to 95% RH |
| Cooling | radiator with fan |
| Case | aluminum alloy housing with PC panels |
| Installation | on DIN rail / wall |
| Dimensions | 130 x 93 x 55.5 mm |
| Mass | 688g |
