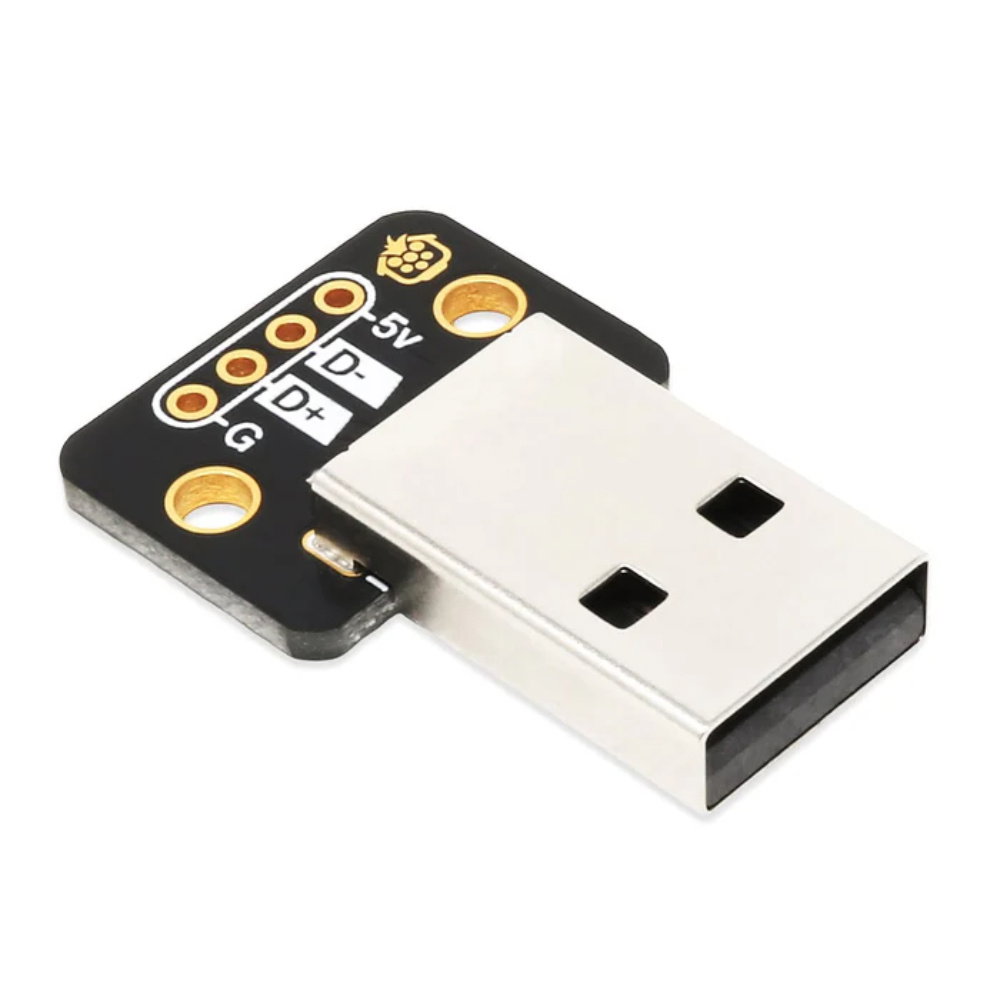

Product description Breakout module with USB A connector - 2.54 mm - horizontal - PiHut 106607
The module with a male USB Type-A connector allows for convenient power and data connections from any USB Type-A port . The board allows you to easily connect cables, goldpin headers, or prototype components to computers, power banks, USB chargers, Raspberry Pi , and other devices equipped with a standard USB-A connector. Each USB signal is routed to clearly marked 2.54mm pitch solder pads, significantly simplifying integration with breadboards, microcontrollers, and embedded projects . The module supports USB 2.0-compliant data transmission. The module is equipped with M2.5 mounting holes and a gold-plated ENIG coating for increased corrosion resistance and durability of electrical connections.
Technical specifications
- Connector type: USB Type A male
- Compatibility: Raspberry Pi, Arduino, embedded projects
- Connector orientation: horizontal
- Transmission standard: USB 2.0
- Pin pitch: 2.54 mm
- Number of pins: 4
- Output signals: 5 V, D+, D-, GND
- Additional soldering pads: yes
- Power Only Mode: Yes
- Possibility of connecting the screen to ground: yes
- Mounting holes: M2.5
- PCB coating: ENIG (gold plated)
- PCB material: FR4
- Plate dimensions: 20 x 15 mm
Contents of the set
- Breakout module
- 4-pin goldpin strip 2.54 mm
