Product description: LoRaWAN EU868 MHz module with antenna - Unit expansion module - M5Stack U184-EU868
The LoRaWAN Unit EU868 module is an advanced communication extension dedicated to IoT systems, based on the energy-saving STM32WLE5 microcontroller . It supports the European 868 MHz band and offers full compliance with the LoRaWAN 1.0.3 protocol (Class A, B, C), as well as point-to-point (P2P) communication mode. Thanks to very high reception sensitivity (up to -137 dBm) and the included stub antenna with a gain of 2.8 dBi , it ensures a stable transmission range even in difficult conditions. Communication with the module takes place via UART using AT commands. Small dimensions and compatibility with the LEGO system facilitate assembly in mobile and educational projects.

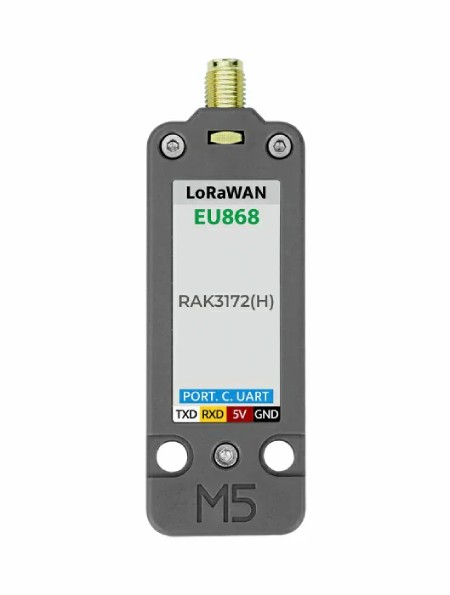

LoRaWAN EU868 MHz module with antenna - Unit expansion module - M5Stack U184-EU868.

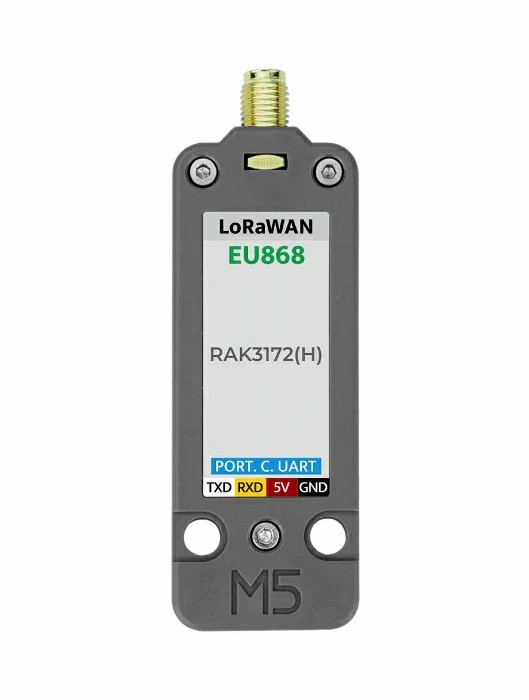

The module operates at a frequency of 868 MHz.
Main Features of the LoRaWAN EU868 MHz Module
- STM32WLE5 : 32-bit microcontroller with built-in LoRa radio, 256 KB Flash, 64 KB RAM
- EU868 MHz support : dedicated band for Europe and compatible regions
- Operating modes : LoRaWAN Class A, B, C and P2P communication
- High receiver sensitivity : up to -137 dBm, ensures stable reception over long distances
- Long transmission range : up to 2300 m (125 kb/s), 1300 m (500 kb/s)
- Built-in LoRaWAN stack : LoRaWAN 1.0.3 protocol compliant
- AT command support : configuration via UART, default 115200 b/s
- Low power consumption : sleep mode 28.6 microamps, standby mode 7.2 milliamperes
- High quality antenna : 2.8 dBi stub, 195 mm long, SMA connector
- Development Platforms : Arduino IDE, UIFlow 1.0 and 2.0
You will also find other M5Stack modules in our offer
Module connection and compatibility
The Unit LoRaWAN EU868 module communicates with the master system via the UART interface , configured by default to a speed of 115200 b/s. It supports a set of AT commands that allow for full configuration of transmission parameters and operating modes. The set includes a Grove cable , allowing for easy connection to other M5Stack modules or external microcontrollers. The module is compatible with Arduino IDE, UIFlow 1.0 and 2.0 platforms, which makes it easy to integrate with existing educational, prototyping and commercial projects.
Module Applications
The LoRaWAN Unit EU868 module is used in projects that require long-range communication and energy-efficient data transmission . It is perfect as:
- Smart Farming Data Collection Node
- Environmental sensor in air and water quality monitoring systems
- Data transfer module in industrial networks
- Element of home or city automation systems
Thanks to UART communication and wide support for development platforms, it is also ideal for educational and prototyping applications.

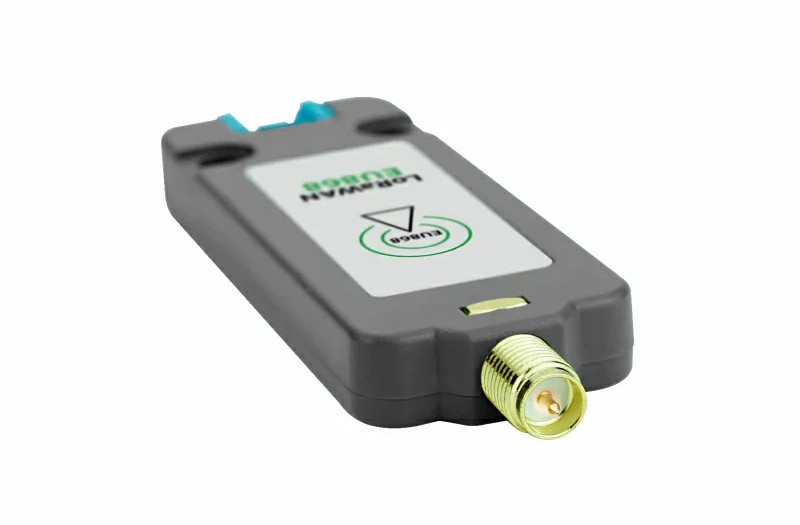

The module is equipped with a connector for an external SMA antenna.

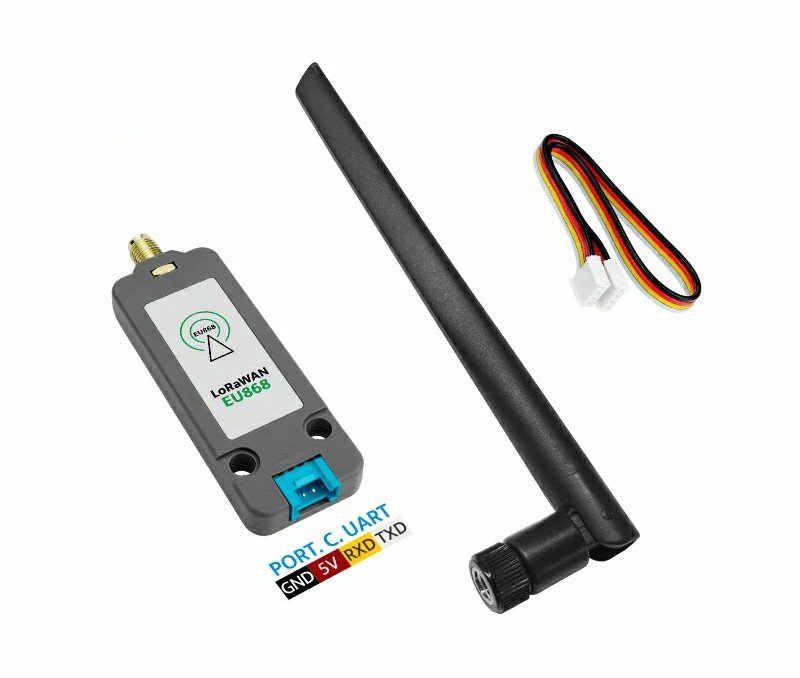

Items included in the set.
Technical specification of the LoRaWAN EU868 MHz module
- Processor: STM32WLE5 (256 kB Flash, 64 kB RAM)
- Operating frequency: 868 MHz to 870 MHz
- Operating modes: LoRaWAN Class A, B, C and P2P
- Receiver sensitivity: -137 dBm
- Transmission range: up to 2300 m at 125 kbps, 1300 m at 500 kbps
- Activation modes: OTAA, ABP
- Communication interface: UART, default 115200 b/s, AT commands
- Power consumption:
- Standby mode: 7.23 mA
- Sleep mode: 28.61 microamps
- Data reception (125 kbps): 8.43 mA
- Data transmission (125 kbps): 117.16 mA
- Supply voltage: 5V DC
- Operating temperature: 0°C to 40°C
- Dimensions: 71.4 x 24 x 8 mm
- Weight: 31.9 g
Kit Contents
- 1x Unit LoRaWAN EU868 Module (STM32WLE5)
- 1x Grove Cable 20cm long
- 1x Antenna stub 2.8 dBi (195 mm, SMA connector)
