Gravity - I2C hub splitter - 8 ports - DFRobot DFR0759

Index: DFR-19018 EAN: 5904422361549
I2C hub splitter allows to connect several modules and peripherals to one I2C connector. Thanks to DFR0759 hub you have possibility to connect up to 8 Gravity series sensors to one socket of main controller. Dimensions of the product are 27 x 37 mm. The set includes also dedicated connection cable.
€1.52
€1.23 tax excl.

Available
(Check quantity)
Shipping in 24 hours
30-day returns
PayPal payment
Manufacturer: DFRobot

Product description: Gravity - I2C hub splitter - 8 ports - DFRobot DFR0759

I2Chubsplitterallows you to connect several modules and peripherals to a single I2C connector. With the DFR0759 hub you have the possibility to connectup to 8Gravity seriessensorsto one slot of the main controller. Dimensions of the product are27 x 37 mm. The set includes also dedicatedconnection cable.

In our offer you will also find other modules ofGravityseries.

Moduł serii Gravity - 8-portowy rozgałęźnik hub I2C wyprodukowany przez DFRobot.

Gravity series module - 8-port I2C hub splitter manufactured by DFRobot.

Do zestawu dołączono także dedykowany przewód połączeniowy zgodny z systemem Gravity.

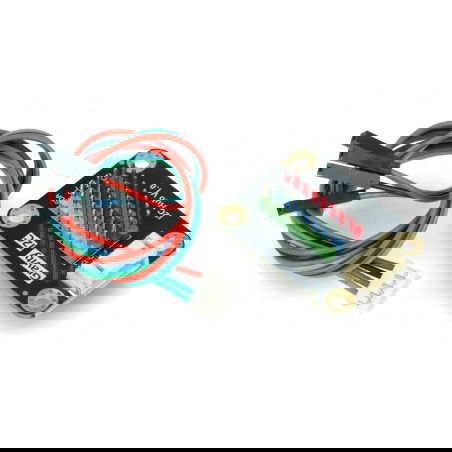

The set also includes a dedicated connection cable compatible with Gravity system.

Technical specification

  • Connector standard: Gravity
  • Module: I2C bus splitter for Gravity modules
  • Number of ports: 8
  • Pinouts:
    • SDA - I2C bus data line
    • SCL - I2C bus clock line
    • GND - system ground
    • VCC - module power supply
  • Dimensions: 27 x 37 mm
  • Weight: 17 g

Set contents

  • Gravity: I2C Hub
  • Gravity 4-pin I2C / UART connection cable
Sensor - type Hub / nakładka
