Product description: DFRobot Gravity - sensor connection cable for Arduino - 4-pin - I2C / UART - 50 cm - 10 pcs. - FIT0773
Connectioncable equipped withGravityseries connector. Produced byDFRobot, it's designed to connect the sensor to the main module - Arduino. It supports two most popular communication interfaces -I2Cbus andUARTprotocol. The maximum voltage should not exceed50 Vand the current should not exceed 1000 mA. The set includes 10 pieces ofcable.
Components sold in packs of 10 pieces.

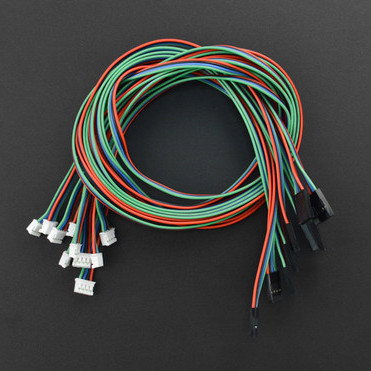

Gravity - sensor to Arduino connection cable - 4-pin - I2C / UART.
Pinout description
- I2C bus:
- red wire: power line - VCC
- black wire: ground line - GND
- Blue wire: Bus clock line - SCL
- green wire: bus data line - SDA
- UART bus:
- red wire: power supply line - VCC
- black wire: system ground - GND
- Blue wire: TX
- green wire: RX

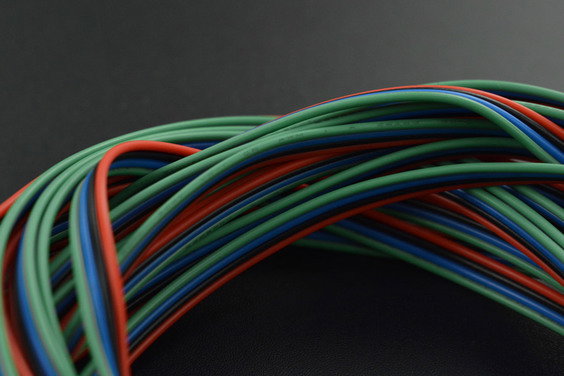

Technical specification of the cable
- Type: sensor connection cable
- Purpose: for Arduino
- Connector type:
- connector one: Gravity
- second connector: 4-pin JST female plug
- Interfaces supported: I2C bus / UART
- Maximum voltage: < 50 V
- Maximum current (current): < 1000 mA
- Cable length: 50 cm
- Pin Raster: 2.54 mm
- Number of pieces per set: 10 pieces
Gravity connector significantly improves the connection of peripheral devices with main modules.
