Product description: DFRobot Gravity - connection cable - for digital sensors to Arduino - 3-pin - 50 cm - 10 pcs. - FIT0756

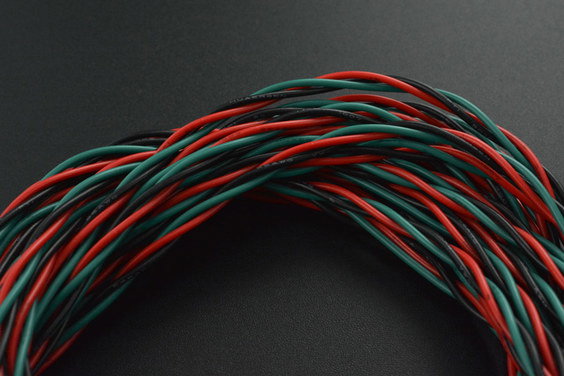

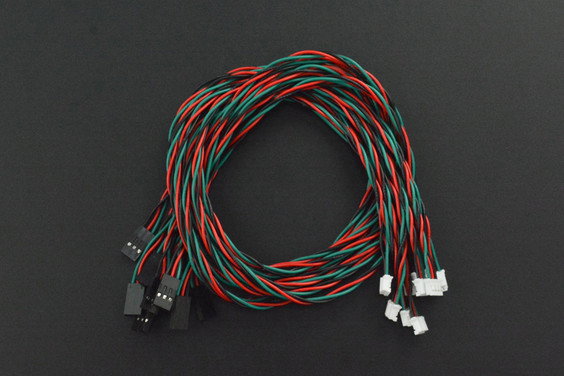

Connectioncable withGravityseries connector, manufactured byDFRobot. Designed to connectdigitalperipherals (sensors) equipped with Gravity connector to the controller module - Arduino. Maximum voltage should not exceed50Vand current should not exceed 1000mA. The set includes10 piecesof50cmlongcable.
Components sold in packs of 10 pieces.
Gravity - connection cable - for digital sensors to Arduino - 3-pin.
Gravity standard
Connection cable, which is equipped with connector compliant withGravitystandard significantly improves the process of connecting peripheral devices with controller module. Cables of this type are an ideal connection solution, willingly used in widely understood projects of home automation, building automation, robots, industrial applications and many others.
Technical specification of the cable
- Type: sensor connection cable
- Application: for Arduino
- Cable standard: Gravity
- Cable type: digital
- Maximum voltage: < 50 V
- Maximum current: < 1000 mA
- Number of pins: 3
- Connector type:
- Connector 1: 3-pin JST
- connector 2: Gravity
- Pinout Description:
- red: power supply - VCC
- black: system ground - GND
- green: signal - Signal
- Number of pieces in the set: 10
- Cable length: 50 cm
- Number of pieces in the set: 10 pieces
Gravity connector significantly improves the connection of peripheral devices with main modules.
