Gravity - I2C/UART connection cable set - PH2.0-female - 30cm - 5pcs - DFRobot FIT0916-F
The kit includes 5 pieces of 30 cm long connection cables from DFRobot. On one side they are terminated with a female PH2.0 connector compliant with the Gravity standard, on the other with a female connector with a pitch of 2.54 mm. The cable consists of four wires corresponding to the power, ground and signal lines for I2C and UART .
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: Gravity - set of I2C/UART connection cables - PH2.0-female - 30 cm - 5 pcs - DFRobot FIT0916-F
The set includes 5 pieces of 30 cm long connection cables from DFRobot . On one side they are terminated with a female PH2.0 connector compliant with the Gravity standard , on the other with a female connector with a pitch of 2.54 mm. The cable consists of four wires corresponding to the power, ground and signal lines for I2C and UART . Each of them is signed, which makes it easy to distinguish them. The wires are designed to be connected peripheral devices (applies to sensors equipped with the Gravity connector) with an Arduino -type microcontroller. They are made of high-quality materials and are characterized by high durability.

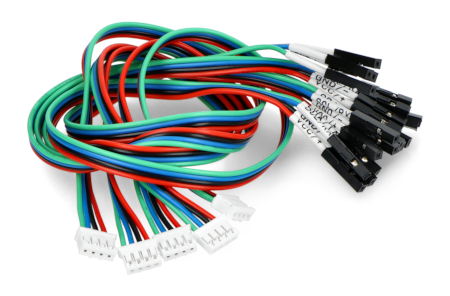

Gravity - set of I2C/UART-PH2.0-female connecting cables.
Botland is an official distributor of DFRobot open-source hardware. Every roboticist and practitioner of emerging technology has heard at least once of DFRobot solutions, built above all around Arduino. Our range holds original DFRobot products only.
The cables are made of high-quality materials.
Pin description
- I2C:
- Red - VCC (power)
- Black - GND (ground)
- Blue - SCL (clock line)
- Green - SDA (data line)
- UART
- Red - VCC (power)
- Black - GND (ground)
- Blue - TX (transmitter)
- Green - RX (receiver)
Technical specification of I2C/UART connection cables
- Cord Standard: Gravity
- Maximum voltage: < 50V
- Maximum current: < 1000mA
- Number of pins: 4
- Type: female-female
- Pitch: 2.54mm
- Cord length: 30 cm
- Number of pieces in the set: 5 pcs.
Each strand has a label indicating its function.
Useful links
| Name | Value |
|---|---|
| Cable - type | connection |
| Cable - Standard | f-f |
| Cable length | 0.3 m |
| Width | 10 cm |
| Height | 15 cm |
| Depth | 2 cm |
| Weight | 0.025 kg |
